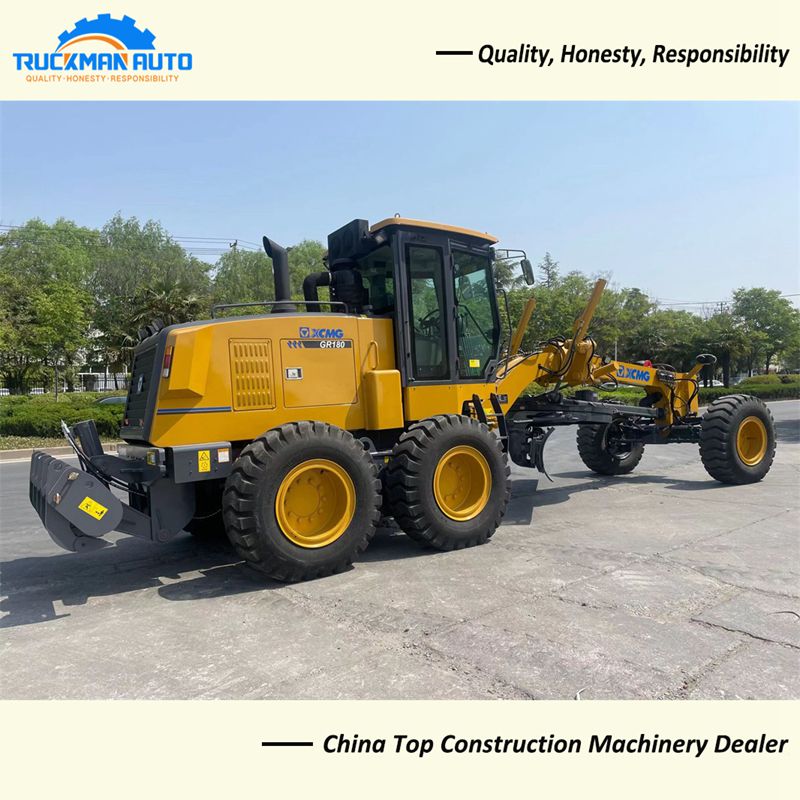

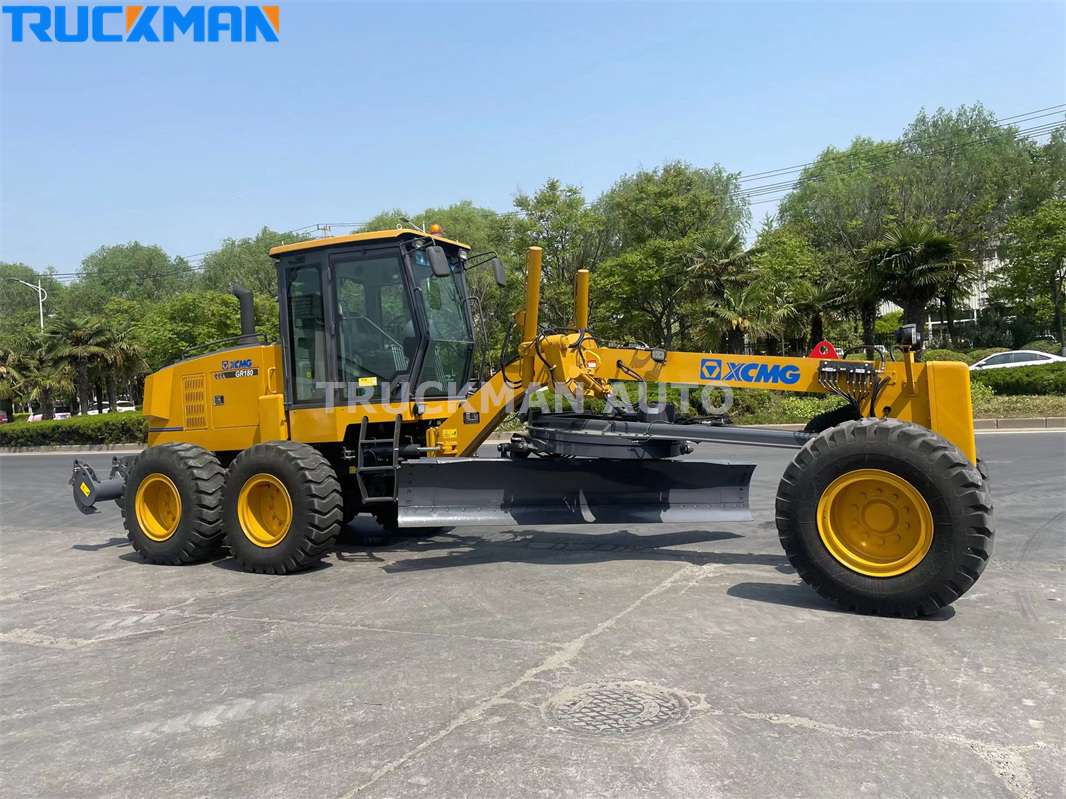

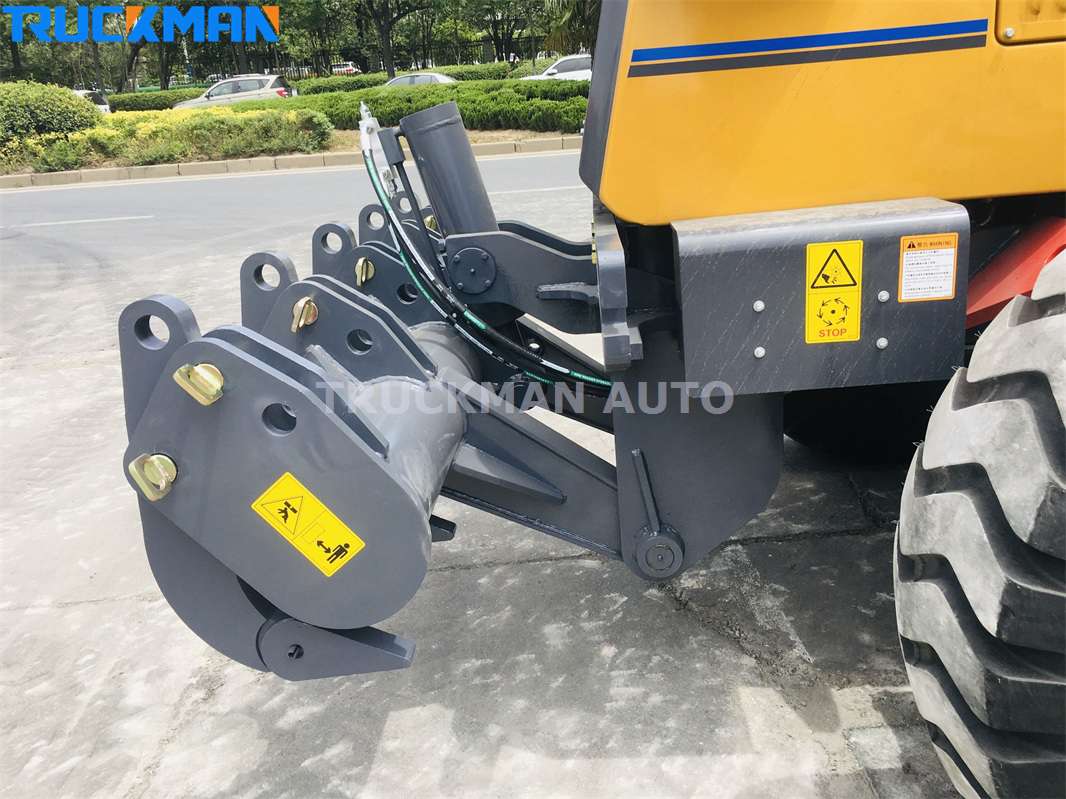

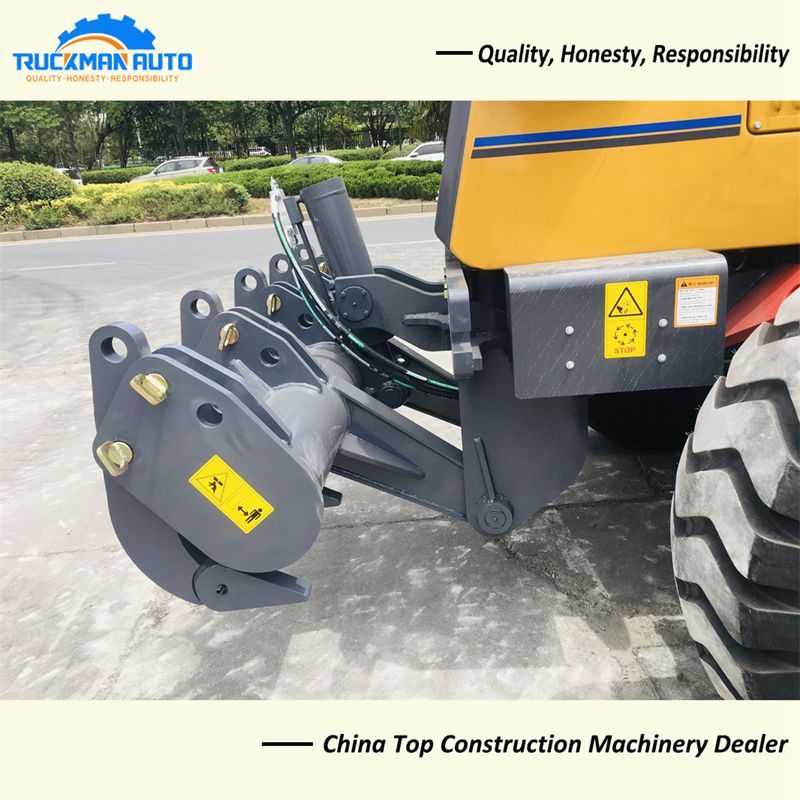

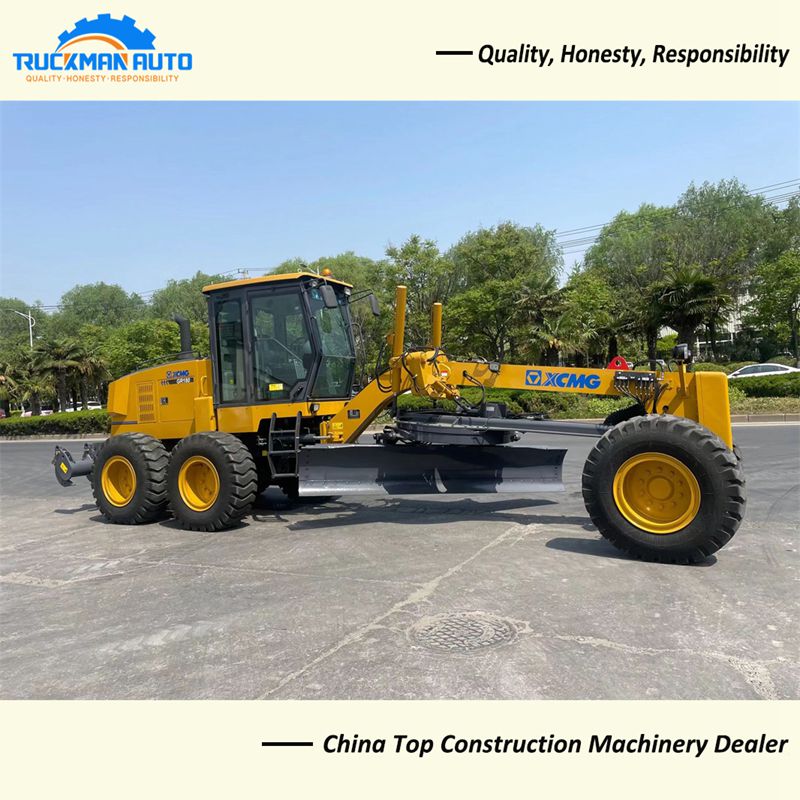

XCMG GR180 Motor Grader With Front Blade Rear Ripper
XCMG GR180 Motor Grader Information
Adopt Cummins brand engine, ZF technology transmission, and XCMG special drive axle achieve more reasonable and reliable power matching of drive system. The XCMG’s special enhanced working device is applied.
-. The blade can 360° slewing, cutting angle around 28-70°, maximum shoveling depth reach to 500mm.
-. The XCMG GR180 motor grader double-circuit hydraulic brake system is applied to realize more reliable and stable braking.
XCMG GR180 Motor Grader Specification
|
Description |
Parameter Value |
|
Product Name |
XCMG GR180 Motor Grader |
|
Application |
Used for bulldozing, scarifying other work |
|
Total Weight |
15,400kg |
|
Engine |
6CTA8.3-C190- II, Cummins brand |
|
Minimum Turning Radius |
7300mm |
|
Gearbox |
6 forward and 3 reverse gear |
|
Tire |
17.5-25 |
|
Maximum Shoveling Depth |
500mm |
|
Maximum Lifting Height |
450mm |
|
Ground Clearance |
430mm |
|
Fuel Tank |
280L |
|
Dimension |
8900x2625x3450mm |
The XCMG GR180 motor grader specification only for your reference, we will recommend other model XCMG motor grader basic your request.
XCMG GR180 Motor Grader Advantage
The XCMG motor grader operation is very flexible, the technology is mature and cost-effective, the value retention rate is high, the service life is relatively long, the leveling efficiency is relatively high, the full hydraulic control of the blade is relatively accurate, and the after-sales service is timely.
