Cheaper Price ! XS183J XCMG 18 Ton Vibratory Compactor
-1. XS183J XCMG 18 Ton Vibratory Compactor Information.
The XS183J XCMG 18 ton vibratory compactor mainly used for the road, mining, engineering work. The engine power reach to 115kw, and with high durable low maintenance cost etc advantage. The compact width is 2300mm, with fast compact speed, confirm the engineering time.
|
Type |
Unit |
XS183J |
|
Operating weight |
kg |
18000 |
|
Load applied on front drum |
kg |
9000 |
|
Compacting width |
mm |
2300 |
|
Static linear load |
N/cm |
422 |
|
Vibration frequency(Low/High) |
Hz |
28 |
|
Nominal amplitude(High/Low) |
mm |
1.9/0.95 |
|
Exiting force(High/Low) |
KN |
320/160 |
|
Travel speed |
km/h |
2.54~10.51 |
|
Steering angle |
° |
±33 |
|
Swing angle |
° |
±11 |
|
Theoretical gradeability |
% |
30 |
|
Min. Outer turning radius |
mm |
6500 |
|
Engine model |
|
Shangchai |
|
Engine power |
kw |
115 |
|
Hydraulic oil tank capacity |
L |
170 |
|
Fuel tank capacity |
L |
310 |

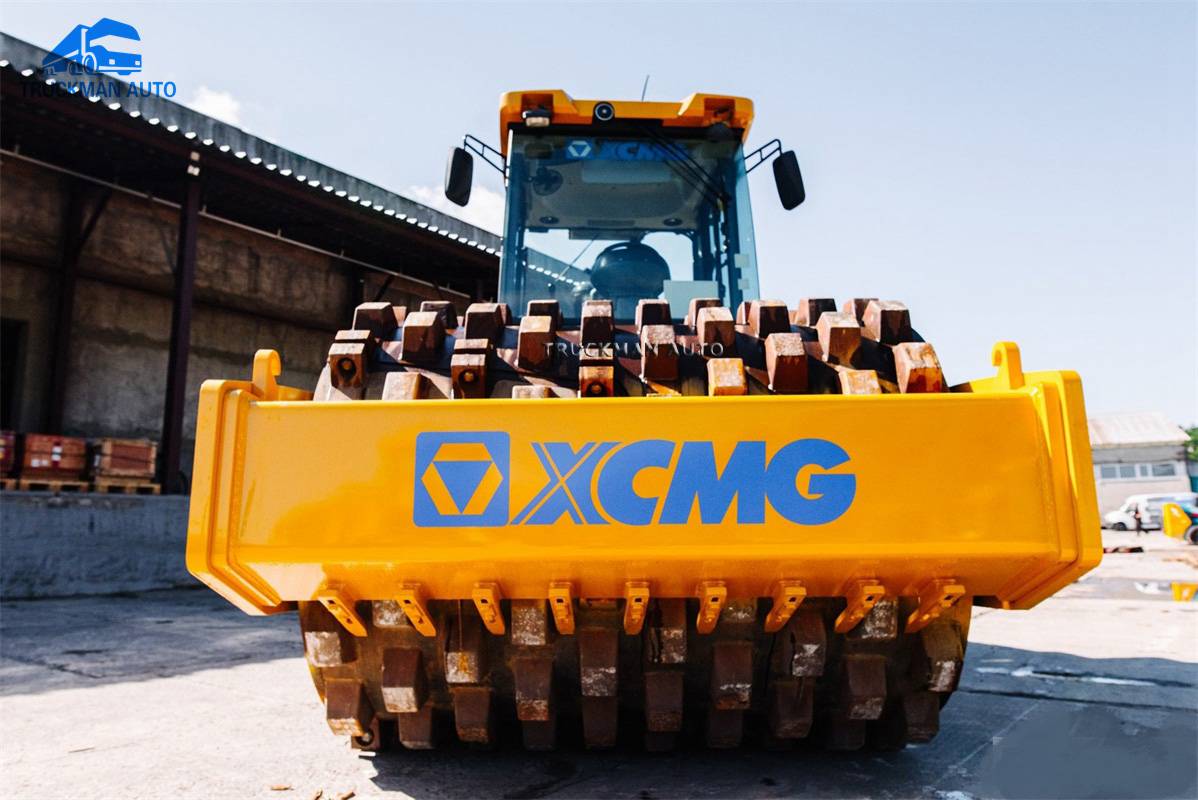

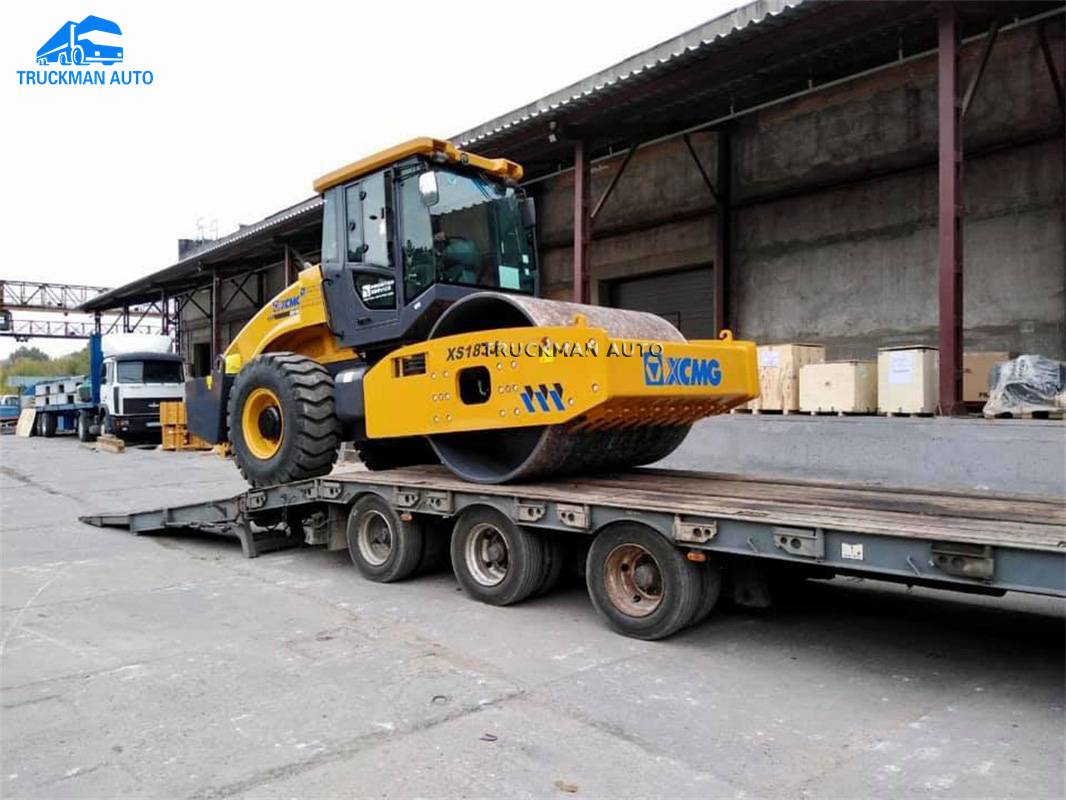

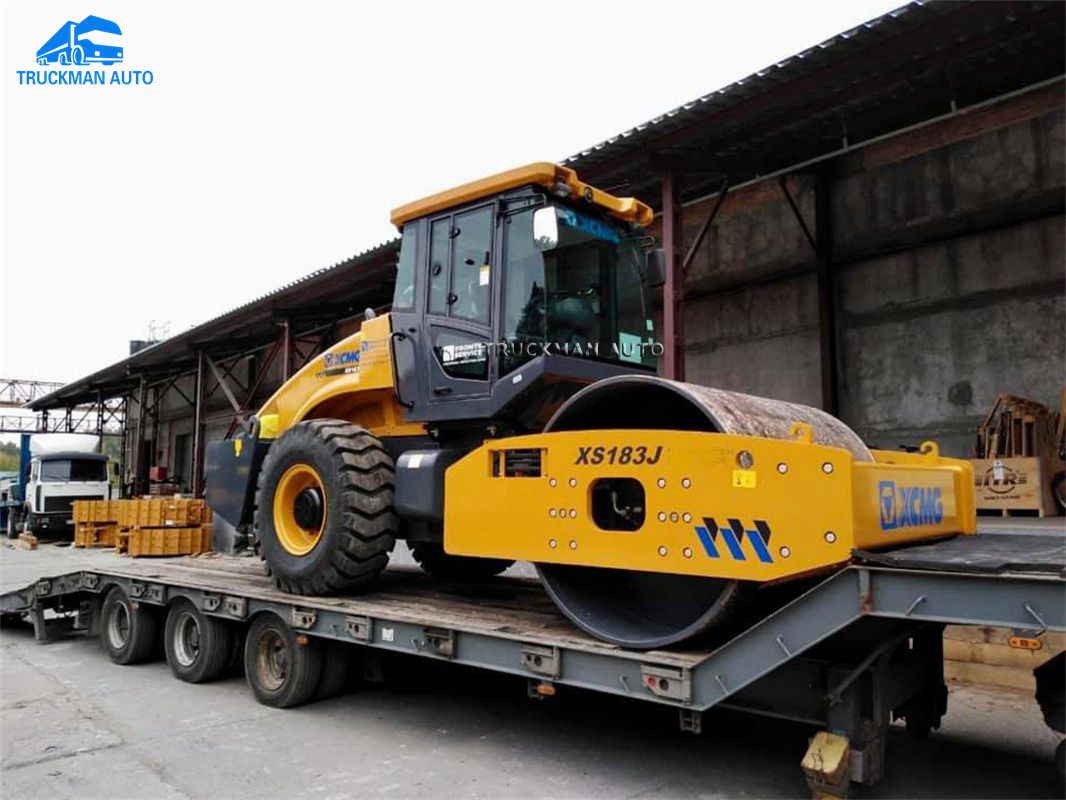

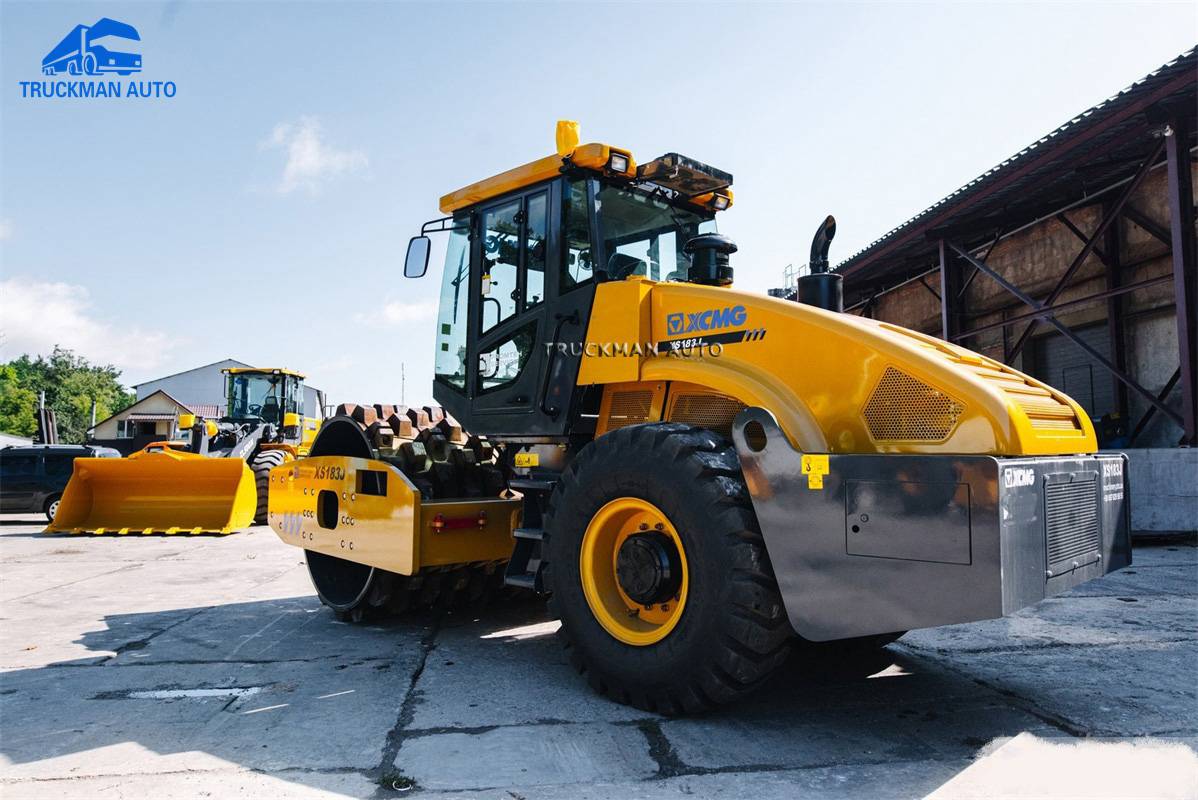

-2. XS183J XCMG 18 Ton Vibratory Compactor Detail Picture.

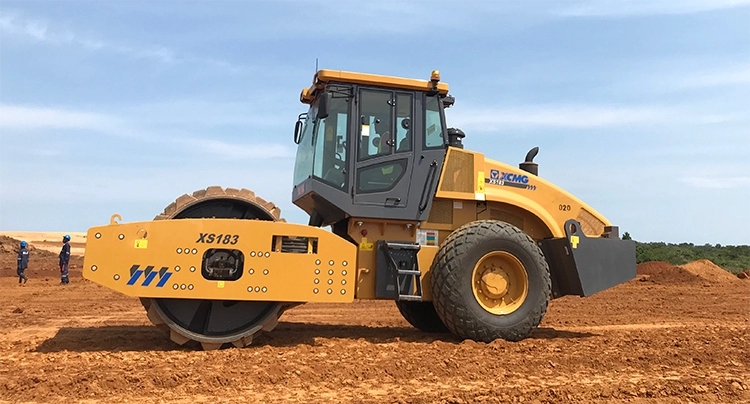

XCMG also have the full hydraulic model vibratory compactor, the model number is XS183. The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer’s needs. Engine adopt the DEUTZ tech and tire pattern also more suitable for road compactor, It is fully update for XCMG XS183J 18 tons vibratory compactor.
