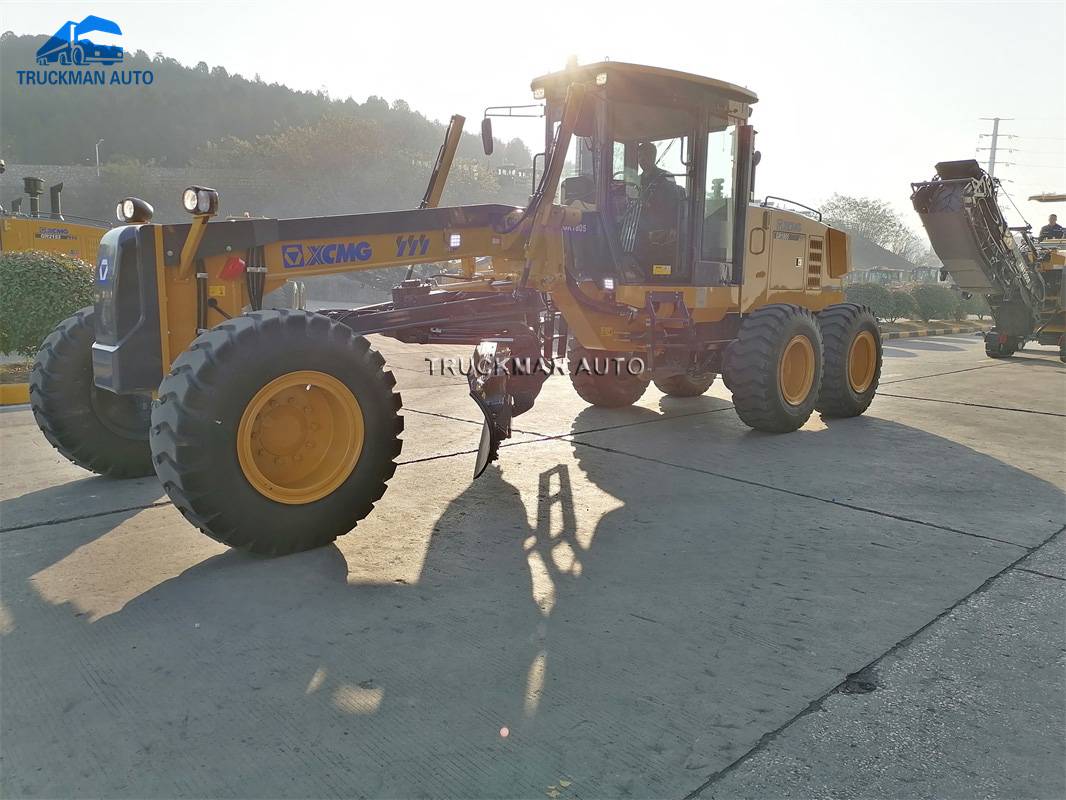

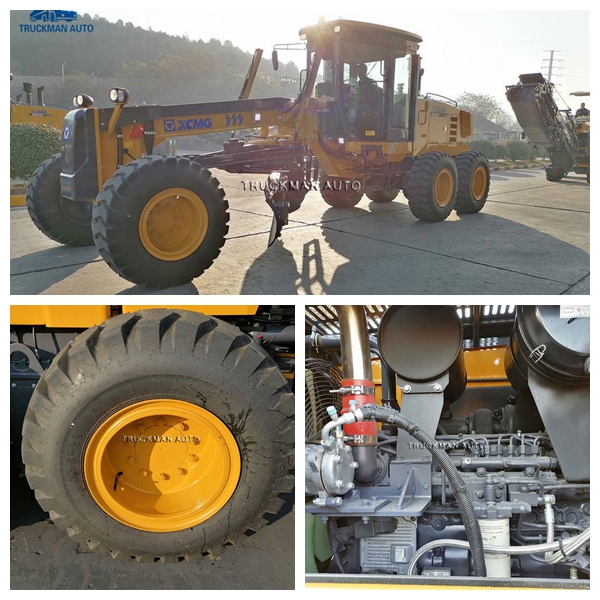

Brand New XCMG GR215 Motor Grader For Sale
-1. XCMG GR215 Motor Grader Information.
The XCMG GR215 motor grader could used for the road, mining etc construction, the engine have two brand could optional, SHANGCHAI and CUMMINS. Also could choose the front mouldboard, rear scarifier, shovel blade. XCMG GR215 motor grader sales volume is NO.1 in China, with durable quality and very fast after sales service.
|
Item |
GR215 |
||
|
Basic parameters |
Engine model |
6CTA8.3-C215 |
|
|
Rated power/speed |
160kW/2200rpm |
||
|
Overall dimension (standard) |
8970x2625x3420 |
||
|
Total weight (standard) |
16500 kg |
||
|

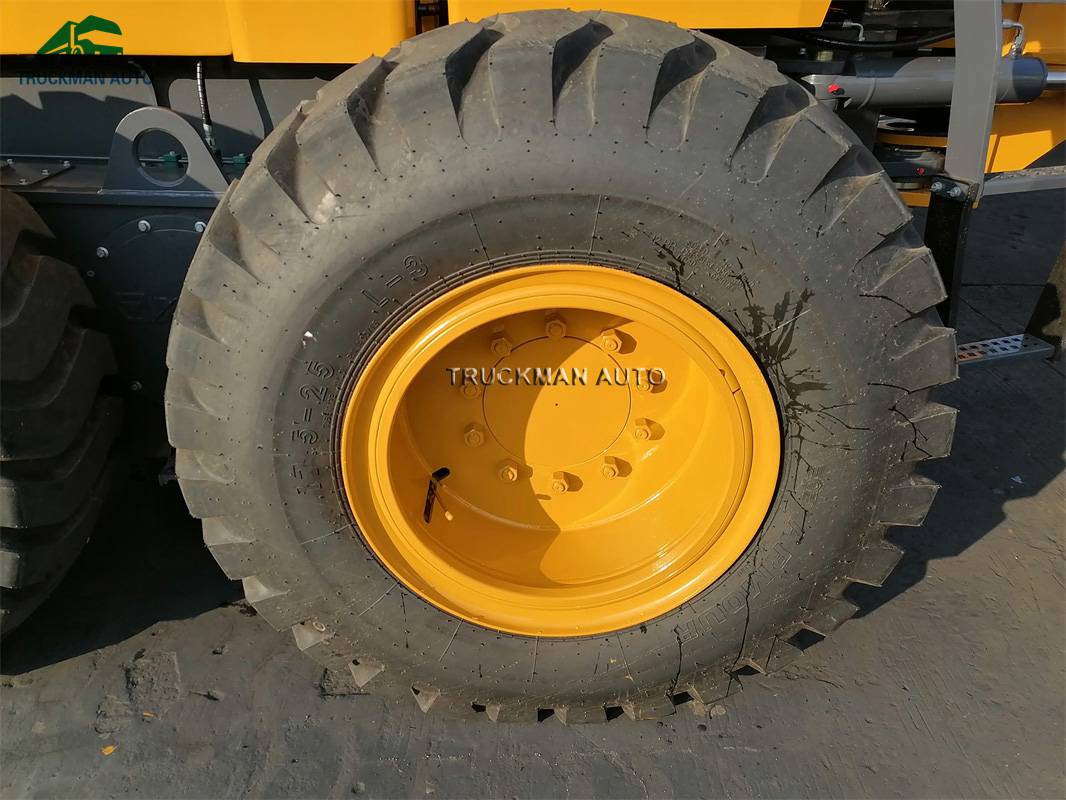

Tire specification |
17.5-25 |
||
|
Ground clearance (front axle) |
430mm |
||
|
Space of front and rear axles |
6219 mm |
||
|
Space of middle and rear wheels |
1538 mm |
||
|
Performance |
Forward velocity |
5,8,11,19,23,38km/h |
|
|
Reverse speed |
5,11,23km/h |
||
|
Tractive effort f=0.75 |
87 kN |
||
|
Maximum gradeability |
20% |
||
|
Tire inflation pressure |
260kPa |
||
|
Working system pressure |
16MPa |
||
|
Transmission pressure |
1.3—1.8Mpa |
||
|
Working parameters |
Maximum steering angle of front wheel |
±50° |
|
|
Maximum slant angle of front wheel |
±17° |
||
|
Maximum oscillating angle of front axle |
±15° |
||
|
Maximum oscillating angle of equilibrium box |
forwards15°, Reverse15° |
||
|
Maximum steering angle of frame |
±27° |
||
|
Minimum turning radius |
7.3m |
||
|

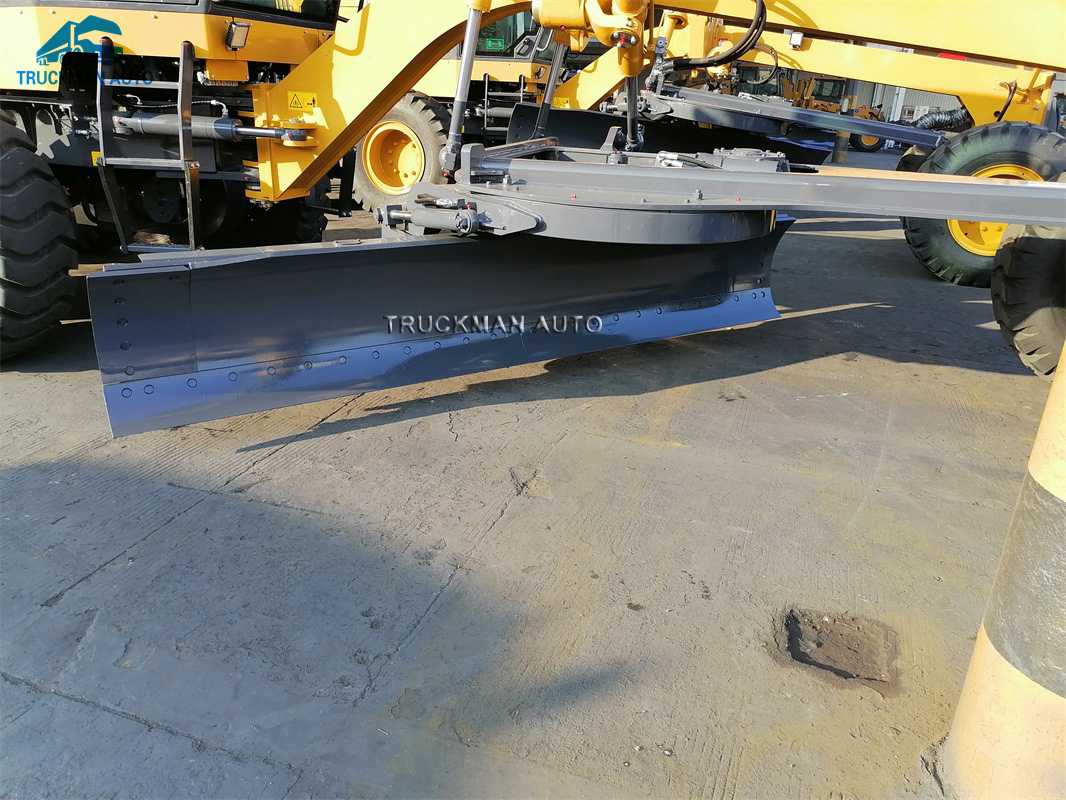

Scrape knife |
Maximum lift height |
450mm |
|
|
Maximum cutting depth |
500mm |
||
|
Maximum tilt angle |
90° |
||
|
Cutting angle |
28°—70° |
||
|
Angle of revolution |
360° |
||
|
Length & chord height |
4270x610mm |
||
|
Oil filling amount |
Coolant |
50L |
|
|
Fuel tank |
280L |
||
|
Engine |
24L |
||
|
Transmission |
38L |
||
|
Equilibrium box |
46L |
||
|
Coolant |
28L |
||
|
Hydraulic oil |
110L |
||
-2. XCMG GR215 Motor Grader Main Advantage.

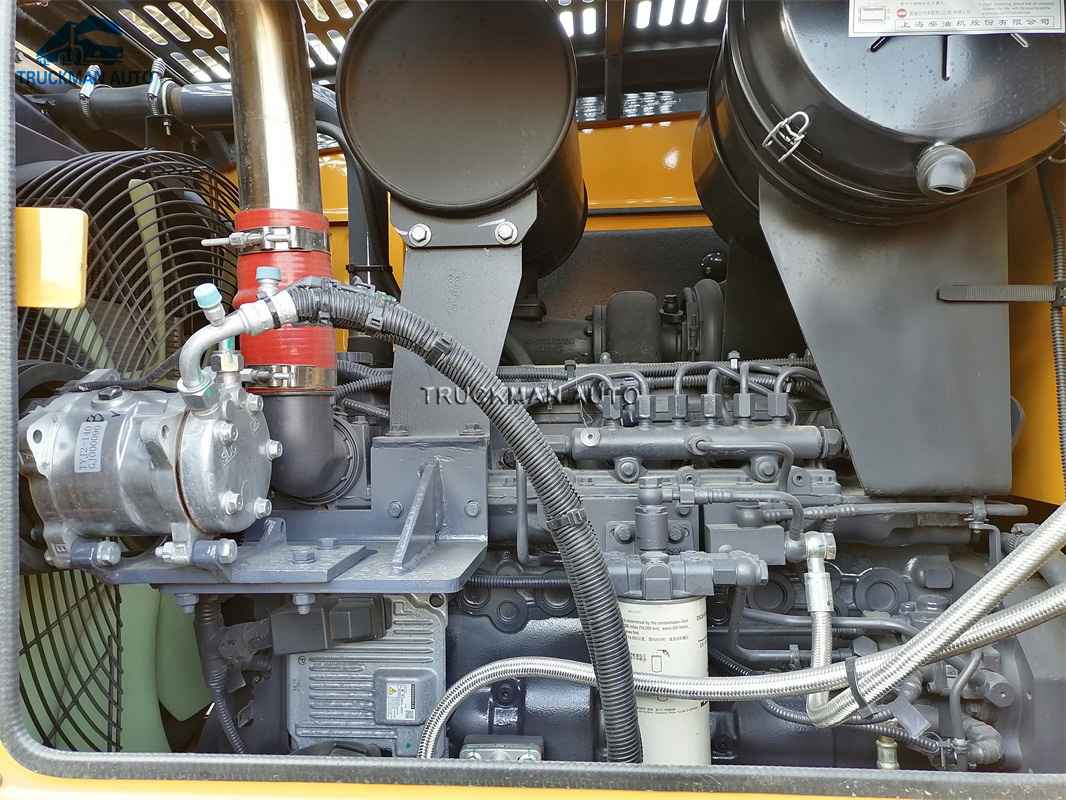

Dongfeng cummins engine, ZF technology gearbox and Meritor drive axle make the dynamic matching of transmission system more reasonable and reliable.
Take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise of the cab.
The double-circuit hydraulic brake system is applied to realize more reliable and stable braking.
