XCMG XS143J 14 Tons Road Roller

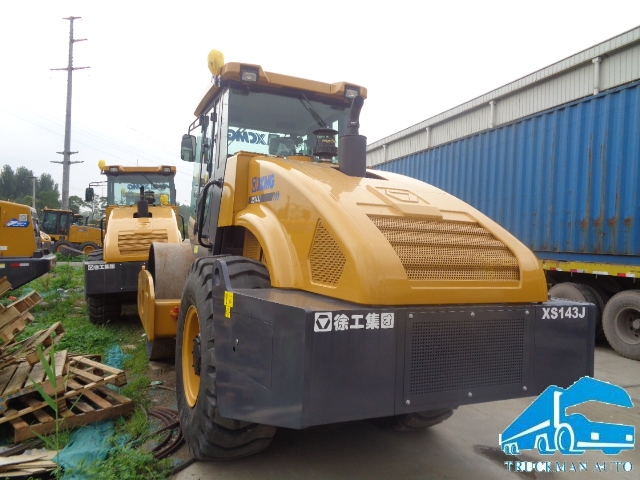

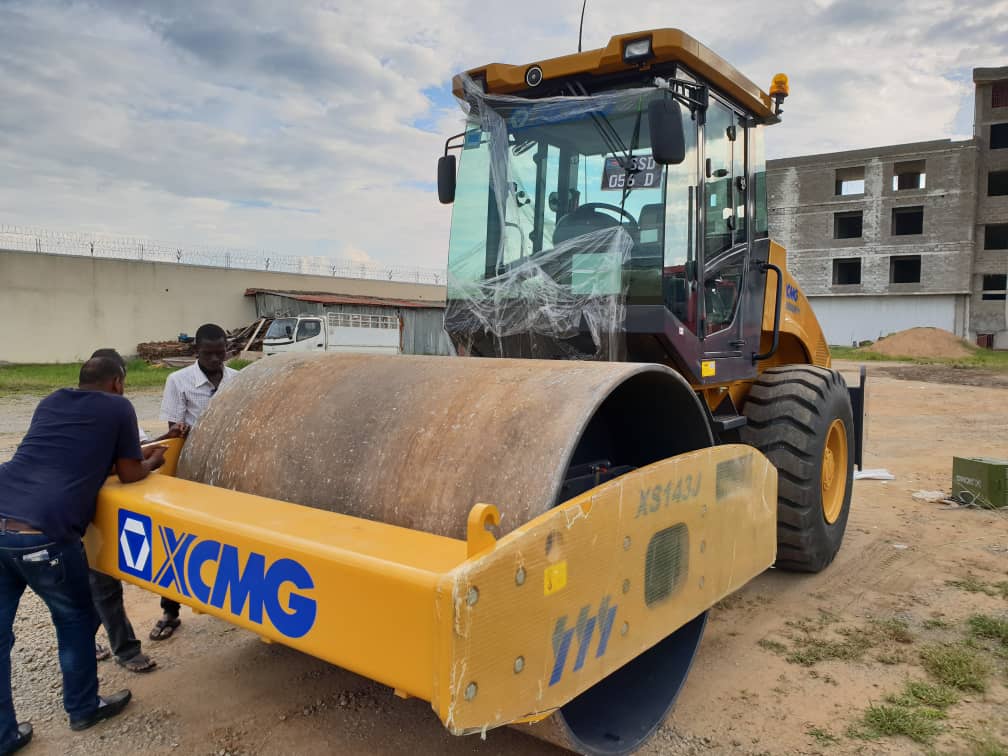

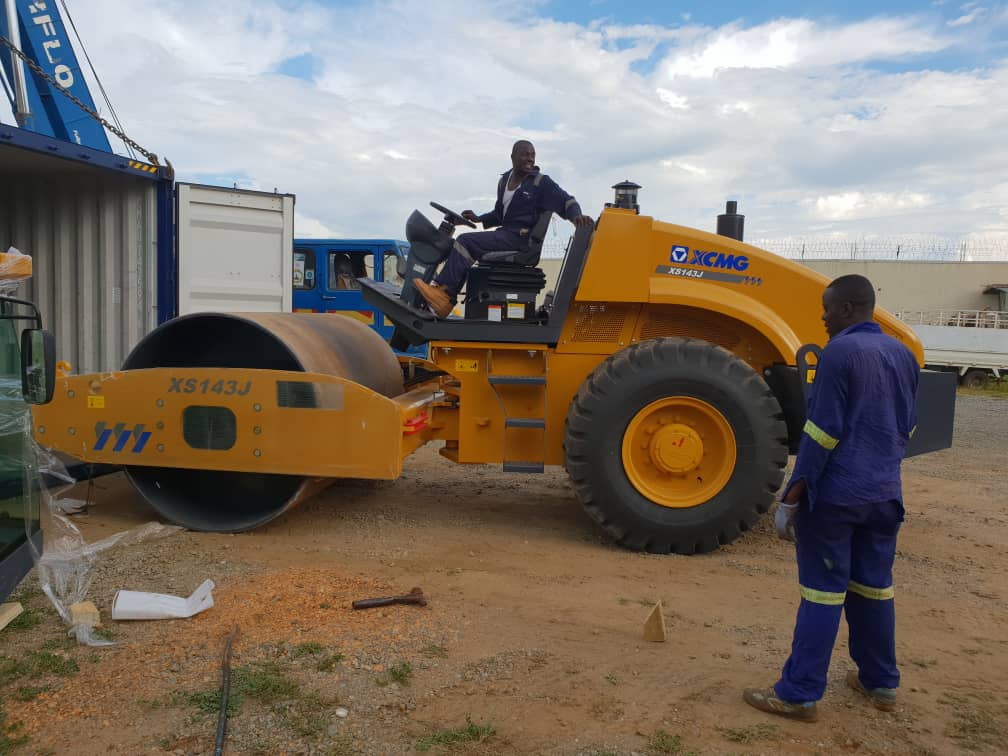

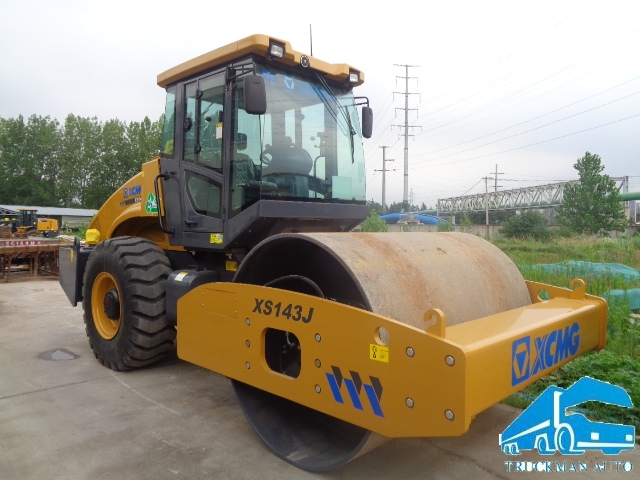

Last month we send 3 units XCMG brand XS143J road roller, and the vessel already arrived at destination port, share some our customer received road roller picture here, as follow:
The specification of the road roller as follow:
|
Description |
Parameter |
Unit |
|
Operating weight |
14000 |
kg |
|
Distributed mass of driving wheel |
7300 |
kg |
|
Distributed mass of vibrating drum |
6700 |
kg |
|
Static linear load |
315 |
N/cm |
|
Vibration frequency |
28/33 |
Hz |
|
Theoretical amplitude |
1.9/0.95 |
mm |
|
Cenerifugal force |
274/190 |
kN |
|
Wheelbase |
3040 |
mm |
|
Compacting width |
2130 |
mm |
|
Theoretical gradeability |
30 |
% |
|
Minimum ground clearance |
6800 |
mm |
|
External dimension(length*width*height) |
6010*2300*3200 |
mm |
|
Pressure of vibration system |
18 |
MPa |
|
Pressure of steering system |
16 |
MPa |
