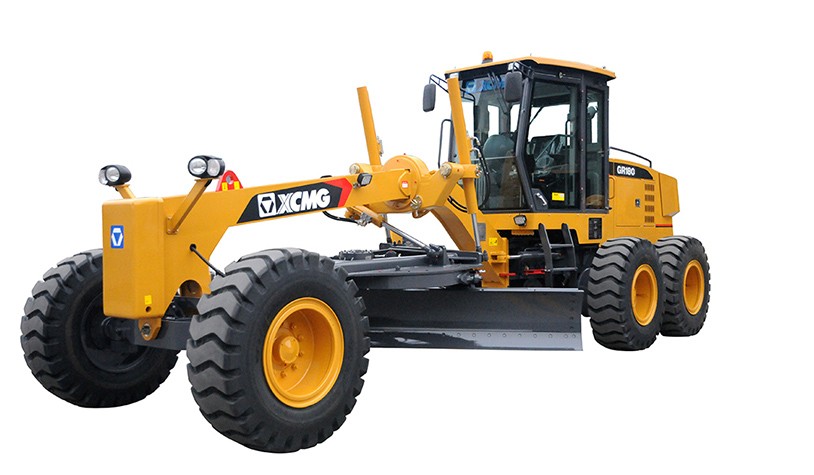

XCMG GR180 190HP Motor Grader
-1. XCMG GR180 Motor Grader Main Specification
1. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
2. The drive axle is a dedicated XCMG axle.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
|
Description |
Unit |
Parameter value |
|
Engine model |
|
6CTA8.3-C190 |
|
Rated power/speed |
|
142(2200)Kw(r/min) |
|
Overall dimension (standard) |
|
8901X2625X3420 |
|
Total weight (standard) |
kg |
15400 |
|
Tire specification |
|
17.5-25 |
|
Ground clearance (front axle) |
mm |
430 |
|
Tread |
mm |
2156 |
|
Space of front and rear axles |
mm |
6219 |
|
Forward velocity |
km/h |
5/8/11/19/23/38 |
|
Reverse speed |
km/h |
5/13/30 |
|
Tractive effort f=0.75 |
kN |
79 |
|
Maximum gradeability |
% |
25 |
|
Tire inflation pressure |
kPa |
260 |
|
Working system pressure |
mPa |
18 |
|
Transmission pressure |
mPa |
1.3—1.8 |
|
Maximum steering angle of front wheel |
|
±50° |
|
Maximum slant angle of front wheel |
|
±17° |
|
Maximum oscillating angle of front axle |
|
±15° |
|
Maximum oscillating angle of equilibrium box |
|
±16° |
|
Maximum steering angle of frame |
|
±20° |
|
Minimum turning radius |
m |
7.3 |

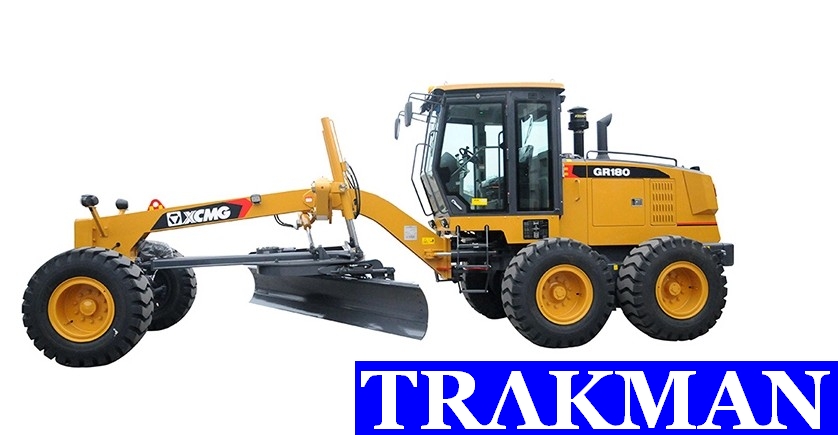

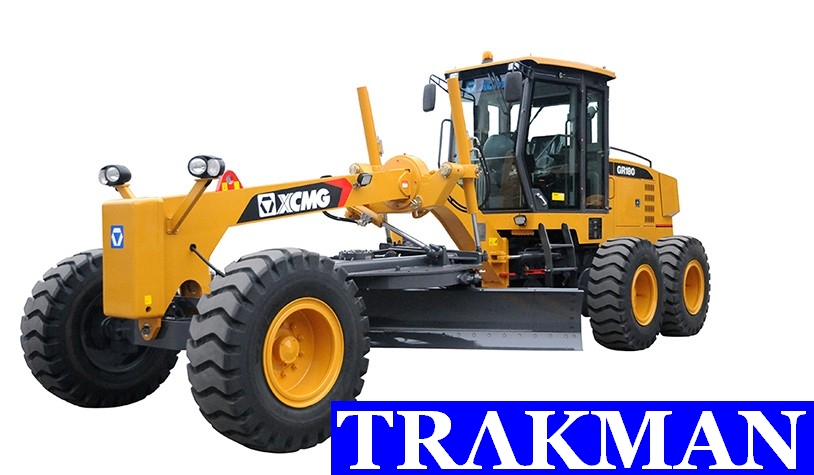

-2. Picture For Reference.

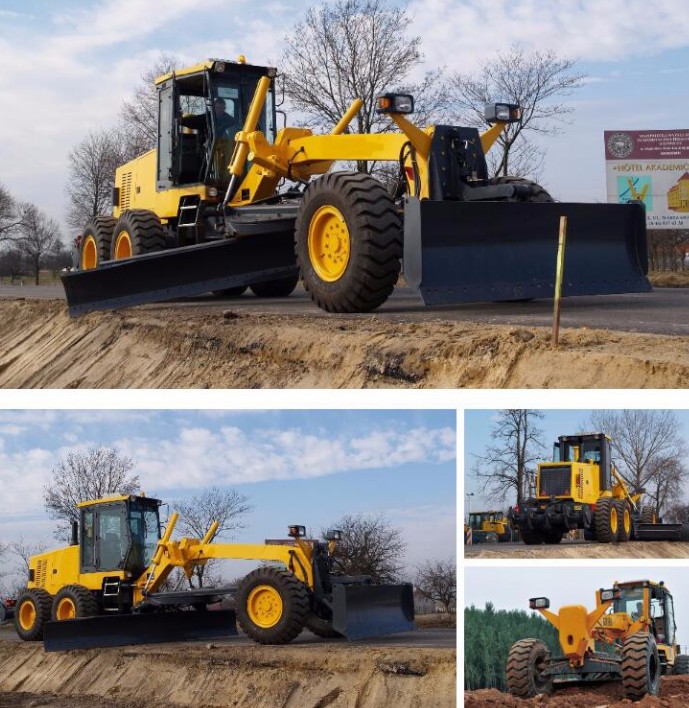

-3 Detail Picture

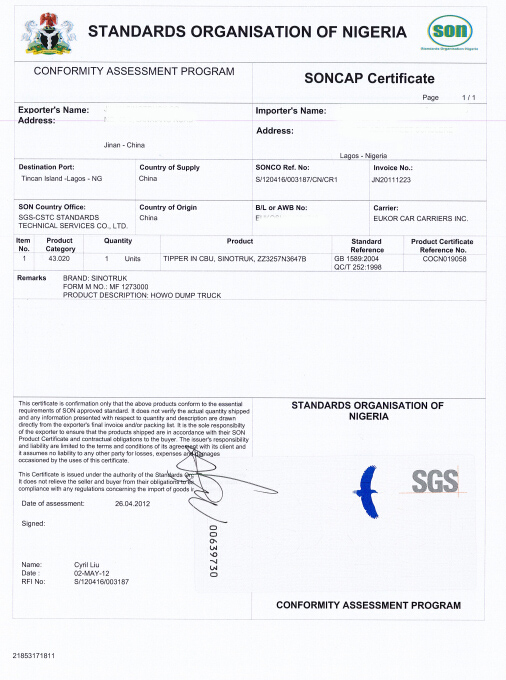

-4. Certificate For Machinery.
Our machinery now can meet the SGS, BV, FORM E, SONCAP, CTN, CO, ADR, CIQ, GCC certificate, we also can help you handle it.
