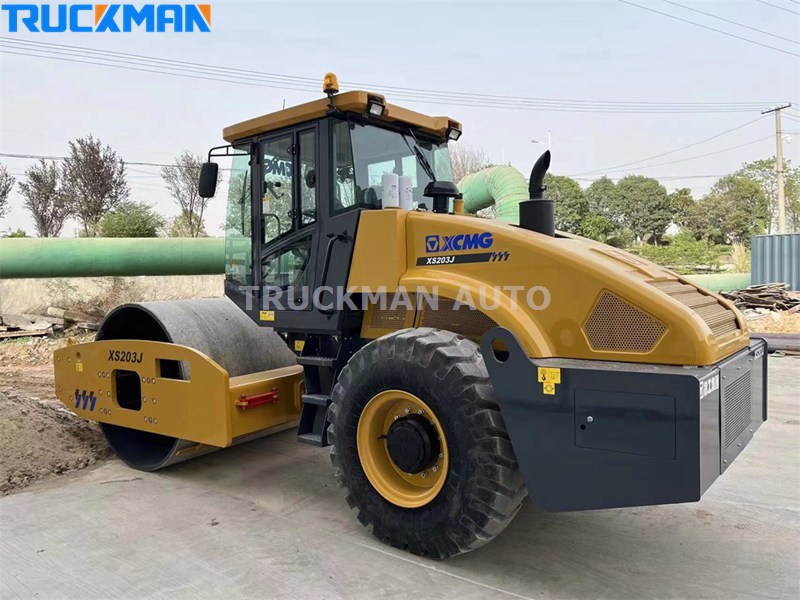

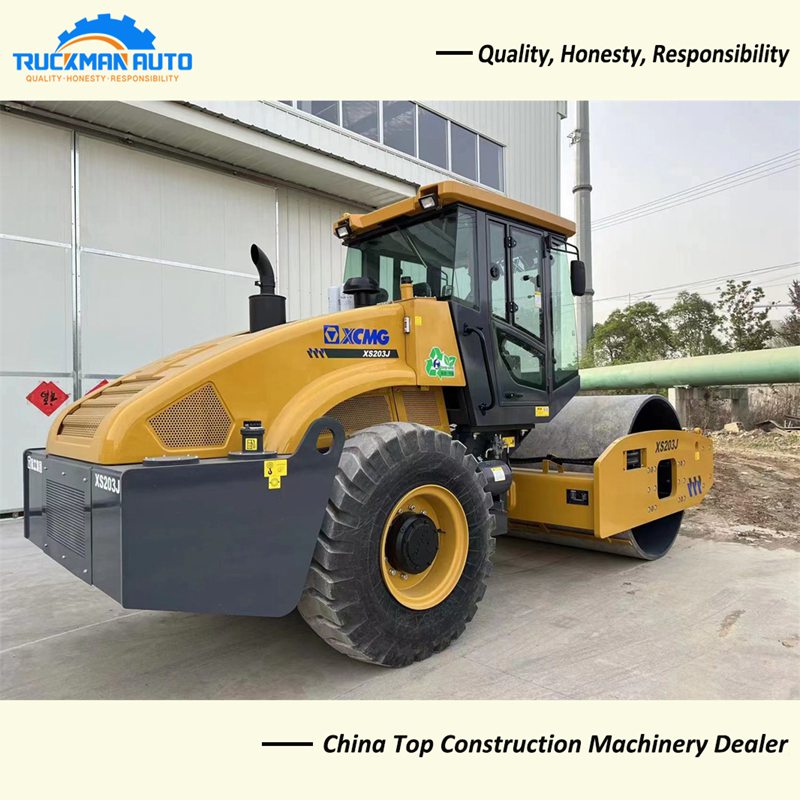

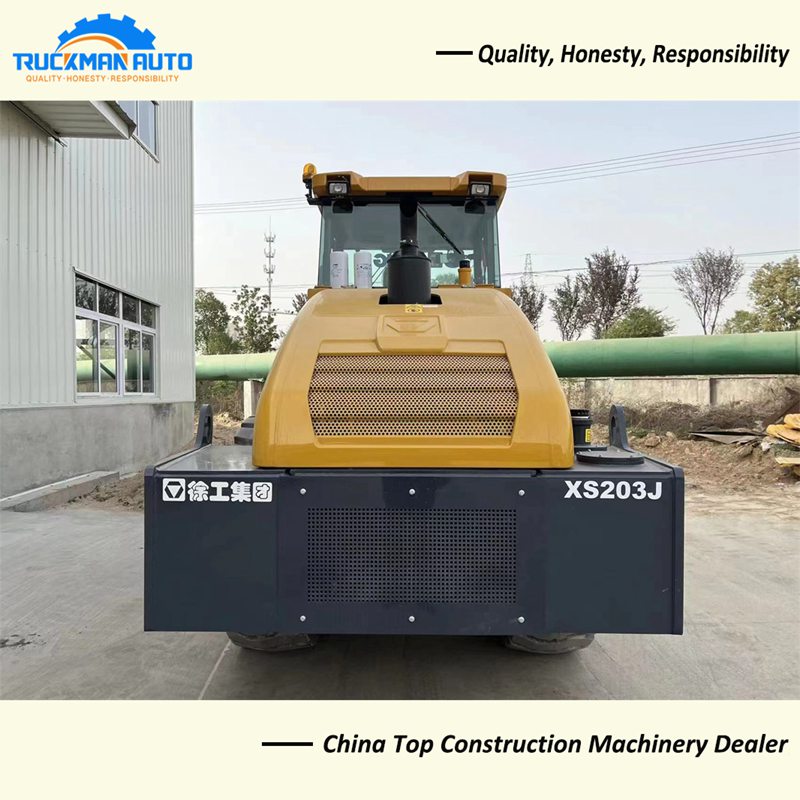

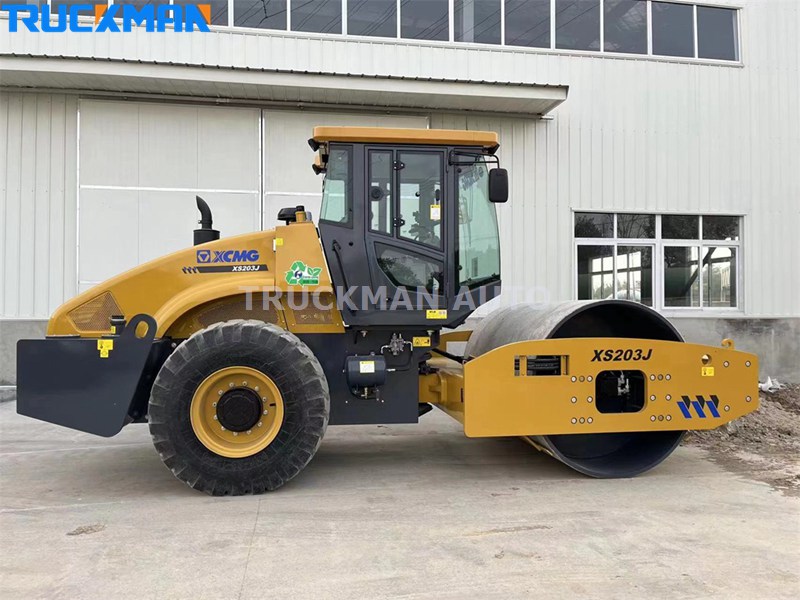

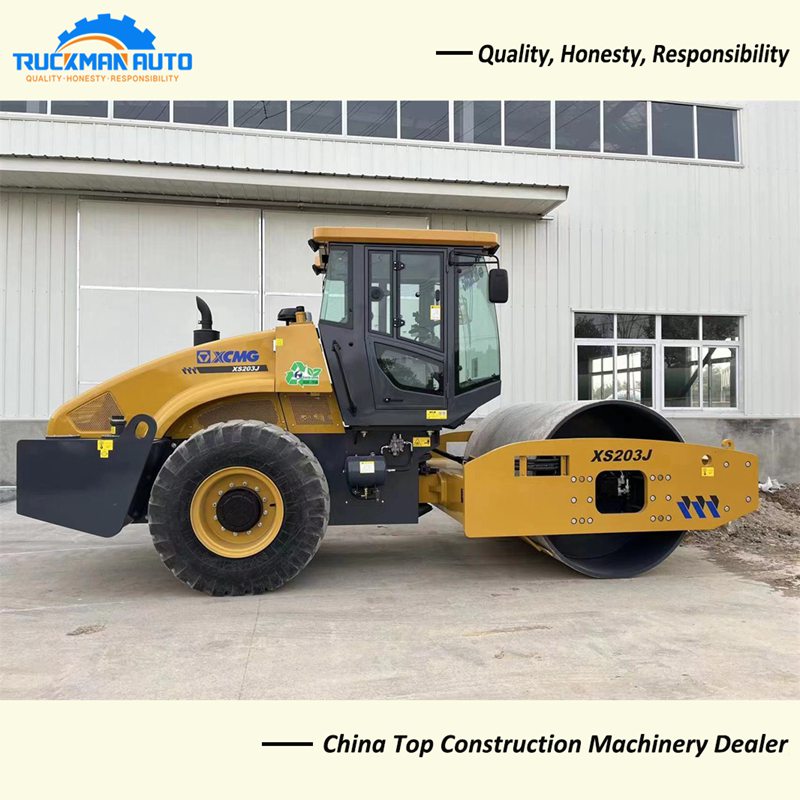

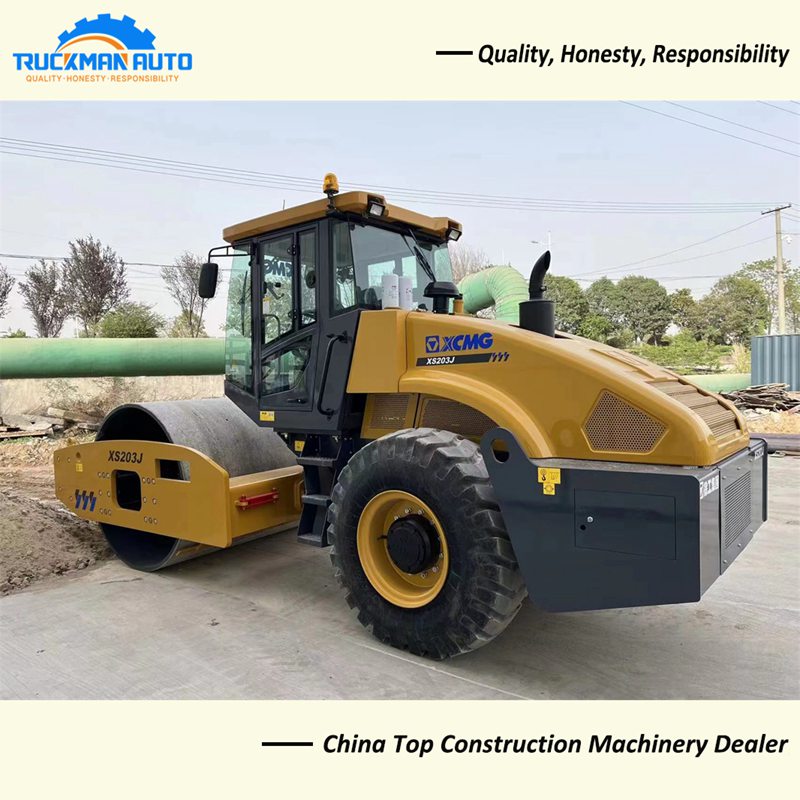

XCMG XS203J Single Drum Vibratory Compactor
XCMG XS203J Single Drum Vibratory Compactor Features
The XCMG XS203J single drum vibratory compactor is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XCMG's new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.
-. Mechanical control, reliable engine.
-. Optional parts : Weld Lug wheel and air conditioner.
XCMG XS203J Single Drum Vibratory Compactor Specification
|
Description |
Parameter Value |
|
Product Name |
XCMG XS203J Single Drum Vibratory Compactor |
|
Application |
Road construction |
|
Operation Weight |
20,000kg |
|
Engine |
SC8D175.2G2B1 |
|
Exciting Force |
353/245kN |
|
Vibration Frequency |
33/28Hz |
|
Static Linear Load |
470N/cm |
|
Travel Speed |
3-9.4km/h |
|
Nominal Amplitude |
1.9/0.95mm |
|
Fuel Tank |
310L |
|
Drum Width |
2130mm |
|
Dimension |
6220*2430*3200mm |
The XCMG XS203J single drum vibratory compactor specification only for your reference, we will recommend other model XCMG vibratory compactor basic your request.
XCMG XS203J Single Drum Vibratory Compactor Detail
The XCMG vibratory compactor have large opening angle of the front flip hood, electric lifting device can make the hood safely stop at any position during lifting, easy maintenance of each system component. Adopting the first domestic throttle-clutch linkage system, the reliability of the clutch system is greatly improved.
