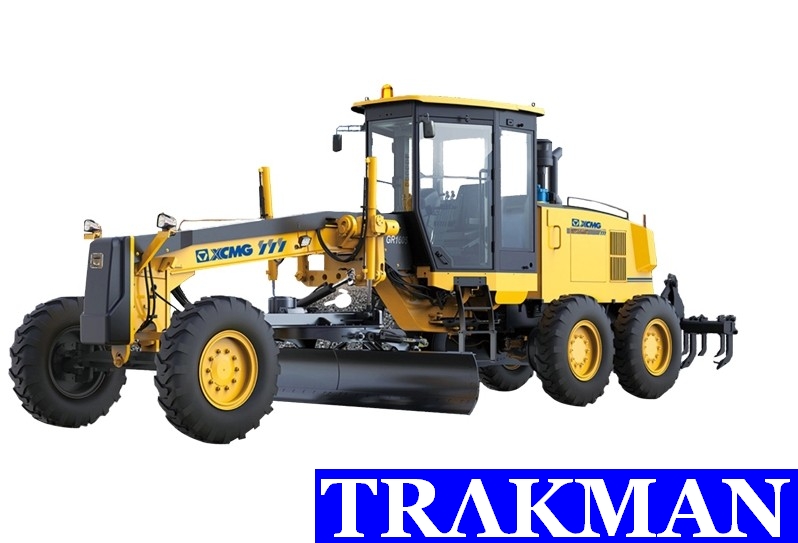

XCMG GR1605 160HP Motor Grader
-1. XCMG GR1605 Motor Grader Main Specification
1. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
2. The drive axle is a dedicated XCMG axle.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
|
Description |
Unit |
Parameter value |
|
Engine model |
|
QSB5.9 |
|
Rated power/speed |
|
125(2200)Kw(r/min) |
|
Overall dimension (standard) |
|
8711X2473X3385 |
|
Total weight (standard) |
kg |
12500 |
|
Tire specification |
|
14.00-24 |
|
Ground clearance (front axle) |
mm |
347 |
|
Tread |
mm |
2113 |
|
Space of front and rear axles |
mm |
6279 |
|
Forward velocity |
km/h |
5/8/13/18/30/47 |
|
Reverse speed |
km/h |
5/13/30 |
|
Tractive effort f=0.75 |
kN |
64 |
|
Maximum gradeability |
% |
25 |
|
Tire inflation pressure |
kPa |
300 |
|
Working system pressure |
mPa |
20 |
|
Transmission pressure |
mPa |
1.3—1.8 |
|
Maximum steering angle of front wheel |
|
±48° |
|
Maximum slant angle of front wheel |
|
±17° |
|
Maximum oscillating angle of front axle |
|
±15° |
|
Maximum oscillating angle of equilibrium box |
|
±16° |
|
Maximum steering angle of frame |
|
±20° |
|
Minimum turning radius |
m |
7.3 |

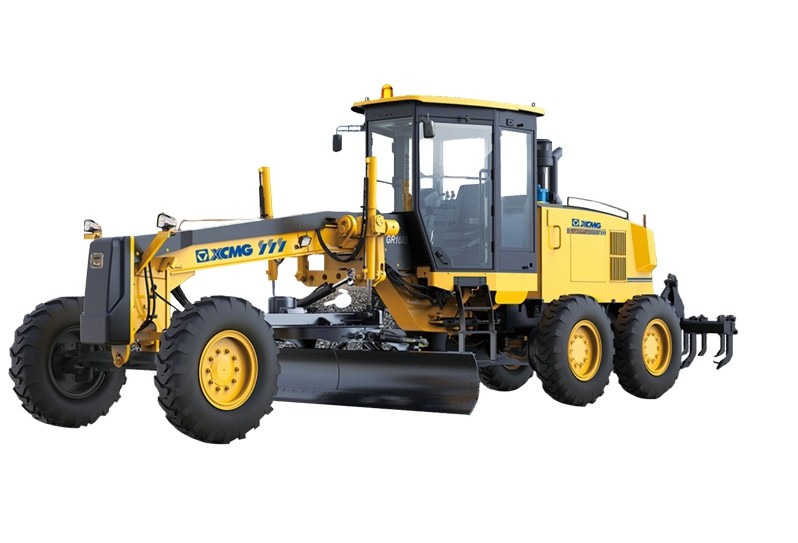

-2. Picture For Reference.
-3 Detail Picture

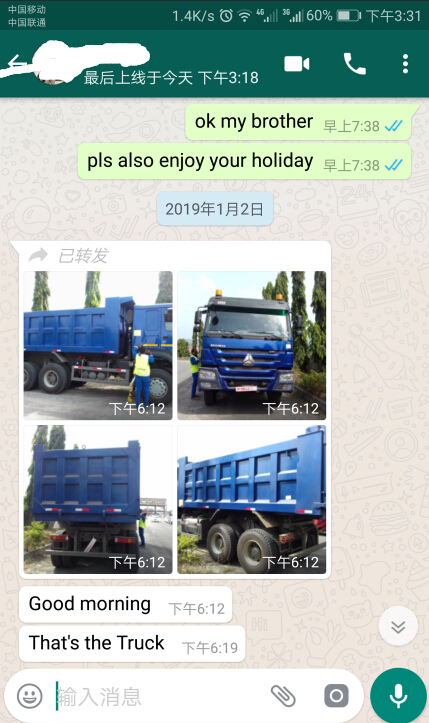

-4. Customer’s Feedback.
