XCMG GR1003 100HP Motor Grader
-1. XCMG GR1003 Motor Grader Main Specification
1. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
2. The drive axle is a dedicated XCMG axle.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
|
Description |
Unit |
Parameter value |
|
Engine model |
|
WP4.1 |
|
Rated power/speed |
|
75(2200)Kw(r/min) |
|
Overall dimension (standard) |
|
7115X2380X3150 |
|
Total weight (standard) |
kg |
7500 |
|
Tire specification |
|
13.00-24 |
|
Ground clearance (front axle) |
mm |
550 |
|
Tread |
mm |
1900 |
|
Space of front and rear axles |
mm |
5135 |
|
Forward velocity |
km/h |
5/8/11/17/24/38 |
|
Reverse speed |
km/h |
5/11/24 |
|
Tractive effort f=0.75 |
kN |
39 |
|
Maximum gradeability |
% |
20 |
|
Tire inflation pressure |
kPa |
300 |
|
Working system pressure |
mPa |
16 |
|
Transmission pressure |
mPa |
1.3—1.8 |
|
Maximum steering angle of front wheel |
|
±49° |
|
Maximum slant angle of front wheel |
|
±17° |
|
Maximum oscillating angle of front axle |
|
±15° |
|
Maximum oscillating angle of equilibrium box |
|
±16° |
|
Maximum steering angle of frame |
|
±27° |
|
Minimum turning radius |
m |
6 |

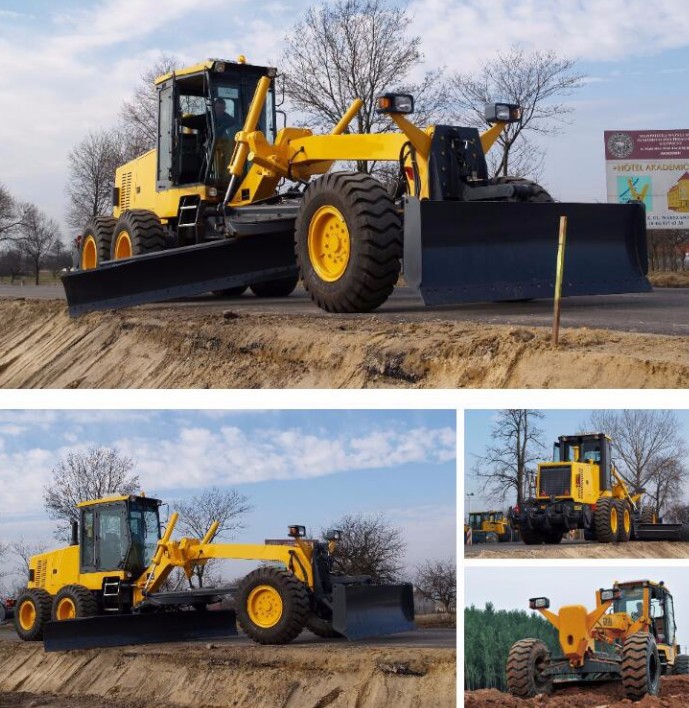

-2. Picture For Reference.

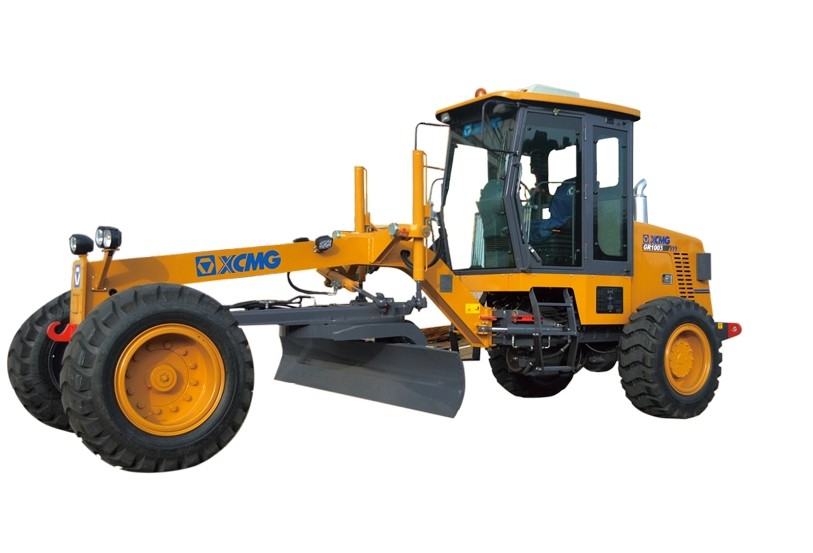

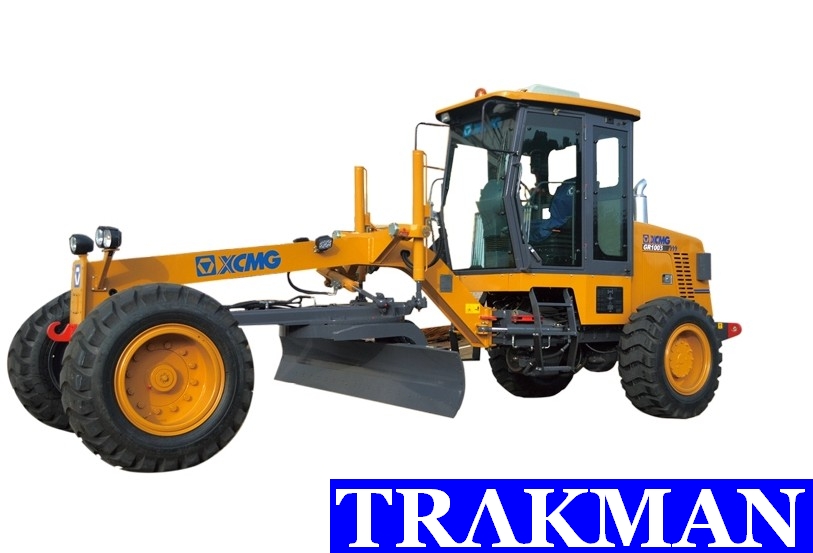

-3 Detail Picture
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's machinery, all parts could arrange DHL or TNT as soon.
In addition, we also could arrange the engineer for the maintenance.
