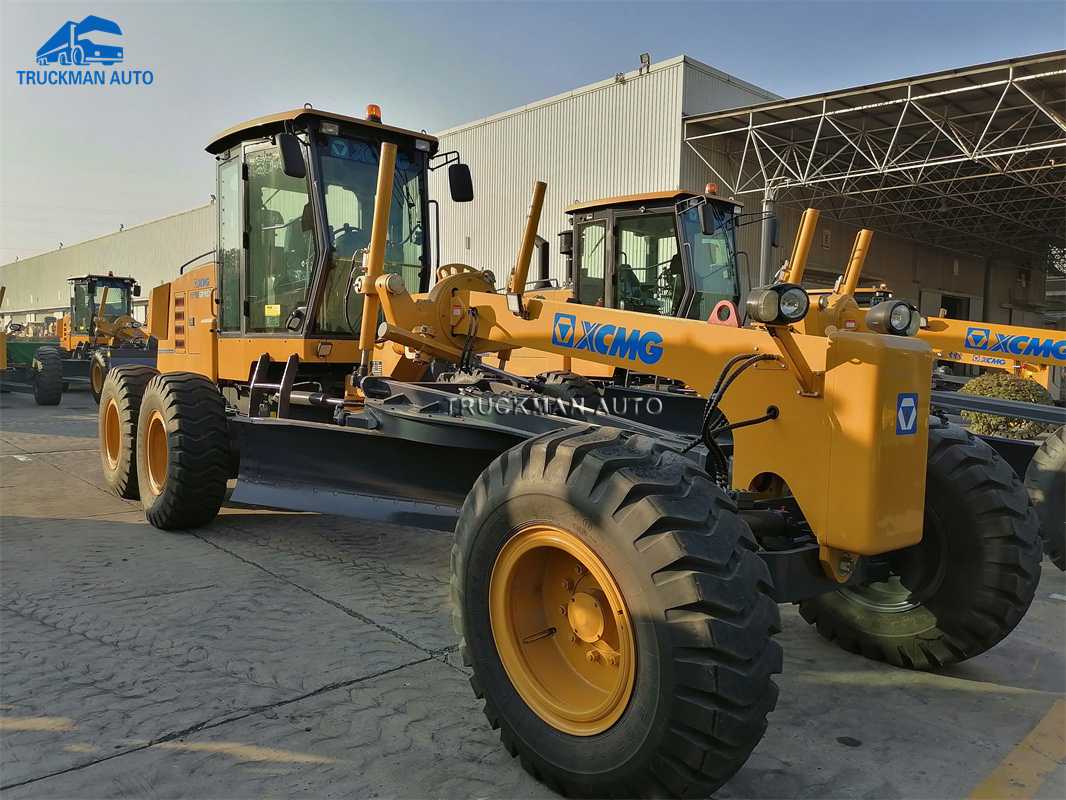

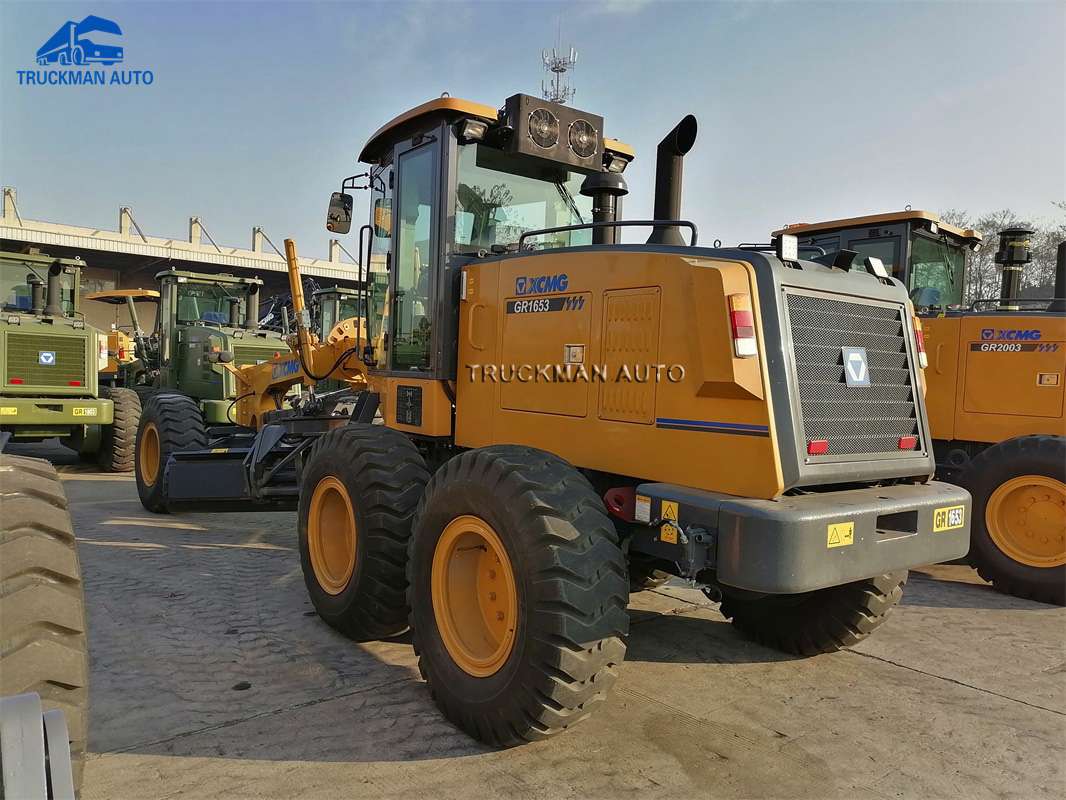

170HP XCMG GR165 Motor Grader For Sale
-1. XCMG GR165 Motor Grader Information.
The XCMG GR165 motor grader is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, snow removal for large areas such as highway, airports, farmlands etc. It is the necessary construction machinery for national defense construction, mine construction, urban and rural road construction and water conservancy construction, farmland improvement and so on.
|
Item |
GR165 |
||
|
Basic parameters |
Engine model |
6BTA5.9 |
|
|
Rated power/speed |
130kW/2200rpm |
||
|
Overall dimension (standard) |
8900x2625x3470mm |
||
|
Total weight (standard) |
15000kg |
||
|
Tire specification |
17.5-25 |
||
|
Ground clearance (front axle) |
430mm |
||
|
Tread |
2156mm |
||
|
Space of front and rear axles |
6219 mm |
||
|
Performance parameters |
Forward velocity |
5、8、11、19、23、38km/h |
|
|
Reverse speed |
5、11、23km/h |
||
|
Tractive effort f=0.75 |
77kN |
||
|
Maximum gradeability |
25% |
||
|
Tire inflation pressure |
260kPa |
||
|
Working system pressure |
16MPa |
||
|
Transmission pressure |
1.3—1.8Mpa |
||
|
Working parameters |
Maximum steering angle of front wheel |
±50° |
|
|
Maximum slant angle of front wheel |
±17° |
||
|
Maximum oscillating angle of front axle |
±15° |
||
|
Maximum oscillating angle of equilibrium box |
±15° |
||
|
Maximum steering angle of frame |
±27° |
||
|
Minimum turning radius |
7.3m |
||
|
Scrape knife |
Maximum lift height |
450mm |
|
|
Maximum cutting depth |
500mm |
||
|
Maximum tilt angle |
90° |
||
|
Cutting angle |
28°—70° |
||
|
Angle of revolution |
360° |
||
|
Length & chord height |
3660x610mm |
||
|
Oil filling amount |
Coolant |
50L |
|
|
Fuel tank |
280L |
||
|
Engine |
24L |
||
|
Transmission |
38L |
||
|
Hydraulic oil |
110L |
||
|
Drive axle |
28L |
||
|
Balancing box |
46L |
||
-2. XCMG GR165 Motor Grader Main Advantage.

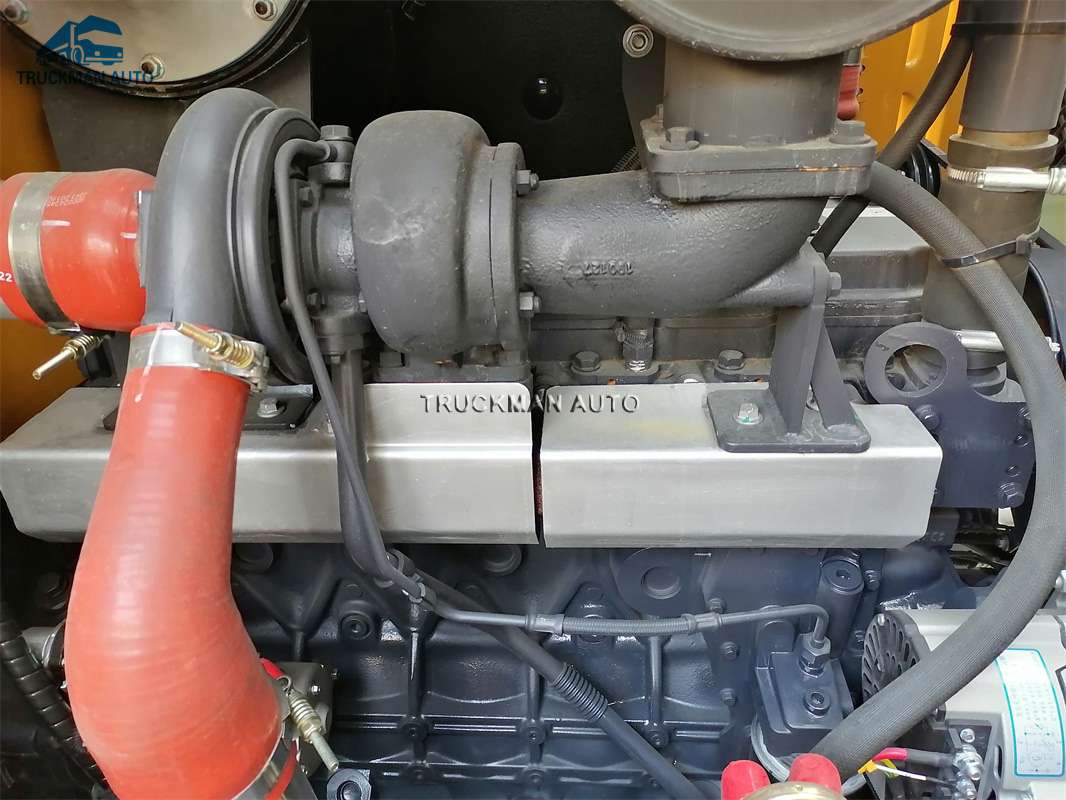

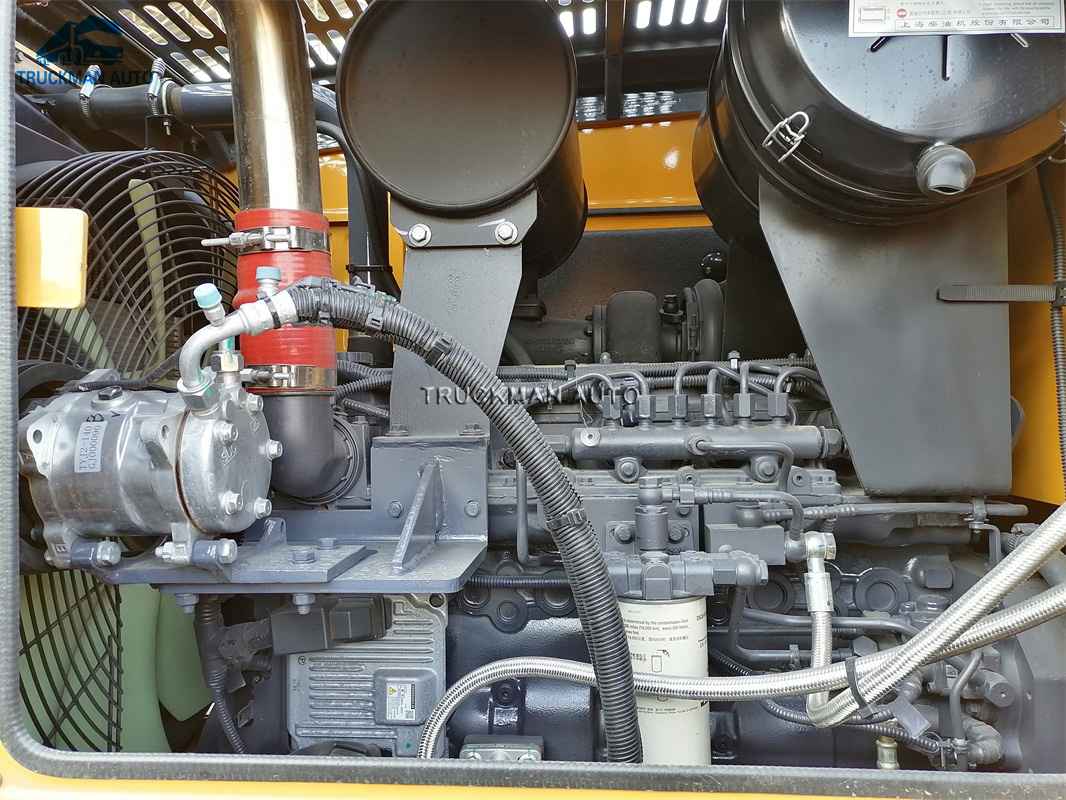

The GR165 adopts Dongfeng Cummins 6BTA5.9-C180-II turbocharged diesel engine, which has large output torque and power reserve coefficient and low fuel consumption.
The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
