XCMG GR1603 170HP Motor Grader
-1. XCMG GR1603 Motor Grader Main Specification
1. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
2. The drive axle is a dedicated XCMG axle.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
|
Description |
Unit |
Parameter value |
|
Engine model |
|
QSB5.9 |
|
Rated power/speed |
|
125(2200)Kw(r/min) |
|
Overall dimension (standard) |
|
8420X2380X3150 |
|
Total weight (standard) |
kg |
13000 |
|
Tire specification |
|
13.00-24 |
|
Ground clearance (front axle) |
mm |
654 |
|
Tread |
mm |
2020 |
|
Space of front and rear axles |
mm |
5780 |
|
Forward velocity |
km/h |
5/8/13/18/30/47 |
|
Reverse speed |
km/h |
5/13/30 |
|
Tractive effort f=0.75 |
kN |
73 |
|
Maximum gradeability |
% |
25 |
|
Tire inflation pressure |
kPa |
260 |
|
Working system pressure |
mPa |
19 |
|
Transmission pressure |
mPa |
1.3—1.8 |
|
Maximum steering angle of front wheel |
|
±45° |
|
Maximum slant angle of front wheel |
|
±17° |
|
Maximum oscillating angle of front axle |
|
±15° |
|
Maximum oscillating angle of equilibrium box |
|
±16° |
|
Maximum steering angle of frame |
|
±27° |
|
Minimum turning radius |
m |
6.6 |

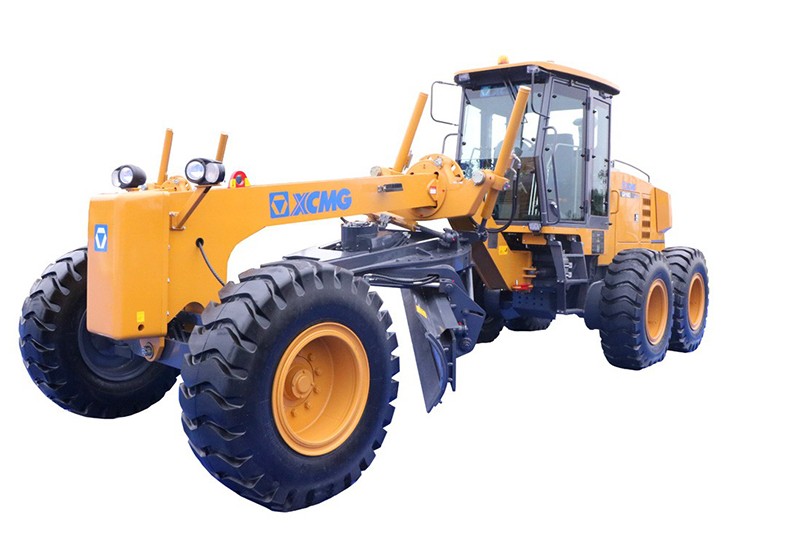

-2. Picture For Reference.

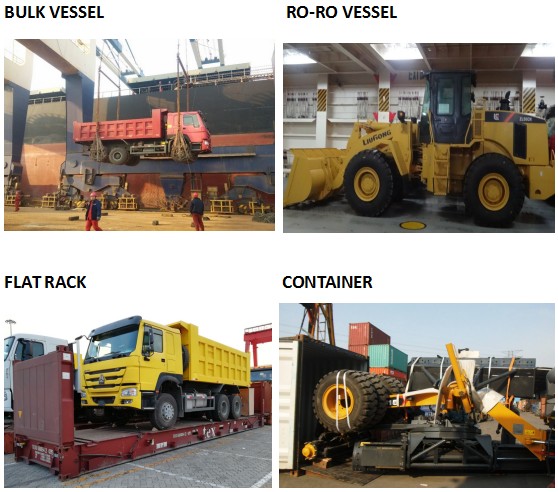

-3. Shipment Picture.
Now our machinery could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
-4. Others Product

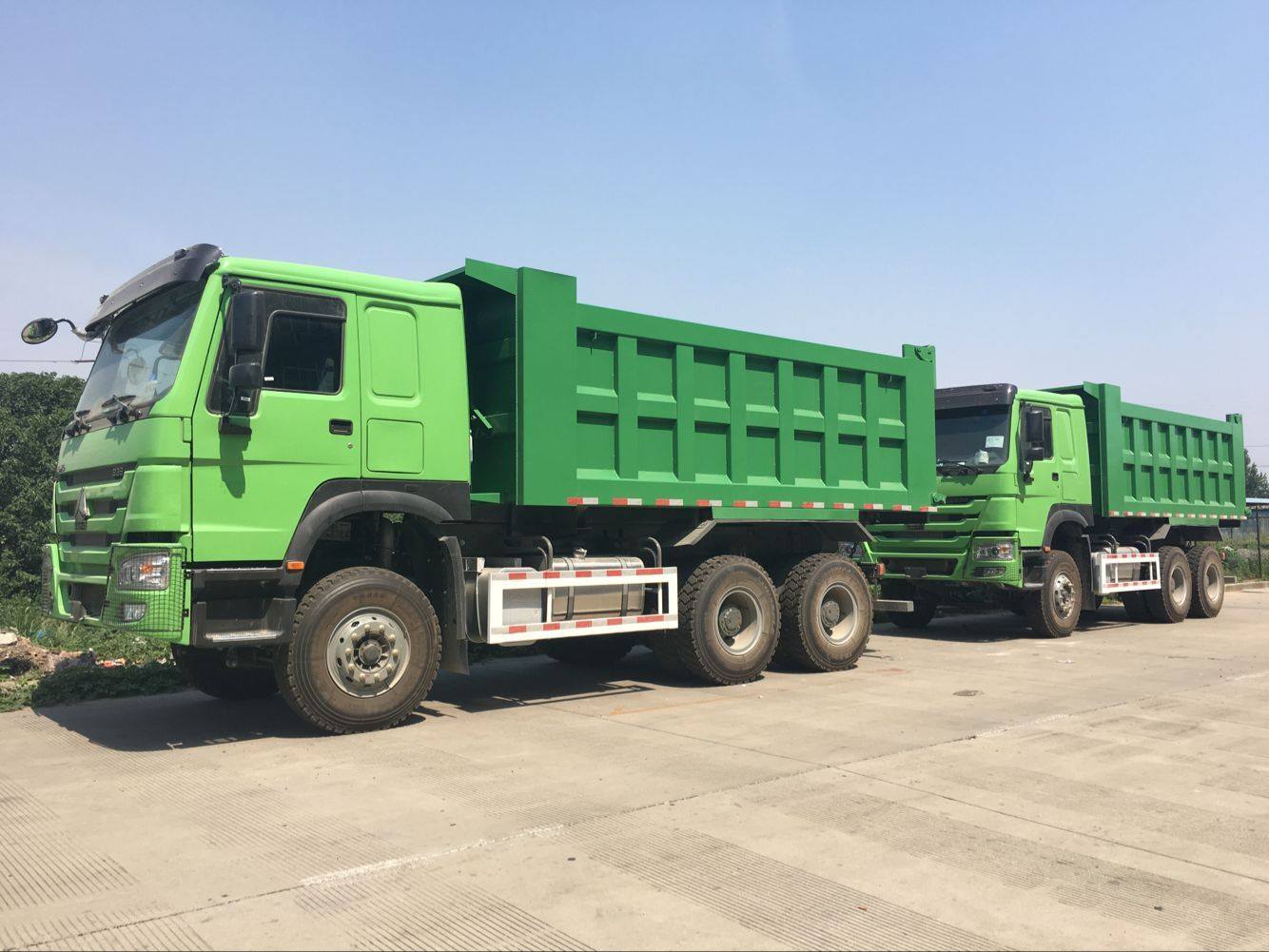

Now our company also deal with HOWO dump truck, the machinery can loading within 25-30 tons.
Big horsepower, easy operation, also the maintenance cost is lower.
