Transporting Log Wood Timber Steel Logging Semi Trailer
-1. Log Timber Wood Semi Trailer Main Specification
-. 3 Axles, 3x13 Tons. FUWA brand.
-. Application for transit the log, wood, timber etc.
-. 12 pcs fence support with 2200mm height
-. Material use high strength steel
-. mechanical suspension or air suspension
|
Trailer Model |
Transport Wood Log Loader Semi Trailer |
|
Dimension(L*W*H)(mm) |
13000*2490*2860 |
|
Loading Weight(KG) |
60 TON |
|
Axle Brand |
13TON Axle FUWA Brand |
|
Axle Number |
Three |
|
Suspension system |
Common Mechanical suspension |
|
Steel Spring |
10/10/10, leaf sping |
|
Frame |
The height of the beam is 500mm,upper plate is 16mm,down plate is 18mm,middle plate is 10mm |
|
Platform plate |
4/6mm Diamond Plate |
|
Tire Type |
12R22.5, 12units Chinese brand |
|
Traction Pin |
50mm or 90mm JOST brand |
|
Landing gear |
28TON |
|
Brake system |
Dual Line braking system (ABS optional) |
|
Brake air chamber |
Six big air chambers |
|
Painting |
Color by customer's requirement |
|
Accessories |
One standard tool box |
|
Fence |
Total 12 pcs with 2200mm height for transit log, wood, timber. |

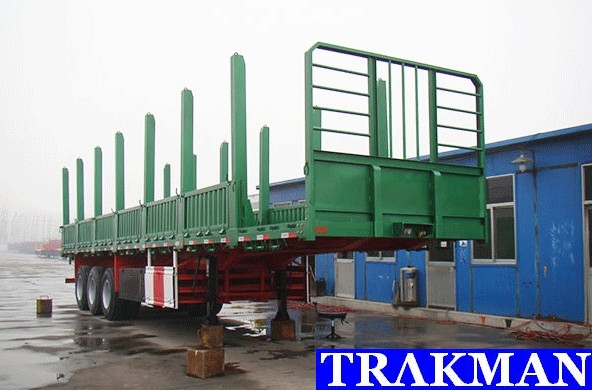

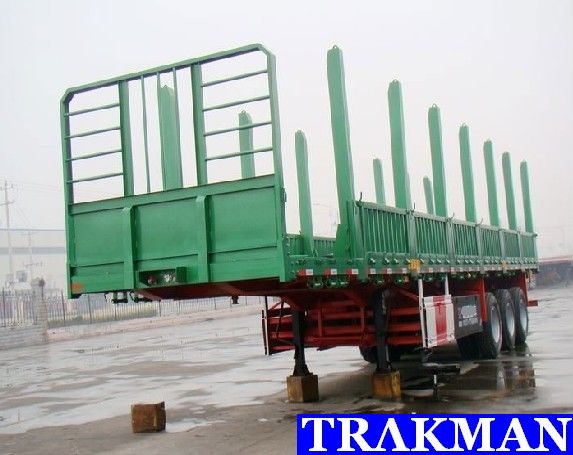

-2. Trailer Picture For Reference.

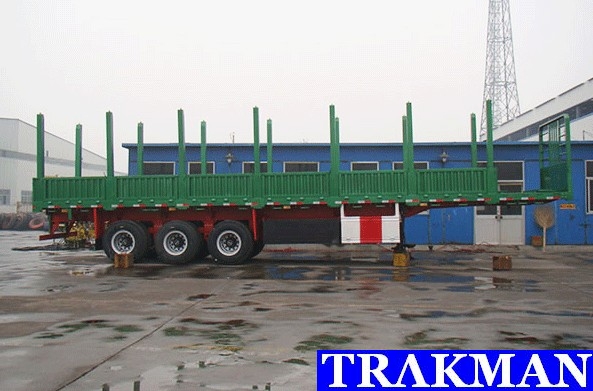

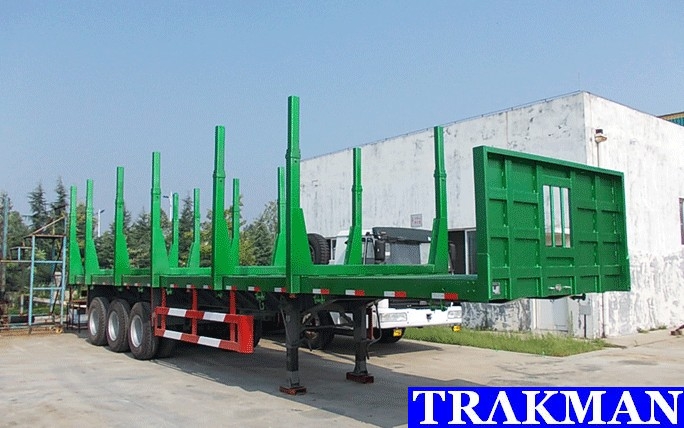

-3. Trailer Detail Picture.
-4. Other Product.

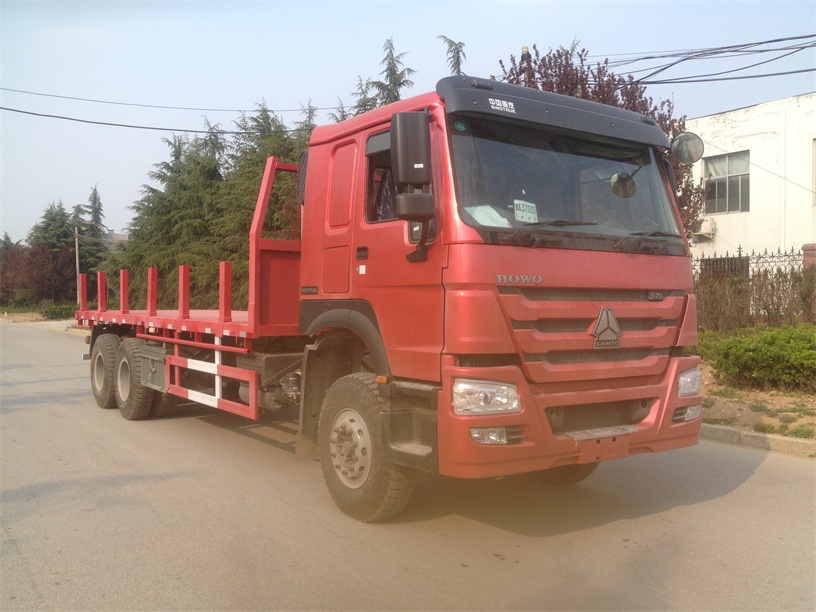

We also have log wood timber truck, please contact us get more details.
