3 Axles 70 Tons U Shape Dump Tipper Trailer
-1. TRΛKMAN Brand Tipper Dump Semi Trailer Main Specification
-. 30-50m3 big loading bucket
-. 3-6 Axles, use FUWA and BPW brand.
-. Adopt the HYVA brand hydraulic lift system
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
|
Specification |
|
|
Axle number |
3 |
|
Axle brand |
FUWA & BPW |
|
Suspension |
Mechanical suspension or Air suspension |
|
Kingpin |
JOST brand 50#/90# traction pin |
|
Dimensions(L*W*H) |
10950X2500X3900mm(outside) |
|
10000X2300X1500mm(inner) |
|
|
Rim |
9.00*22.5 zhengxing brand 12 pieces |
|
Lifting system |
Full set of HYVA hydraulic system |
|
Steel spring |
10 pieces |
|
Tire |
|
|
Tire specs |
12.00R20 triangle brand |
|
Number of tire |
12 pieces |
|
Spare tire carriers |
2 pieces |
|
Frame |
|
|
Frame beam |
Upper and lower plate is 20mm.middle is 10mm(double/three plate) height is 500mm |
|
Frame floor |
The thickness is 3mm flat bed |
|
Brake |
|
|
Brake brand |
WABCO brand of china |
|
Brake chamber |
Two double and two single chamber |
|
ABS |
Kemi brand of china (4s/2m) |
|
Electrical system |
|
|
Voltage |
24v |
|
Receptacle |
7ways(7wire harness) |
|
Light color |
|
|
Side marker lamp |
orange |
|
Rear lamp |
red |

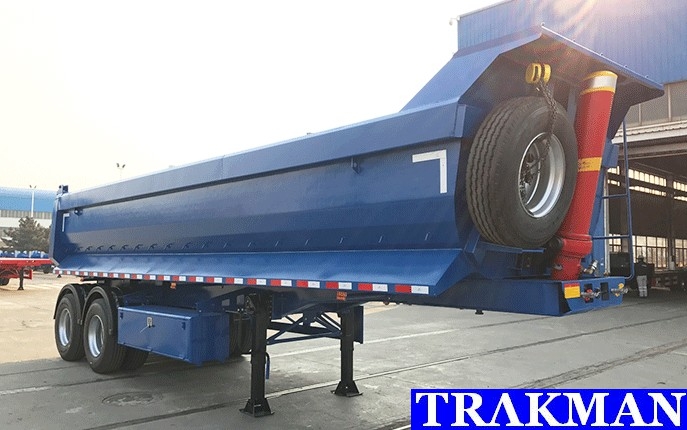

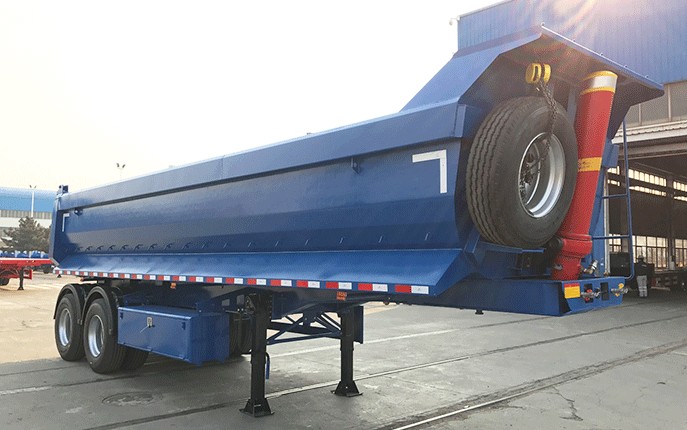

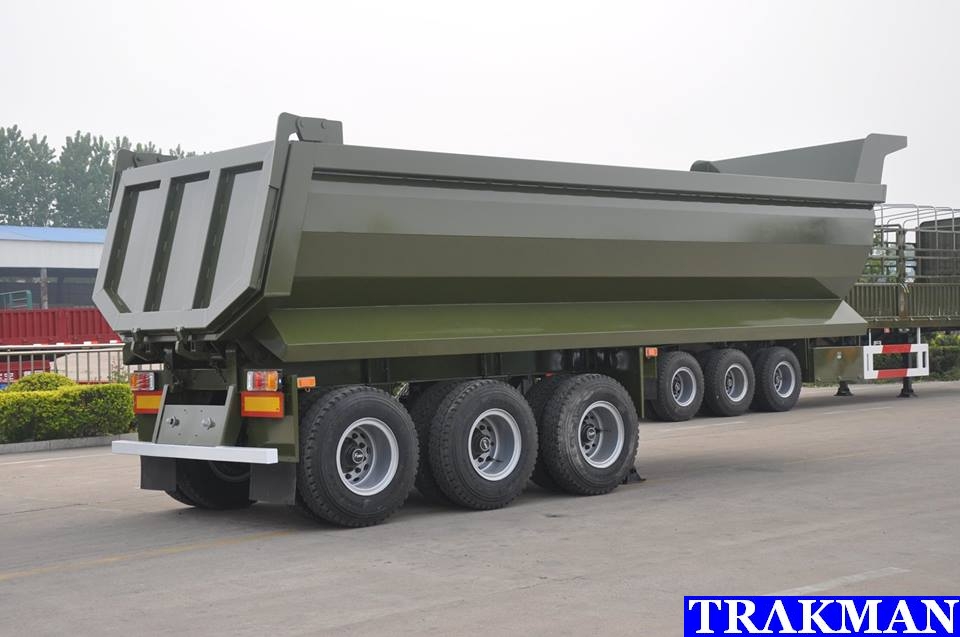

-2. Picture For Reference.

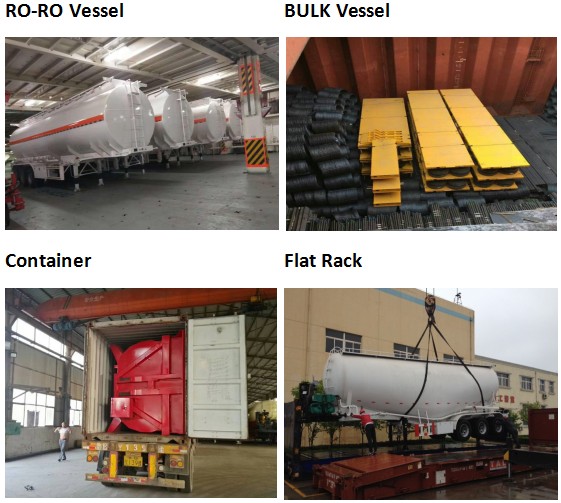

-3. Shipment Picture.
Now our trailers could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.

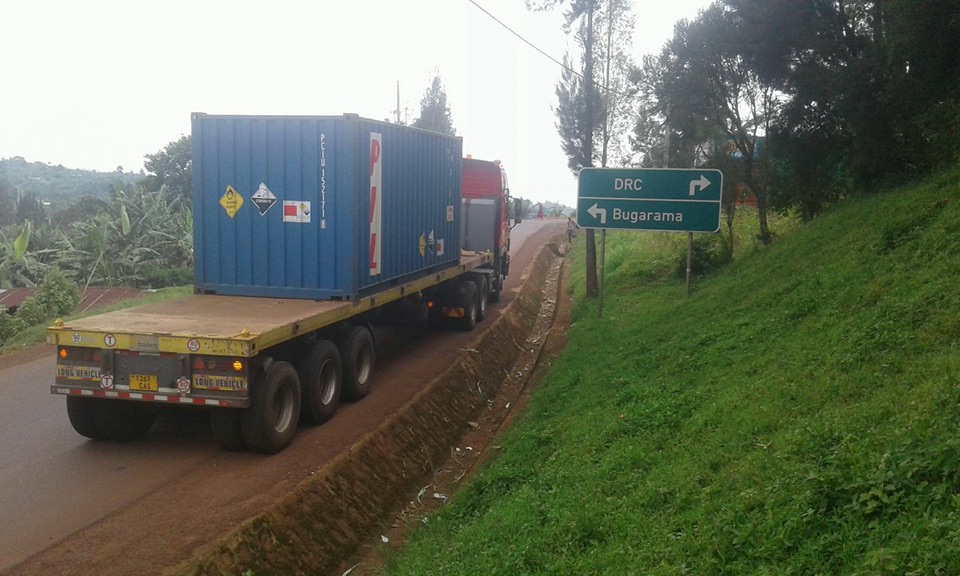

-4. The Working Picture.
All picture is our customers send us, different country, different customer, different work condition, but our machinery can suitable for our customers all request.
