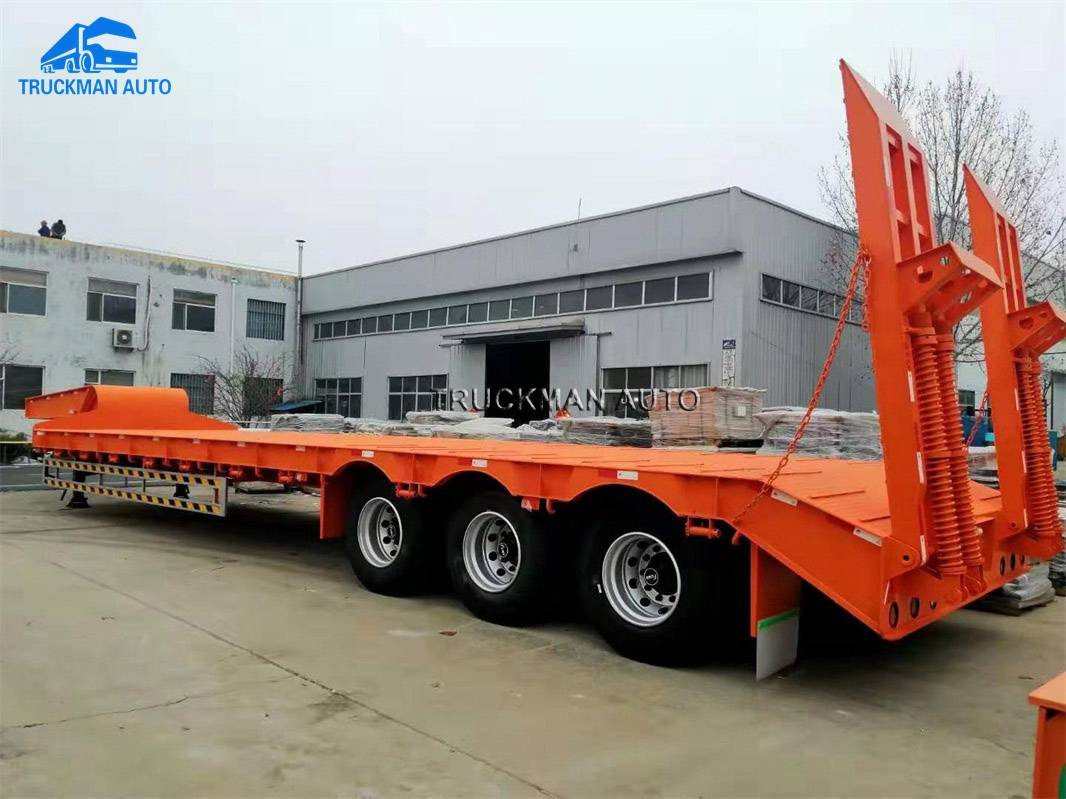

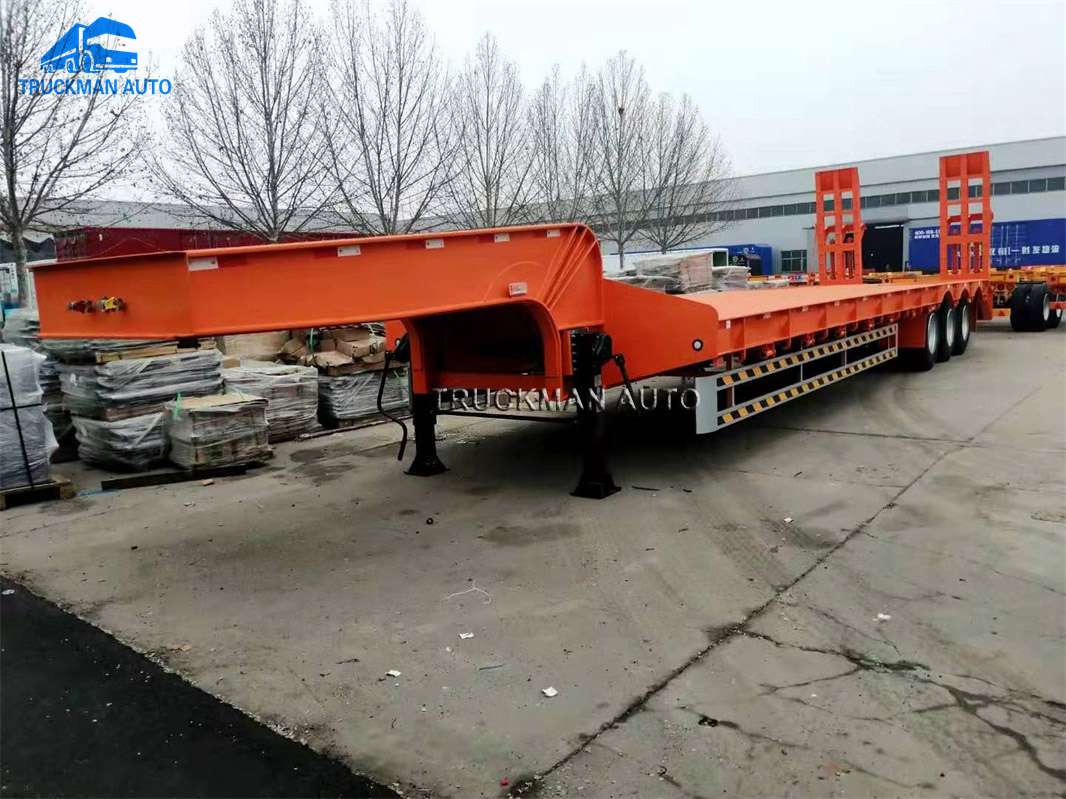

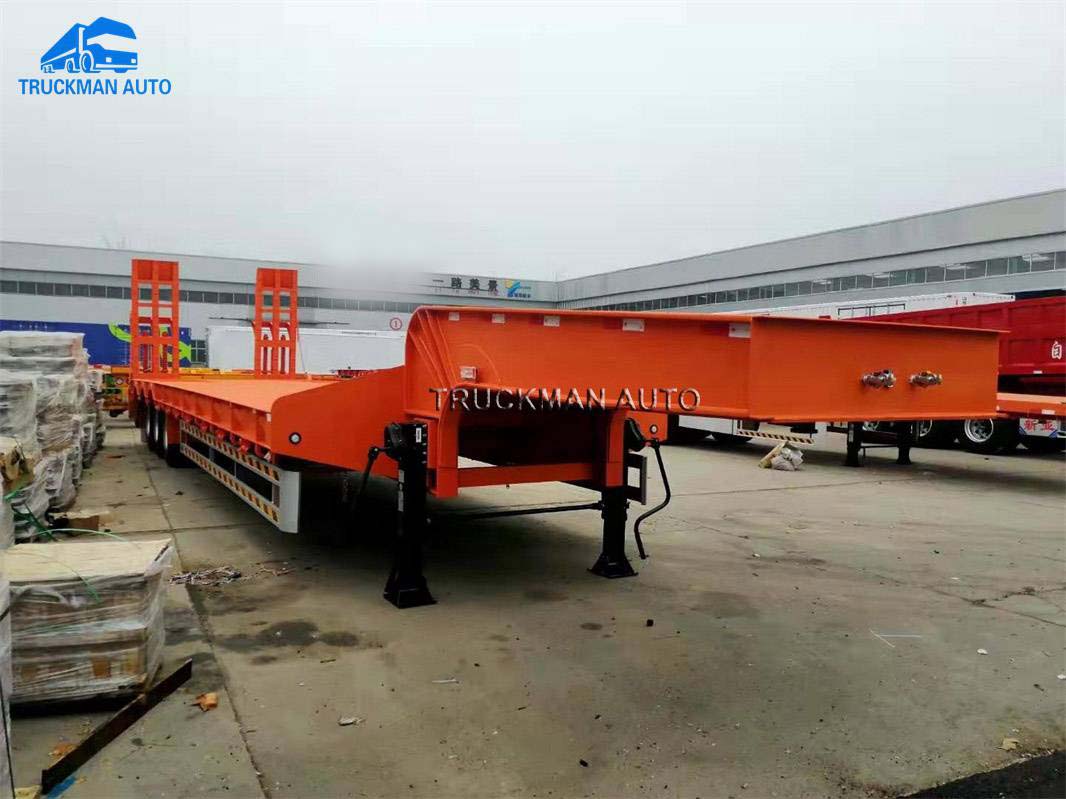

3 Axle Low Flatbed Trailer For Civil Engineering Equipment Haul
-1. Low Flatbed Trailer Main Advantage.
-. Used T700 model high strength steel, for heavy loading.
-. 600mm width ladder upgrade to 800mm width ladder.
-. 8mm thickness suspension and 16mm leaf spring.
-2. Low Flatbed Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
Low Flatbed Trailer |
|
Loading Weight |
60,000kg |
|
Tare Weight |
11,000kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|

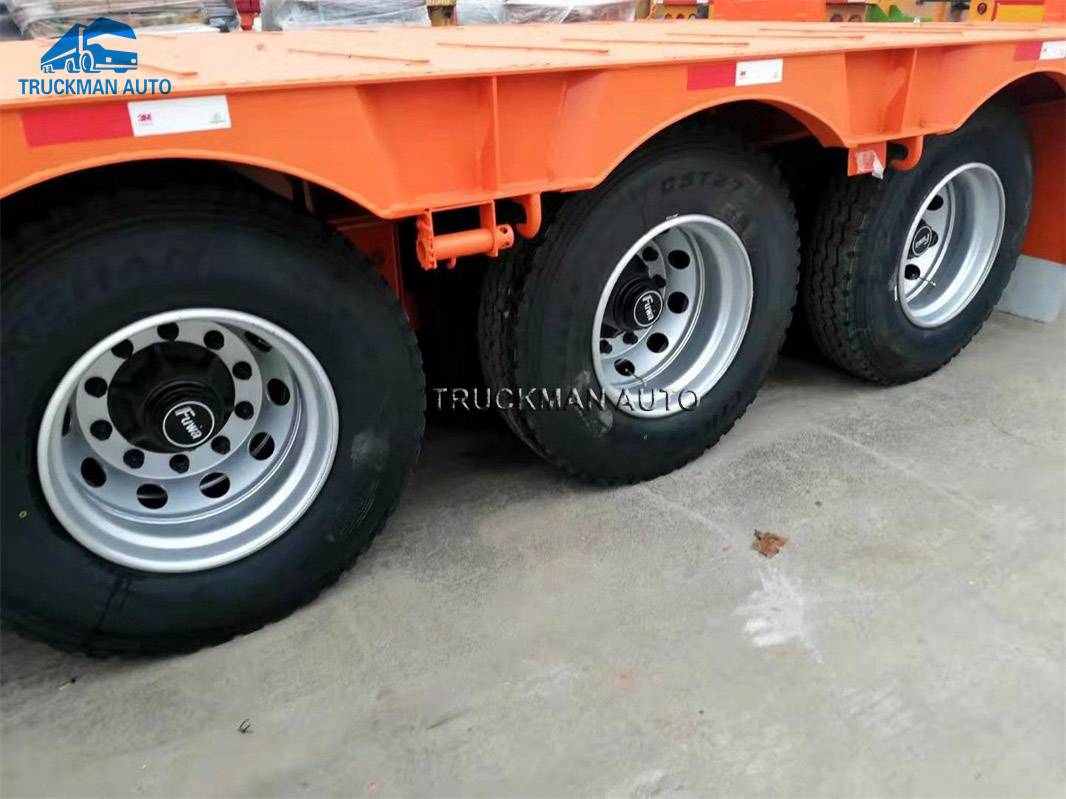

Tire |
12R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam |
|
Material |
T700, high strength steel |
|

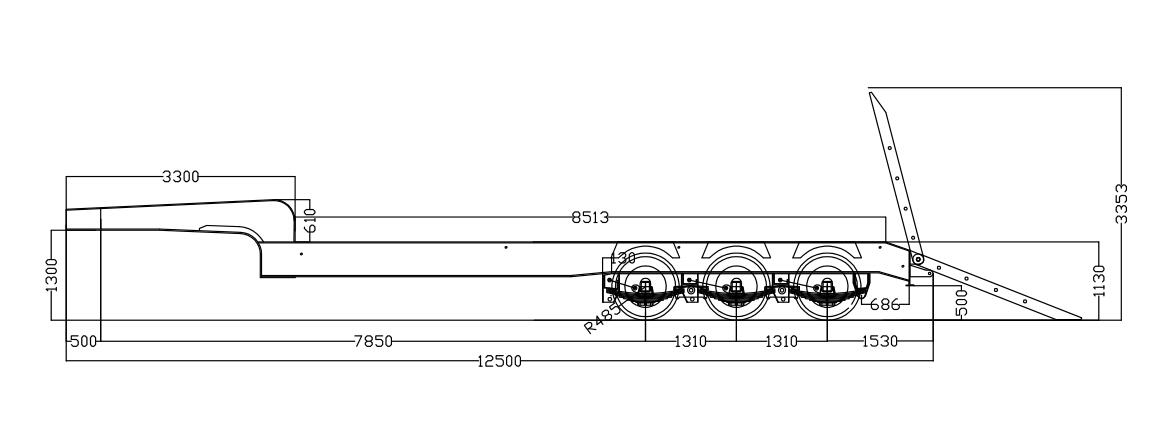

Dimension |
13000x3000x3100mm |
The specification is only for reference, we could design the low flatbed trailer according to your request.
-3. How To Choose The Low Flatbed Trailer ?
First you need know how many tons need low flatbed trailer transport.
Like transport CAT 320D excavator, the weight is 21 tons, then low flatbed trailer at least need 30 tons loading capacity.
And then you need also confirm the machinery transport size.
For example: ZL50GN wheel loader width reach to 3000mm, length reach to 8000mm, so at least the low flatbed trailer working platform size is 8000x3000mm.
