3 Axle Skeleton Container Trailer For Logistics Company
-1. 3 Axle Skeleton Container Trailer Main Detail.
The container semi trailer have two model: flatbed container trailer and skeleton container trailer, the skeleton container trailer suitable for light weight cargoes transport, the trailer self weight also soft and purchase cost also lower.
-2. 3 Axle Skeleton Container Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
3 axle skeleton container trailer |
|
Loading Weight |
40,000kg |
|
Tare Weight |
6,500kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x13mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 12mm, middle 8mm, lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Application |
Transport the 20FT and 40FT container |
|
Dimension |
12500x2500x1450mm |
The specification is only for reference, we could design the skeleton container trailer according to your request.

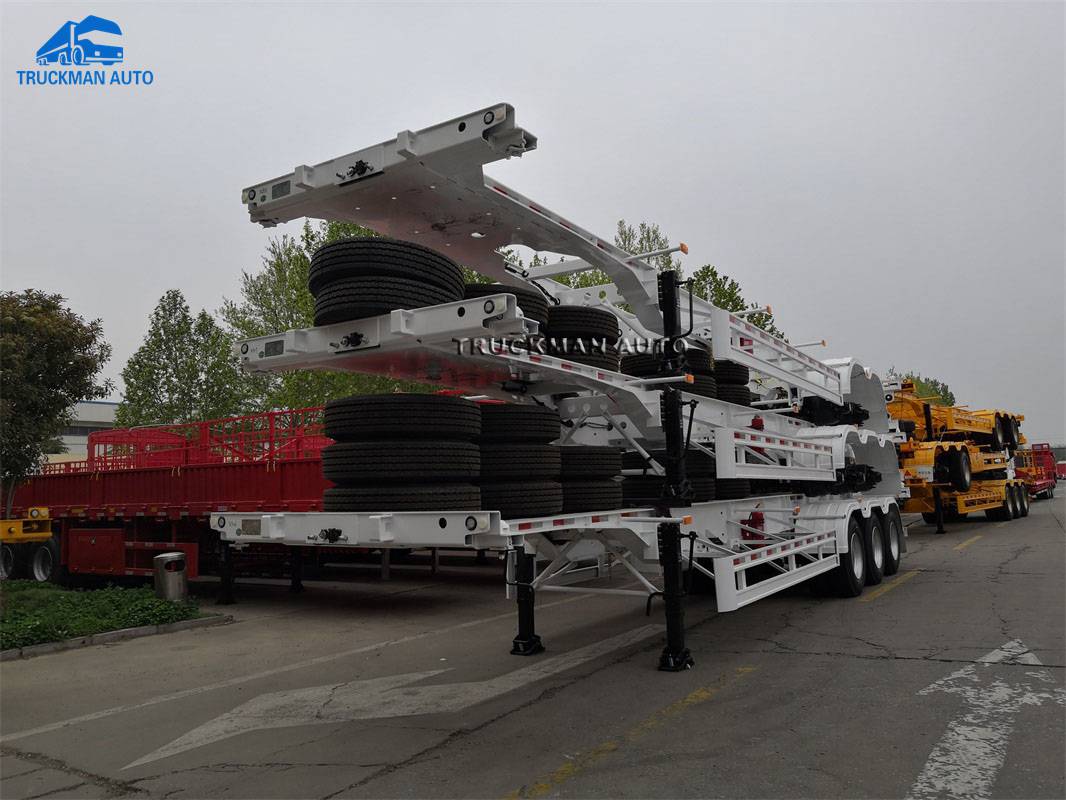

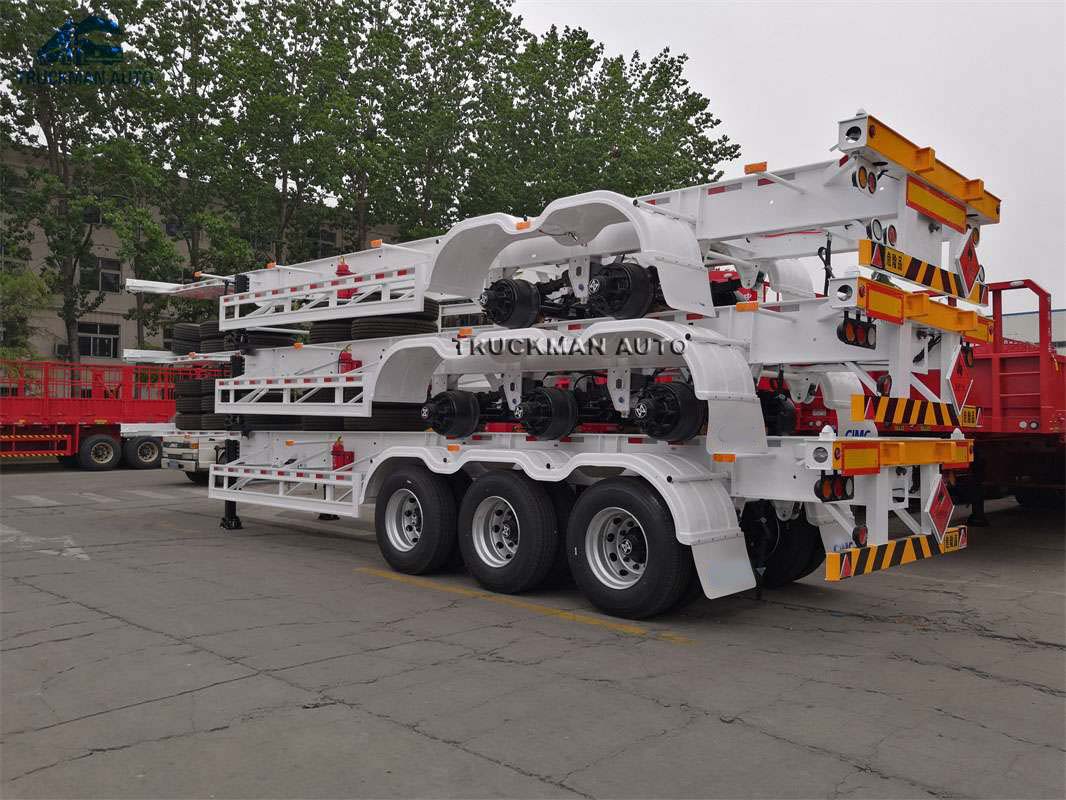

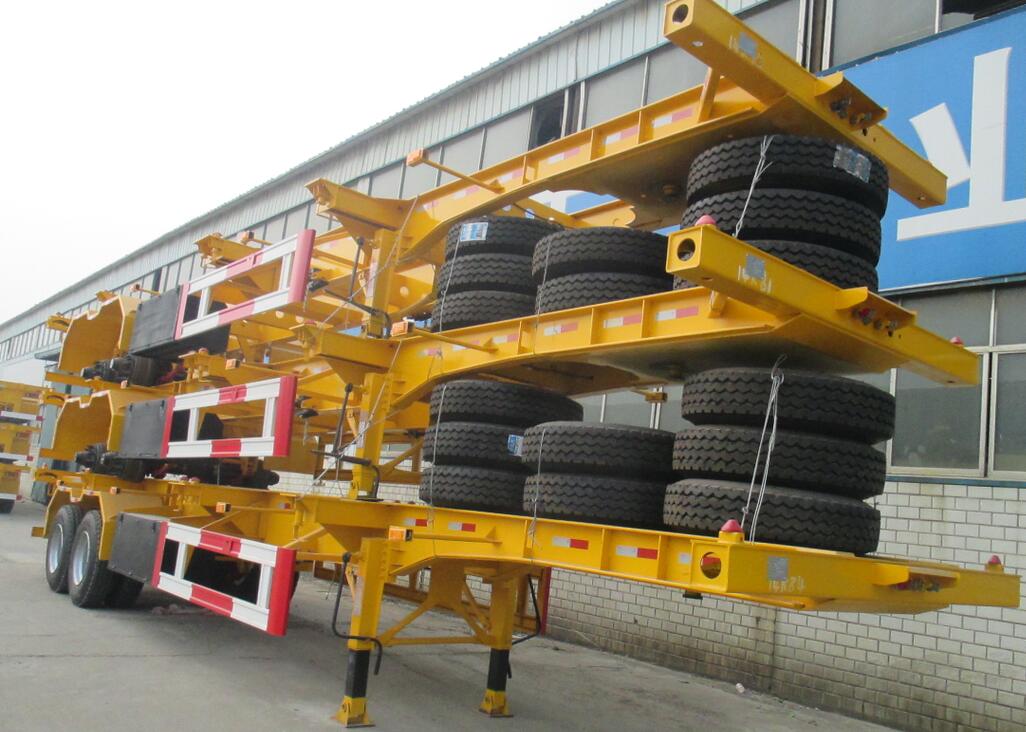

-3. 3 Axle Skeleton Container Trailer Packing Picture.
We usually make 3 pcs skeleton container trailer one group, with stronger tied up. Will easier help delivery and save the freight cost. We will use the rubber parts protect the main parts, avoid the parts and paint damaged.
