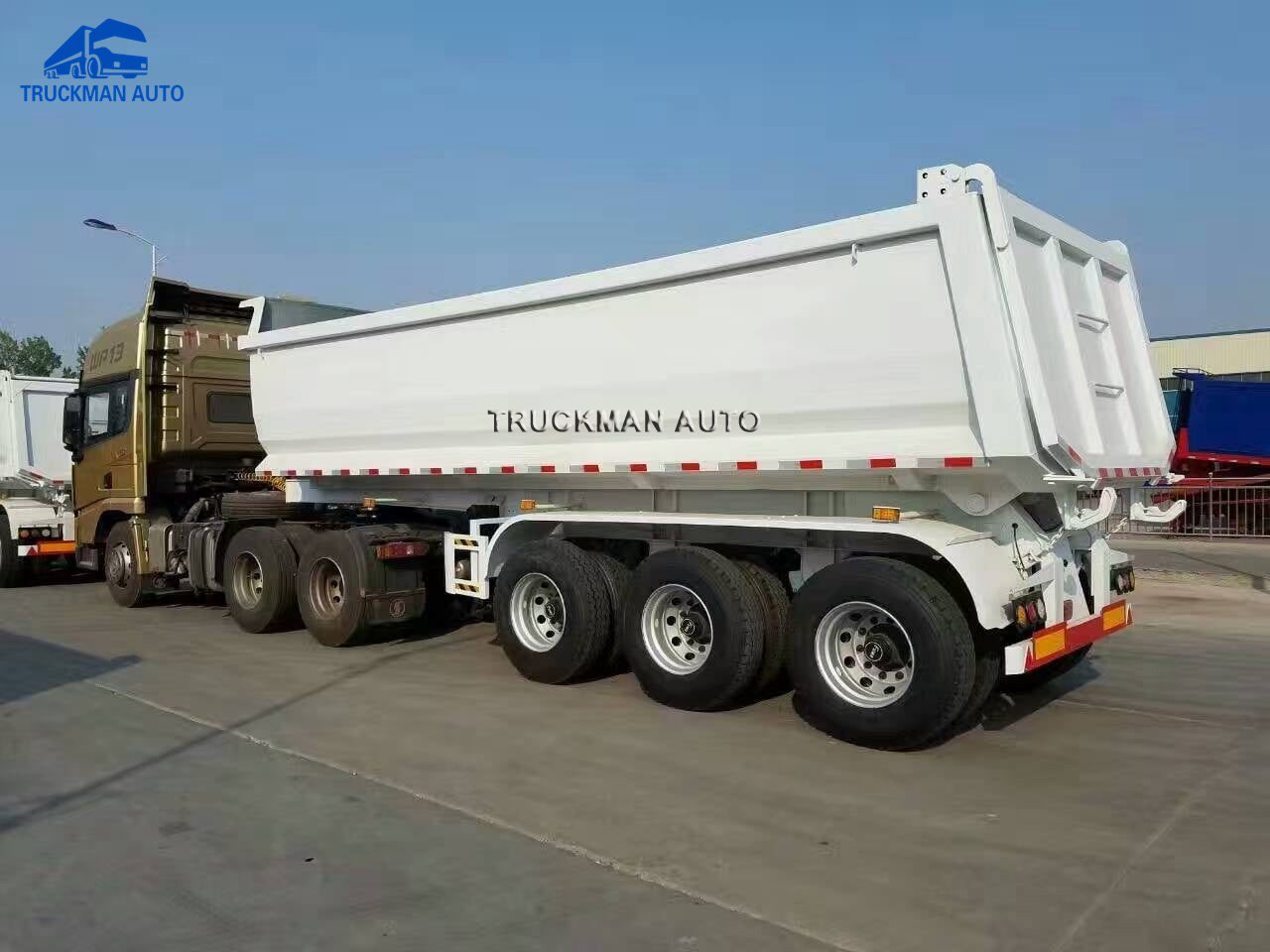

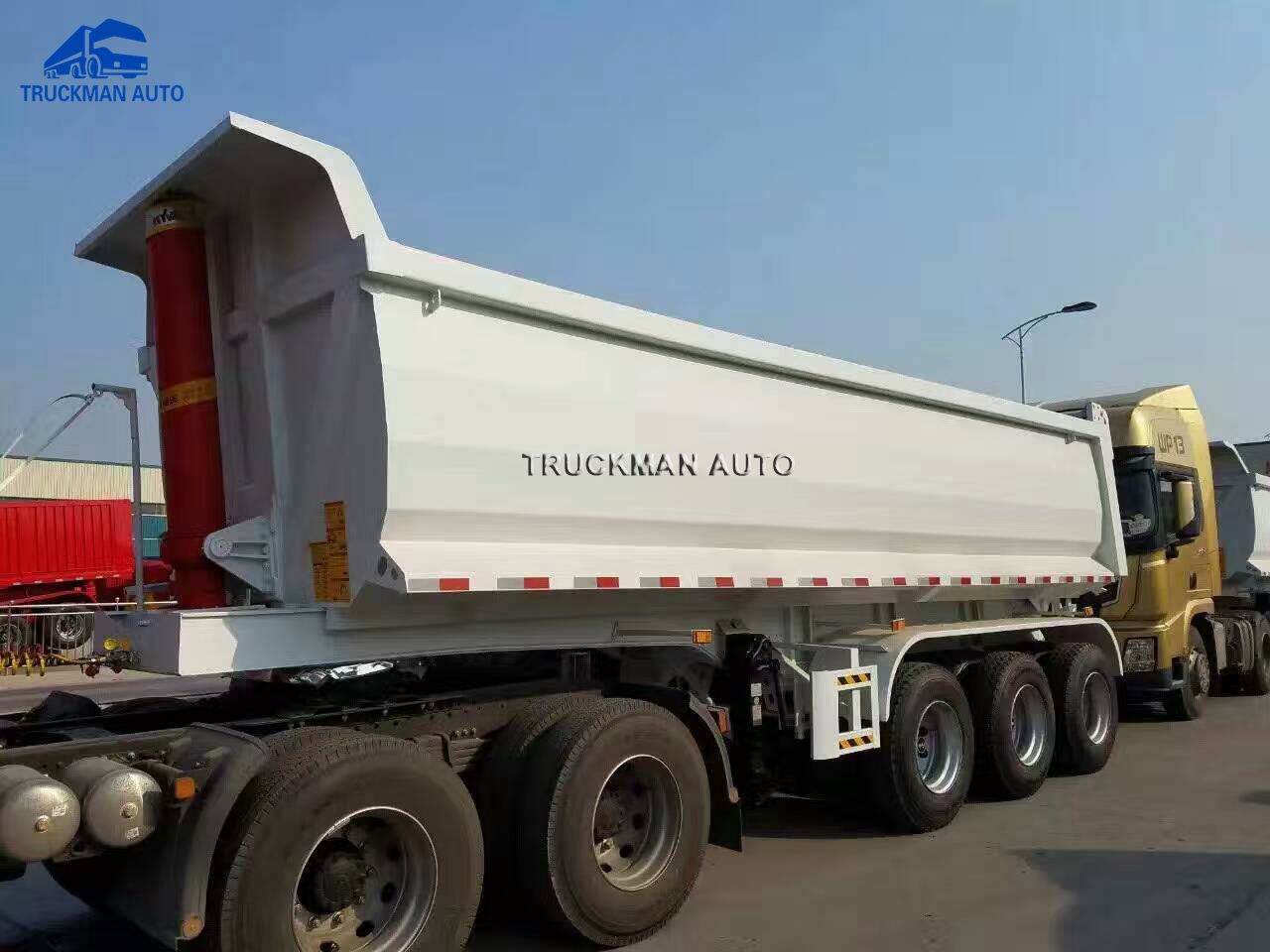

U Shape 50 Tons Dump Trailer With Radial Tire
-1. U Shape 50 Tons Dump Trailer Main Detail.
The U shape 50 tons dump trailer is very popular for the mining and construction filed. the material choose the Q345, with high abrasion resistance. The 50 tons dump trailer tire have the radial and tubeless model could optional, meet the different road request, for example: good road transport suggest the tubeless tire, otherwise the radial model tire is very necessary.
-2. U Shape 50 Tons Dump Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
U shape 50 tons dump trailer |
|
Loading Weight |
50,000kg |
|
Tare Weight |
13,000kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
120x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20 or 315/80R22.5, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm, lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Cargo Box |
10000x2300x1500mm, bottom 8mm, side 6mm, U shape |
|
Dimension |
11000x2500x3750mm |

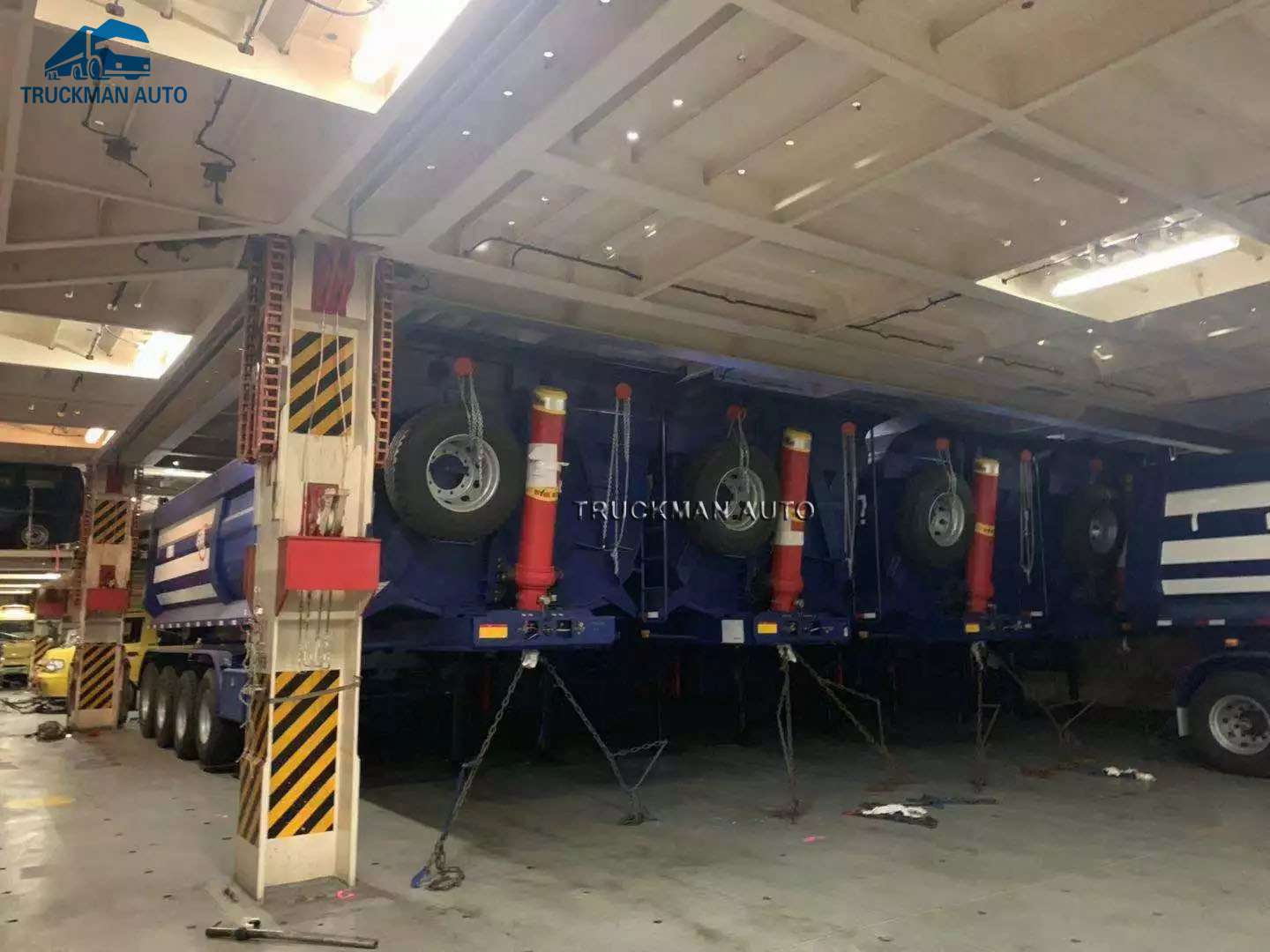

-3. U Shape 50 Tons Dump Trailer Shipment Picture.
The U shape 50 tons dump trailer could shipment via the container, bulk cargo and roro vessel. We could choose the suitable vessel according to your request.
