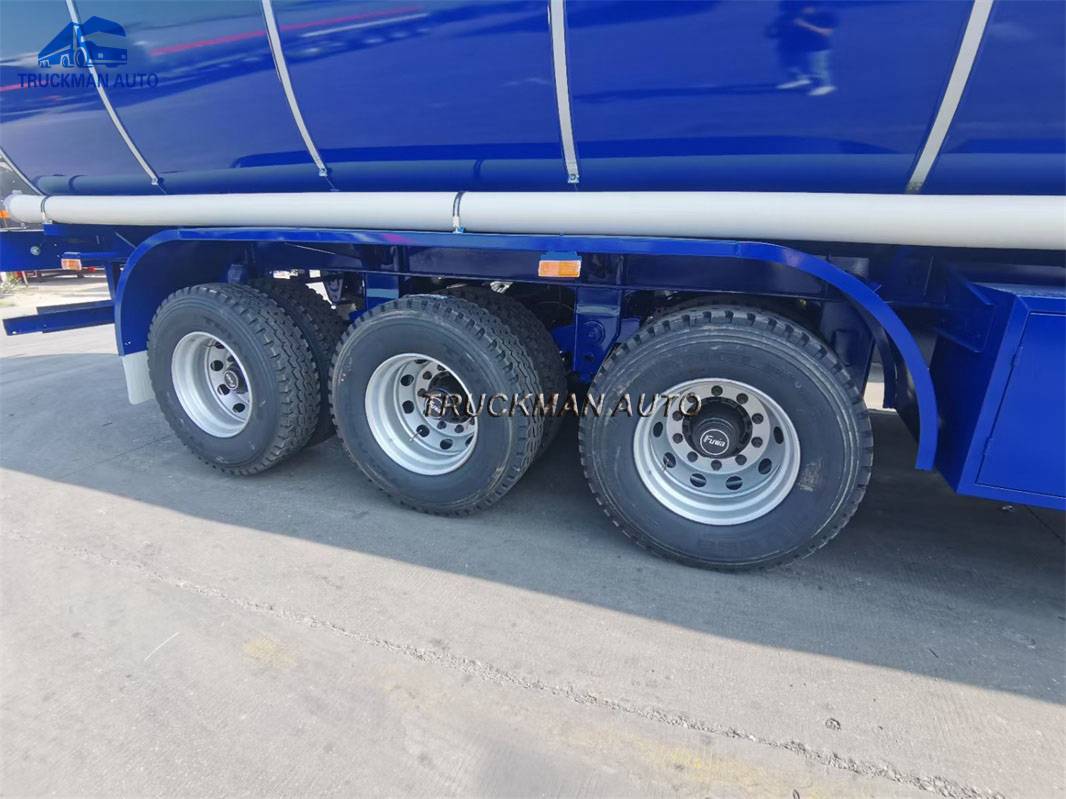

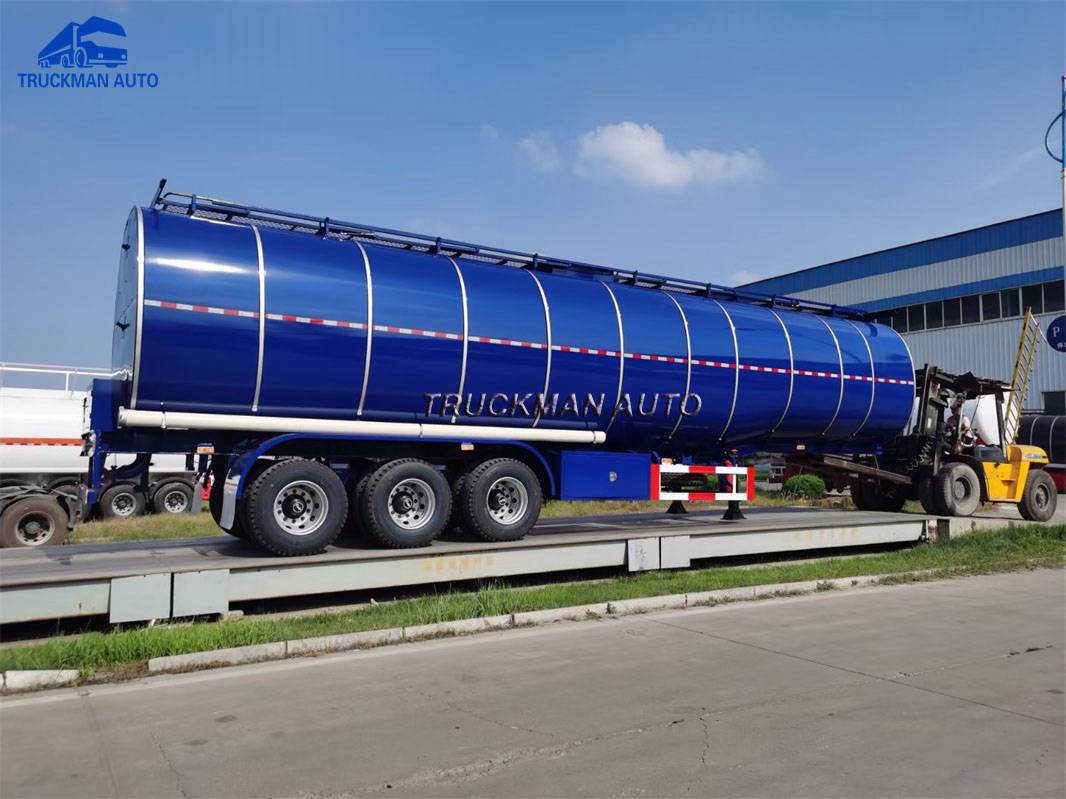

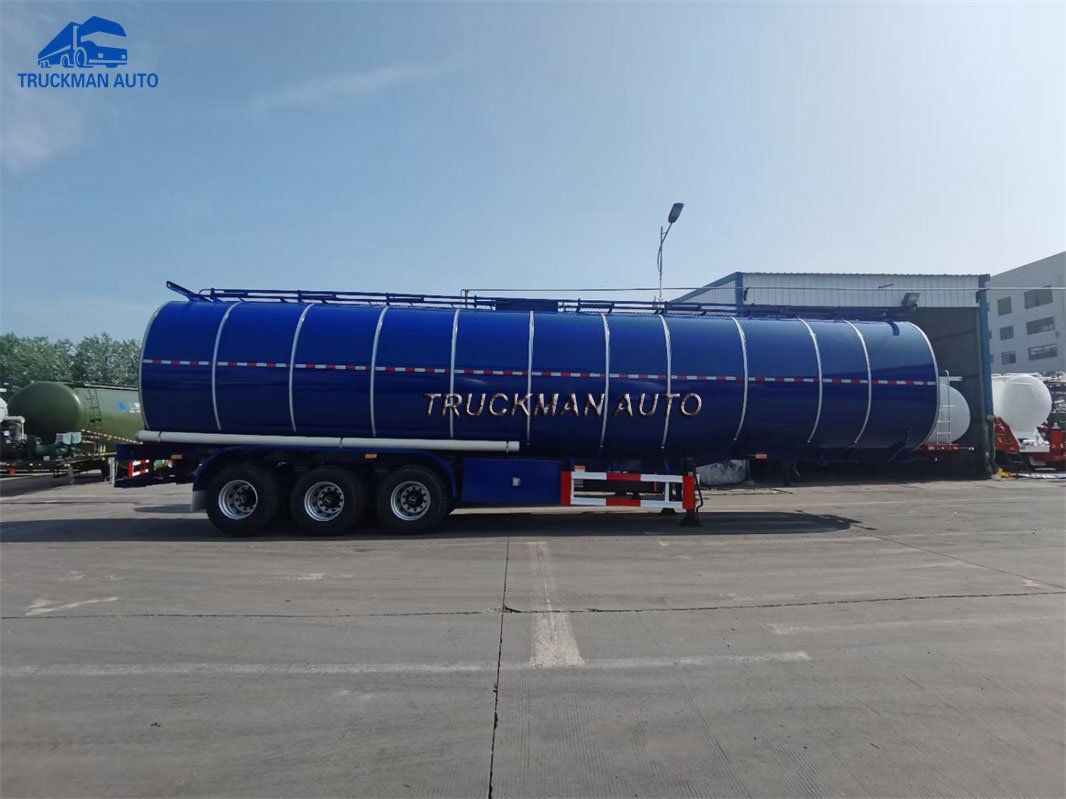

3 Axle Bitumen Trailer Asphalt Trailer For Asphalt Transport
-1. Bitumen Trailer Asphalt Trailer Detail.
Asphalt tanks are used for bitumen transport, the tank body material can be carbon steel, stainless steel, aluminum alloy depends on the transport requirements. The trailer meet the ADR standard suit for most company's rules, nozzles and pump can be installed to spread the asphalt.
-2. Bitumen Trailer Asphalt Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
Bitumen Trailer Asphalt Trailer |
|
Application |
For bitumen transport |
|
Tare weight |
About 11500kgs |
|
Capacity |
45000 liter |
|
Tank body material |
5mm or 6mm/Q235 Carbon steel plate, Aluminum alloy, Stainless steel |
|
Dished end |
6mm or 7mm/Q235 Carbon steel plate/ Aluminum alloy / Stainless steel |
|
Discharging valve |
Diameter 3" or 4" or 6" |
|
Axle |
3 axle, 3x13000kg |
|
Kingpin |
3.5" brand optional |
|
Suspension |
Mechanical suspension / Air suspension |
|
Leaf spring |
100mm *12mm *12 layer |
|
Tire |
12.00R20, 315/80R22.5 |
|
Painting |
Complete chassis sand blasting to clean rust, 1 coat of anti-corrosion primer, 2 coats of final painting |
The bitumen trailer asphalt trailer specification is only for reference, we could recommend the other model bitumen trailer asphalt trailer according to your request.
