XCMG RP403 4m Crawler Asphalt Paver Machine
-1. XCMG RP403 4m Crawler Asphalt Paver Machine
-. Drive left and right independent drive, microcomputer control, constant speed automatic control technology for paving speed,
-. Using a three-in-one powerful composite radiator, left and right transmission, and material distribution Four sets of independent hydraulic system transmissions,
-. High wear-resistant alloy material for the material-discharging blades, imported wear-resistant steel plate for the feeding floor and the screed bottom plate, and the left and right material-dispensing devices can be easily moved up and down to accommodate different paving thicknesses.
-. A horizontal automatic leveling system ensures the flatness of the paving. Centralized lubrication system.
|
Description |
Unit |
Parameter value |
|
Dimension |
mm |
5535×1800×3580 |
|
Weight |
kg |
9500 |
|
Driving speed |
km/h |
3.6 |
|
Basic pave width |
m |
1.8-3.4 |
|
Maximum pave width |
m |
4.2 |
|
Maximum layer thickness |
mm |
200 |
|
Maximum paving speed |
m/min |
30 |
|
Hopper capacity |
kg |
12000 |
|
Maximum laydown rate |
t/h |
300 |
|
Rate power |
kw/rpm |
75/2200 |

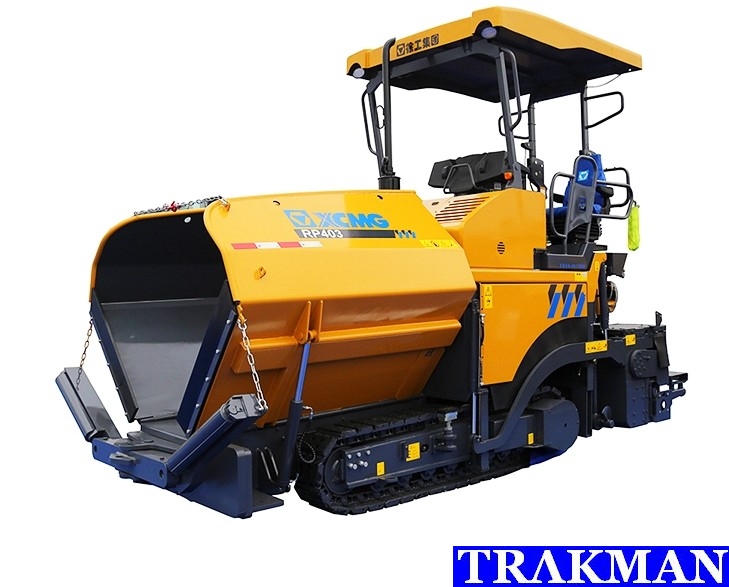

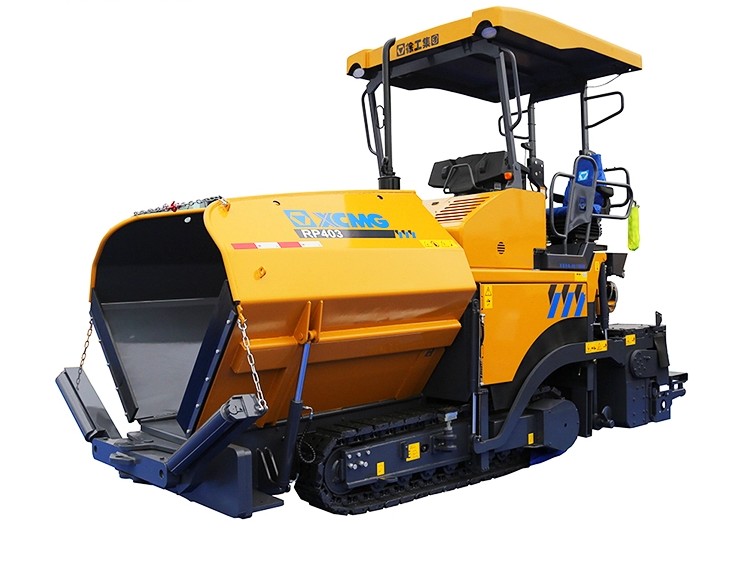

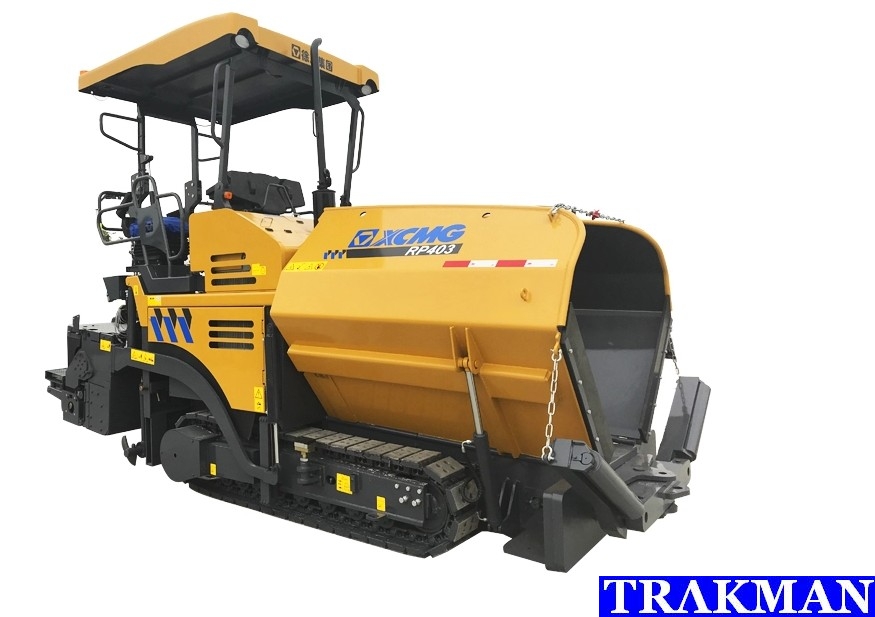

-2. Picture For Reference.
-3. Shipment Picture.
Now our road roller could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's machinerys, all parts could arrange DHL or TNT as soon.
In addition, we also could arrange the engineer for the maintenance.
