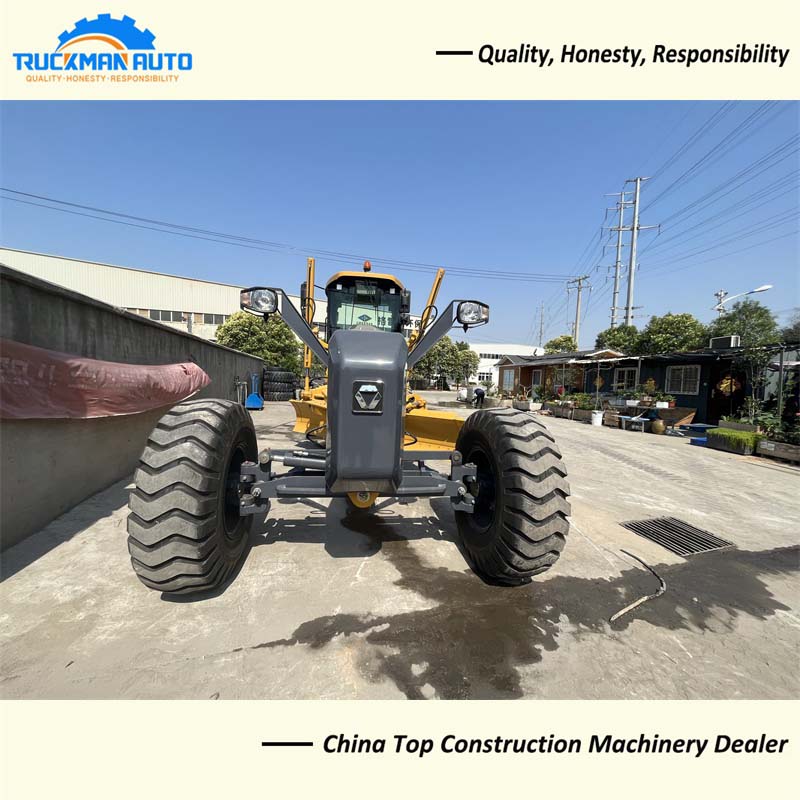

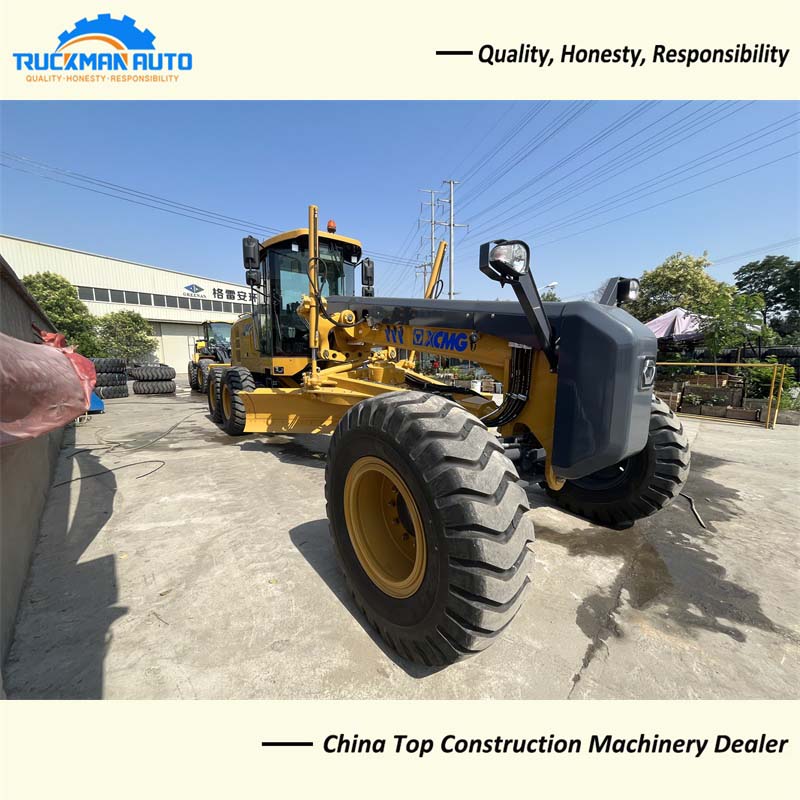

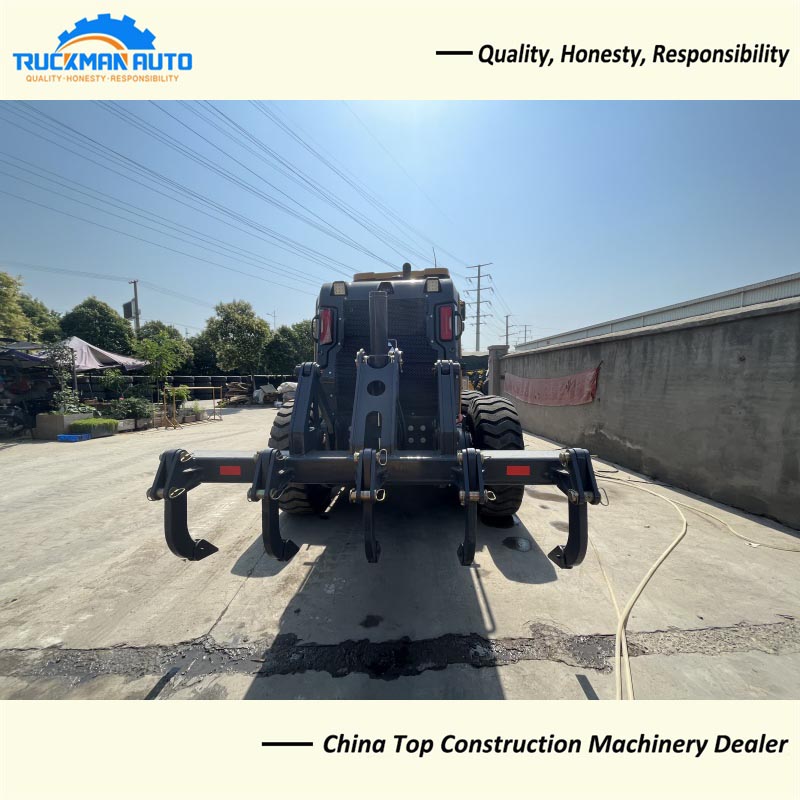

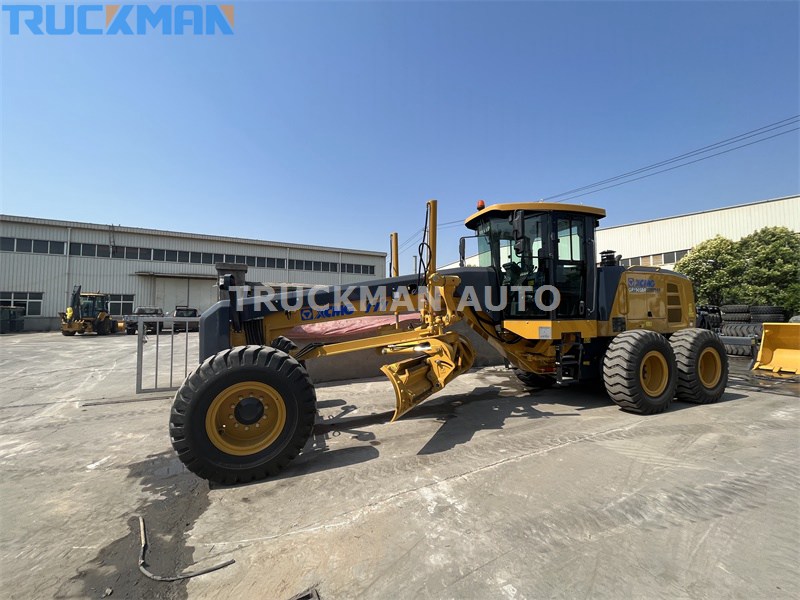

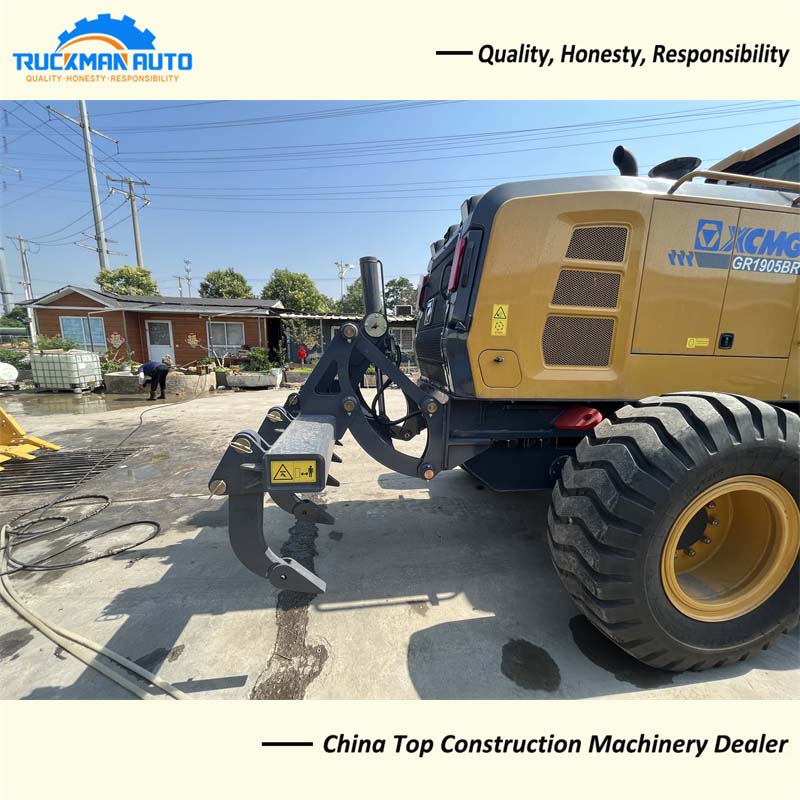

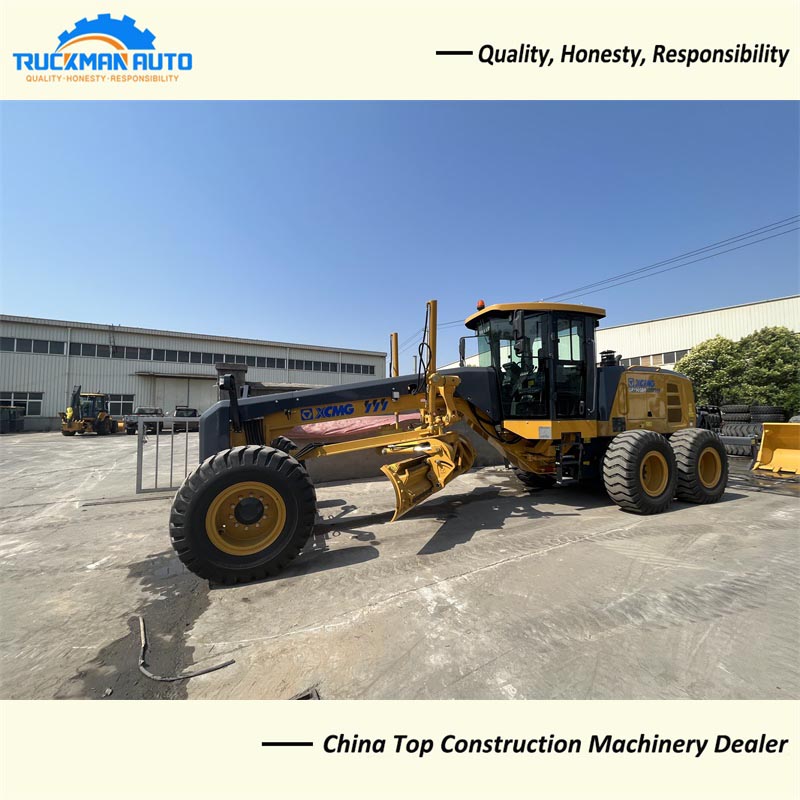

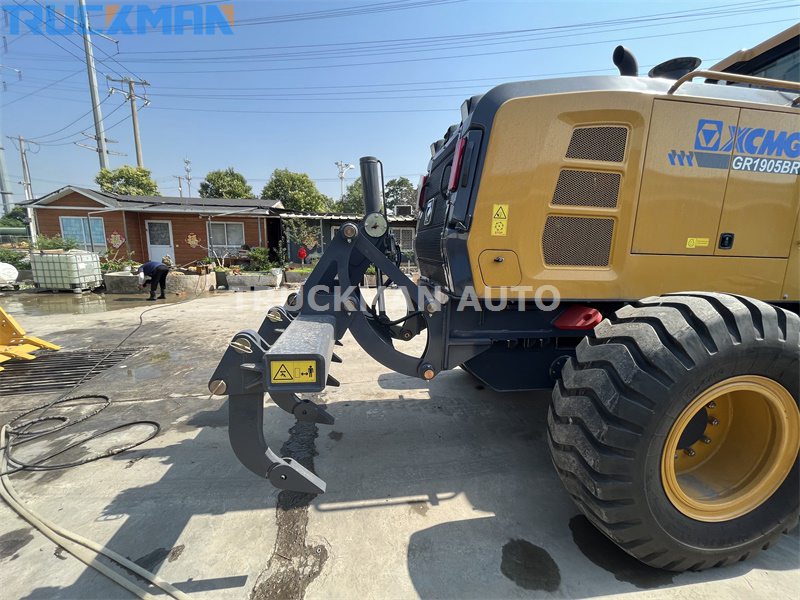

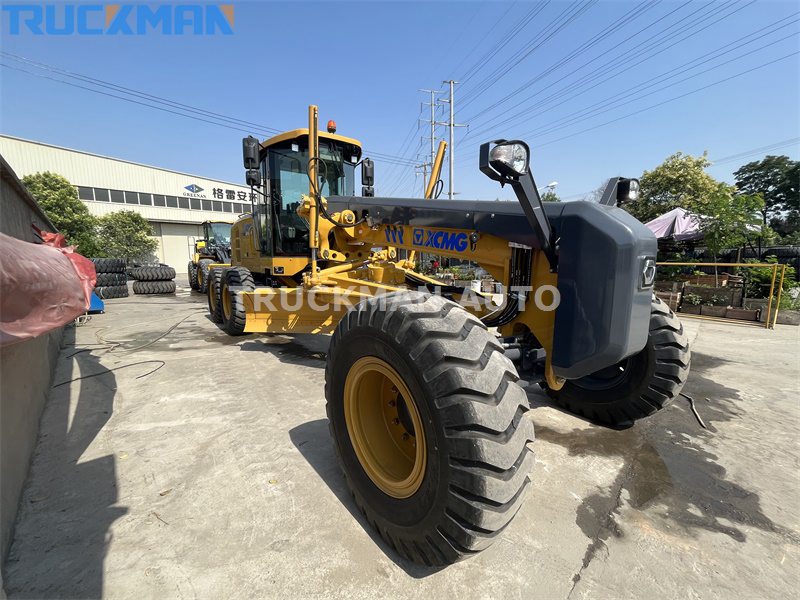

XCMG GR1905BR Motor Grader
XCMG GR1905BR Motor Grader Features
The motor grader is the main machine used for shaping and leveling operations in earthworks, and is widely used for large-area ground leveling operations such as highways and airports. The motor grader provides adequate strength and stability to the roadbed in roadbed construction. It is a kind of high-speed, high-efficiency, high-precision and multi-purpose earthwork machinery.
XCMG GR1905BR Motor Grader Specification
|
Description |
Parameter Value |
|
Product Name |
XCMG GR1905BR Motor Grader |
|
Application |
Construction works |
|
Machine Weight |
15400KG |
|
Engine model |
SHANGCHAI SC7H190.4G3 |
|
Brand |
XCMG |
|
Engine Capacity |
6500ml |
|
Emission Standards |
GB20891-2014 |
|
Tire Specification |
17.5-25 |
|
Fuel tank |
380L |
|
Dimension |
10360x2625x3470 |
XCMG GR1905BR Motor Grader specification only for your reference, we will recommend other model Motor Grader basic your request.
XCMG GR1905BR Motor Grader Structural Features
The motor grader is mainly composed of engine, transmission system, working device, electrical part, cab and hood. Among them, the mechanical and hydraulic transmission system includes torque converter, coupling assembly, planetary gear type power shift transmission, central transmission, steering clutch and steering brake, final drive and traveling system.
XCMG GR1905BR Motor Grader Maintenance Of Hydraulic Oil
Motor grader used in a variety of pumps, valves components, relative to the clearance between the moving parts and the working surface are small, hydraulic components, there are a number of damping holes and slits in the control valve port, etc., if the oil mixed into the dirt, it will occur blocking phenomenon, and even scratching the surface with the increase in leakage, or even stuck spool, resulting in the components of the action is not functioning. Therefore, keep the fluid clean is the key to hydraulic system maintenance. Hydraulic oil must be strictly filtered, regularly check the cleanliness of the fluid, hydraulic components should not be easily disassembled.
