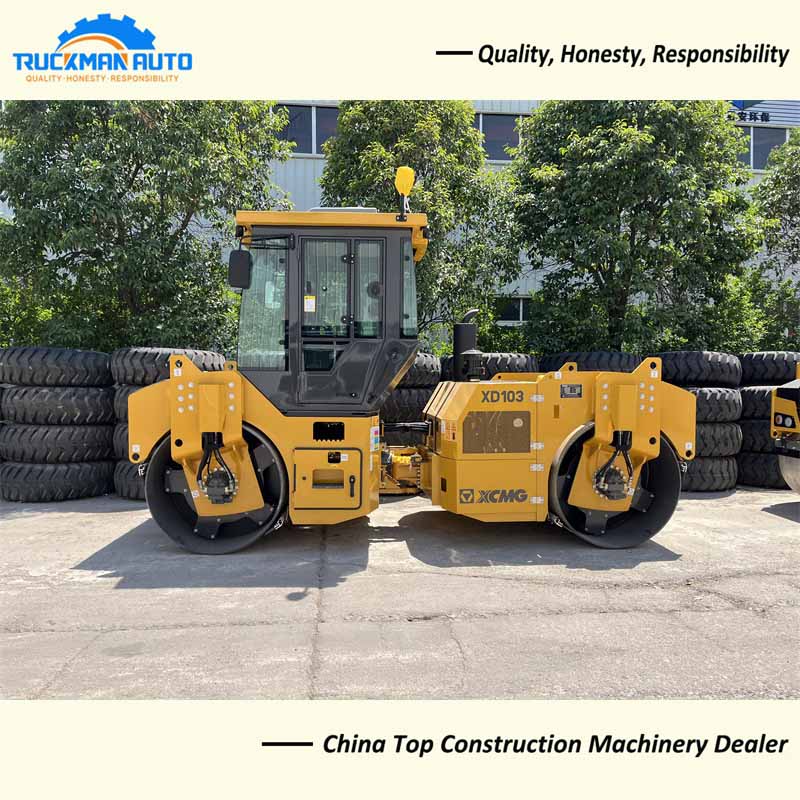

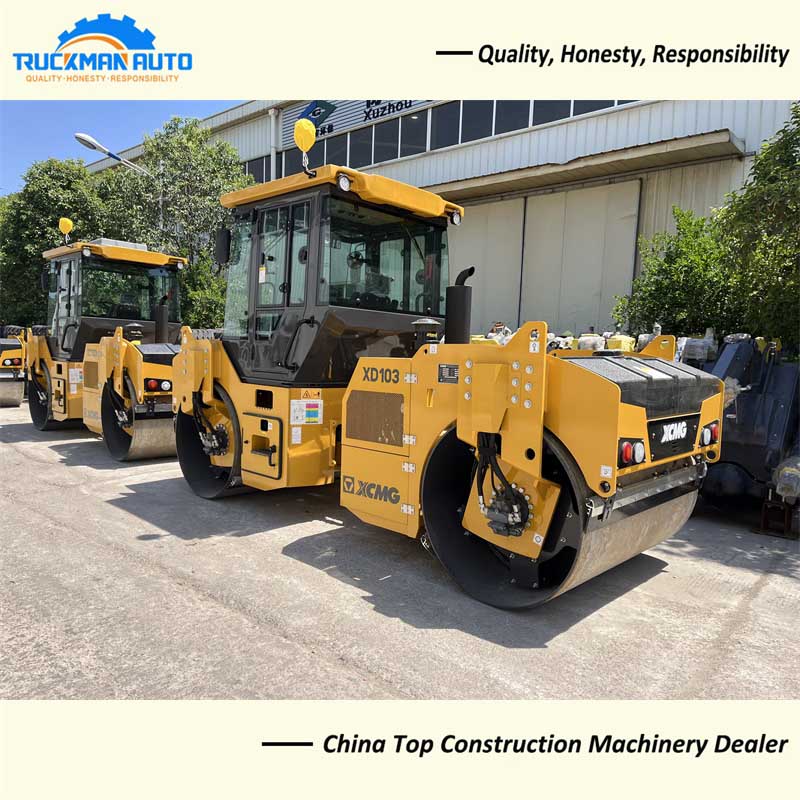

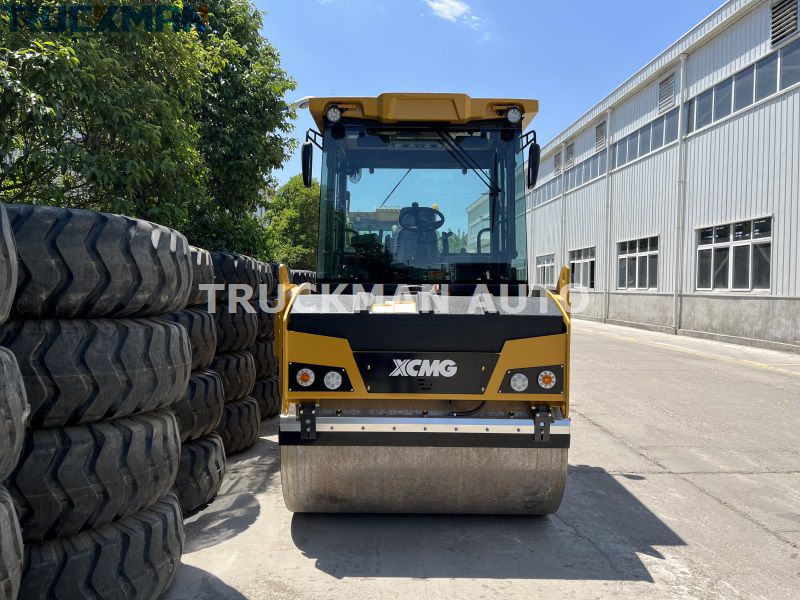

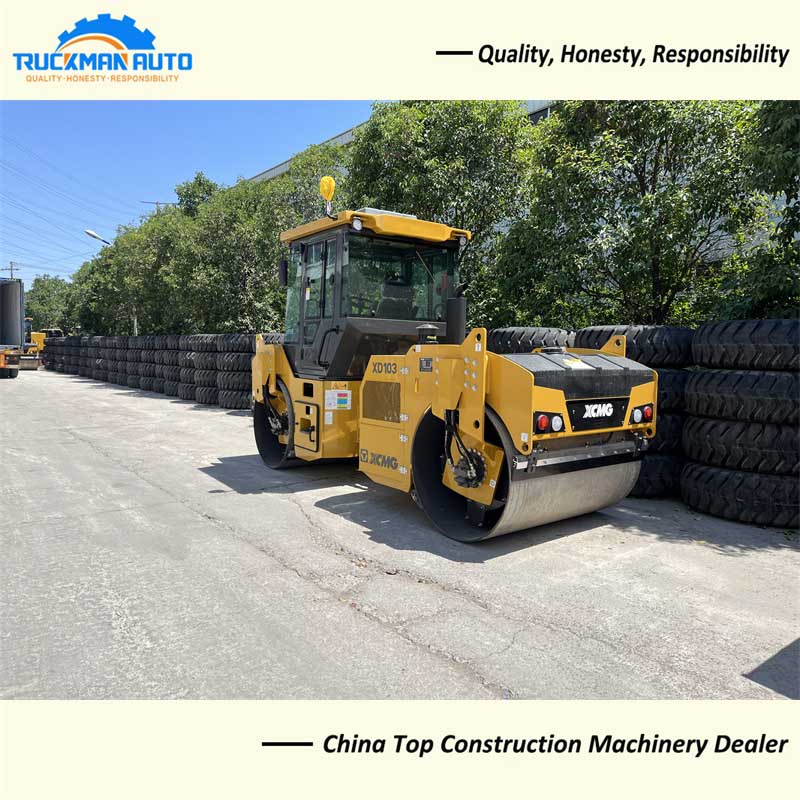

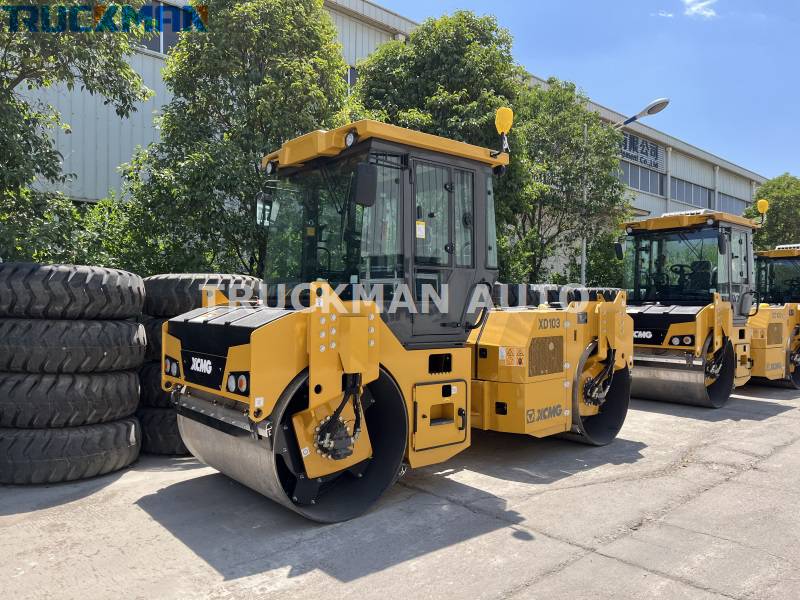

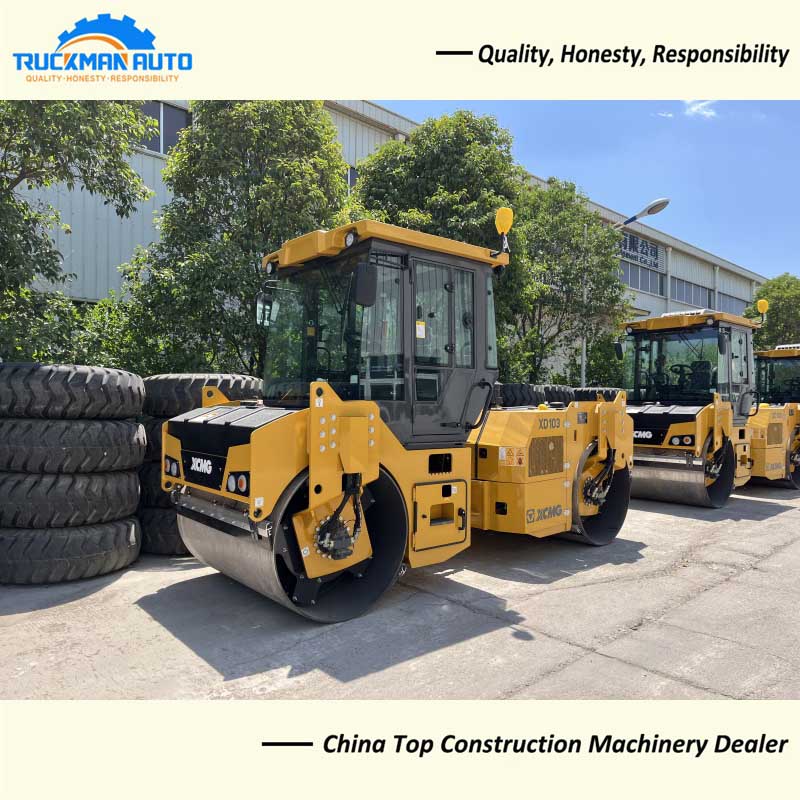

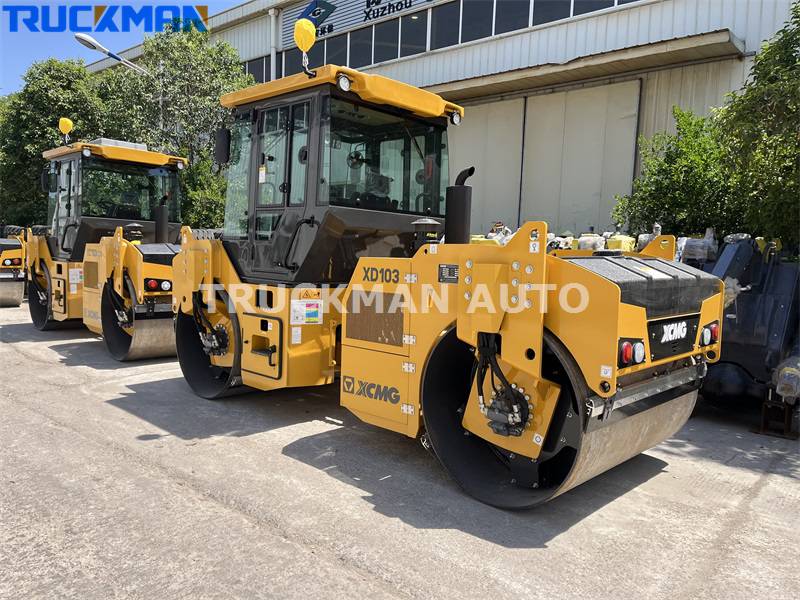

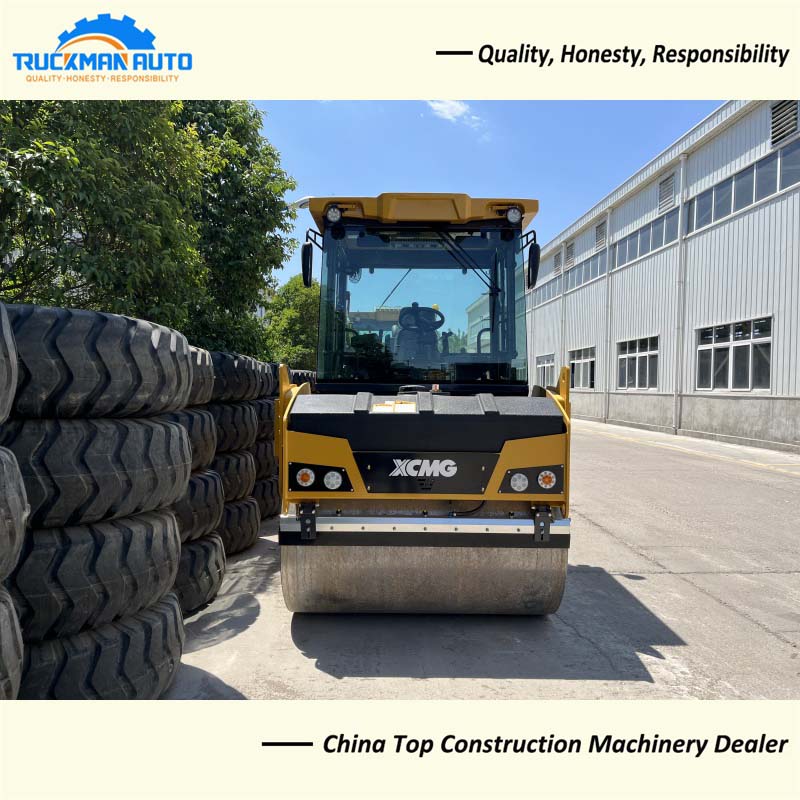

10 Tons XCMG XD103 Double Drum Road Roller For Guyana
10 Tons XCMG XD103 Double Drum Road Roller Features
10 tons double drum road roller is especially suitable for asphalt compaction, also can be used for small and medium-sized foundation, sub-foundation and filler material compaction.XCMG XD103 double drum road roller has the characteristics of compact structure, maneuverability and flexibility.
-.The front and rear frames adopt frameless structure, which increases the XCMG XD103 road roller's approach and departure angles and improves the machine's edge compaction performance.
-.Independent articulated steering structure, the whole machine realizes modular installation, compact structure, shortened wheelbase, and the smallest turning radius under the same tonnage.
10 Tons XCMG XD103 Double Drum Road Roller Specification
|
Description |
Parameter Value |
|
Product Name |
10 Tons XCMG XD103 double drum road roller |
|
Application |
Road roller |
|
Operating Weight |
10000kg |
|
Axle Load, Front |
5000kg |
|
Axle Load, Rear |
5000kg |
|
Rated Power |
74.9/2300/kW/rpm |
|
Vibration Frequency |
55/45Hz |
|
Working Width |
1750mm |
|
Vibration Amplitude |
0.35/0.60mm |
|
Dimension |
4900*1960*3087mm |
10 tons XCMG XD103 double drum road roller specification only for your reference, we will recommend other model road roller basic your request.
10 Tons XCMG XD103 Double Drum Road Roller Advantage
XCMG XD103 double drum road roller's vibrating wheel adopts cylinder double support structure and advanced compaction technology, the amplitude difference between left and right vibrating wheels is controlled within 3%, which not only effectively ensures the smoothness of the road surface, but also has a long service life.XCMG XD103 road roller adopts full hydraulic transmission and full electro-hydraulic control technology, which makes it very easy and convenient for drivers to maneuver and also accurate. The driver can maneuver the roller easily and accurately.
10 Tons XCMG XD103 Double Drum Road Roller Detail
XCMG XD103 double drum road roller adopts a new type of hood that can be opened to both sides, which makes it easier for the driver to maintain the engine.XCMG XD103 road roller adopts a transverse engine design. The left and right side doors are easy to open, and the engine and hydraulic system components are visible, which is convenient for customers to repair and maintain, and saves time and labor for maintenance and repair.
