XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
-1. XCMG Brand Concrete Pump Truck Main Specification
-. XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
-. It is highly reliable and durable with seven technical highlights. More advanced boom structure technology.
-. More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology.
-. More reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
|
Description |
Unit |
Parameter value |
|
|
Outline dimension |
mm |
10190×2500×3700 |
|
|
Overall weight |
kg |
20000 |
|
|
Chassis |
Model |
|
ZZ5207M521GC1 |
|
Max. speed |
km/h |
90 |
|
|
Max. grade-ability |
% |
35 |
|
|
Wheelbase |
mm |
5200 |
|
|
Tire |
|
11.00R20 |
|
|
Engine |
Model |
|
MC07.28-30 |
|
Max. power |
kW |
203 |
|
|
Max. torque |
N·m/(r/min) |
1100/1200-1800 |
|
|
Displacement |
L |
6.87 |
|
|
Emission standard |
|
Eruo III |
|
|
Pumping system |
Theoretical output |
m³/h |
100 |
|
Concrete pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
Time/min |
25 |
|
|
Delivery cylinder diameter ×stroke |
mm |
φ230×1600 |
|
|
Max. diameter of pumping concrete |
mm |
40 |
|
|
Filling height |
mm |
1550 |
|
|
Placing boom |
Reach height |
m |
29.6 |
|
Reach depth |
m |
18 |
|
|
Slewingradius |
m |
25.7 |
|
|
Slewing angle |
° |
±270 |
|

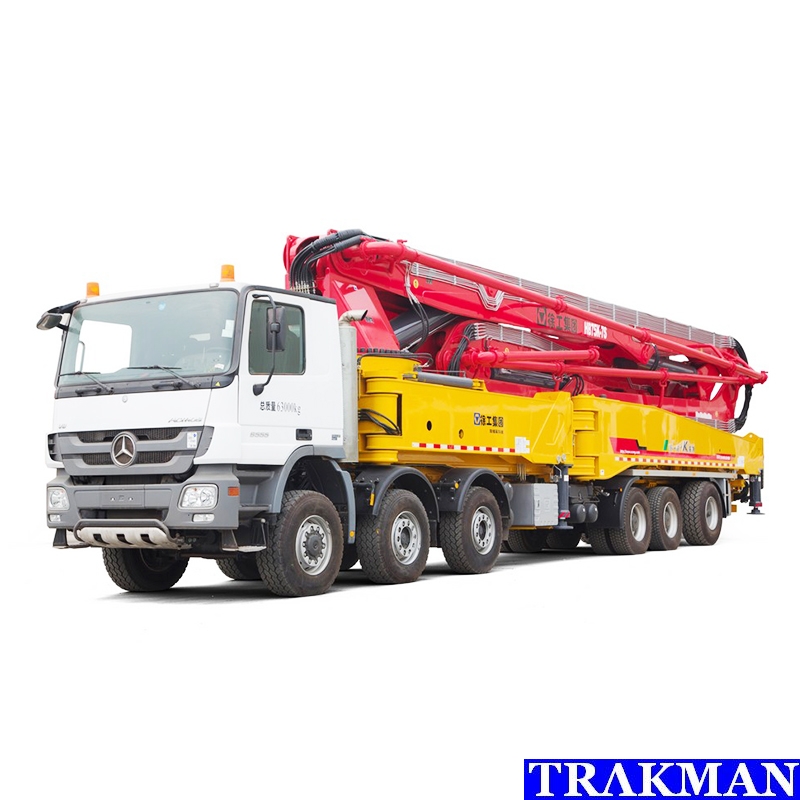

-2. Truck Picture For Reference.

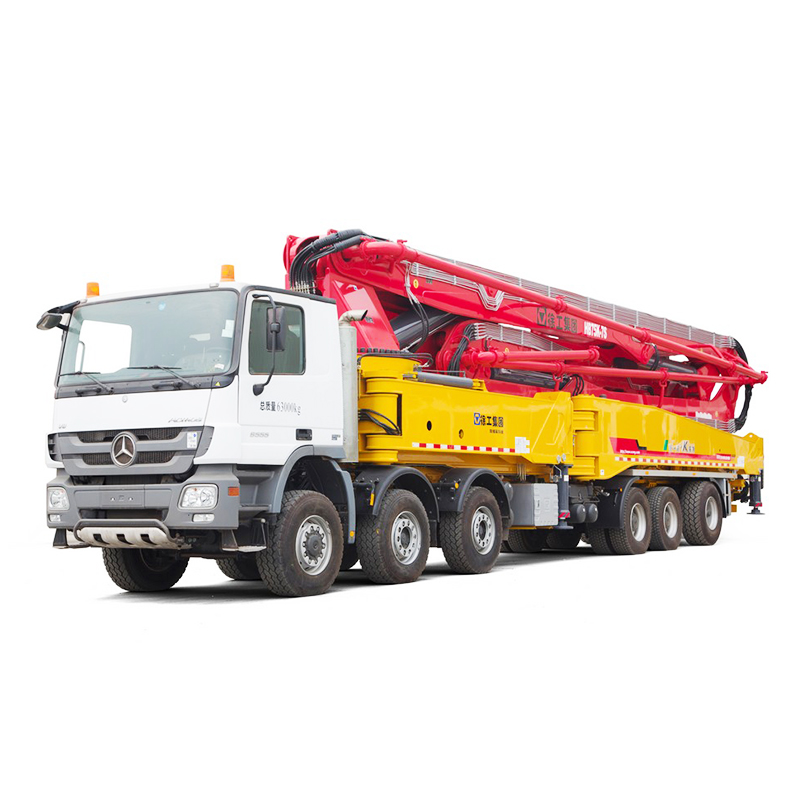

-3. Truck Detail Picture.

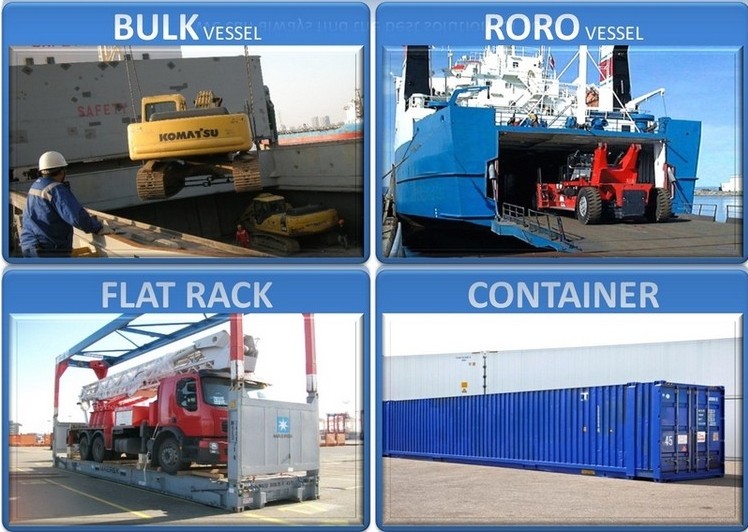

-4. Shipment Picture.
Now our SINOTRUK trucks could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
