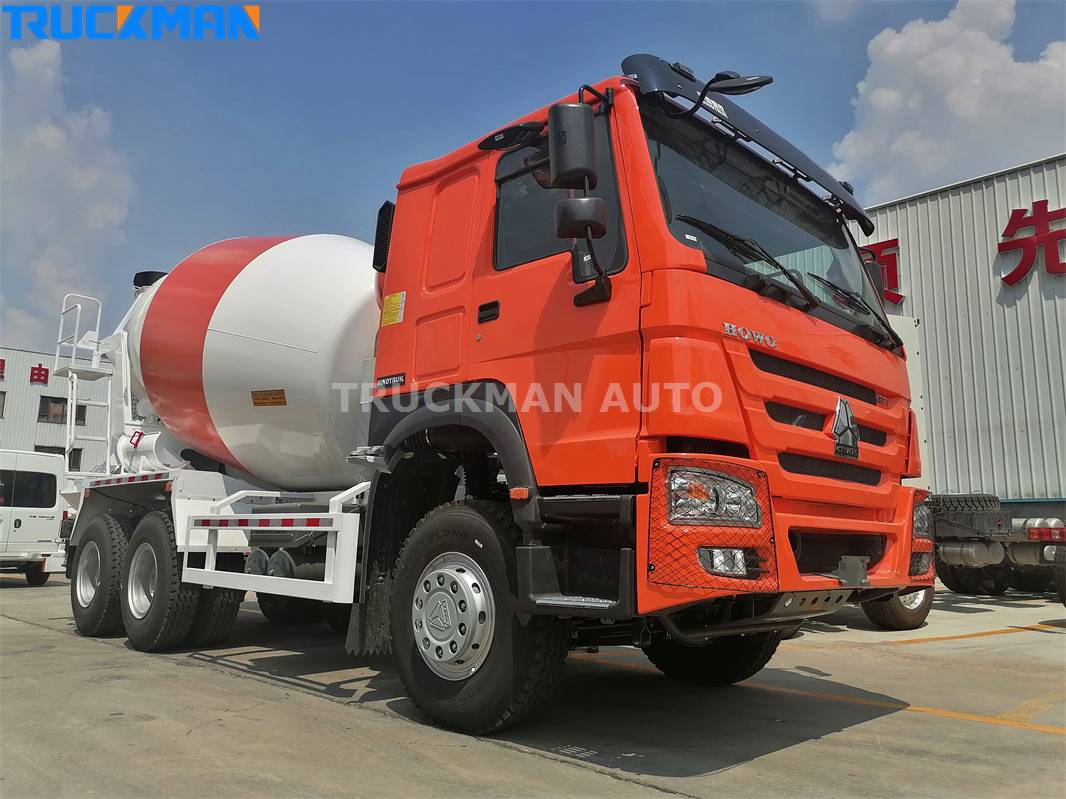

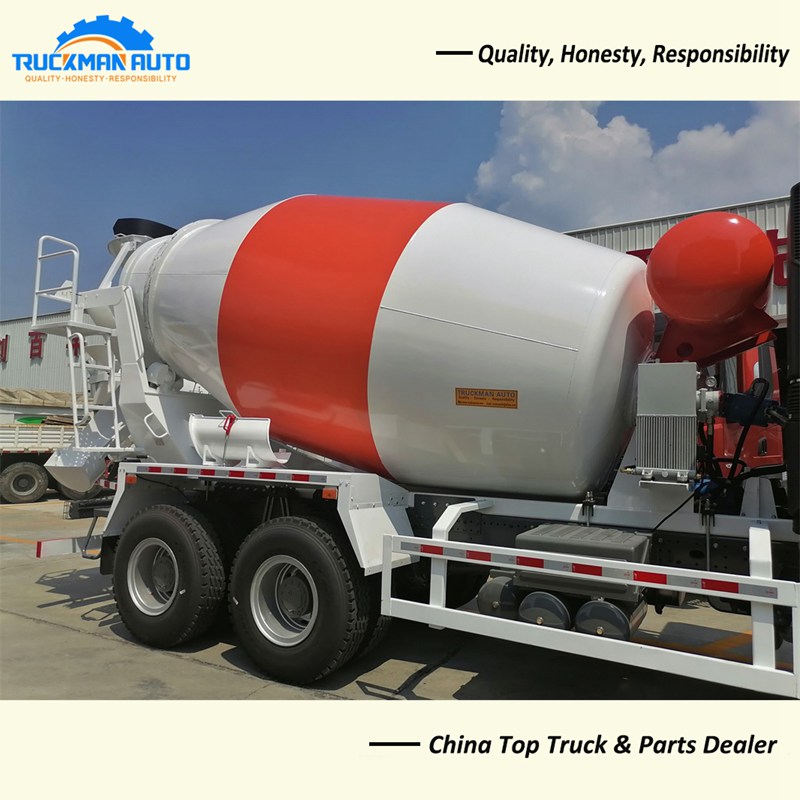

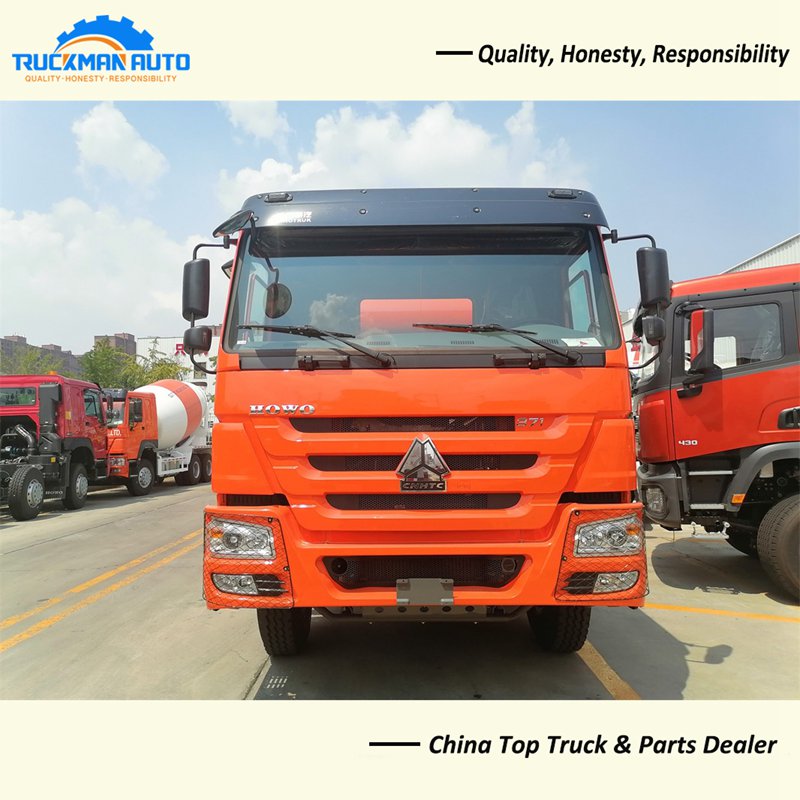

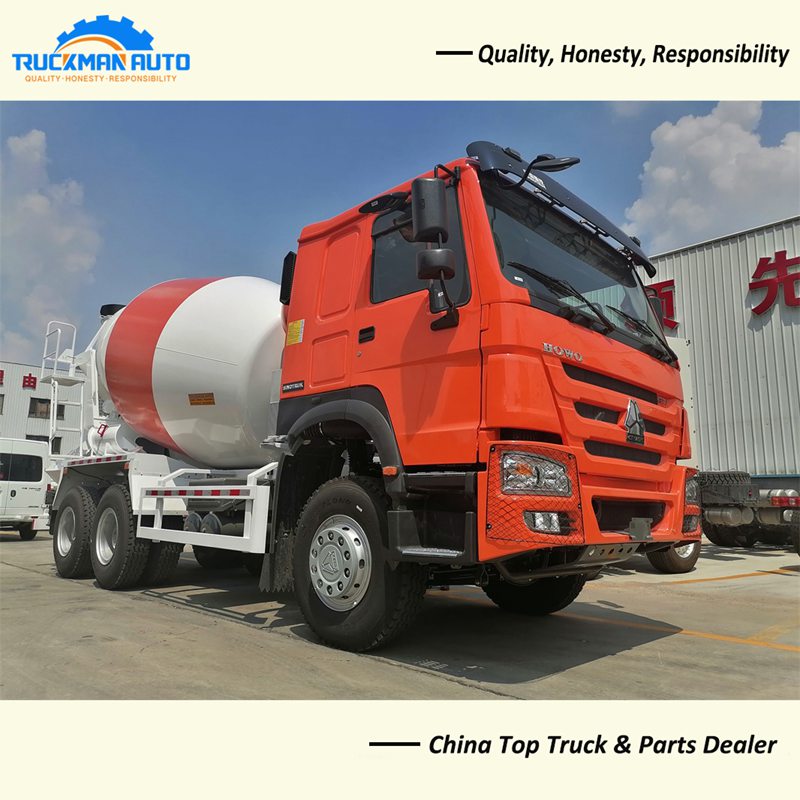

SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck

SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck
SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck
SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck
SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck
SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck
SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck
Product Name : SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck
Product ID : ZZ1257N3841W
Loading Tons : 25 tons
Engine : WD615.47, 371HP
Gearbox : 10 forward and 2 reverse gear
Cabin : With one bed, A/C
Tire : 12.00R20, 10+1 pcs
Directions

SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck.



SINOTRUK HOWO concrete mixer tank truck widely used in construction sites, the tank body can loading 6-16m3 concrete. During transportation, the mixing drum continuously stirs the concrete at a low speed of 1-3r/min, so that the concrete will not segregate and solidify. The average conveying distance of 8-12km is more suitable. If the conveying time is too long, the slump of concrete will be reduced too much, making it difficult to discharge.







SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck Specification.



Description

Parameter Value

Product Name

SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck

Application

concrete transport

Loading Tons

25,000kg

Engine

WD615.47, 371HP, EURO II

Gearbox

10 forward and 2 reverse gear

Cabin

HW76, with one bed, A/C

Tire

12.00R20, 10+1 pcs, radial model

Tank Body

10m3

Driving Axle

HC16, 2x16000kg

Dimension

9920x2560x3950mm



The SINOTRUK HOWO 10m3 concrete mixer tank truck price specification only for your reference, we will recommend other model SINOTRUK HOWO concrete mixer tank truck basic your request.



SINOTRUK HOWO 10m3 Concrete Mixer Tank Truck Main Parts.

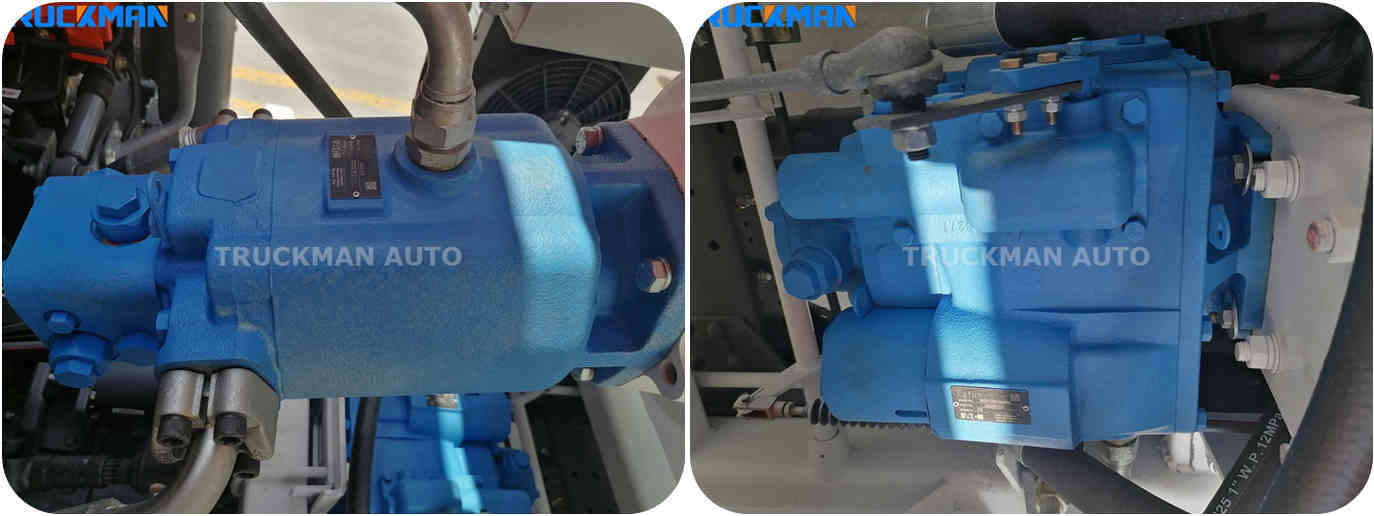

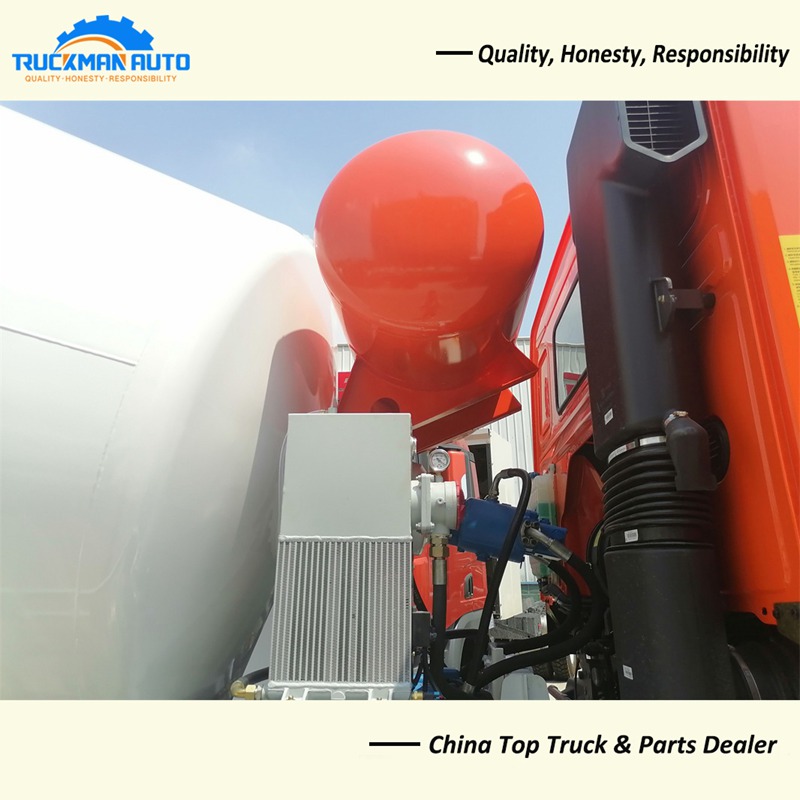

The three major parts of a concrete mixer truck refer to the pump, motor and reducer. The role of the pump: to provide a steady stream of power for the hydraulic oil. The role of the motor: convert the power of hydraulic oil into mechanical power and transmit it to the reducer. The function of the reducer: reduce the speed transmitted by the hydraulic motor.
