XCMG Brand 43m Concrete Pump Truck With HOWO Truck Chassis

XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
Product Name : XCMG Brand 43m Concrete Pump Truck With HOWO Truck Chassis
Product ID : HB43K
Type : Concrete Pump Truck
Chassis : SINOTRUK HOWO Brand
Reach Height : 43m
Delivery Time : 30-45 days
Payment Term : T/T or L/C at sight
Directions

-1. XCMG Brand Concrete Pump Truck Main Specification



-. XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.

-. It is highly reliable and durable with seven technical highlights. More advanced boom structure technology.

-. More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology.

-. More reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.



Description

Unit

Parameter value

Outline dimension

mm

11260×2500×3990

Overall weight

kg

31000

Chassis

Model



ZZ5347V4847C1

Max. speed

km/h

90

Max. grade-ability

%

40

Wheelbase

mm

4600+1350

Tire



1200R20

Engine

Model



D12.42-30

Max. power

kW

278

Max. torque

N·m/(r/min)

1820/1100~150

Displacement

L

10.837

Emission standard



Eruo III

Pumping system

Theoretical output

m³/h

170

Concrete pumping pressure

MPa

8

Theoretical pumping times

Time/min

23~26

Delivery cylinder diameter ×stroke

mm

φ260×2000

Max. diameter of pumping concrete

mm

40

Filling height

mm

1580

Concrete slump range

cm

8~23

Placing boom

Reach height

m

43

Reach depth

m

29

Slewingradius

m

37.3

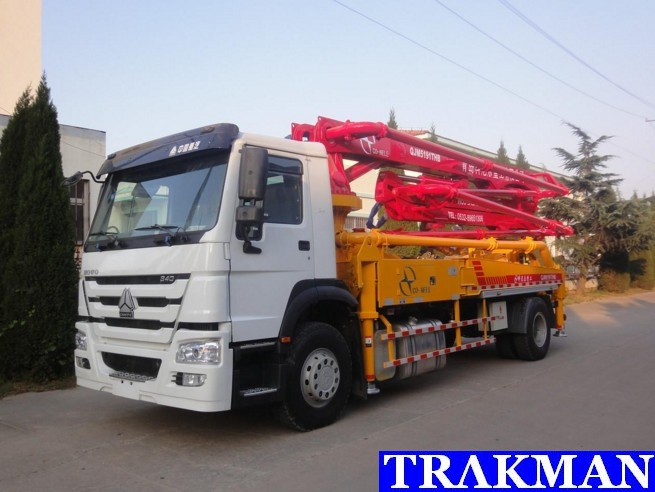

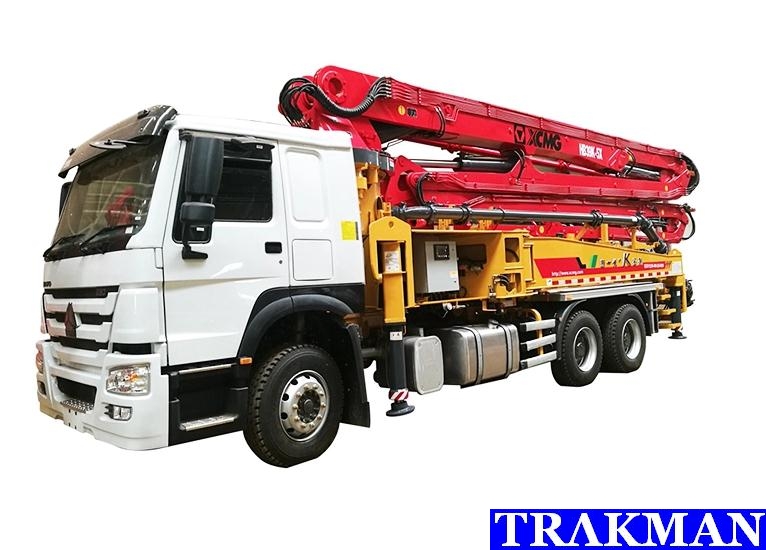

-2. Truck Picture For Reference.







-3. Truck Detail Picture.

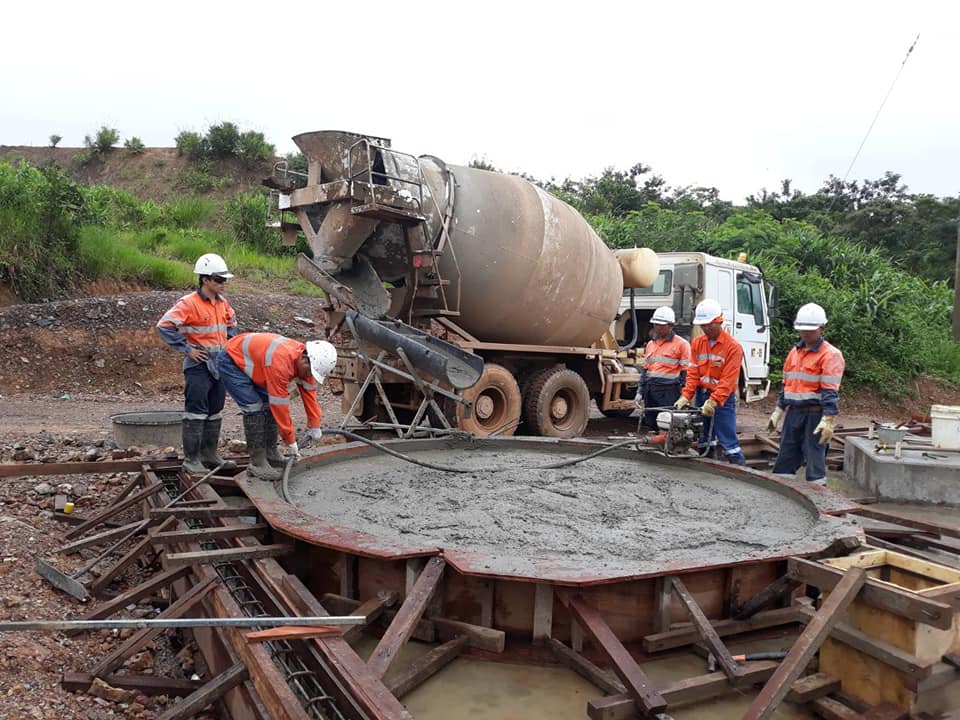

-4. The Truck Working Picture.





All picture is our customers send us, different country, different customer, different work condition, but our truck can suitable for our customers all request.
