XCMG Brand 58m Concrete Pump Truck With HOWO Truck Chassis

XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
Product Name : XCMG Brand 58m Concrete Pump Truck With HOWO Truck Chassis
Product ID : HB58K
Type : Concrete Pump Truck
Chassis : SINOTRUK HOWO Brand
Reach Height : 58m
Delivery Time : 30-45 days
Payment Term : T/T or L/C at sight
Directions

-1. XCMG Brand Concrete Pump Truck Main Specification



-. XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.

-. It is highly reliable and durable with seven technical highlights. More advanced boom structure technology.

-. More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology.

-. More reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.



Description

Unit

Parameter value

Outline dimension

mm

13120×2500×3990

Overall weight

kg

34000

Chassis

Model



ZZ5347V484MD1

Max. speed

km/h

90

Max. grade-ability

%

40

Wheelbase

mm

4800+1400

Tire



315/80R22.5

Engine

Model



MC11.40-40

Max. power

kW

297

Max. torque

N·m/(r/min)

1900/1000~1400

Displacement

L

10.518

Emission standard



Eruo IV

Pumping system

Theoretical output

m³/h

170

Concrete pumping pressure

MPa

8

Theoretical pumping times

Time/min

23~26

Delivery cylinder diameter ×stroke

mm

φ260×2000

Max. diameter of pumping concrete

mm

≤40

Filling height

mm

1580

Concrete slump range

cm

8~23

Placing boom

Reach height

m

51.5

Reach depth

m

36.1

Slewingradius

m

46

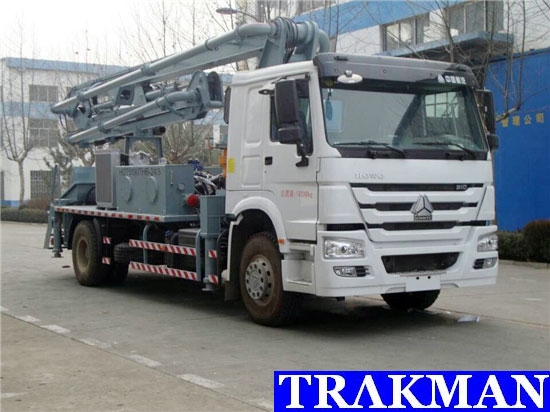

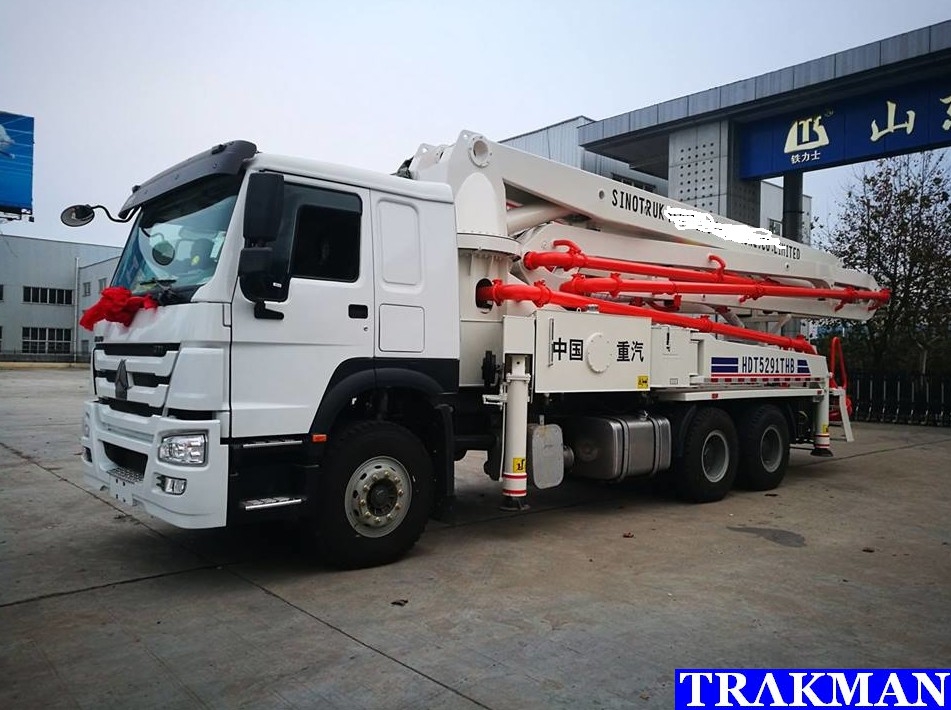

-2. Truck Picture For Reference.







-3. Truck Detail Picture.







-4. Other Products.

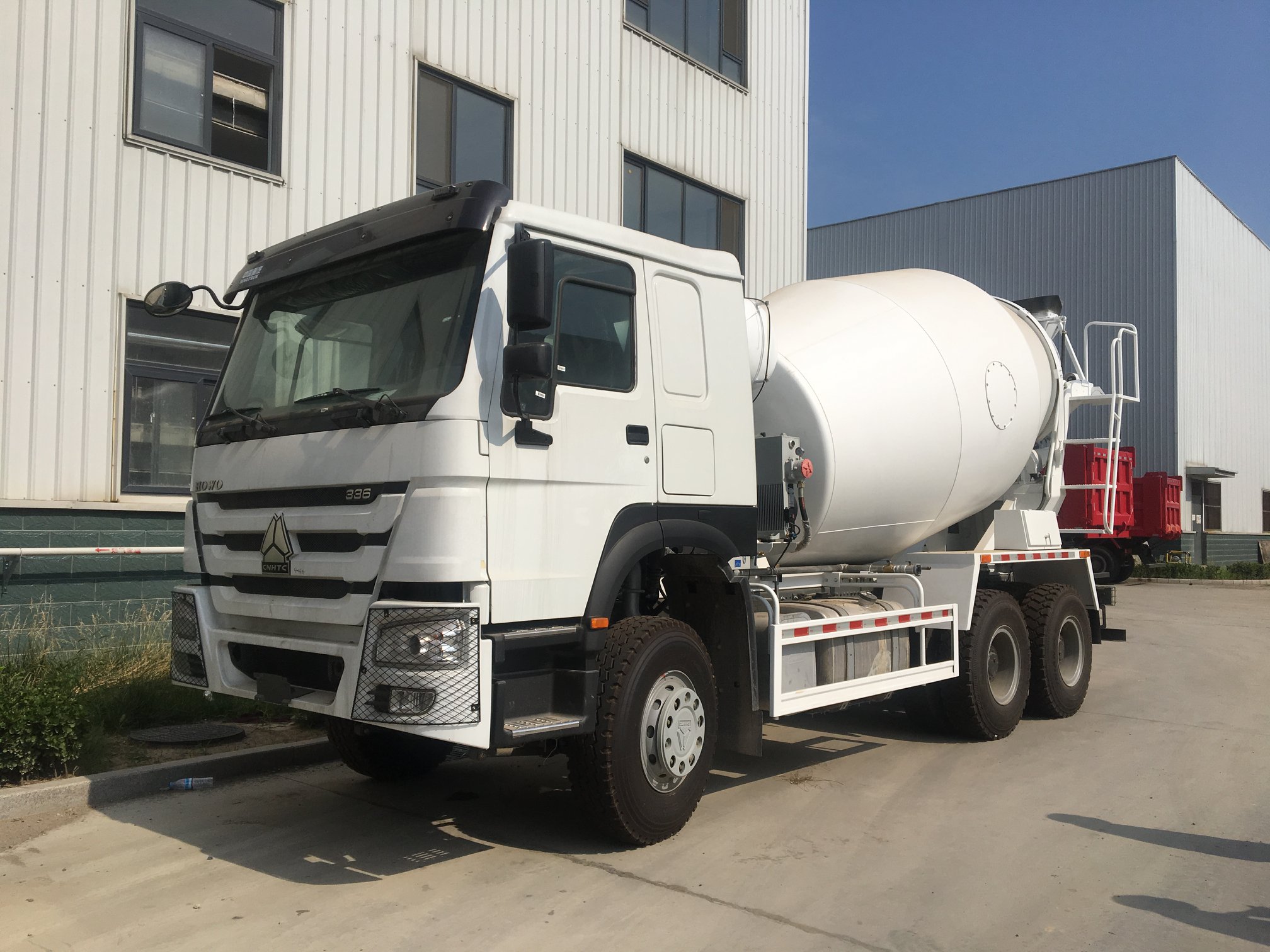

We also have SINOTRUK, SHACMAN, FOTON, etc brand concrete mixer truck, contact with us get more detail.
