XCMG Brand 30m Concrete Pump Truck With HOWO Truck Chassis

XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
XCMG Brand Concrete Pump Truck With HOWO Truck Chassis
Product Name : XCMG Brand 30m Concrete Pump Truck With HOWO Truck Chassis
Product ID : HB30K
Type : Concrete Pump Truck
Chassis : SINOTRUK HOWO Brand
Reach Height : 30m
Delivery Time : 30-45 days
Payment Term : T/T or L/C at sight
Directions

-1. XCMG Brand Concrete Pump Truck Main Specification



-. XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.

-. It is highly reliable and durable with seven technical highlights. More advanced boom structure technology.

-. More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology.

-. More reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.



Description

Unit

Parameter value

Outline dimension

mm

10190×2500×3700

Overall weight

kg

20000

Chassis

Model



ZZ5207M521GC1

Max. speed

km/h

90

Max. grade-ability

%

35

Wheelbase

mm

5200

Tire



11.00R20

Engine

Model



MC07.28-30

Max. power

kW

203

Max. torque

N·m/(r/min)

1100/1200-1800

Displacement

L

6.87

Emission standard



Eruo III

Pumping system

Theoretical output

m³/h

100

Concrete pumping pressure

MPa

8

Theoretical pumping times

Time/min

25

Delivery cylinder diameter ×stroke

mm

φ230×1600

Max. diameter of pumping concrete

mm

40

Filling height

mm

1550

Placing boom

Reach height

m

29.6

Reach depth

m

18

Slewingradius

m

25.7

Slewing angle

°

±270

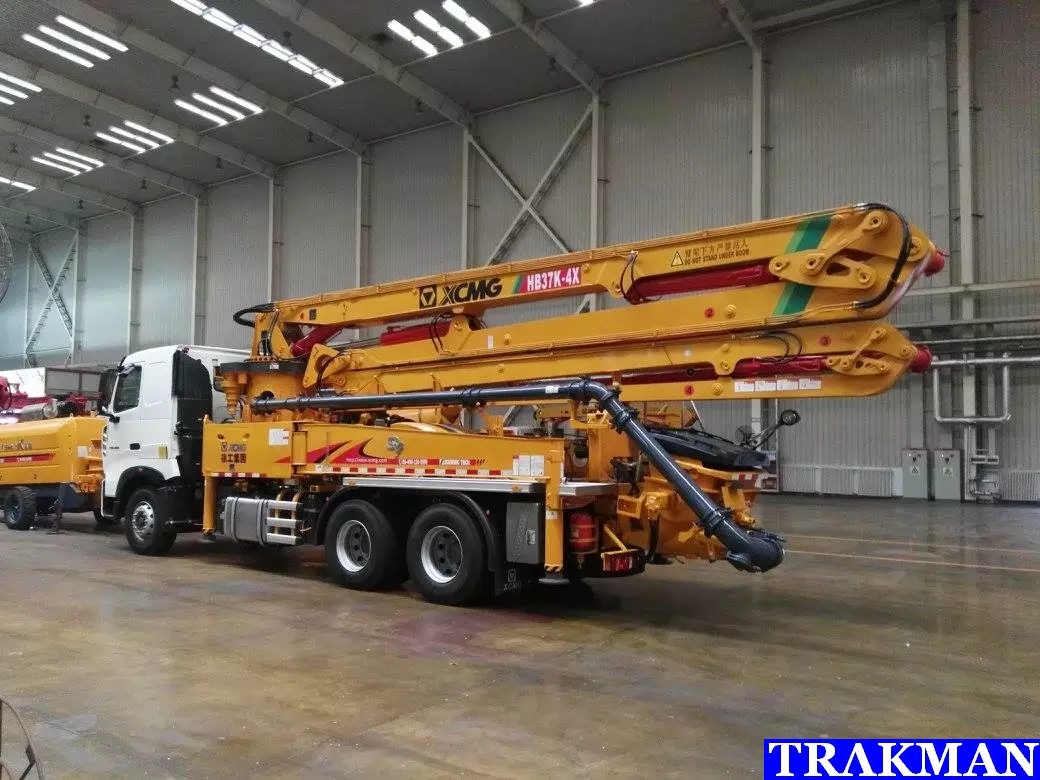

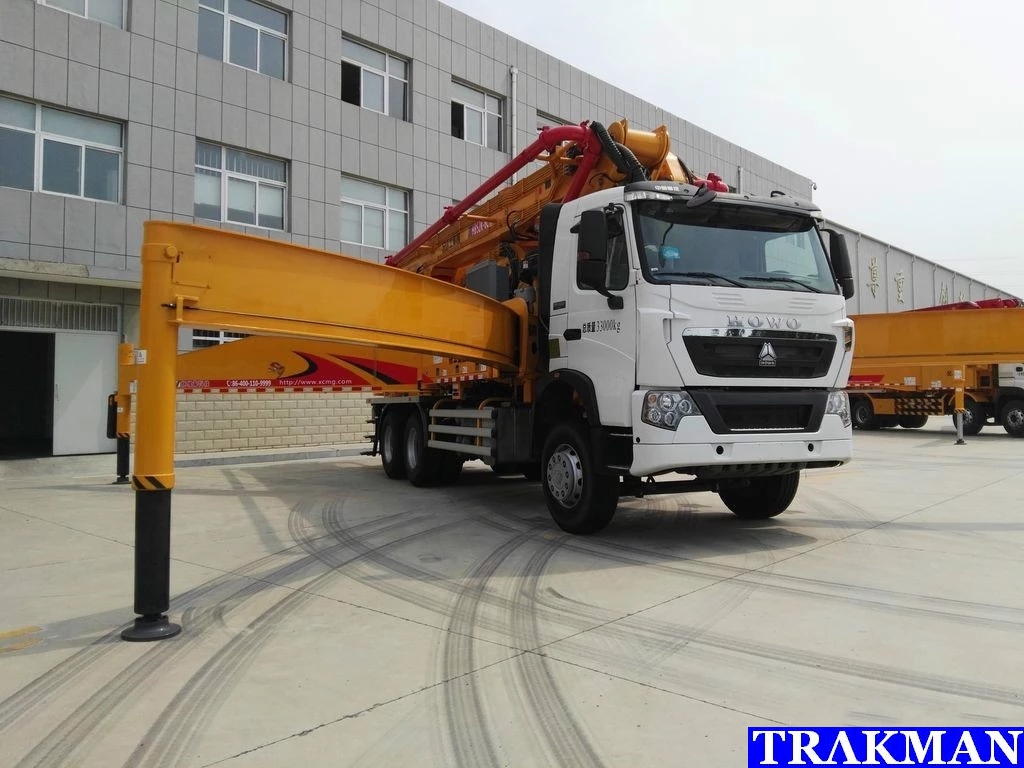

-2. Truck Picture For Reference.

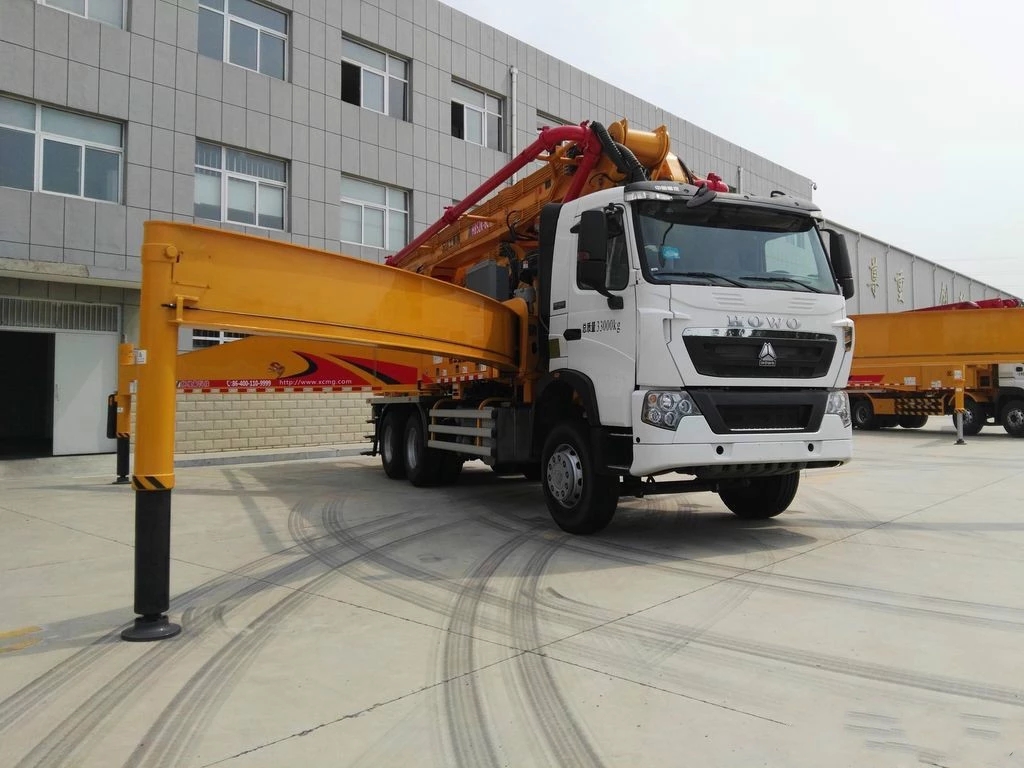

-3. Truck Detail Picture.







-4. After Sales Service.





Now Our company built one big spare parts warehouse for our customer's trucks, all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
