SINOTRUK HOWO 6m3 Concrete Mixer Truck

SINOTRUK HOWO 6x4 Concrete Mixer Truck
Product Name : SINOTRUK HOWO 6m3 Concrete Mixer Truck
Product ID : ZZ5257GJBN3641W
Engine : WD615.47, 371HP
Gearbox : HW19710, 10F & 2R
Cabin : HW76, with one sleeper
Drive Axle : HC16, 1x16000kg
Tank Body : 6m3
Directions

-1. SINOTRUK HOWO Concrete Mixer Truck Main Specification



-. Oil saving, safety, driving comfort, reliability, low application cost

-. Engine, Sinotruk 336HP-371HP, WEICHAI technology

-. EATON, BONFIGLIOLI tech

-. Tanker body: 6 to 16cbm

-. Heavy-duty load capacity: 30 to 40 tons



Chassis Model

ZZ5257GJBN3641W

Dimension (L×W×H)mm

7640*2496*3955mm

Wheel base mm

3600+1350

Cabin

HW70, no sleeper with air-conditioner.

Engine

WD615.47, Euro 2, 371HP

Transmission

HW19710, 10F & 2R

Steering

ZF8118, power steering with hydraulic system.

Front Axle

HF9, 1x9000 KGS

Rear Axle

HC16, 1x16000 KGS

Tyres

1200R20, 6+1tyres

Fuel Tank Volume

300L

Mixer Pump

Eaton (USA Brand)

Motor

Eaton (USA Brand)

Speed Reducer

Bonfiglioli (Italy Brand)

Agitating Capacity

10 Cubic Meters

Water Tank Volume

400L

Drum Rotating

12.4°

Agitator Rotaion Speed

0-18r/min

Feeding Speed

>3m3/min

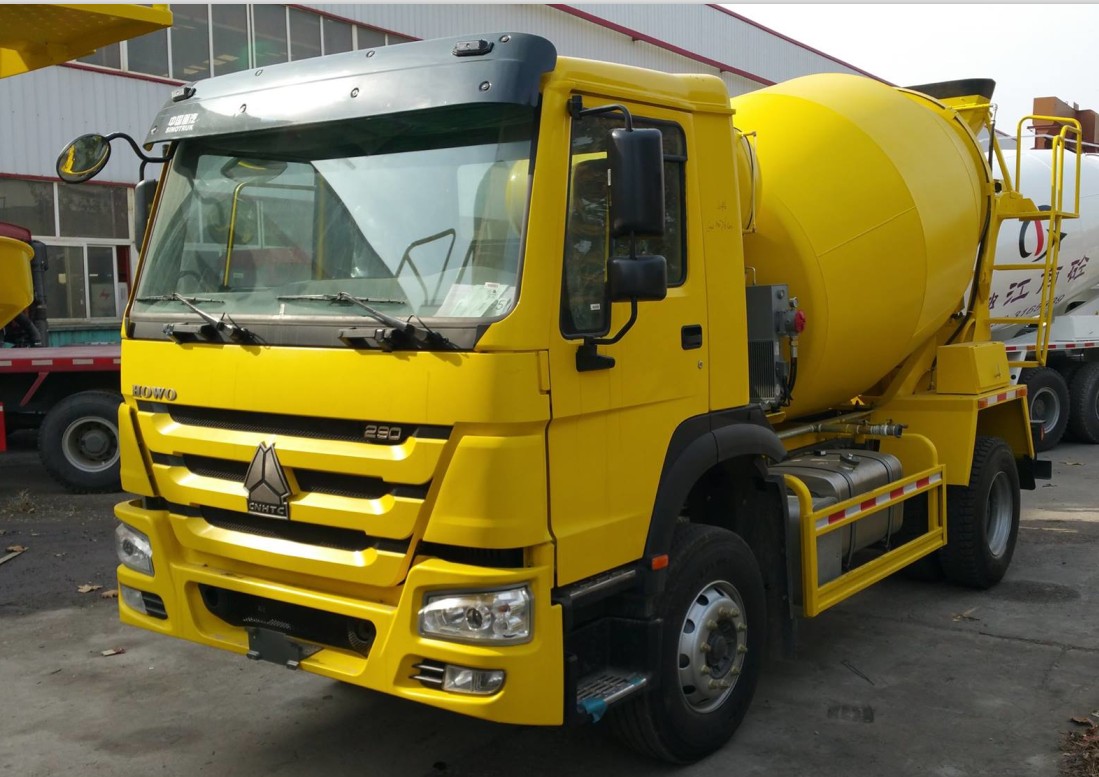

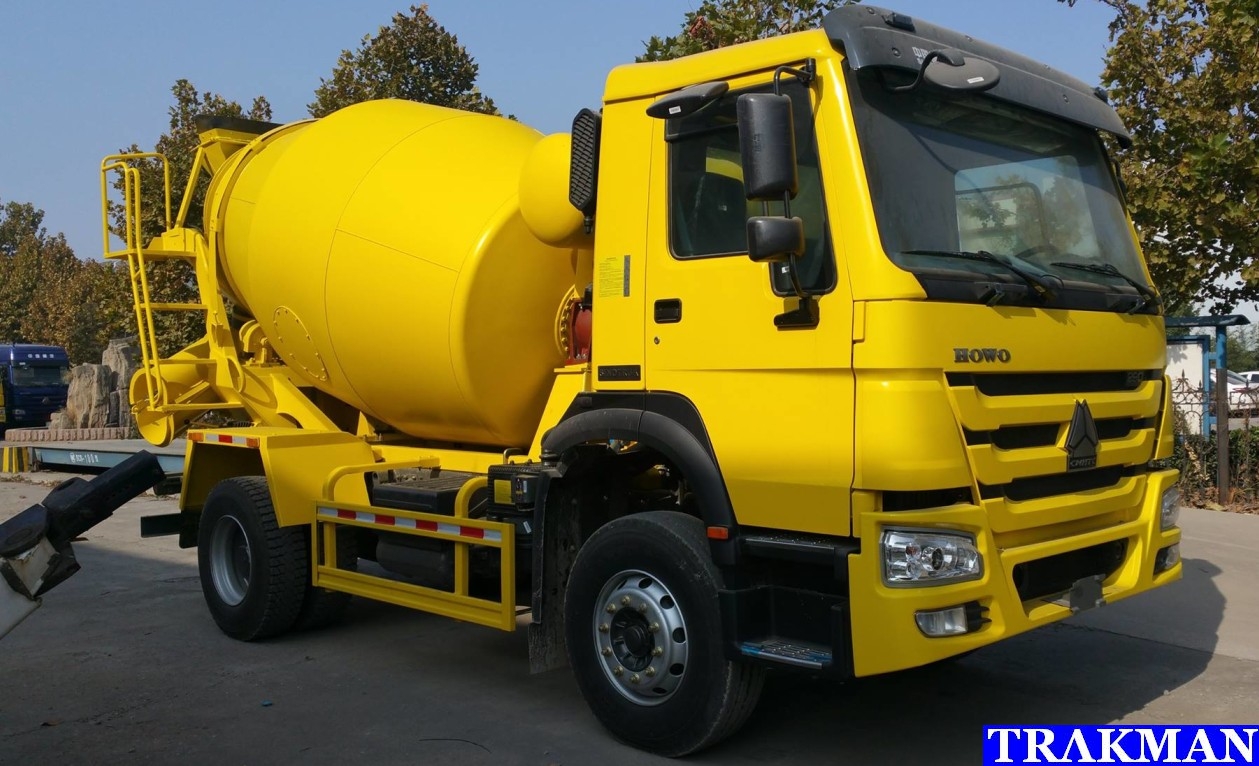

-2. Truck Picture For Reference.







-3. Shipment Picture.





Now our SINOTRUK trucks could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.





-4. After Sales Service.





Now Our company built one big spare parts warehouse for our customer's trucks, all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
