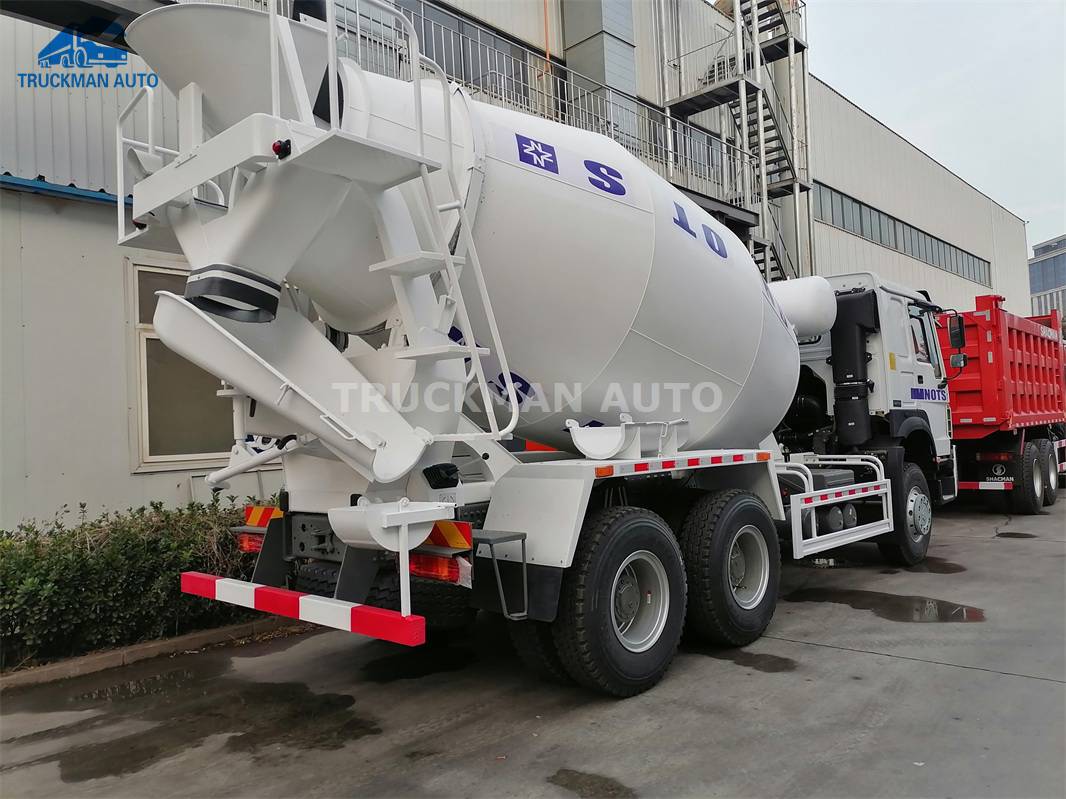

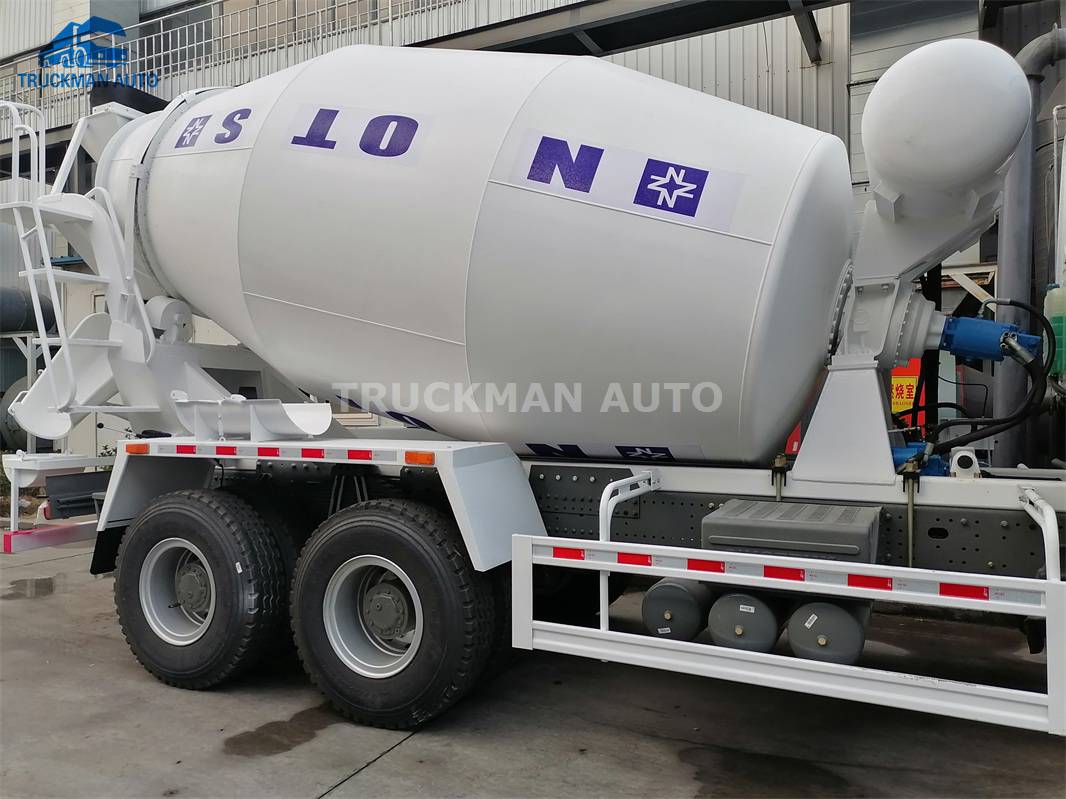

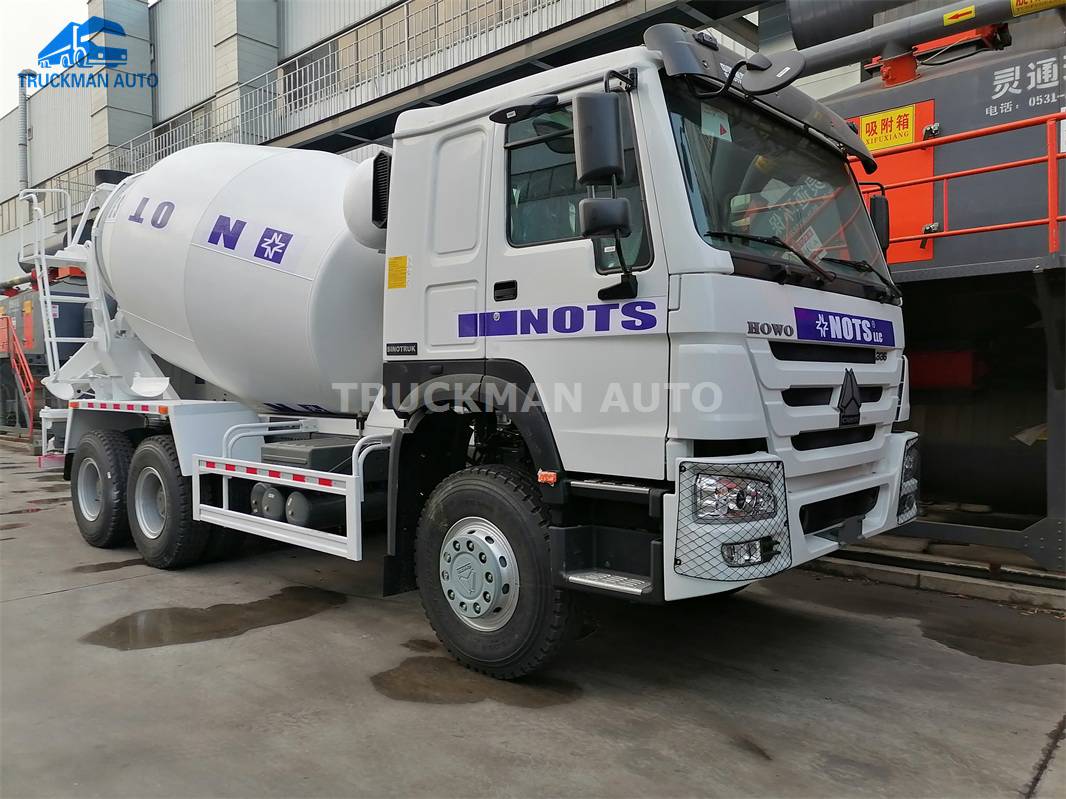

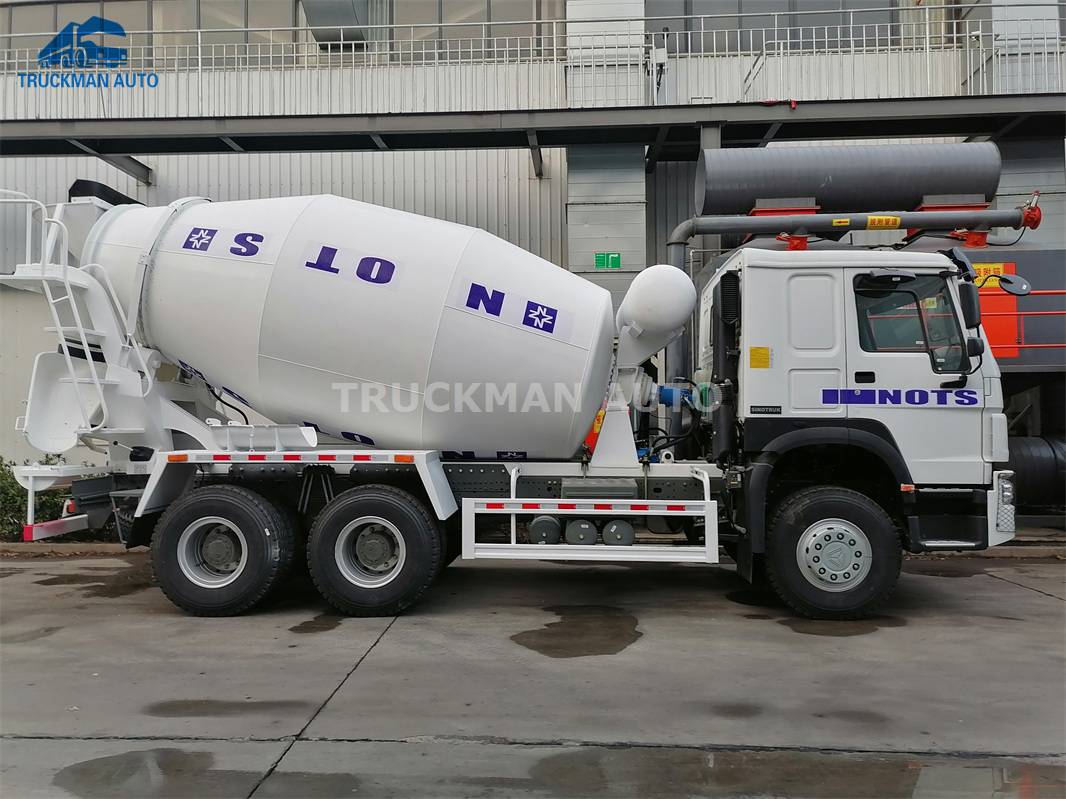

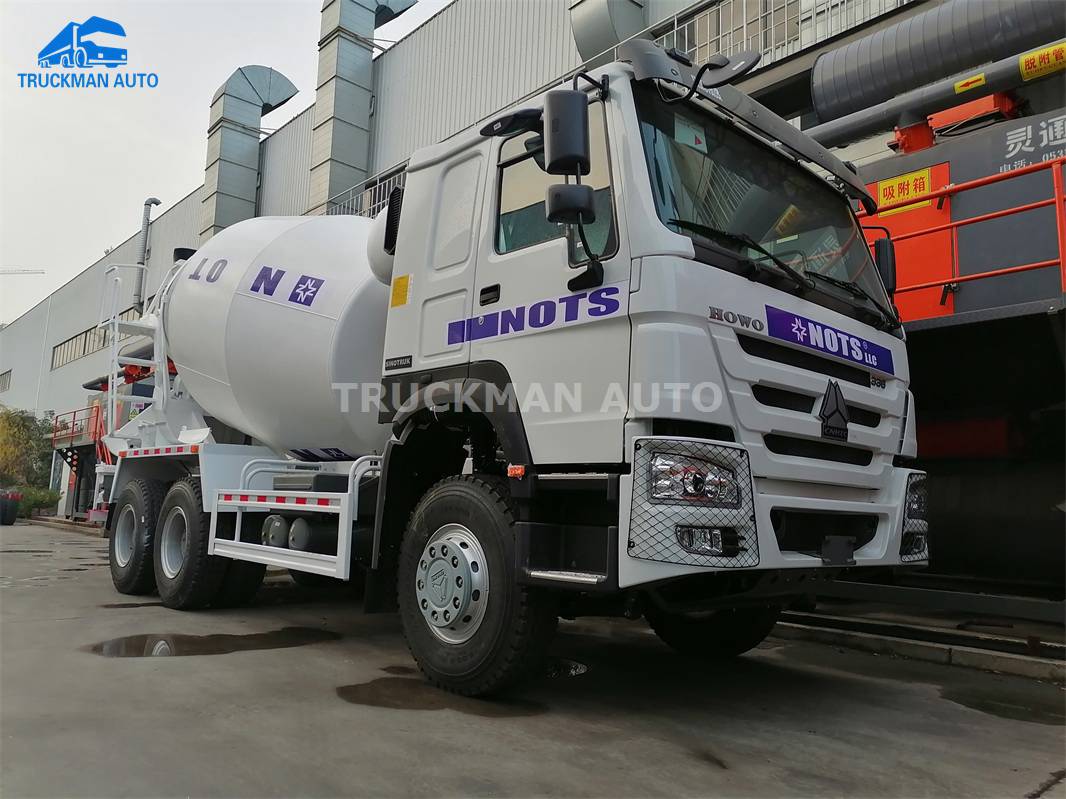

10 Cubic Meter SINOTRUK HOWO Concrete Mixer Truck

10 Cubic Meter SINOTRUK HOWO Concrete Mixer Truck
10 Cubic Meter SINOTRUK HOWO Concrete Mixer Truck
10 Cubic Meter SINOTRUK HOWO Concrete Mixer Truck
10 Cubic Meter SINOTRUK HOWO Concrete Mixer Truck
10 Cubic Meter SINOTRUK HOWO Concrete Mixer Truck
Product Name : 10 Cubic Meter SINOTRUK HOWO Concrete Mixer Truck
Product ID : ZZ1257N4341W
Tank Body : 10 cubic meter
Engine : WD615.47, 371HP
Gearbox : 10 forward and 2 reverse gear
Tire : 12.00R20, 10+1 pcs
Loading Tons : 25-30 tons
Directions

-1. SINOTRUK HOWO 10m3 Concrete Mixer Truck Detail.



SINOTRUK HOWO 10m3 concrete mixer truck mostly used in the construction of commercial mixing stations and large-scale projects. The main purpose is to transport the concrete that has been mixed in the concrete mixer to the construction site.



-. Use the famous brand oil pump, motor, reducer. Like EATON.



-. Cabin can adopt the no bed, one bed. Driver seat can optional air suspension.



-2. SINOTRUK HOWO 10m3 Concrete Mixer Truck Specification.



Description

Parameter Value

Product Name

SINOTRUK HOWO 10m3 Concrete Mixer Truck

Application

For transport concrete, etc

Engine

WD615.47, 371HP, EURO II

Cabin

HW76 cabin with one bed, A/C

Gearbox

10 forward and 2 reverse gear

Driving Axle

16 tons, 2x16,000kg

Tire

12.00R20, 10+1 pcs, radial model tire

Tank Body

10 cubic meter

Fuel Tank

400L

Loading Tons

25-30 tons

Max Speed

75km/h

Dimension

9230x2600x3950mm





The SINOTRUK HOWO 10m3 concrete mixer truck specification only for your reference, we will recommend other model SINOTRUK HOWO concrete mixer truck according to your request.



-3. SINOTRUK HOWO 10m3 Concrete Mixer Truck Detail.

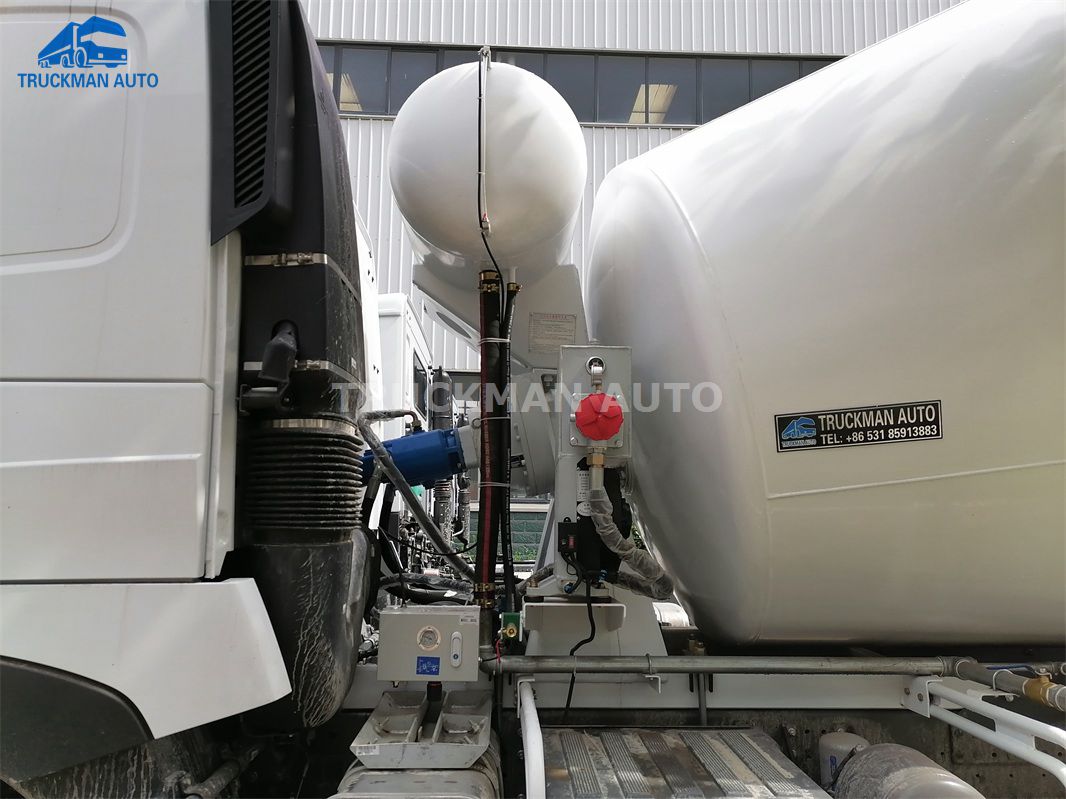

SINOTRUK HOWO concrete mixer truck is equipped with a 400L water tank. The main function is to rinse the hopper after loading and to rinse the mixing drum and discharge tank after discharging to prevent concrete from sticking. When the temperature is lower than zero degrees Celsius, after flushing, the water in the water tank and pipe should be drained to prevent freezing.
