SINOTRUK HOWO 14m3 Wheel Concrete Mixer Truck
-1. SINOTRUK HOWO Concrete Mixer Truck Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine, Sinotruk 336HP-371HP, WEICHAI technology
-. EATON, BONFIGLIOLI tech
-. Tanker body: 6 to 16cbm
-. Heavy-duty load capacity: 30 to 40 tons
|
Chassis Model |
ZZ5317GJBN3641W |
|
Dimension (L×W×H)mm |
10640*2496*3955mm |
|
Wheel base mm |
3500+1350 |
|
Cabin |
HW76, one sleeper with air-conditioner. |
|
Engine |
WD615.47, Euro 2, 371HP |
|
Transmission |
HW19710, 10F & 2R |
|
Steering |
ZF8118, power steering with hydraulic system. |
|
Front Axle |
HF9, 1x9000 KGS |
|
Rear Axle |
HC16, 2x16000 KGS |
|
Tyres |
1200R20, 12+1tyres |
|
Fuel Tank Volume |
400L |
|
Mixer Pump |
Eaton (USA Brand) |
|
Motor |
Eaton (USA Brand) |
|
Speed Reducer |
Bonfiglioli (Italy Brand) |
|
Agitating Capacity |
14 Cubic Meters |
|
Water Tank Volume |
400L |
|
Drum Rotating |
12.4° |
|
Agitator Rotaion Speed |
0-18r/min |
|
Feeding Speed |
>3m3/min |

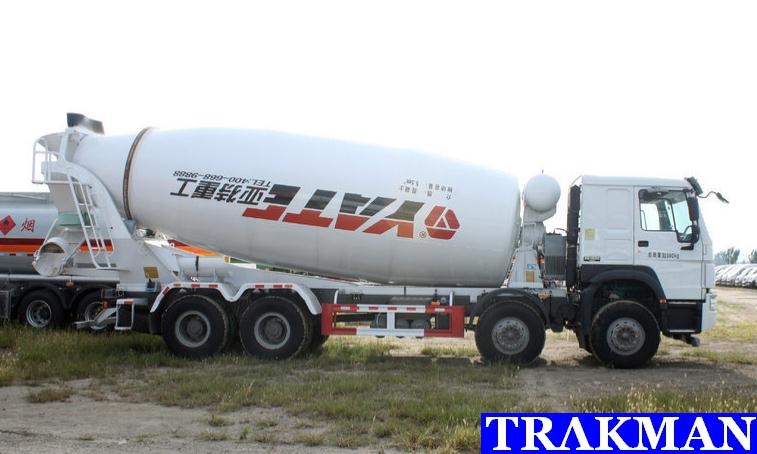

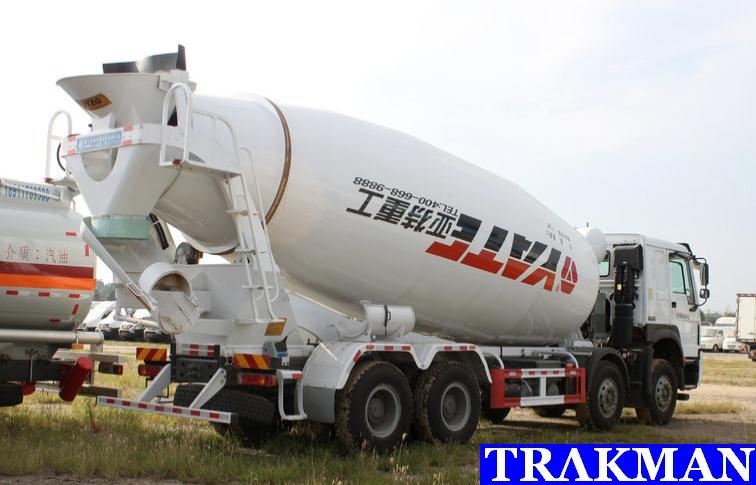

-2. Truck Picture For Reference.

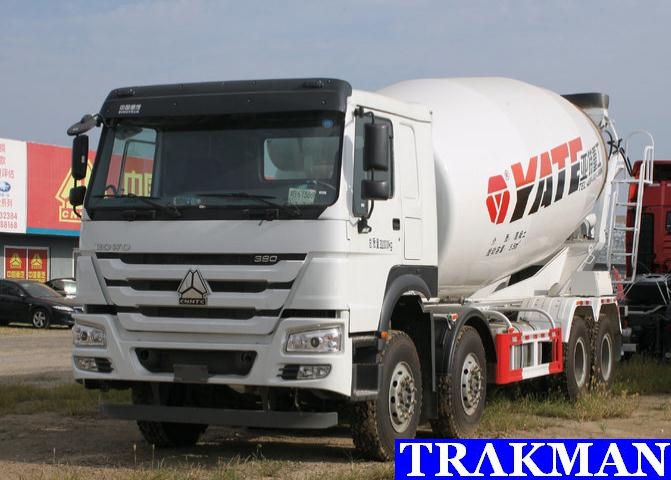

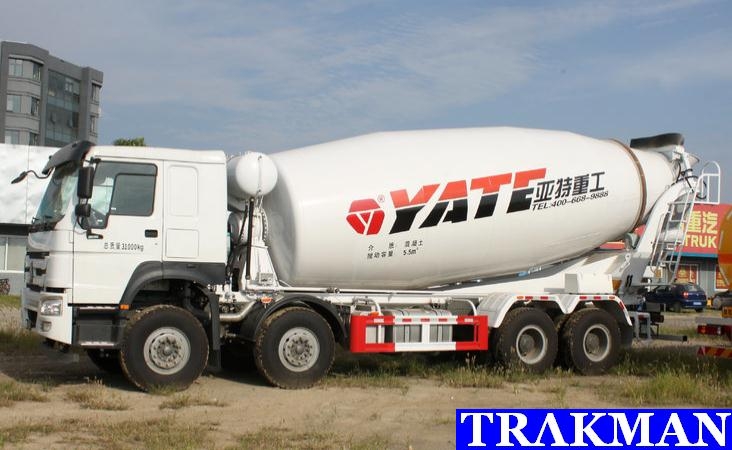

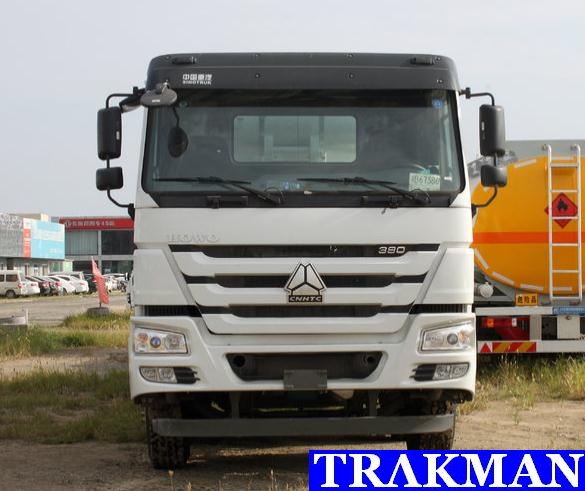

-3. Truck Detail Picture.
-4. Payment Term.
Now our company could accept the T/T (BANK TRANSFER), L/C.
Also can accept the L/C against cover at SINOSURE.
