Construction Machinery XP203 XCMG 20 Ton Pneumatic Tyre Vibratory Roller
-1. XCMG 20 Ton Pneumatic Tyre Vibratory Roller Introduction
XCMG not only have XS203J model 20 ton single drum road roller, but also have 20 tons pneumatic tire vibratory roller. Model number is XP203, now with the XP203 adopt the Shangchai SC4H type diesel engine with power of 86KW, speed of 1800r/min. Full hydraulic steering, air-assist hydraulic brake and multi-gear shifting transmission system are utilized, fast and flexible. It is more convenient for transfer between construction sites.
|
Model |
Unit |
XP203 |
|
Min. working weight |
kg |
11740 |
|
Max. working weight |
kg |
20000 |
|
Ground pressure |
kPa |
|
|
Travel speed |
km/h |
200-400 |
|
Speed I |
4.2 |
|
|
Speed II |
8.2 |
|
|
Speed III |
17.4 |
|
|
Reverse speed I |
4.17 |
|
|
Reverse speed II |
8.2 |
|
|
Theoretical grade ability |
% |
20 |
|
Min. turning external radius |
mm |
7330 |
|
Min. ground clearance |
mm |
250 |
|
Compaction width |
mm |
2250 |
|
Roller overlap amount |
mm |
45 |
|
Tyre specification |
|
11.00-20-16PR |
|
Tyre Quantity |
|
Front 4 rear 5 |
|
Engine model |
|
SC4H115.4G2B |
|
Type |
|
Water cooling, pressurizing |
-2. XCMG 20 Ton Pneumatic Tyre Vibratory Roller Advantage.
Pavement layer will be compacted by special pneumatic tire. It will not damage compaction materials. Flexible compacting function of tire can make compaction material obtain dense pavement surface course.
Ground pressure of the tire can be regulated by decreasing or increasing balance weight and changing inflation pressure of tire to enhance compaction performance and enlarge the scope of application; compacted sandy soil, composite soil and clay soil can obtain good compaction effect to avoid false compaction phenomenon.

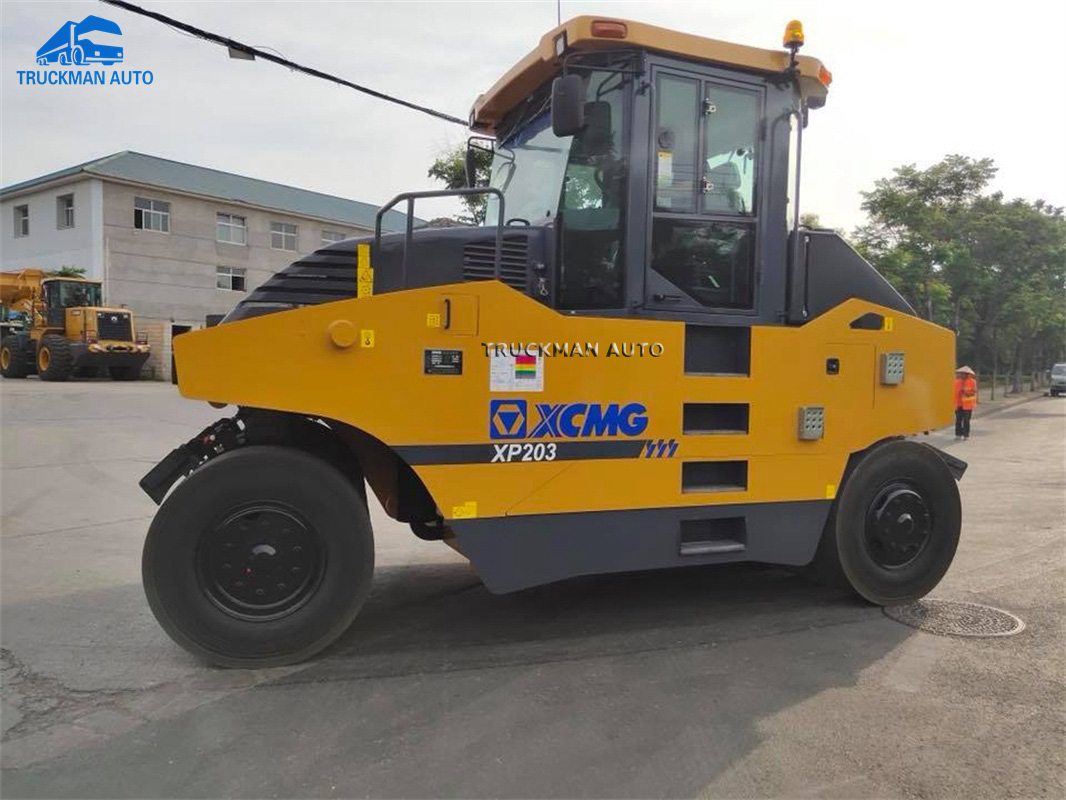

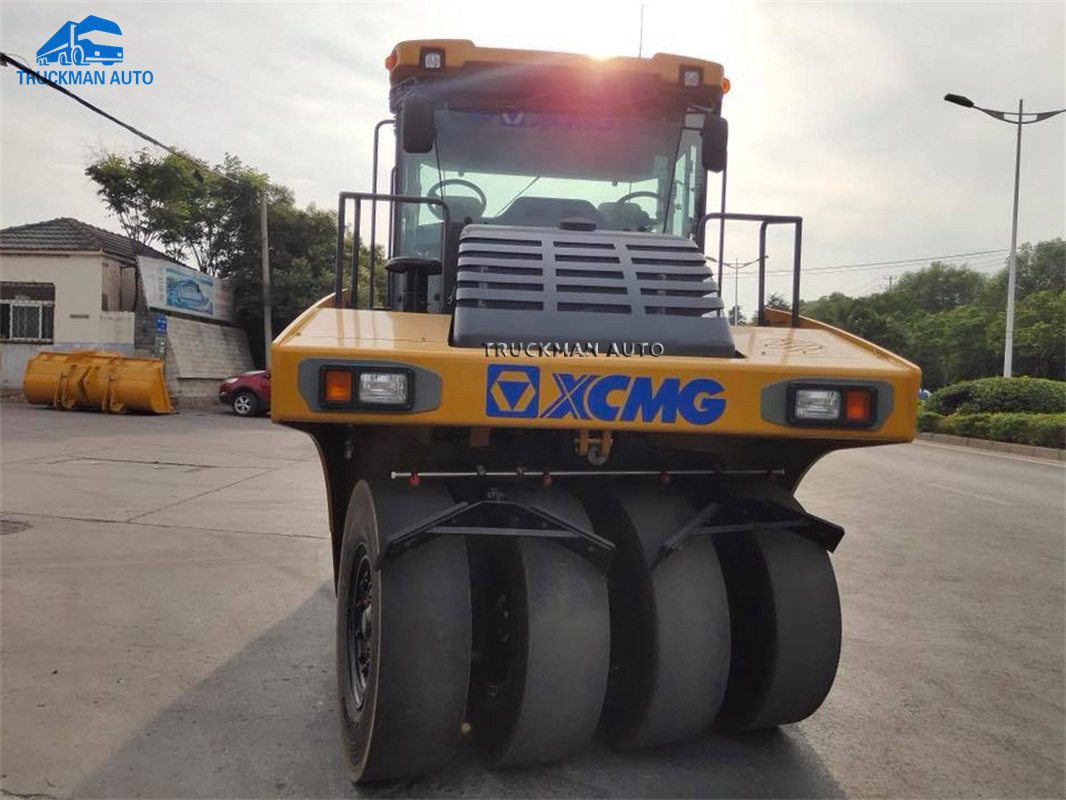

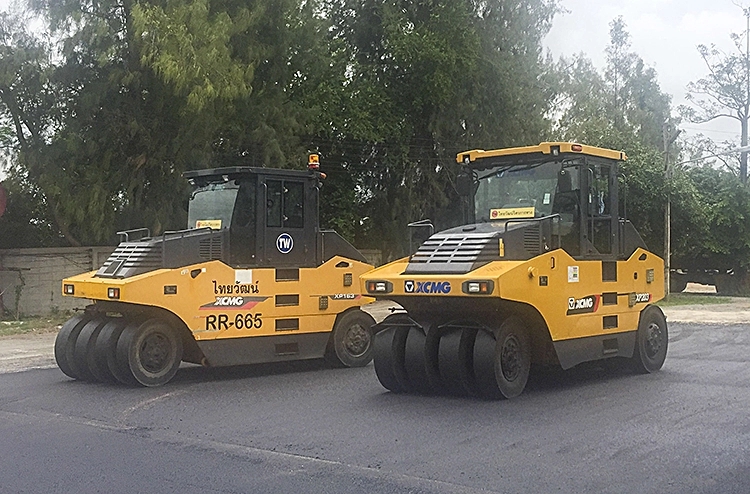

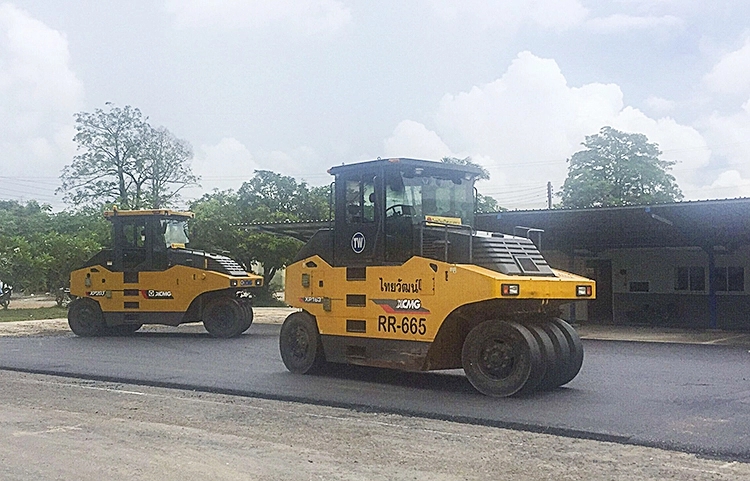

-3. XCMG 20 Ton Pneumatic Tyre Vibratory Roller Working Picture.
XCMG is NO.1 export quantity in China, with the durable quality and reasonable price. And XCMG also have many branch in 160 countries, the spare parts could easier get from local and maintenance cost also lower. Attached the working picture of 20 ton pneumatic tyre vibratory roller for your review.
