TRΛKMAN Brand 3 Axles Oil Tank Semi Trailer
-1. TRΛKMAN Brand Fuel Tank Trailer Main Specification
-. 35000-54000 liter tank body.
-. 3-5 Axles, use FUWA and BPW brand.
-. Transport fuel, oil, diesel, gasoline, ethanol etc
-. 1-8 compartment, with manhole cover.
-. Carbon steel or aluminum material
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
|
General |
|
|
Overall dimension(MM) |
12000*2500*3900 |
|
Function |
Transport fuel, oil, diesel |
|
Loading weight (KG) |
40,000 |
|
Volume(L) |
45000 |
|
Compartment |
Three - Eight |
|
Tank body |
|
|
Manhole cover |
500mm manhole cover. 3 sets with 3 breath valve. |
|
Discharge valve |
4'' disc valve |
|
Discharge pipe |
4'' seamless steel tube |
|
Bottom or emergency valve |
Three pieces |
|
Tank body thickness |
Q235/ 5mm steel |
|
End plate |
Q235/ 6mm steel |
|
Chassis |
|
|
Main beam(MM) |
Opting for high tensile steel Q345B welded by |
|
automatic submerged-arc processes |
|
|
Axle brand |
FUWA 13ton |
|
Axle number |
3 |
|
suspension system |
Leaf spring system |
|
Leaf spring |
2010/10/10 |
|
Traction pin |
50mm or 90mm |
|
Landing gear |
standard 28Ton |
|
Tyre |
12R22.5 12pieces, can choose TRIANGLE brand |
|
Appendix |
tool box |
|
spare wheel bracket |
|
|
Electrical& others |
|
|
Electric system |
1.Voltage: 24V 2. Receptacle: 7 ways( 7 wire harness) |
|
Tail lamp with turn signal, brake light& reflector and side lamp |
|
|
One set 6-core standard standard cable |
|
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint |

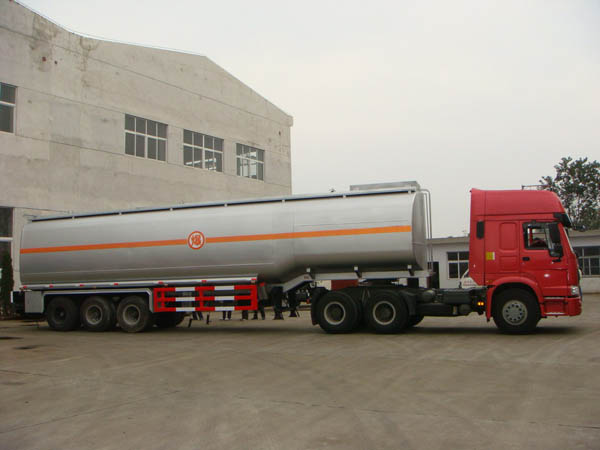

-2. Picture For Reference.

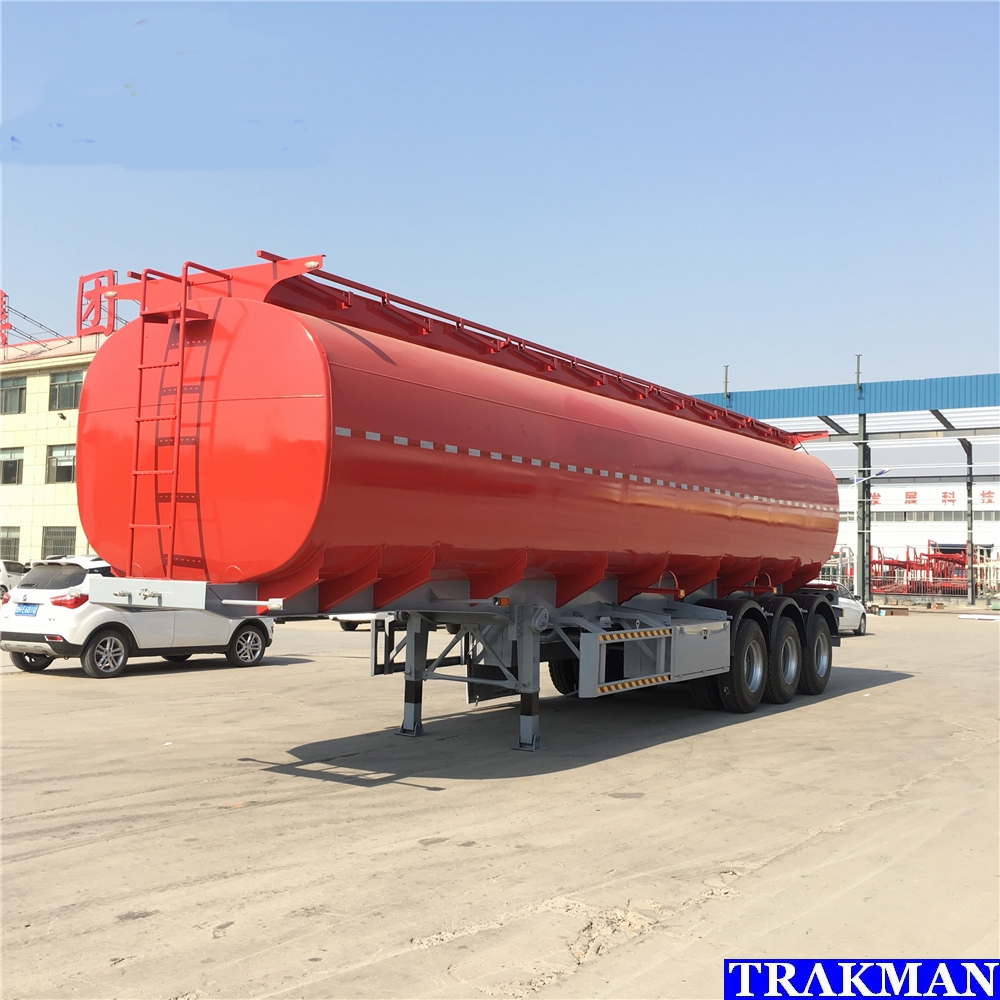

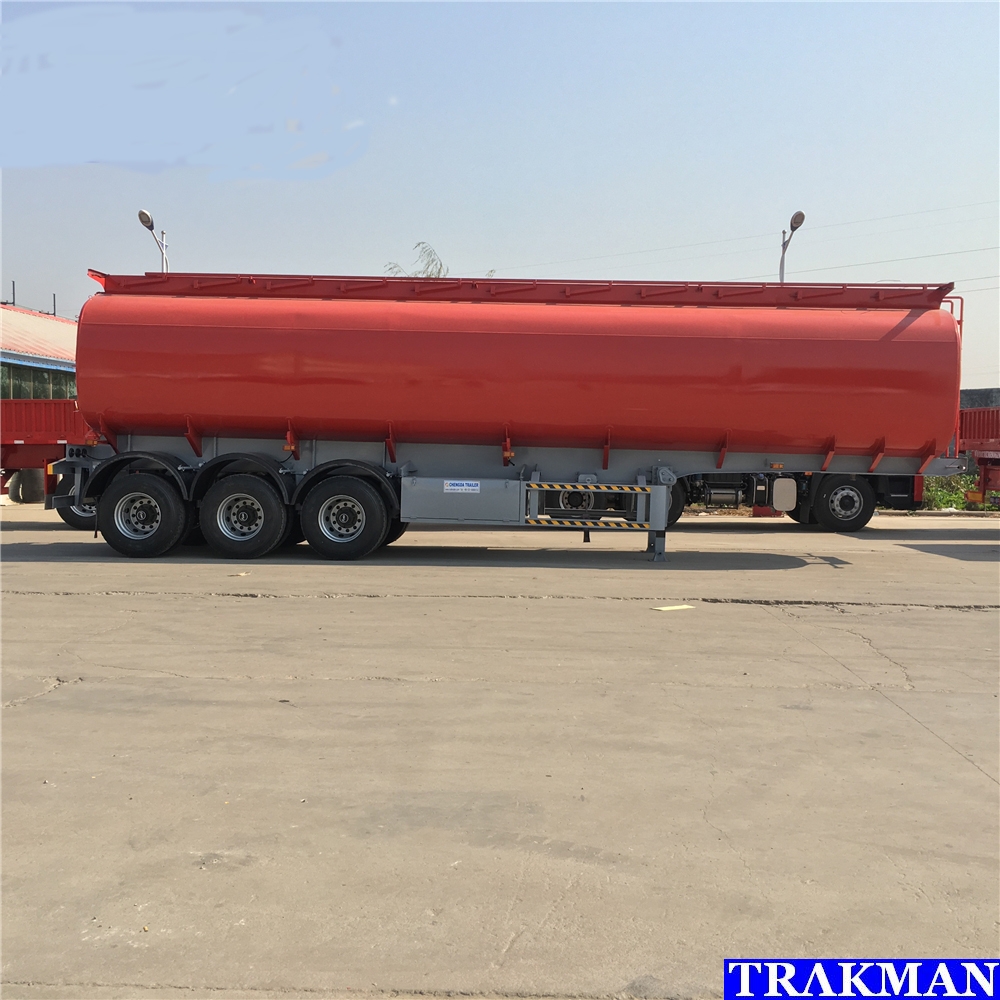

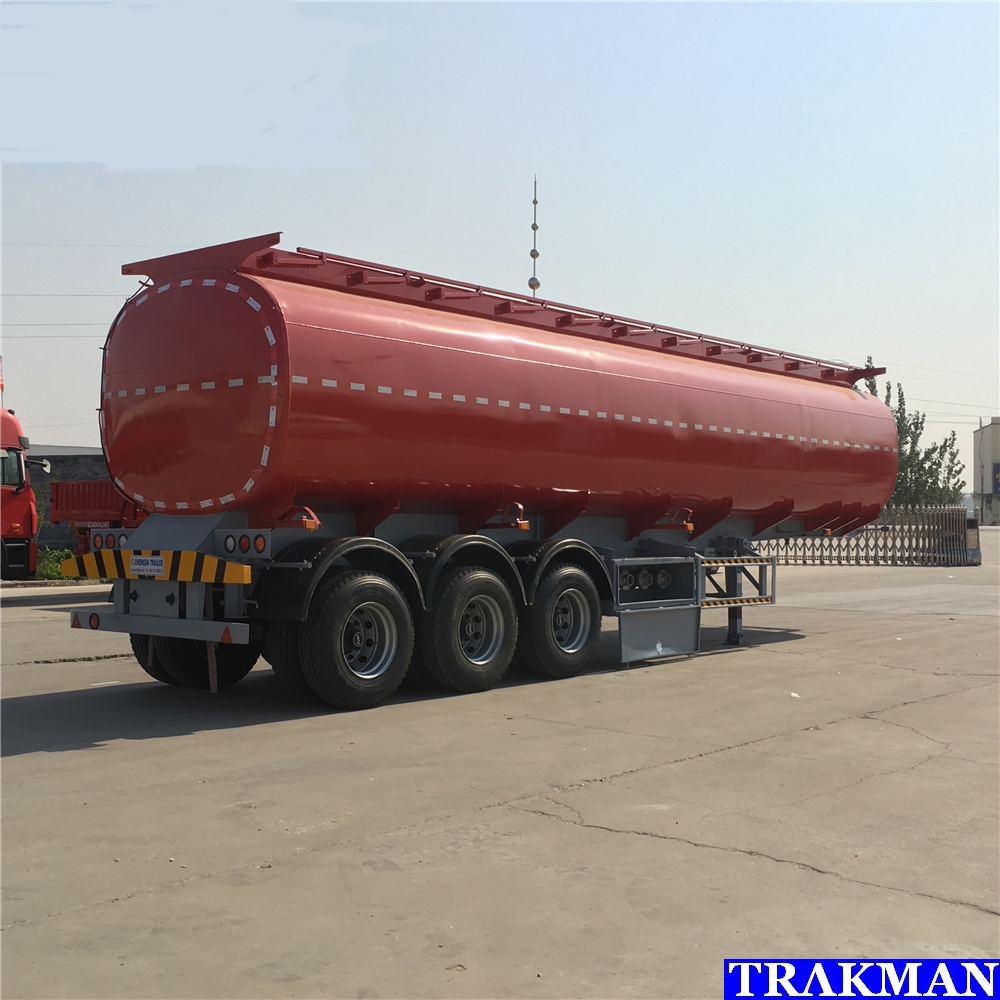

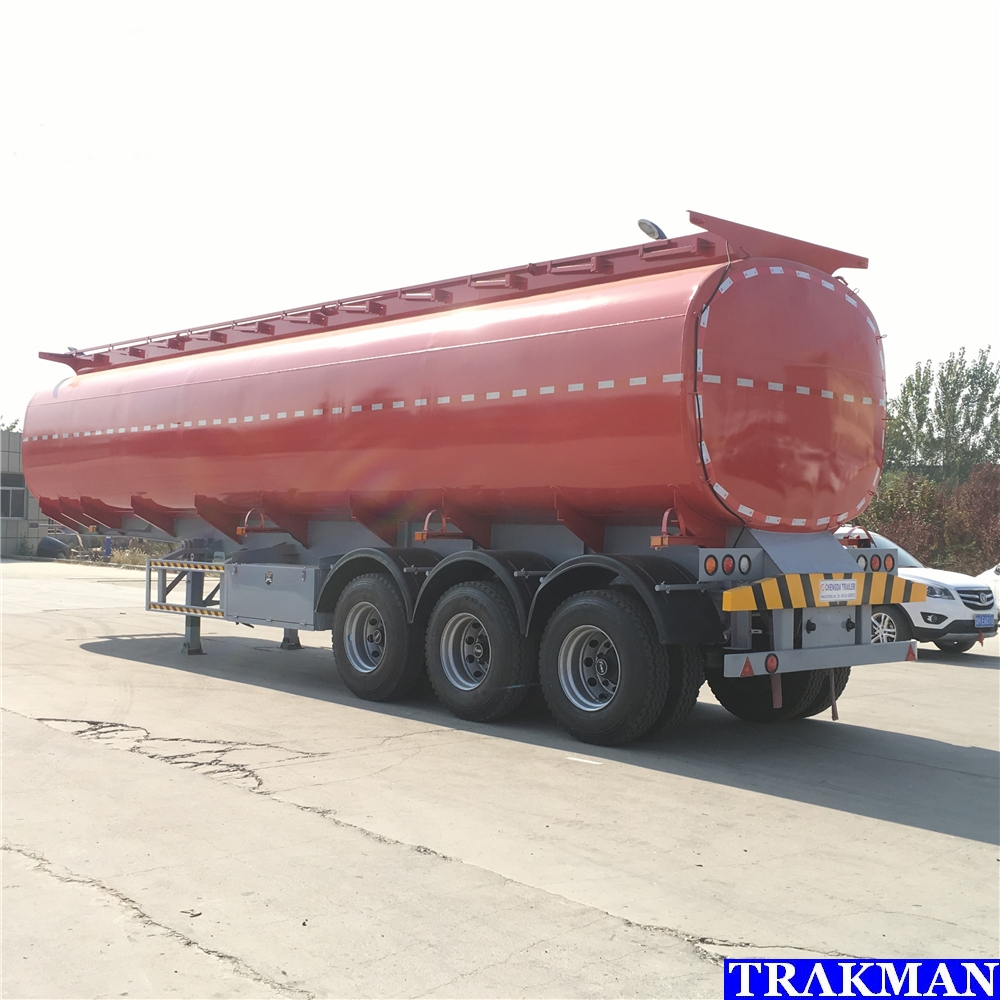

-3. Detail Picture.

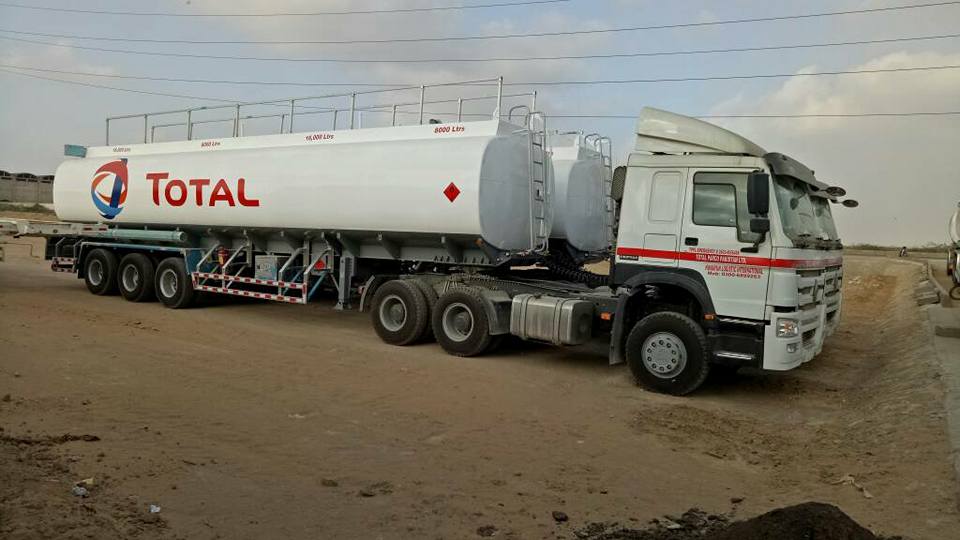

-4. Customers Received Goods.
Our customers received machinery last week, he is very satisfied with our service, delivery time and product quality. He told us that the next order will come soon.
