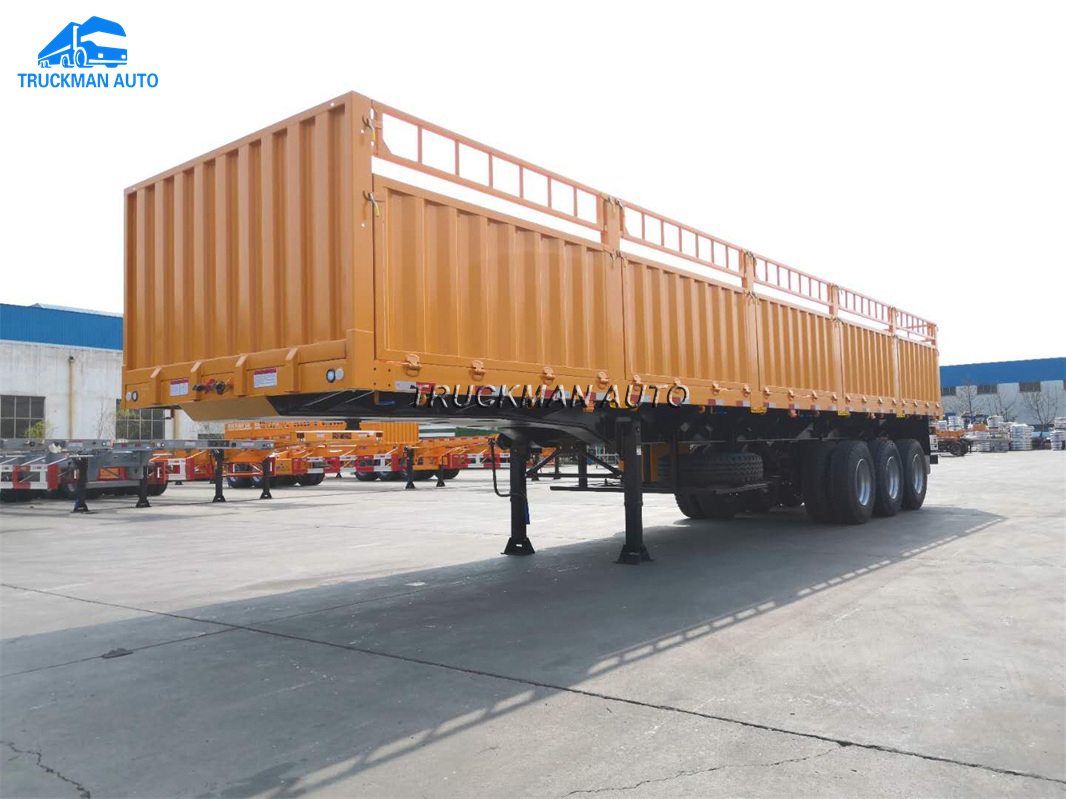

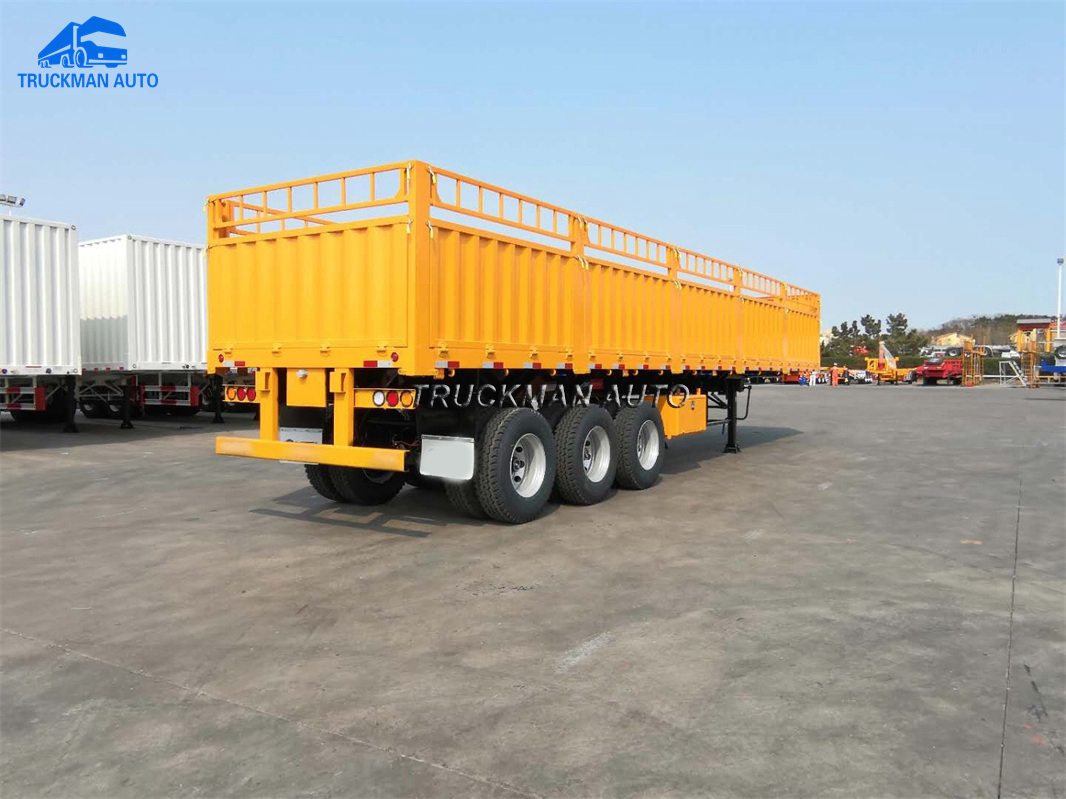

60 Tons Container Side Wall Trailer With FUWA Brand Axle
-1. Container Side Wall Trailer Detail.
The container semi trailer each side can add 800mm height side wall, transport other bulk cargo. And the each side with 12 pcs more thicker rope tightener, improve the using time. And side wall can also easy remove when transport container.
-. The side wall trailer suspension, rim, leaf spring all adopt the high strength steel, like rim thickness reach to 18mm, meet the different road condition request
-. Like tractor pin etc main parts, we work with JOST and FUWA brand only.
-. Adopting advanced spray painting technology, the color is bright and bright. Polishing and shot blasting before painting to prolong service life.
-2. Container Side Wall Trailer Specification.
|
Description |
Parameter value |
|
Product Name |
Container Side Wall Trailer |
|
Application |
For haulage container and bulk cargo etc |
|
Axle |
3x13000kg, ZY brand |
|
Suspension |
Mechanical model, ZY brand |
|
Support Leg |
28 tons, JOST or FUWA brand |
|
Brake System |
WABCO brand, with 50L air tank |
|
Fifth Wheel |
3.5 inch, for heavy duty loading |
|
Tire |
12R22.5 or 315/80R22.5, tubeless tire |
|
Rim |
18mm thickness, for heavy loading |
|
Loading Tons |
40-60 tons |
The container side wall trailer specification only for your reference, we will recommend other model side wall trailer according to your request.

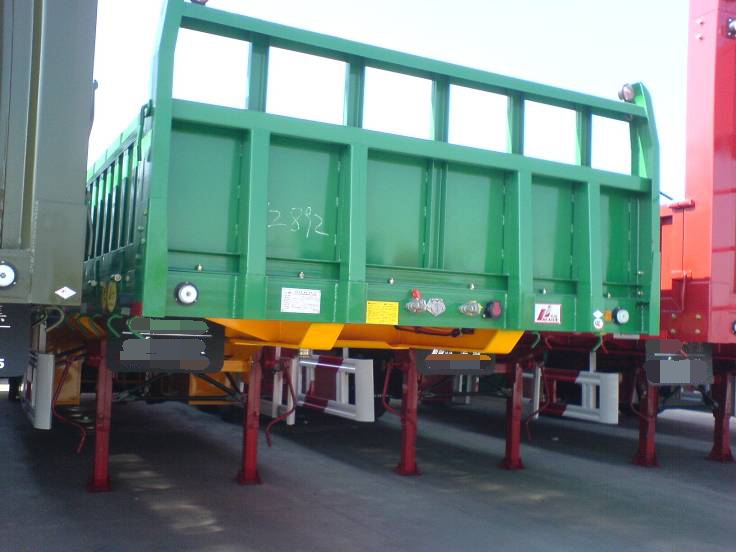

-3. Container Side Wall Trailer Cargo Body Detail.
The container side wall trailer cargo body height have 600mm, 800mm or 600+800mm etc. The plate hinge width from 76mm increase to 96mm and front wall plus four strengthening pillars. prevent goods from supporting the box
