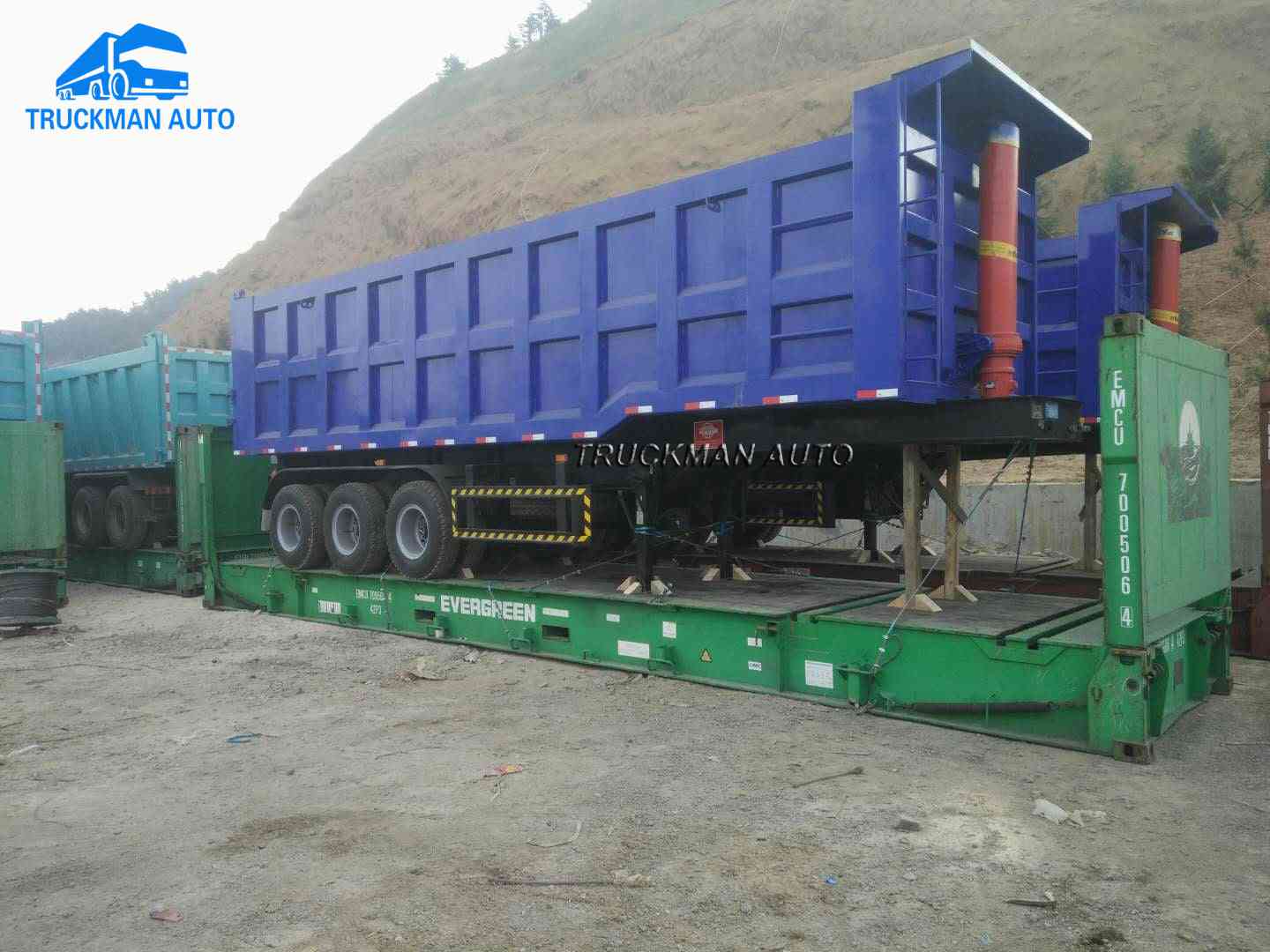

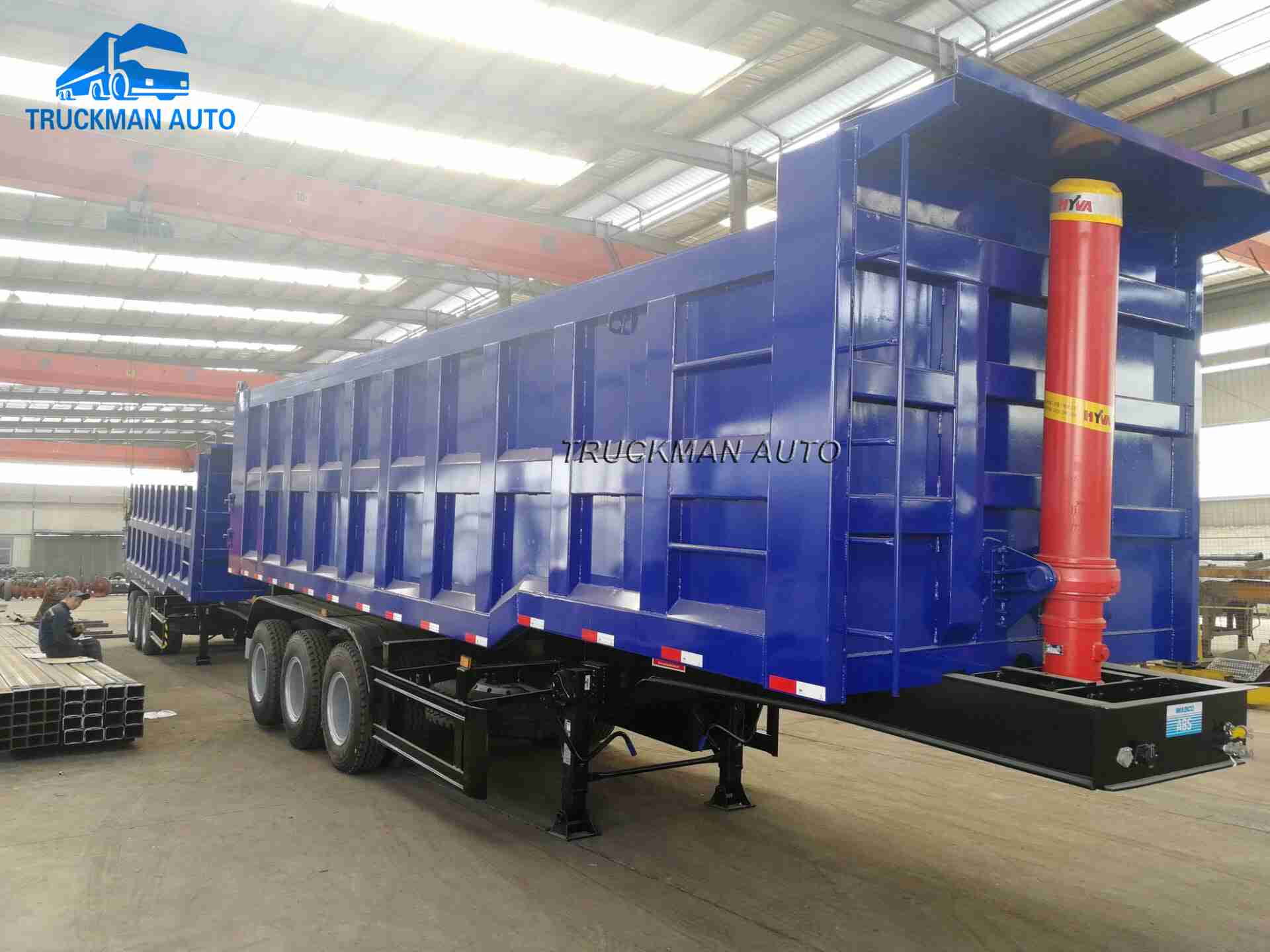

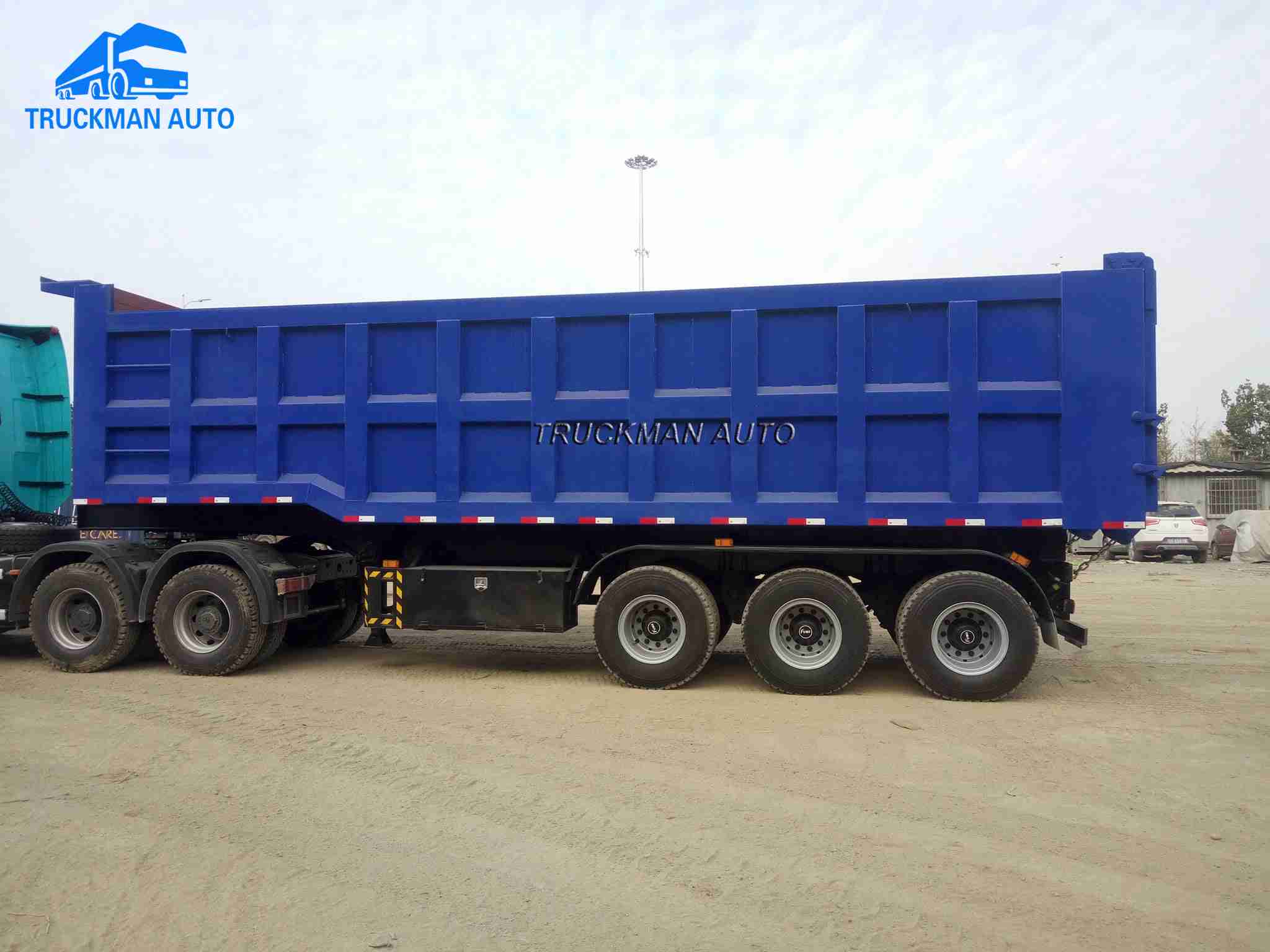

3 Axle 30m3 Dump Semi Trailer For West Africa
-1. 3 Axle 30m3 Dump Semi Trailer Info.
Dump semi trailer bucket size from 30m3 to 45m3, the axle quantity from 2 axle to 6 axle or more. Mainly used for long distance transport, such as from mine site to shipment port or warehouse etc. The dump semi trailer adopt the high strength steel, and with mature design. Confirm the dump semi trailer could using with long time.
-2. 3 Axle 30m3 Dump Semi Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
3 Axle 30m3 Dump Semi Trailer |
|
Loading Tons |
50-70 Tons |
|
Cargo Box |
10500x2300x1500mm, bottom 8mm, side 6mm |
|
Lifting Cylinder System |
HYVA brand, front hydraulic lifting |
|
Landing Gear |
28 tons, JOST brand |
|
Axle |
3 axle, 3x13000kg, FUWA brand |
|
Tire |
12.00R20 or 315/80R22.5, 12 pcs |
|
Suspension |
Mechanical suspension, air suspension available |
|
Brake System |
WABCO brand and 8 pcs brake chamber |
|
Others |
Ladder, tool box |
|
Dimension |
11200x2500x3750mm |
The 3 axle 30m3 dump semi trailer specification is only for reference, we could recommend the other model dump semi trailer according to your request.

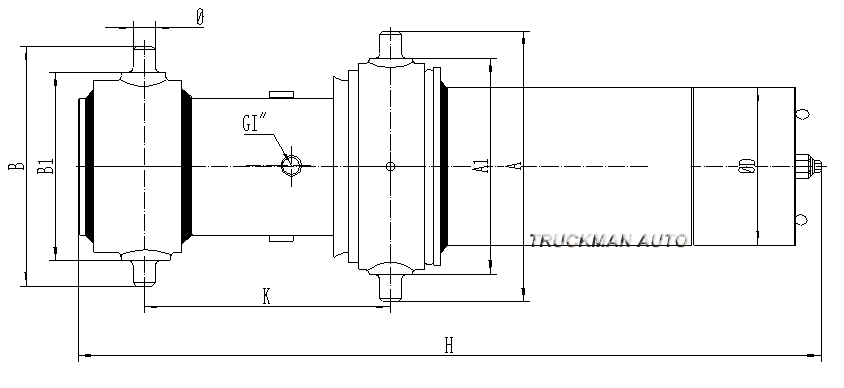

-3. 3 Axle 30m3 Dump Semi Trailer Lifting Cylinder System Detail.
Lifting cylinder system is very important component of dump semi trailer, so choose the suitable model lifting cylinder system is very necessary. Suggest use the HYVA brand lifting cylinder for the dump semi trailer, with durable quality and low maintenance cost.
