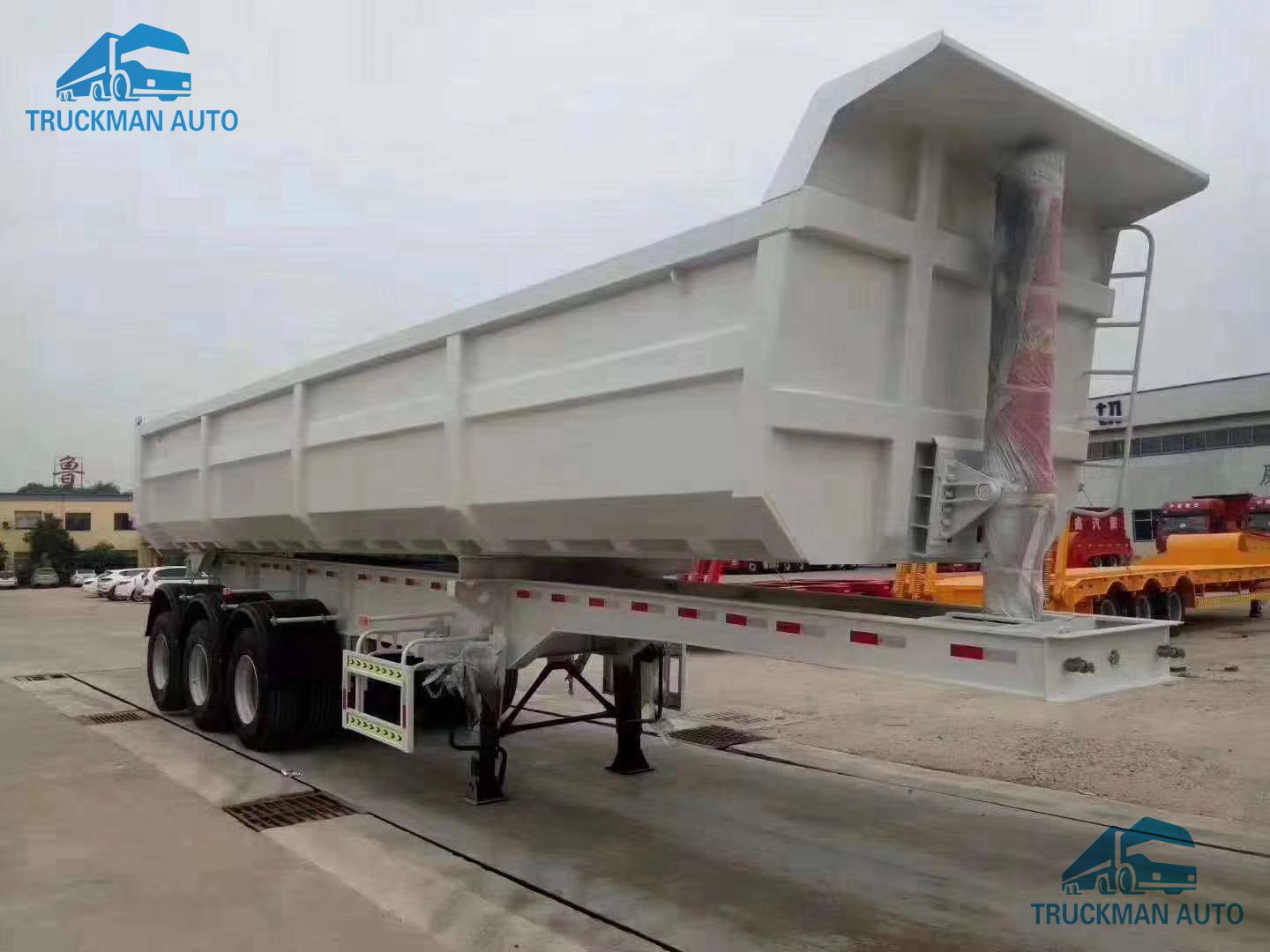

TRUCKMAN Brand 4 Axles 50 Tons Dumping Trailer For Ghana
-1. Main Advantage For TRUCKMAN Dump Trailer
-. With more powerful famous front hydraulic lifting system.
-. big and stronger cargo box.
-. Use high strength steel, Q345.
-. JOST brand tractor pin and support leg.
-. FUWA, FWOS brand axles, 4x13 tons.
-. Leaf spring more thickness and width.
-. Loading 30-60 tons
|
Specification |
|
|
Axle number |
4 |
|
Axle brand |
FUWA & BPW |
|
Suspension |
Mechanical suspension or Air suspension |
|
Kingpin |
JOST brand 50#/90# traction pin |
|
Dimensions(L*W*H) |
10950X2500X3900mm(outside) |
|
10000X2300X1500mm(inner) |
|
|
Rim |
9.00*22.5 zhengxing brand 14 pieces |
|
Lifting system |
Full set of HYVA hydraulic system |
|
Steel spring |
10 pieces |
|
Tire |
|
|
Tire specs |
12.00R20 triangle brand |
|
Number of tire |
14 pieces |
|
Spare tire carriers |
2 pieces |
|
Frame |
|
|
Frame beam |
Upper and lower plate is 20mm.middle is 10mm(double/three plate) height is 500mm |
|
Frame floor |
The thickness is 3mm flat bed |
|
Brake |
|
|
Brake brand |
WABCO brand of china |
|
Brake chamber |
Two double and two single chamber |
|
ABS |
Kemi brand of china (4s/2m) |
|
Electrical system |
|
|
Voltage |
24v |
|
Receptacle |
7ways(7wire harness) |
|
Light color |
|
|
Side marker lamp |
orange |
|
Rear lamp |
red |
-2. Detail Picture For Reference.

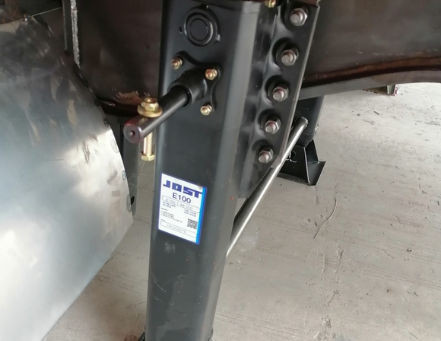

-. JOST Brand Support Leg.
We choose the JOST brand support leg for the dump trailer with low cost and help customers get good trailers.

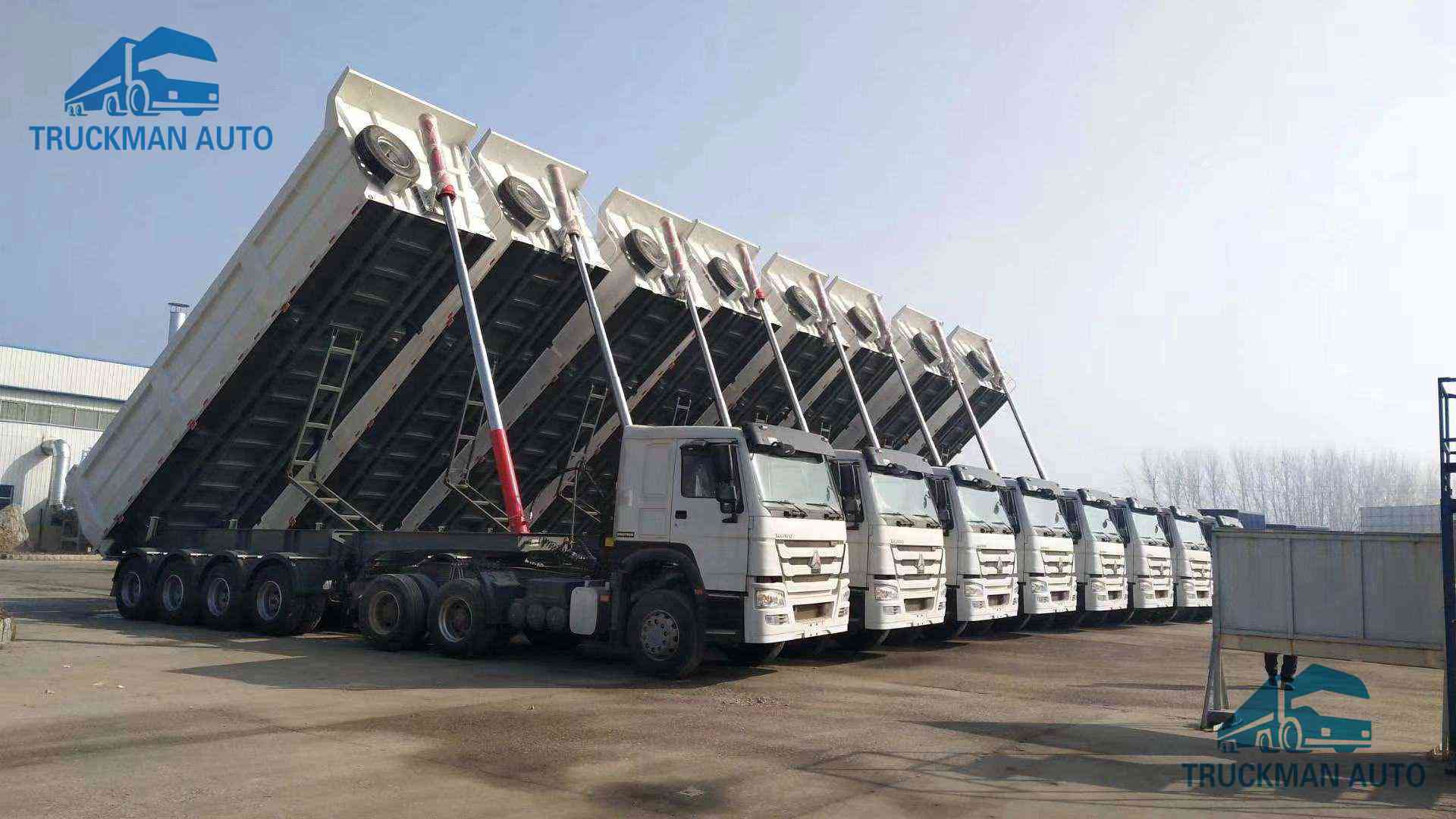

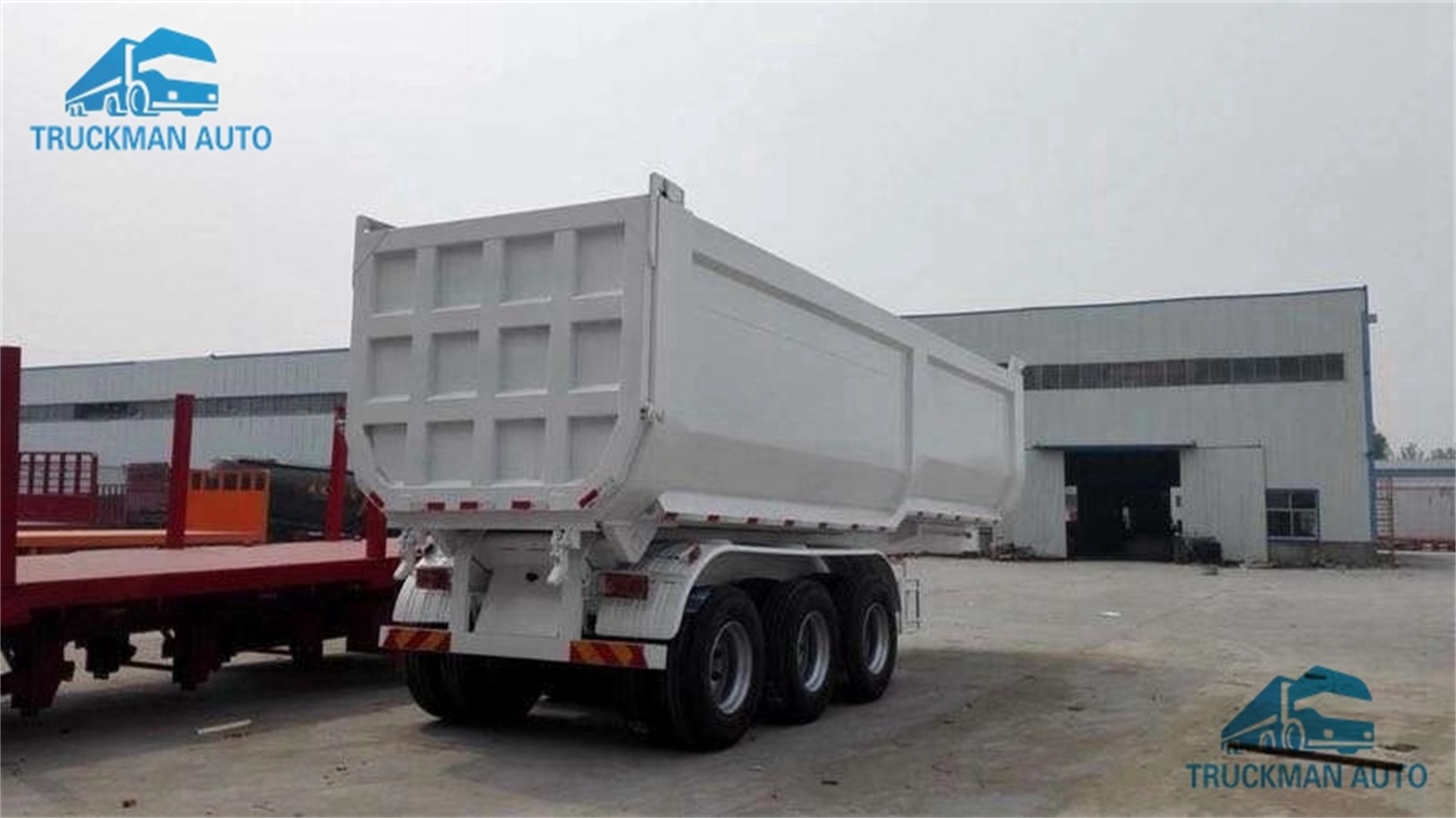

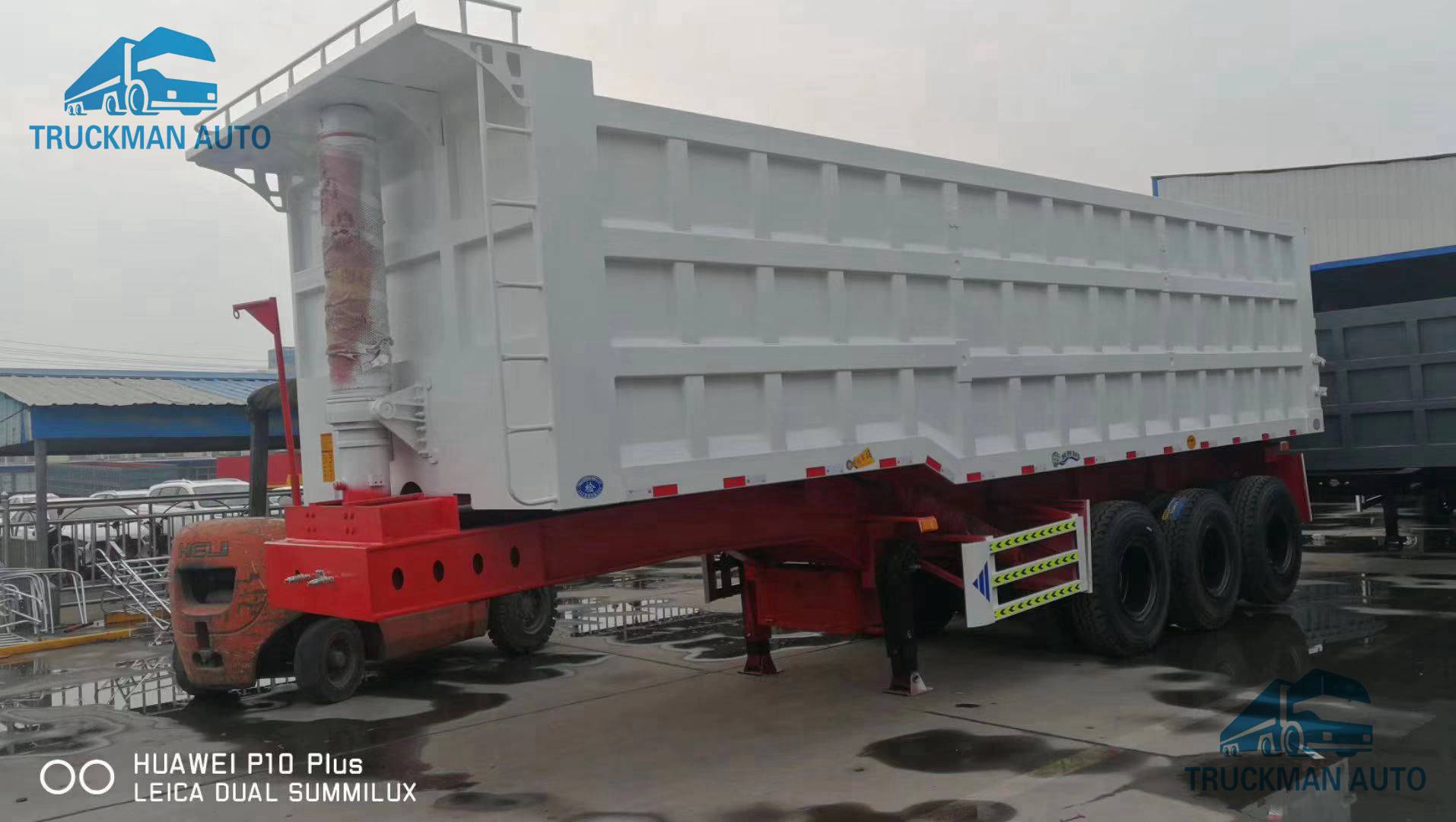

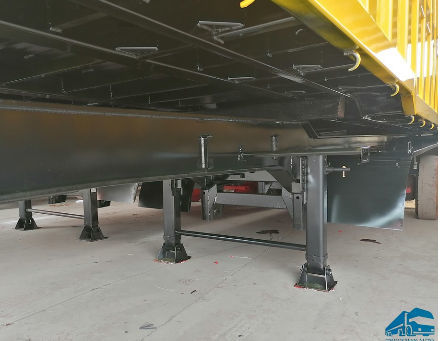

-. Structure Of Truckman Dump Trailer.
Our truckman brand dump trailers use high strength steel and upper plate 22mm, lower plate 20mm.

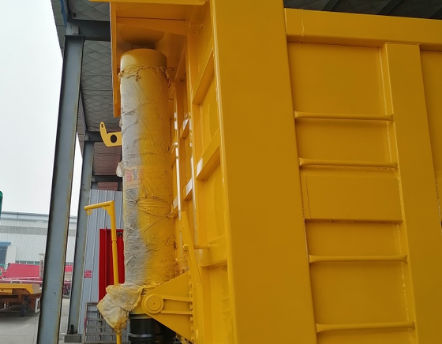

-. Famous Brand Lifting System
We choose famous brand front hydraulic lifting system for our dump trailer, and the maintenance cost is also very low, quality could assured.

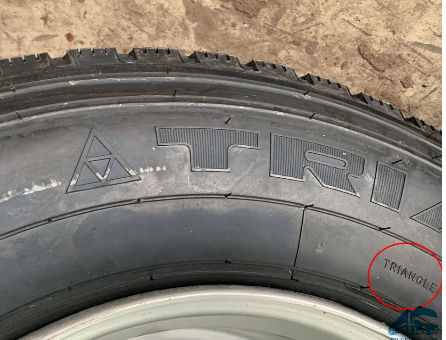

-. Good Brand Tire
Our factory work with many famous tire factory directly, we could get a good tire price with durable quality
