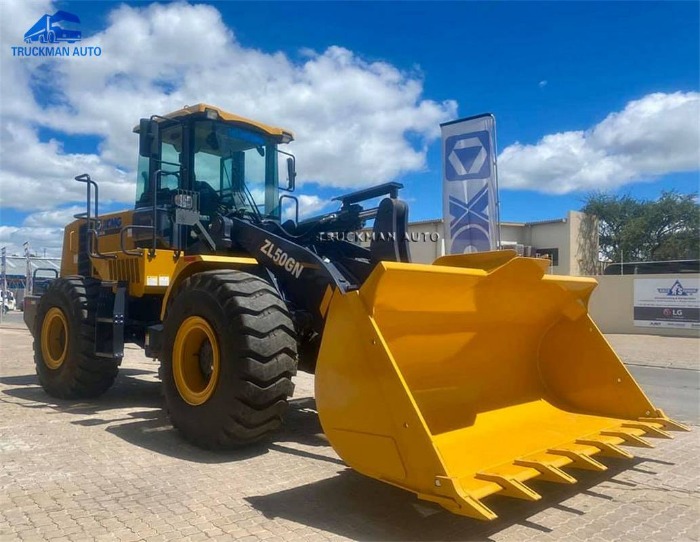

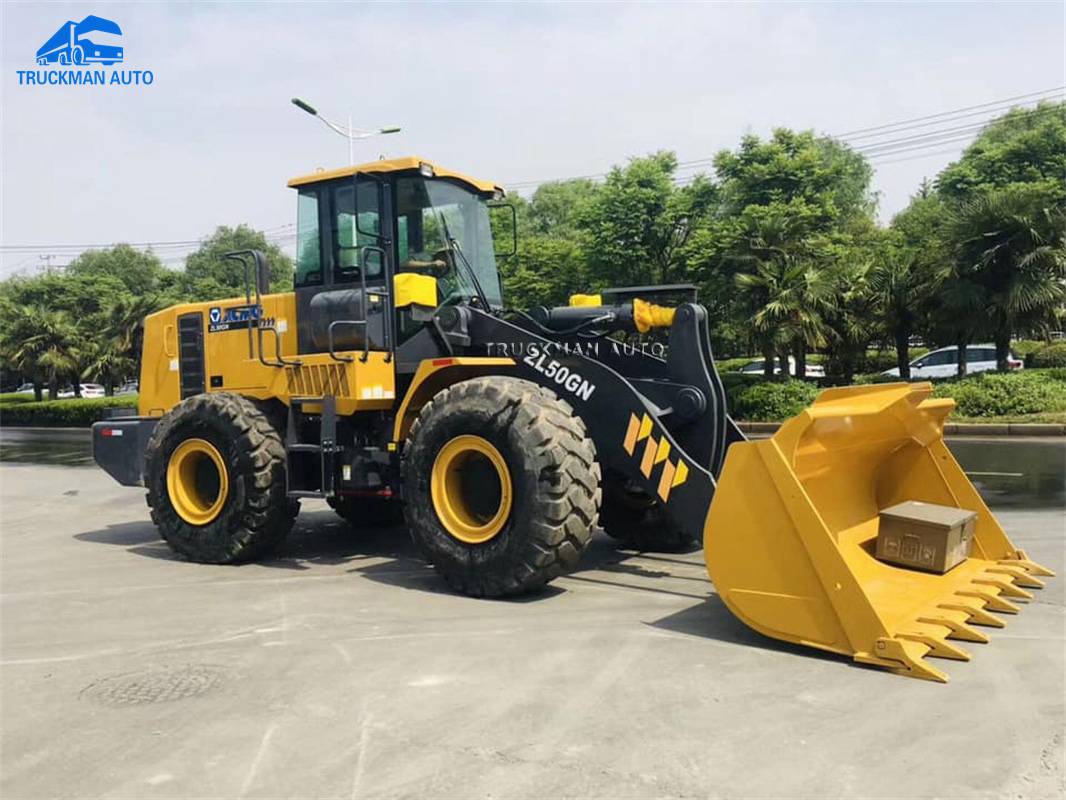

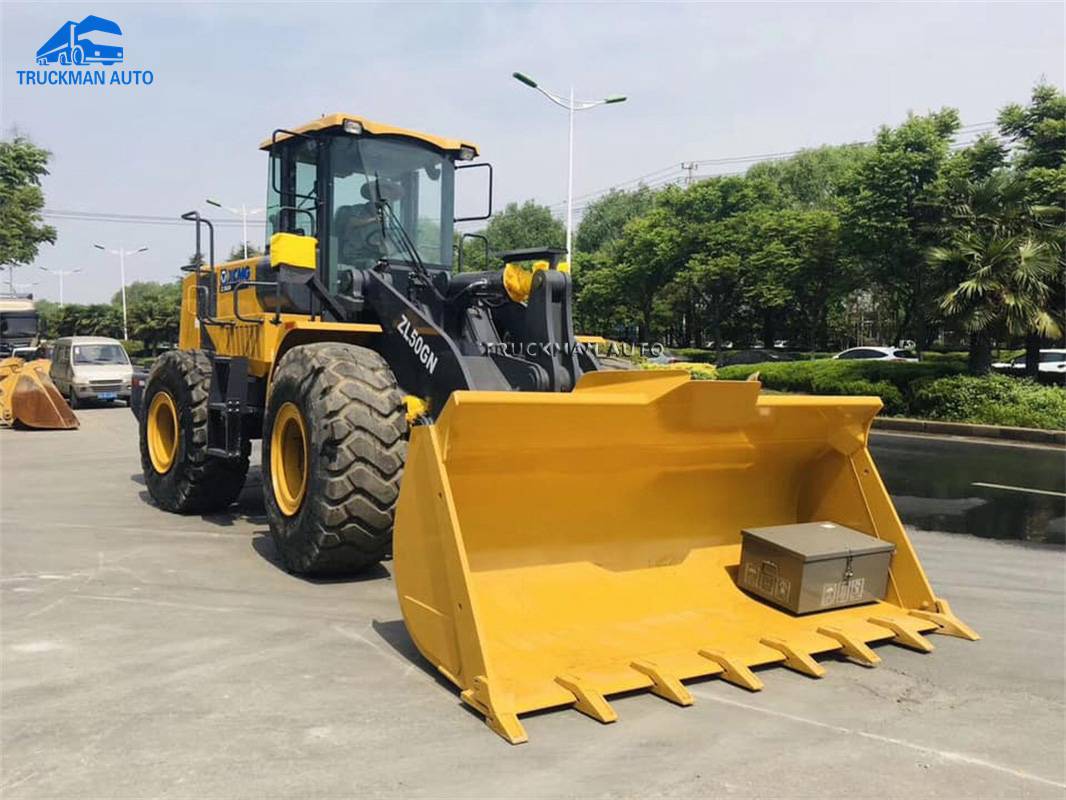

What is Xcmg Wheel Loader?

XCMG Wheel Loader is a kind of earthwork construction machinery widely used in roads, railways, construction, hydropower, ports, mines and other construction projects. It is mainly used for shoveling bulk materials such as soil, sand, lime and coal, and can also be used for ore , Hard soil, etc. for light shovel and digging operations. Different auxiliary working devices can also be used for bulldozing, lifting and loading and unloading of other materials such as wood.

In the construction of roads, especially high-grade highways, loaders are used for filling and excavating roadbed works, asphalt mixtures and aggregate and loading of cement concrete yards. In addition, it can also carry out operations such as pushing soil, leveling the ground, and pulling other machinery. Because the loader has the advantages of fast working speed, high efficiency, good maneuverability, and light operation, it has become one of the main types of earth and stone construction in engineering construction.

Basic performance

Operating weight of the whole machine (kg) 17500±300

Rated load (kg) 5000

Bucket capacity (m³) 2.5～5.0

Unloading height-unloading angle is 45°(mm) 3100～3720

Unloading distance-unloading angle is 45°(mm)1100～1220

Digging force (breaking force) (kN) 170±5

Rated load (tons) 3-5 tons

Engine model WD10G220E23

Rated power (kw/rpm)162/2000

Maximum speed (km/h) 38

Driving speed 1st gear (km/h) 0～11.5/16.5

Driving speed 2nd gear (km/h) 0～38

Drive axle swing angle (°)35

Tire specification 23.5-25-16PR

The minimum turning radius of the outer wheel centerline is 6400±50

Working device operating time

Lift (s)≤6.5

Sum of three terms (s)≤11

Technical Parameters

Maximum traction (kN) 165±5

Maximum climbing ability (°)30

Overall size

Overall length (mm) 8165

Overall width (mm) 3016

Overall height (mm) 3485

Wheelbase (mm) 3300
