XCMG XS163J Vibratory Roller With Sheep Foot
-1. XS163J XCMG 16 Ton Vibratory Roller Information.
The XS163J XCMG 16 ton vibratory roller mainly used for the road, mining, engineering work. The engine power reach to 103kw, and with high durable low maintenance cost etc advantage. The compact width is 2300mm, with fast compact speed, confirm the engineering time.
|
Model |
Unit |
XS163J |
|
Operating weight |
kg |
16000 |
|
Load applied on front drum |
kg |
7700 |
|
Static linear load |
N/cm |
362 |
|
Speed range |
km/h |
F/R |
|
Gear I |
km/h |
2.85/2.88 |
|
Gear II |
km/h |
5.08/5.02 |
|
Gear III |
km/h |
11.17/- |
|
Theoretical gradeability |
% |
30 |
|
Min. outer turning radius |
mm |
6500 |
|
Steering angle |
° |
±30 |
|
Swing angle |
° |
±11 |
|
Vibration frequency |
Hz |
28 |
|
Nominal amplitude (high/low) |
mm |
1.9/0.95 |
|
Exiting force (high/low amplitude) |
kN |
290/145 |
|
Engine model |
|
Shanghai Diesel Engine SC4H140.192 |
|
Type |
|
/ |
|
Max. power |
kW |
103 |
|
Hydraulic tank capacity |
L |
170 |
|
Fuel tank capacity |
L |
310 |

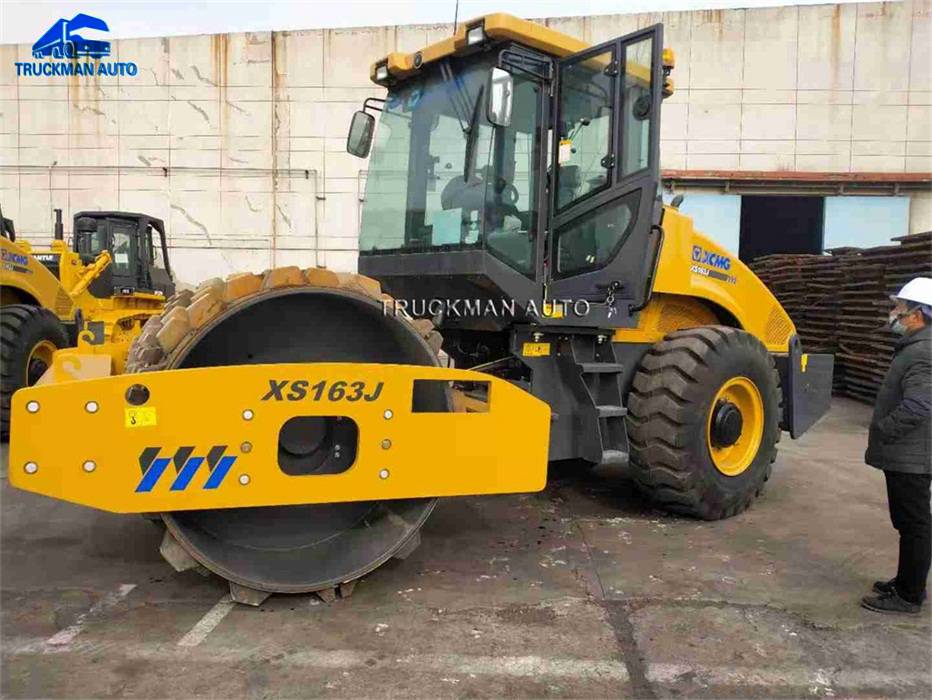

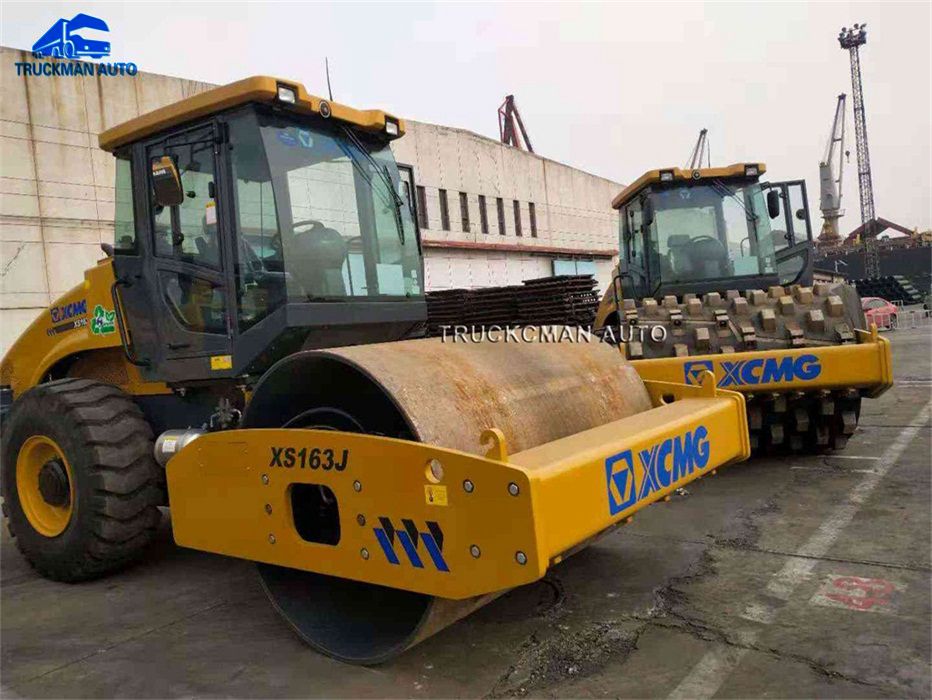

-2. XS163J XCMG 16 Ton Vibratory Roller Detail Picture.
XCMG also have the full hydraulic model vibratory compactor, the model number is XS163. The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer’s needs. and tire pattern also more suitable for road compactor, It is fully update for XCMG XS163J 16 tons vibratory compactor
