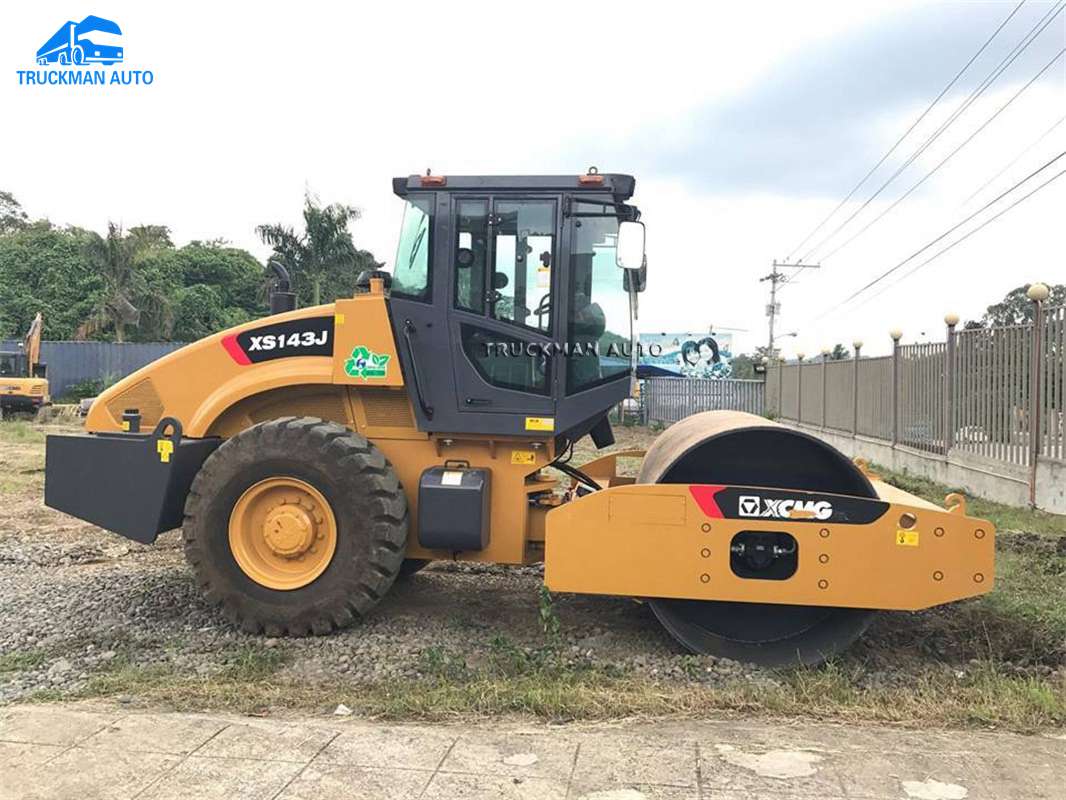

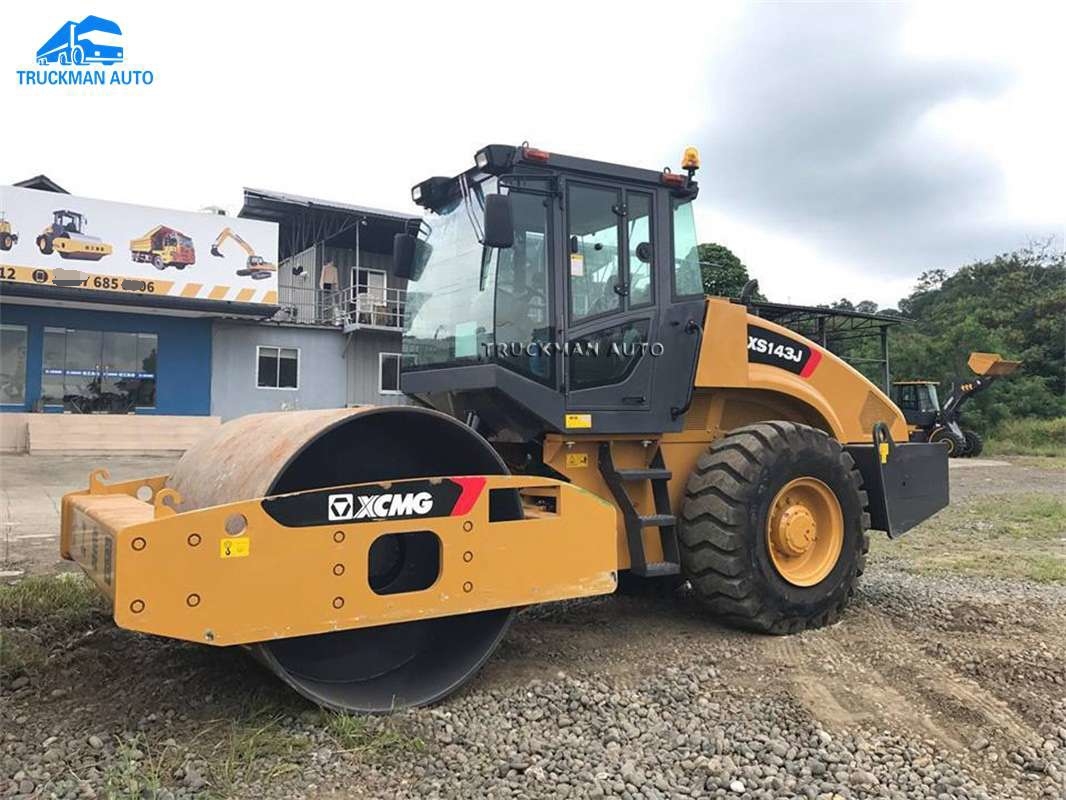

XCMG XS143J 14 Ton Single Drum Road Compactor
-1. XCMG 14 Ton Single Drum Road Compactor Information.
The XCMG 14 ton road compactor is mainly applied to the compaction of the ground, suitable for pebbles, sandy soil, moraine soil, blasting rock and cohesive soil .And also suitable for a variety of large projects in the concrete, stable soil base material, the ideal compaction equipment for construction of high-grade highways, airports, ports, and dams. XS143J 14 ton road compactor now is very popular in many countries and have their service center in local.
|
ltem |
Unit |
XS143J |
||
|
Service mass |
kg |
14000 |
||
|
Distributed mass of driving wheel |
kg |
7300 |
||
|
Distributed mass of vibration wheel |
kg |
6700 |
||
|
Static line load |
N/cm |
315 |
||
|
Vibration frequency |
Hz |
28/33 |
||
|
Theoretical amplitude |
mm |
1.9/0.95 |
||
|
Exciting force |
kN |
274/190 |
||
|
Range of speed |
Forward |
I |
km/h |
2.85 |
|
II |
km/h |
5.08 |
||
|
III |
km/h |
11.17 |
||
|
Backward |
I |
km/h |
2.88 |
|
|
II |
km/h |
5.02 |
||
|
Wheel base |
mm |
3040 |
||
|
Compaction width |
mm |
2130 |
||
|
Theoretical gradeability |
% |
30 |
||
|
Minimum turn radius |
mm |
6800 |
||
|
Diameter of vibration wheel |
mm |
1523 |
||
|
Minimum ground clearance |
mm |
431 |
||
|
Engine |
Model |
|
SC4H140.1G2 |
|
|
Rated speed |
r/min |
1800 |
||
|
Rated power |
kW |
103 |
||
|
Overall dimension (length x width x height) |
mm |
6150*2300*3200 |
||

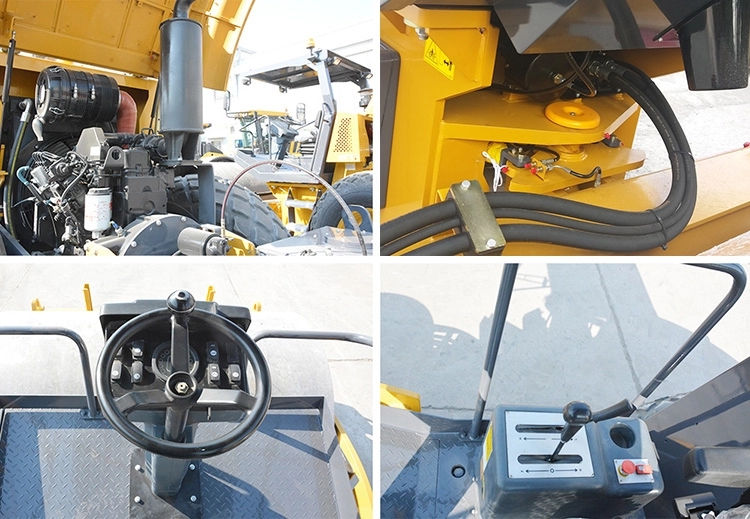

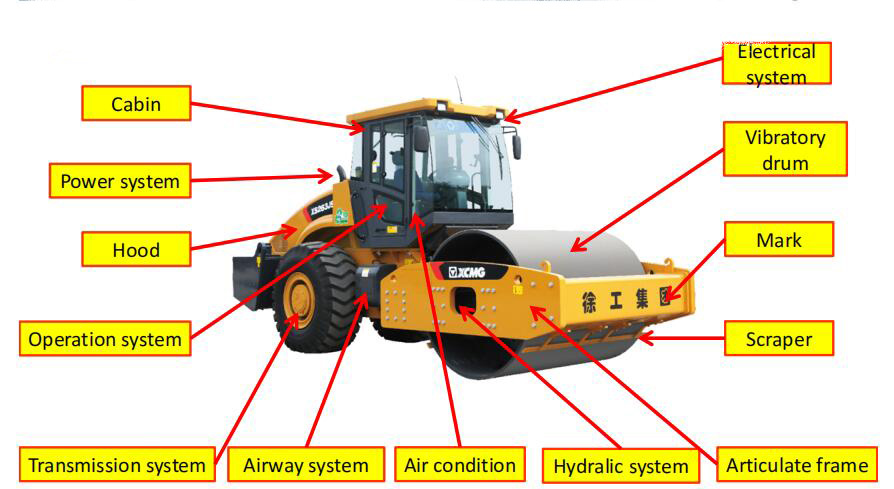

-2. XCMG 14 Ton Single Drum Road Compactor Detail Picture.
XS143J 14 ton road compactor use low-speed engine, hydraulic damping control technology, energy-saving noise reduction effect system, using "three heart in-one" technology, optimize the transmission system, the compaction performance and efficiency has been effectively improved; open dual frequency vibration system.
