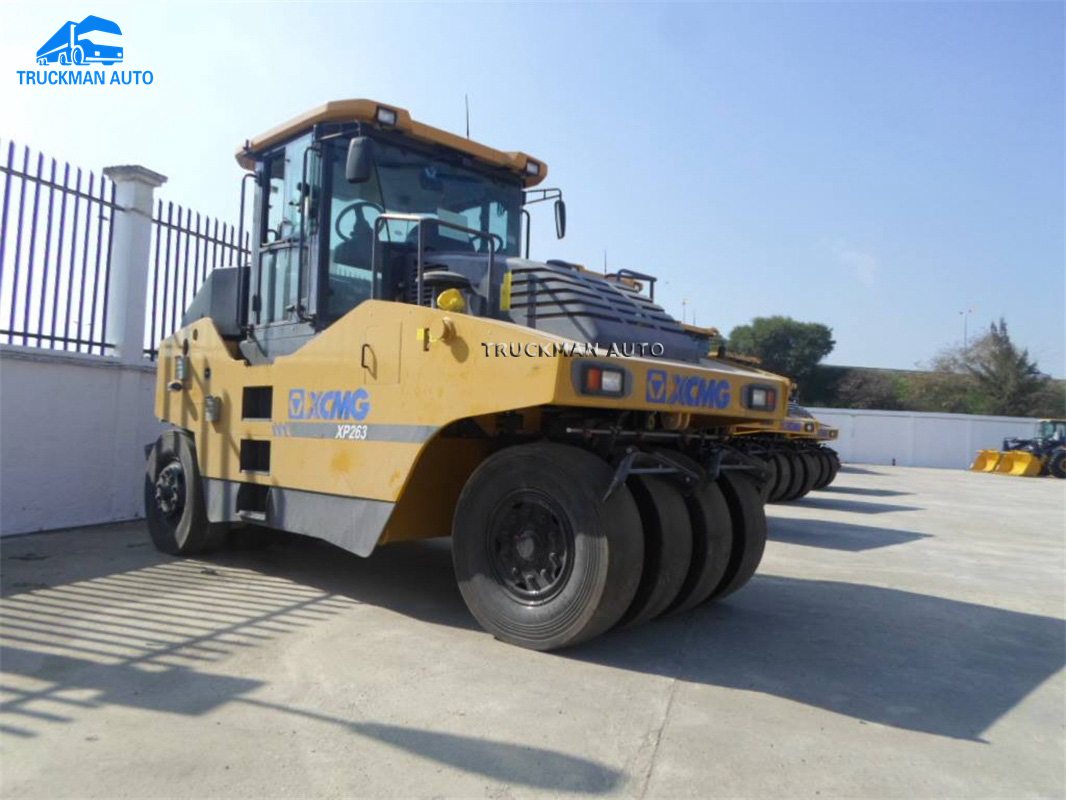

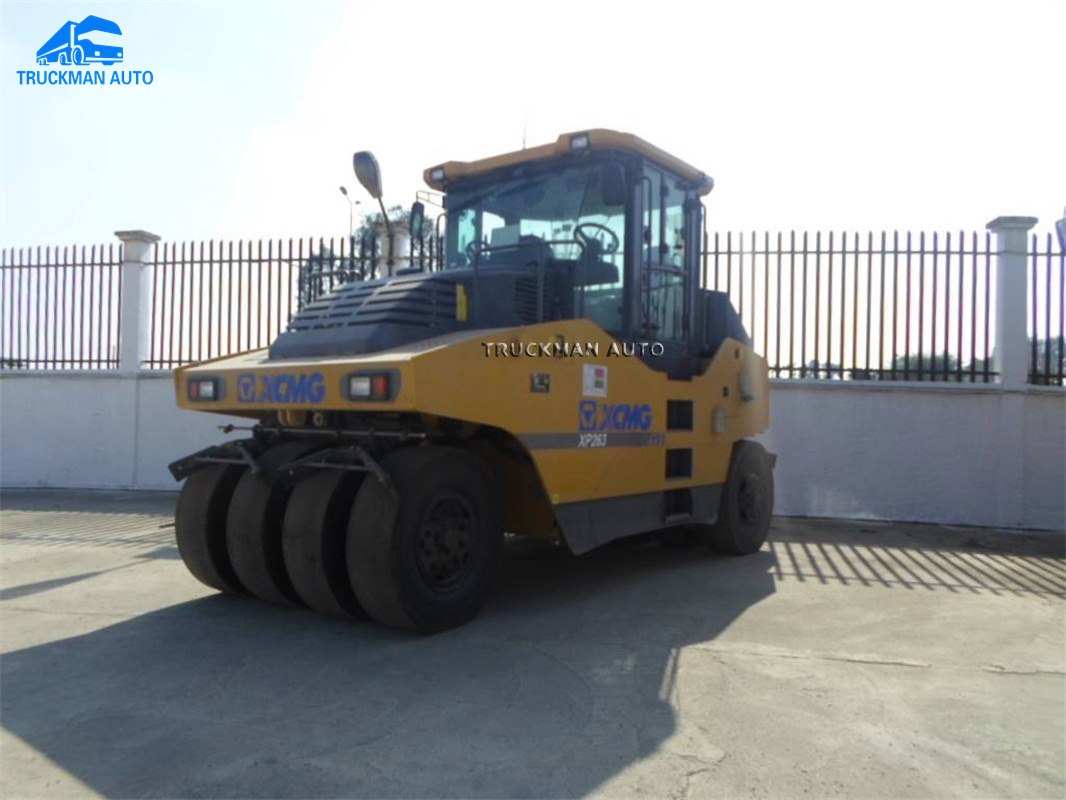

XCMG XP263 Vibratory Compactor Rubber Tire Roller
-1. XCMG Vibratory Compactor Rubber Tire Roller Introduction
XCMG XP263 rubber tire roller could main used for the road, warehouse, deck, port etc construction. With the special design rubber tire and full compactor capacity, very popular for the world famous construction, engineering company. The main information of XP263 rubber tire roller as follow:
|
Description |
Unit |
Parameter value |
|
|
Maximum operating mass |
kg |
26300 |
|
|
Mass of added heavy water |
kg |
650 |
|
|
Added mass |
kg |
10550 |
|
|
Compacting width |
mm |
2360 |
|
|
Overlap amount of tires |
mm |
65 |
|
|
Ground pressure |
kPa |
200-470 |
|
|
Minimum turning radius |
mm |
7620 |
|
|
Swing amount of front wheel |
mm |
±50 |
|
|
Minimum ground clearance |
mm |
300 |
|
|
Theoretical gradeability |
% |
20 |
|
|
Driving speed |
I |
km/h |
0-8 |
|
|
II |
|
0-17 |
|
Model of diesel engine |
SHANGCHAI |
SC7H160.2G3 |
|
|
Rated power |
kw |
118 |
|
|
Rated speed |
r/min |
1800 |
|
|
Rated fuel oil consumption |
g/kW·h |
≤235 |
|
|
Tire specification |
|
13/80-20 |
|
|
Number of tires |
|
4 front tires and 5 rear tires |
|
|
Length (standard for sprinkling water) |
mm |
4925 |
|
|
Length (optional for spraying oil) |
mm |
5015 |
|
|
Width |
mm |
2530 |
|
|
Height |
mm |
3370 |
|
|
Capacity of fuel tank L |
L |
170 |
|
|
Capacity of water tank L |
L |
650 |
|
-2. XCMG Vibratory Compactor Rubber Tire Roller Advantage.
Transmission system comprises torque converter, power shift transmission, drive axle, axle, chain and rear wheel. Adopt torque converter with continuously variable transmission as well as power shift transmission, and make roller have automatic adaptability, improving transmission stability in compaction, and guarantee the diesel engine to normally work under rated condition.
Dual-circuit brake technology has higher brake effect, fast response speed, short brake distance and higher reliability. Guarantee safety of the whole machine, and it is particularly applicable for working in mountainous area.
The machine uses the box type integral frame, each part of the body is designed with access hole and overturned cover board to facilitate maintenance and curing of each component.
-3.Other Model XCMG Vibratory Compactor Rubber Tire Roller.

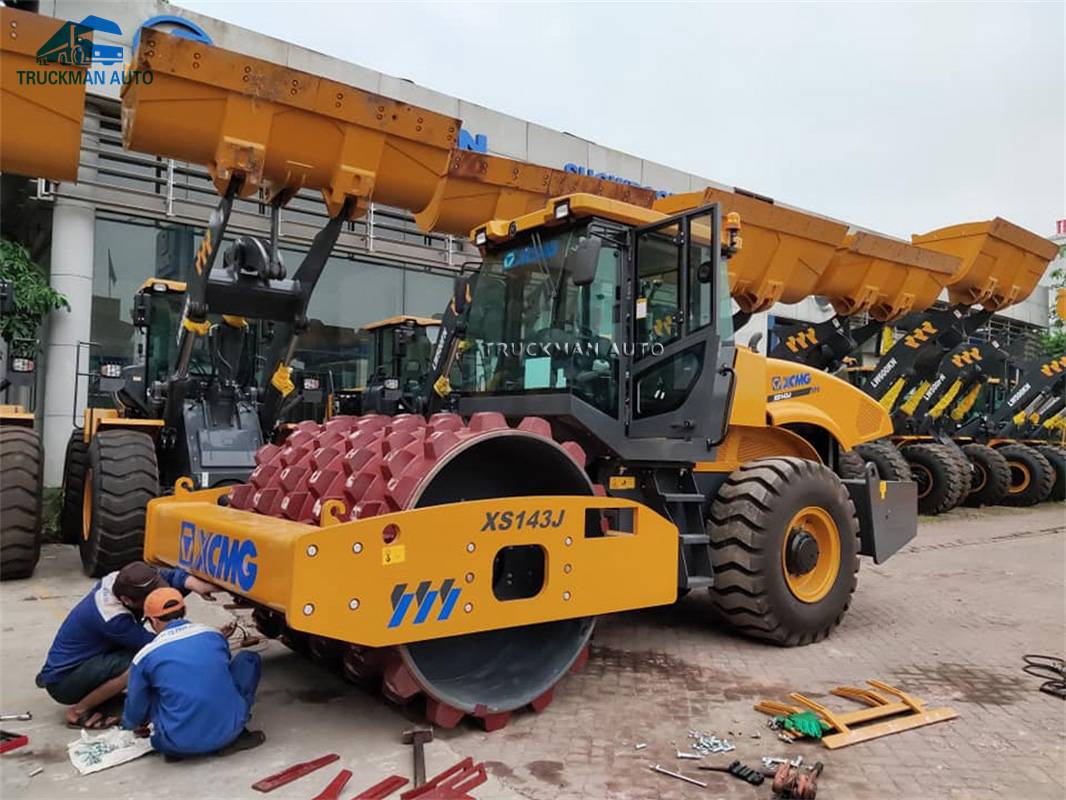

XCMG also have other model road roller, such as single drum, double drum road roller etc. The popular model such as the XS143J, XD82 etc. Now all model XCMG road roller in big promotion, contact us with more details.
