XCMG XE55D 5.5 Tons Crawler Excavator
-1. XCMG XE55D 5.5 Ton Crawler Excavator
-. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
-. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
-. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
-. The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.
|
Description |
Unit |
Parameter value |
|
|
Operating weight |
Kg |
5700 |
|
|
Bucket capacity |
m³ |
0.2 |
|
|
Main performance |
Travel speed(H/L) |
km/h |
4.2/2.2 |
|
Rotating speed |
r/min |
10 |
|
|
Gradeability |
° |
35 |
|
|
Ground pressure |
kPa |
31 |
|
|
Bucket digging force |
kN |
48.3 |
|
|
Arm crowd force |
kN |
32.5 |
|
|
Maximum traction |
kN |
50.5 |
|
|
Appearance size |
Dimension (LxWxH) |
mm |
5860x1950x2585 |
|
Width of platform |
mm |
1780 |
|
|
Length of crawler |
mm |
1920 |
|
|
Overall width of chassis |
mm |
400 |
|
|
Width of crawler |
mm |
1990 |
|
|
Crawler gauge |
mm |
1500 |
|
|
Clearance under counterweight |
mm |
700 |
|
|
Min. ground clearance |
mm |
385 |
|
|
Dozer blade width/height |
mm |
1920/340 |
|
|
Working scope |
Max. digging height |
mm |
5630 |
|
Max. dumping height |
mm |
3945 |
|
|
Max. digging depth |
mm |
3830 |
|
|
Max. vertical wall digging depth |
mm |
2680 |
|
|
Max. digging reach |
mm |
6130 |
|
|
Min. swing radius |
mm |
2460 |
|
|
Min. tail swing radius |
mm |
1670 |
|
|
Max.dozer blade hoist height |
mm |
390 |
|
|
Max. dozer blade digging depth |
mm |
560 |
|

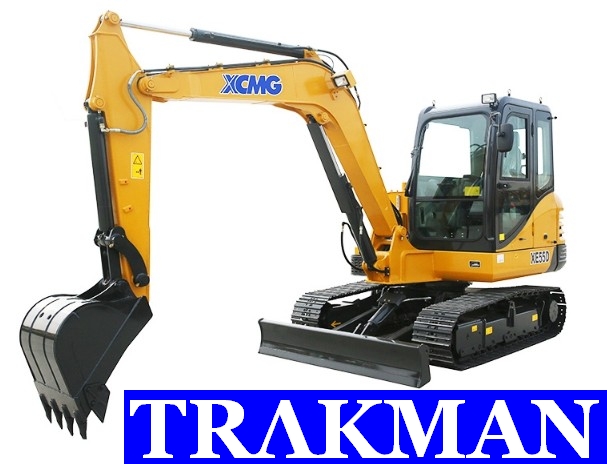

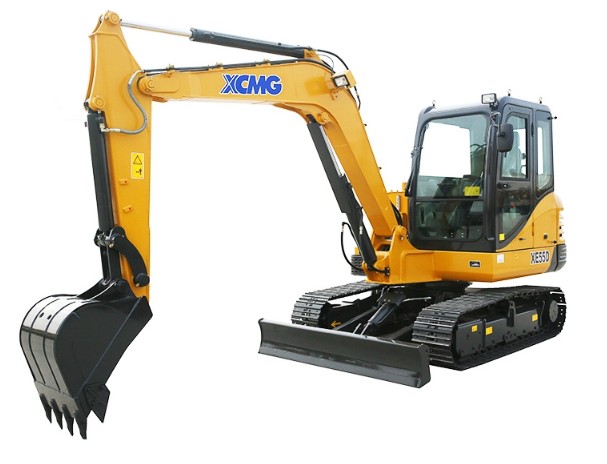

-2. Picture For Reference.

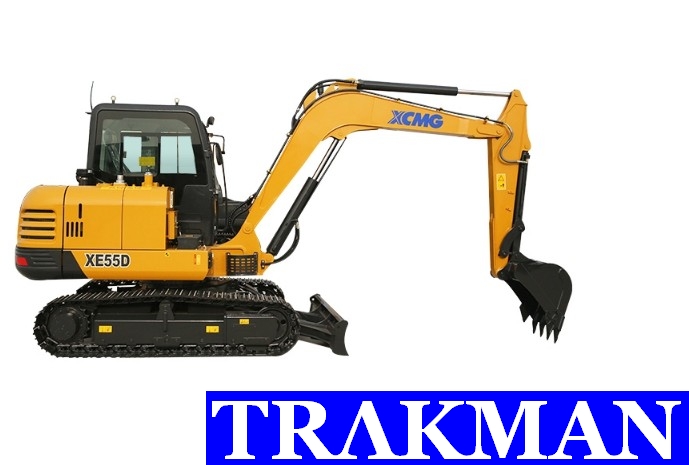

-3. Detail Picture.

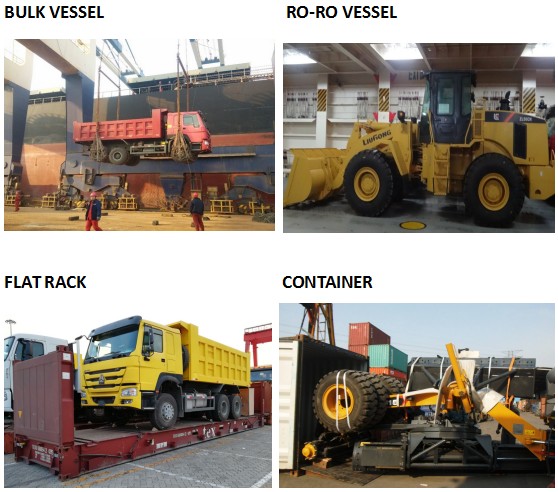

-4. Shipment Picture.
Now our machinery could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.
