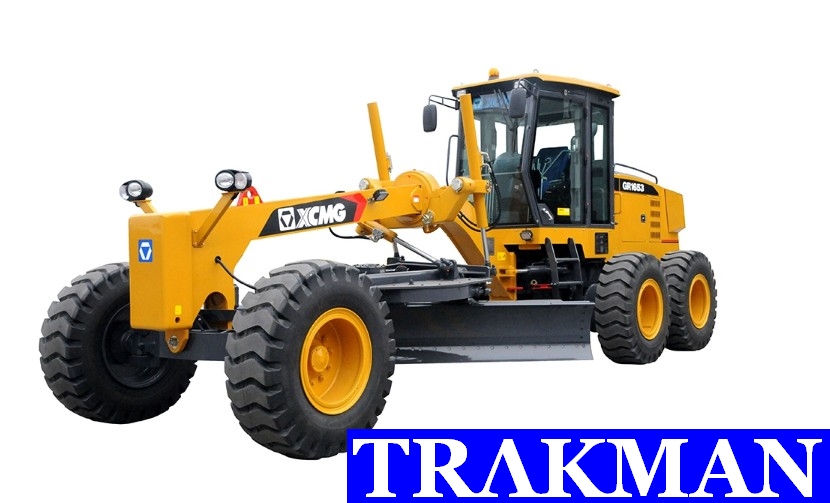

XCMG GR1653 165HP Motor Grader
-1. XCMG GR1653 Motor Grader Main Specification
1. The torque converter has a large torque coefficient, a high efficiency, a wide effective area, and a good joint operation characteristic with the engine.
2. The drive axle is a dedicated XCMG axle.
3. Rear axle main drive is equipped with "NO-SPIN" without self-locking differential. When one wheel slips, the other wheel can still transmit its original torque.
4. The service brake is a dual-circuit hydraulic brake system that acts on the two rear wheels of the grader and is safe and reliable.
|
Description |
Unit |
Parameter value |
|
Engine model |
|
6BTA5.9-C180 |
|
Rated power/speed |
|
132(2200)Kw(r/min) |
|
Overall dimension (standard) |
|
8900X2620X3420 |
|
Total weight (standard) |
kg |
15000 |
|
Tire specification |
|
17.5-25 |
|
Ground clearance (front axle) |
mm |
430 |
|
Tread |
mm |
2156 |
|
Space of front and rear axles |
mm |
6219 |
|
Forward velocity |
km/h |
5/8/11/19/23/36 |
|
Reverse speed |
km/h |
5/11/23 |
|
Tractive effort f=0.75 |
kN |
77 |
|
Maximum gradeability |
% |
25 |
|
Tire inflation pressure |
kPa |
260 |
|
Working system pressure |
mPa |
16 |
|
Transmission pressure |
mPa |
1.3—1.8 |
|
Maximum steering angle of front wheel |
|
±50° |
|
Maximum slant angle of front wheel |
|
±17° |
|
Maximum oscillating angle of front axle |
|
±15° |
|
Maximum oscillating angle of equilibrium box |
|
±16° |
|
Maximum steering angle of frame |
|
±27° |
|
Minimum turning radius |
m |
7.3 |

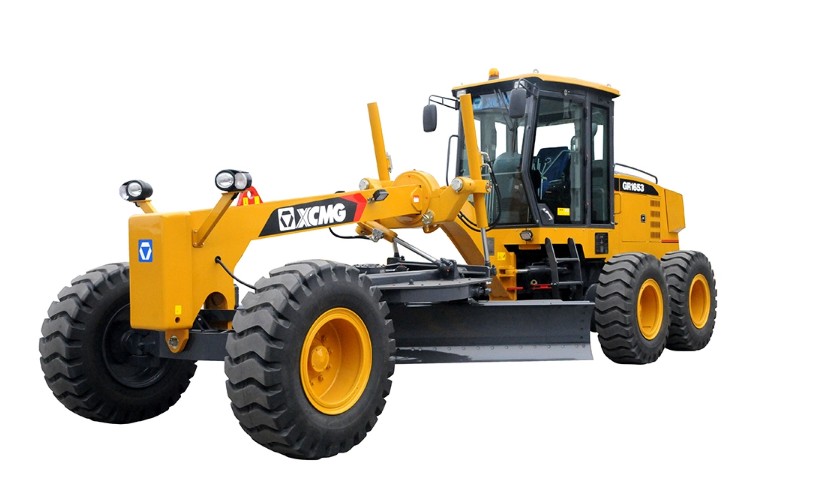

-2. Picture For Reference.

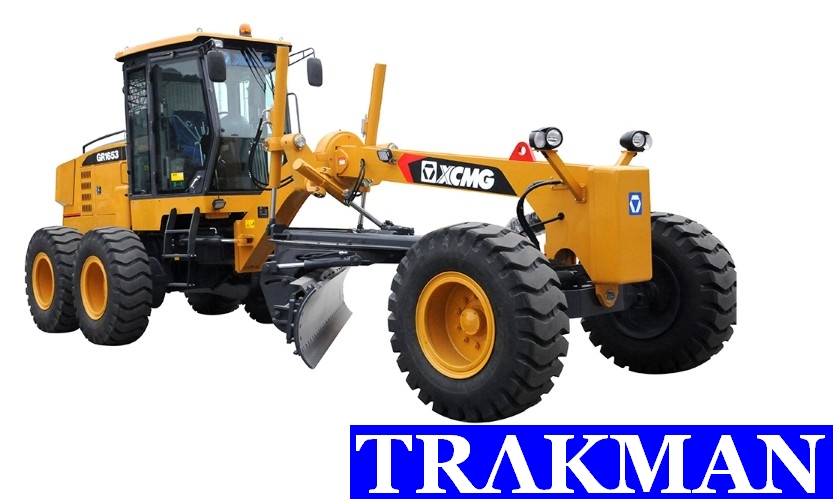

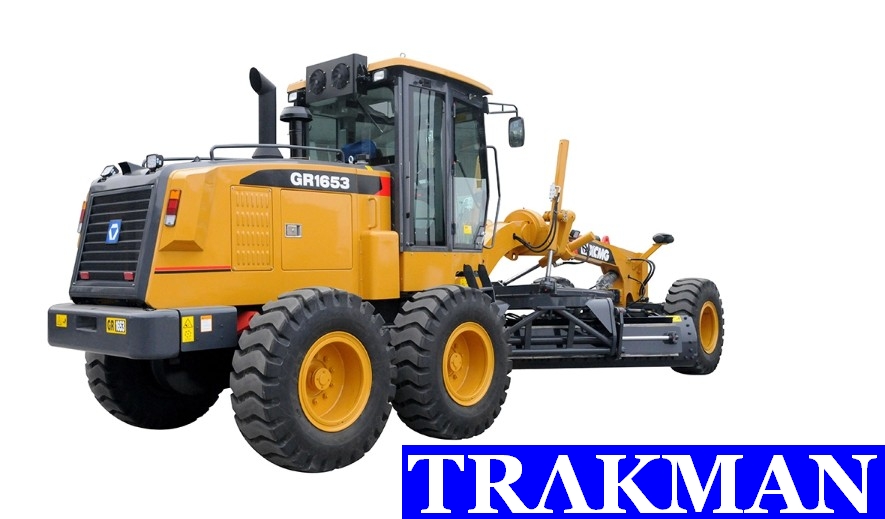

-3 Detail Picture

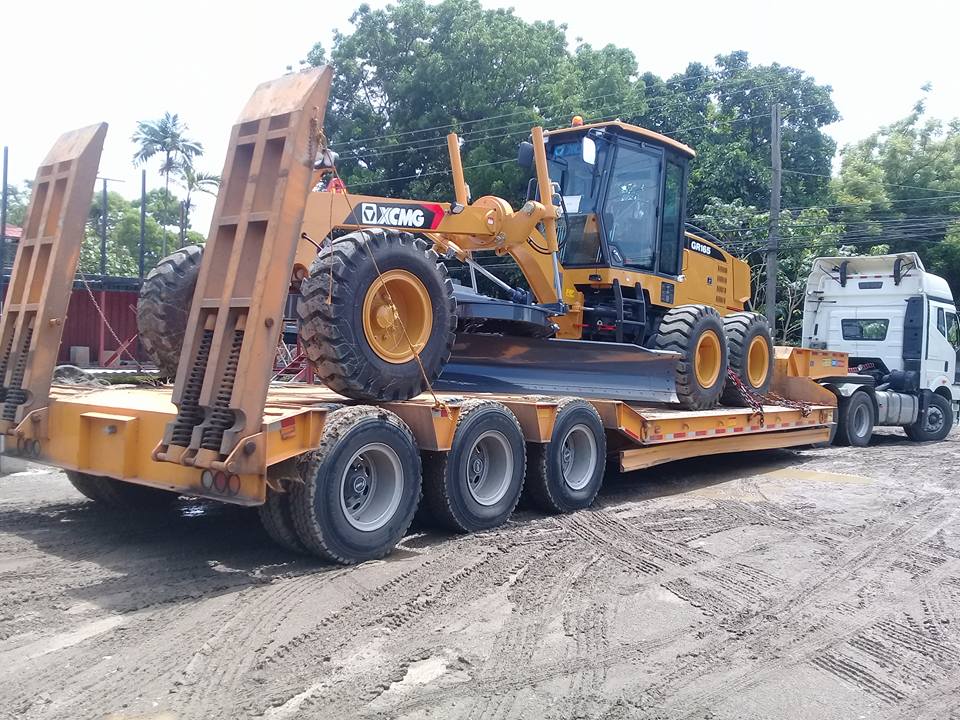

-4. Customers Received Goods.
Our customers received machinerys last week, he is very satisfied with our service, delivery time and product quality. He told us that the next order will come soon.
