XCMG Front End LW400FN 4 Ton Wheel Loader

XCMG Front End LW400FN 4 Ton Wheel Loader
XCMG Front End LW400FN 4 Ton Wheel Loader
XCMG Front End LW400FN 4 Ton Wheel Loader
Product Name : XCMG Front End LW400FN 4 Ton Wheel Loader
Product ID : LW400FN
Type : Wheel loader
Operation Weight : 4 Ton
Engine : Weichai
Brand : XCMG
Model : LW400FN
Directions

-1. XCMG LW400FN 4 Tons Wheel Loader



-. Simple structure in linear type ,easy in installation and maintenance.

-. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

-. It features high efficiency, energy-saving, and strong power.

-. Applicable to all kinds of working sites.

-. China-II emission compliance, high performance, and low fuel consumption.

-. The first-class hydraulic units ensure low pressure loss, less system heating, and high reliability.

-. The framework structure engine hood and the uplift large side doors boast large opening angle and make the checking, repair, and maintenance easier for the engine and radiator.



Description

Unit

Parameter value

Rated operating load

kg

4000

Bucket capacity

2.4

Machine weight

kg

14500

Dump clearance at maximum lift

mm

2770~3260

Reach at maximum lift

mm

1010~1210

Wheel base

mm

3100

Tread

mm

2060

Height of hinge at maximum lift height

mm

3830

Working height(fully lifted)

mm

4870

Max.breakout force

kN

130

Max.horse power

kN

95

Hydraulic cycle time-raise

s

5.5

Total hydraulic cycle time

s

10

Min. turning radius over tire

mm

5165

Articulation angle

°

35±1

Gradeability

°

28

Tyre size



17.5-25-12PR

Overall machine dimension

mm

7050×2482×3118

Fuel Tank

L

170

Hydraulic Tank

L

170

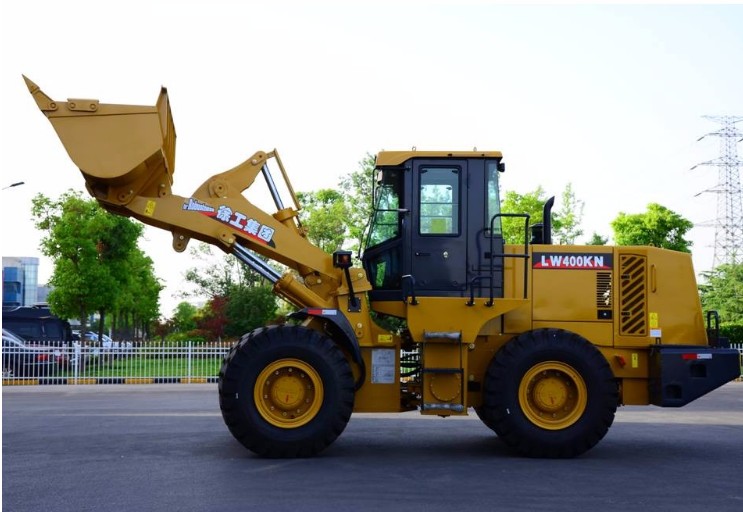

-2. Picture For Reference.





-3 Detail Picture.





-4. After Sales Service.





Now Our company built one big spare parts warehouse for our customer's machinery, all parts could arrange DHL or TNT as soon.

In addition, we also could arrange the engineer for the maintenance.
