XCMG Brand 52m Concrete Pump Truck With HOWO Truck Chassis
-1. XCMG Brand Concrete Pump Truck Main Specification
-. XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
-. It is highly reliable and durable with seven technical highlights. More advanced boom structure technology.
-. More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology.
-. More reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
|
Description |
Unit |
Parameter value |
|
|
Outline dimension |
mm |
13120×2500×3990 |
|
|
Overall weight |
kg |
34000 |
|
|
Chassis |
Model |
|
ZZ5347V484MD1 |
|
Max. speed |
km/h |
90 |
|
|
Max. grade-ability |
% |
40 |
|
|
Wheelbase |
mm |
4800+1400 |
|
|
Tire |
|
315/80R22.5 |
|
|
Engine |
Model |
|
MC11.40-40 |
|
Max. power |
kW |
297 |
|
|
Max. torque |
N·m/(r/min) |
1900/1000~1400 |
|
|
Displacement |
L |
10.518 |
|
|
Emission standard |
|
Eruo IV |
|
|
Pumping system |
Theoretical output |
m³/h |
170 |
|
Concrete pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
Time/min |
23~26 |
|
|
Delivery cylinder diameter ×stroke |
mm |
φ260×2000 |
|
|
Max. diameter of pumping concrete |
mm |
≤40 |
|
|
Filling height |
mm |
1580 |
|
|
Concrete slump range |
cm |
8~23 |
|
|
Placing boom |
Reach height |
m |
51.5 |
|
Reach depth |
m |
36.1 |
|
|
Slewingradius |
m |
46 |
|

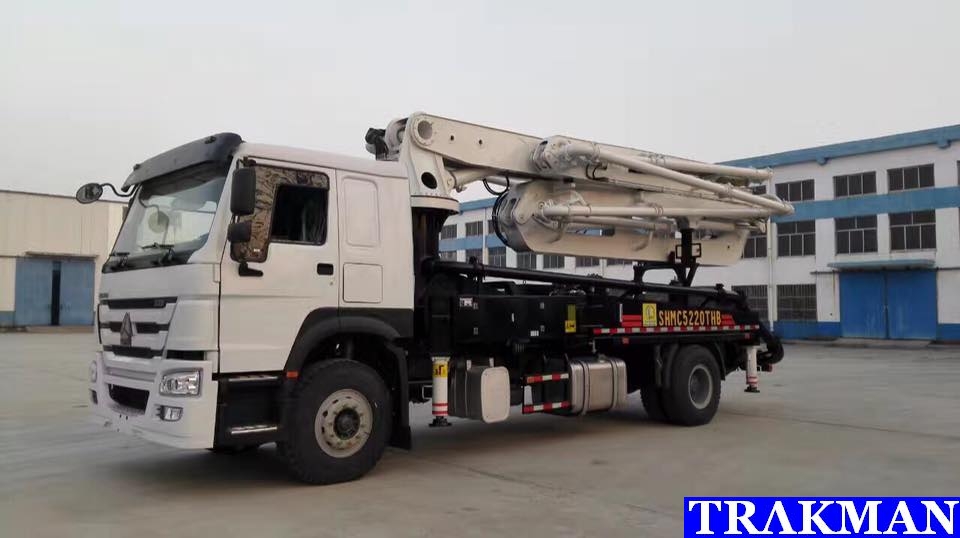

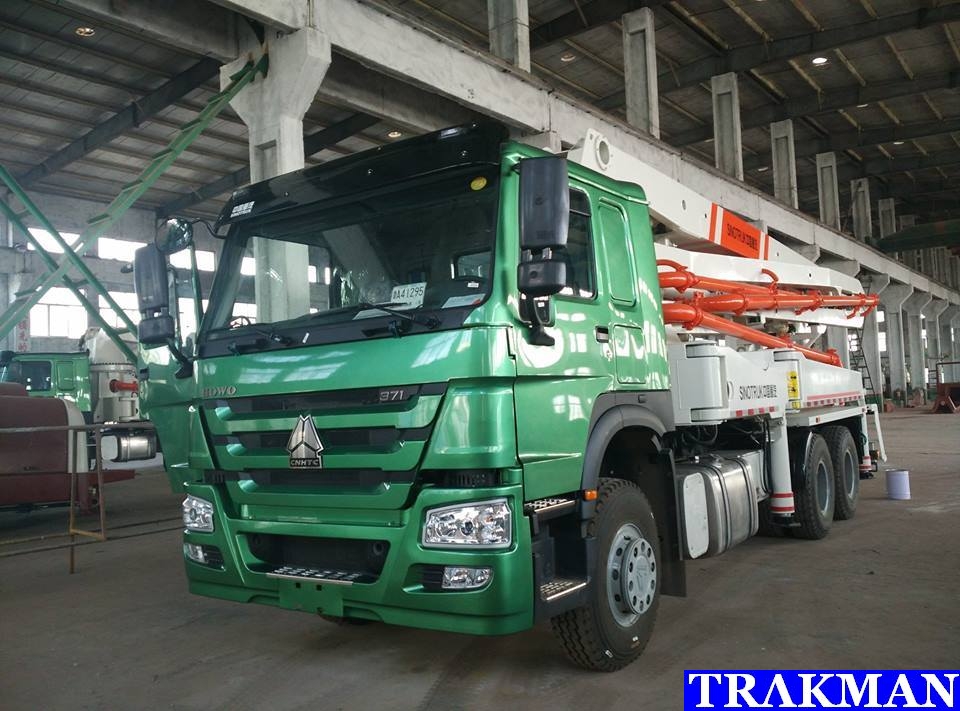

-2. Truck Picture For Reference.

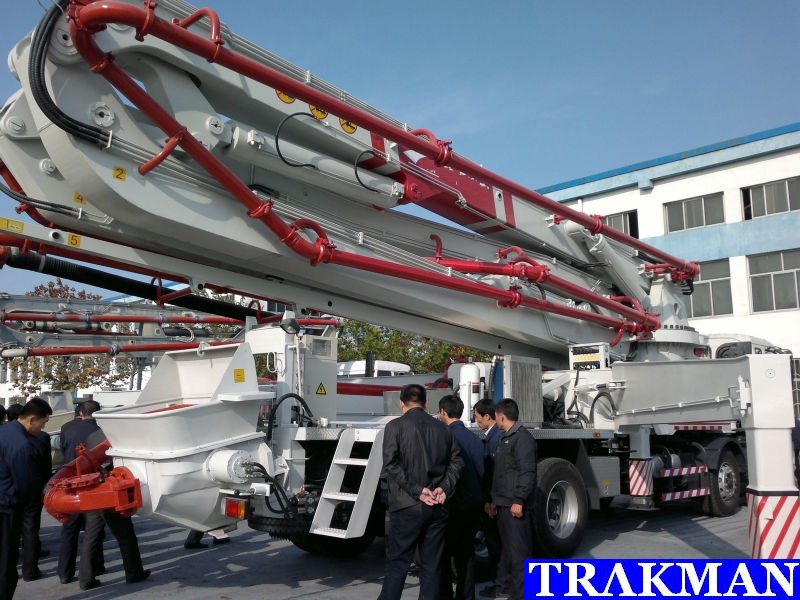

-3. Truck Detail Picture.
-4. Payment Term.
Now our company could accept the T/T (BANK TRANSFER), L/C.
Also can accept the L/C against cover at SINOSURE.
