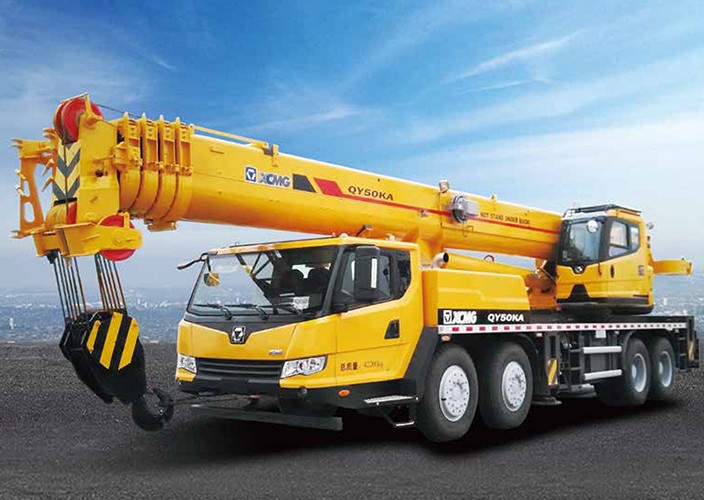

XCMG 50 Ton Hydraulic Truck Mounted Crane
-1. XCMG 50 Ton hydraulic truck mounted crane
-. Specialized boom of octagonal cross section has features of light deadweight, better strength and strong lifting capacity.
-. Advanced built-in boom head, strong structural members and lower sliders with larger area contribute to better stress-bearing capacity and more smooth telescoping movement, and efficiently prevent boom torsion after side loading.
-. Telescoping mechanism is designed reliably. In the telescoping mechanism, both rotation-resistant rope used for thick cable and guide pulley bearing are imported parts and have reliable performance.
-. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.
|
Description |
Unit |
Parameter value |
|
|
Overall length |
mm |
13930 |
|
|
Overall width |
mm |
2780 |
|
|
Overall Height |
mm |
3630 |
|
|
Axle base |
1st ,2nd axle |
mm |
1470 |
|
2nd ,3rd axle |
4300 |
||
|
3rd ,4th axle |
1350 |
||
|
Wheel Base |
mm |
2304+2075 |
|
|
Front overhang/rear overhang |
mm |
2389/2064or 2376/2064 |
|
|
Front extension/rear extension |
mm |
2131/226 or 2144/226 |
|
|
Total vehicle mass in travel configuration |
kg |
42200 |
|
|
Axle load |
Front axle |
kg |
16200 |
|
Rear axle |
26000 |
||
|
Engine Model |
|
WD615.338 |
|
|
Engine rated power |
kw/(r/min) |
276/2200 |
|
|
Engine rated torque |
N.m/(r/min) |
1500/1300-1600 |
|
|
Max. travel speed |
km/h |
85 |
|
|
Min. steady travel speed |
km/h |
2~3 |
|
|
Min. turning diameter |
m |
24 |
|
|
Min. ground clearance |
mm |
327 |
|
|
Max. grade ability |
% |
42 |
|
|
Approach angle |
° |
19 |
|

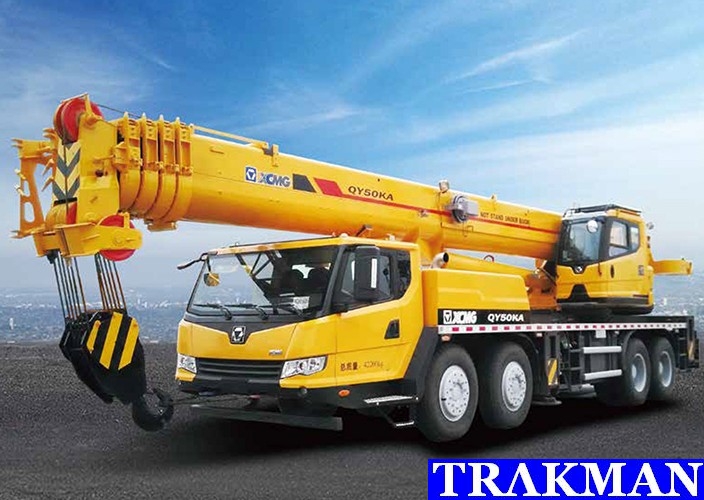

-2. Picture For Reference.

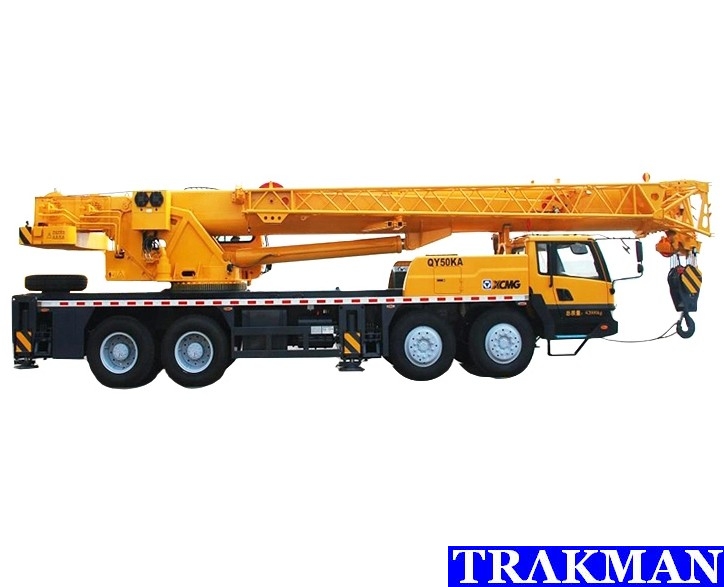

-3. Detail Picture.
-4. Customers Received Goods.
Our customers received machinerys last week, he is very satisfied with our service, delivery time and product quality. He told us that the next order will come soon.
