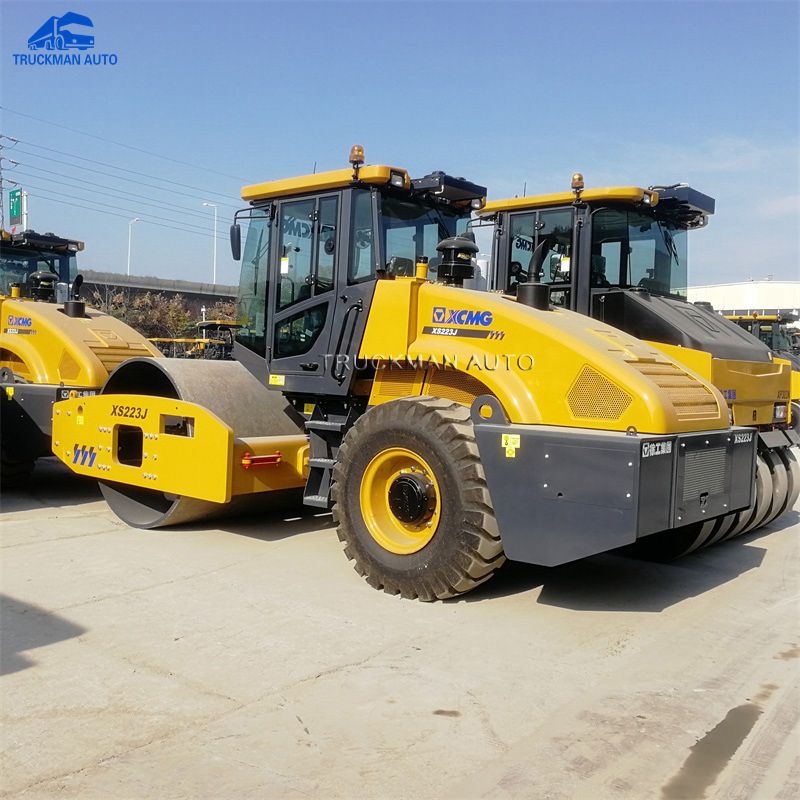

XCMG 22 Tons Single Drum Road Roller
-1. XCMG 22 Tons Single Drum Road Roller Information.
XCMG 22 tons single drum road roller is design for the road, port, warehouse etc construction. The model is XS223J, with the single drum and air conditioner. The drum also could optional the sheep foot, for the good compactor.
|
Type |
Unit |
XS223J |
|
Operating weight |
kg |
22000 |
|
Load on front drum |
kg |
15000 |
|
Load on rear wheels |
kg |
7000 |
|
Drum width |
mm |
2130 |
|
Static linear load |
N/cm |
704 |
|
Vibration frequency(Low/High) |
Hz |
28/33 |
|
Nominal amplitude(High/Low) |
mm |
1.86/0.93 |
|
Excitation force(High/Low) |
KN |
390/270 |
|
Travel speed |
km/h |
0~10 |
|
Steering angle |
° |
±33 |
|
Swing angle |
° |
±10 |
|
Theoretical gradeability |
% |
50 |
|
Min. external turning radius |
mm |
6500 |
|
Engine model |
|
B5.9 |
|
Engine power |
kw |
132 |
|
Rated engine speed |
r/min |
2200 |
|
Engine oil consumption |
g/kW.h |
232 |
|
Hydraulic oil tank capacity |
L |
240 |
|
Fuel tank capacity |
L |
240 |
-2. XCMG 22 Tons Single Drum Road Roller Advantage.

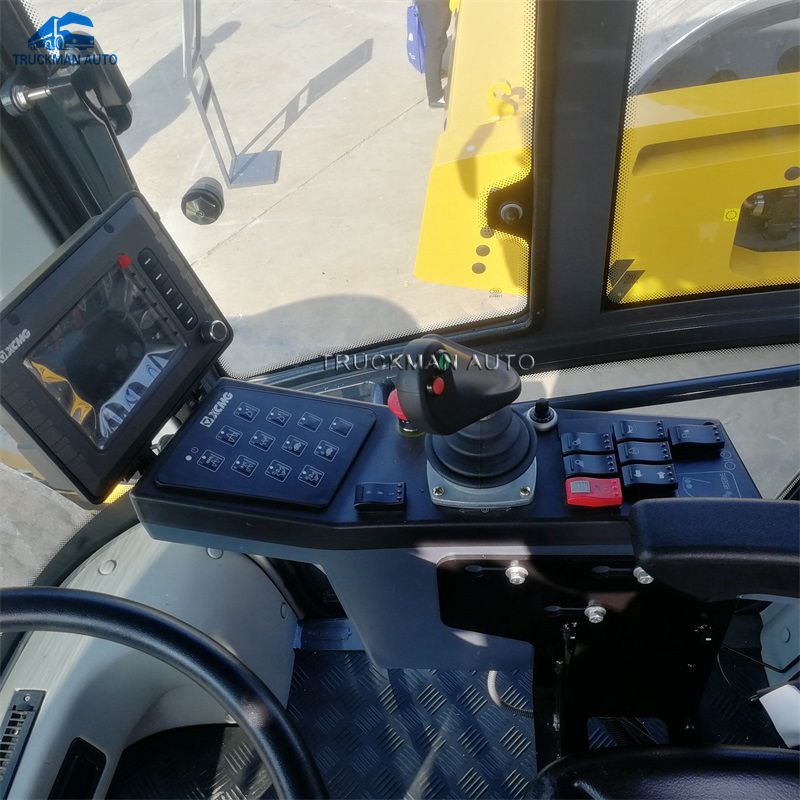

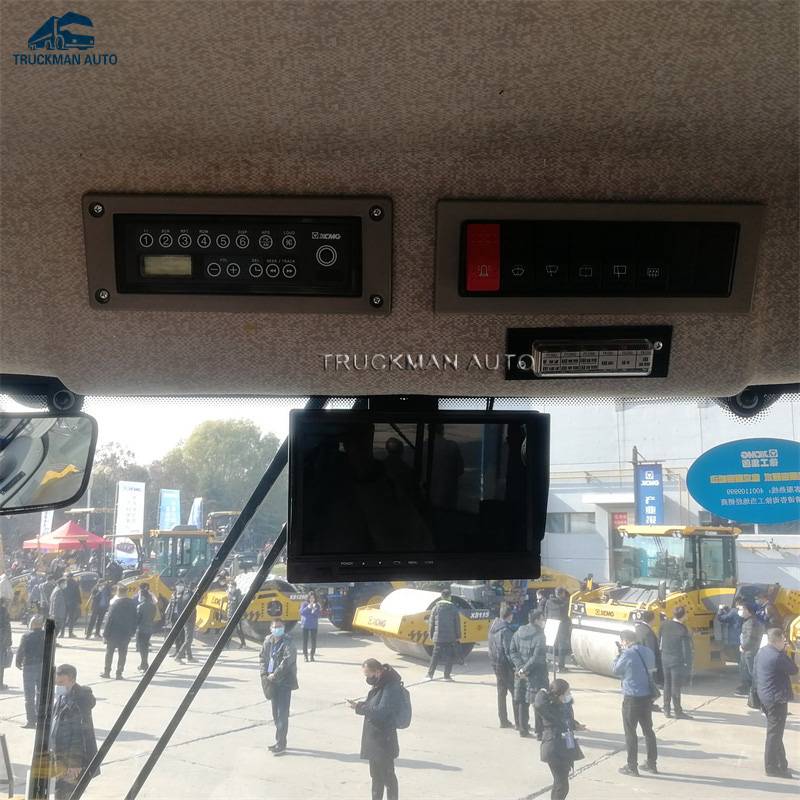

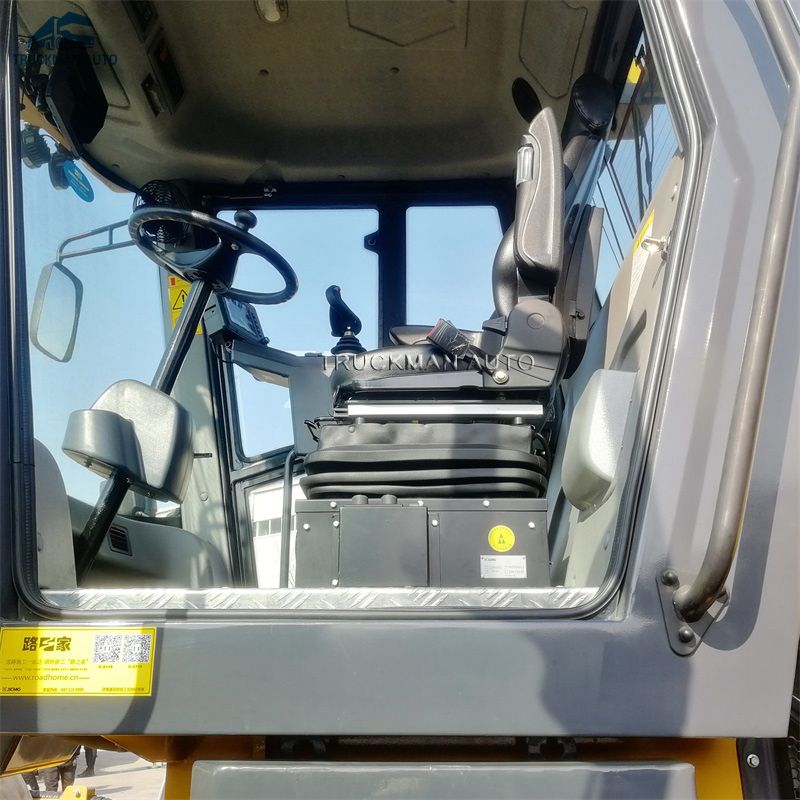

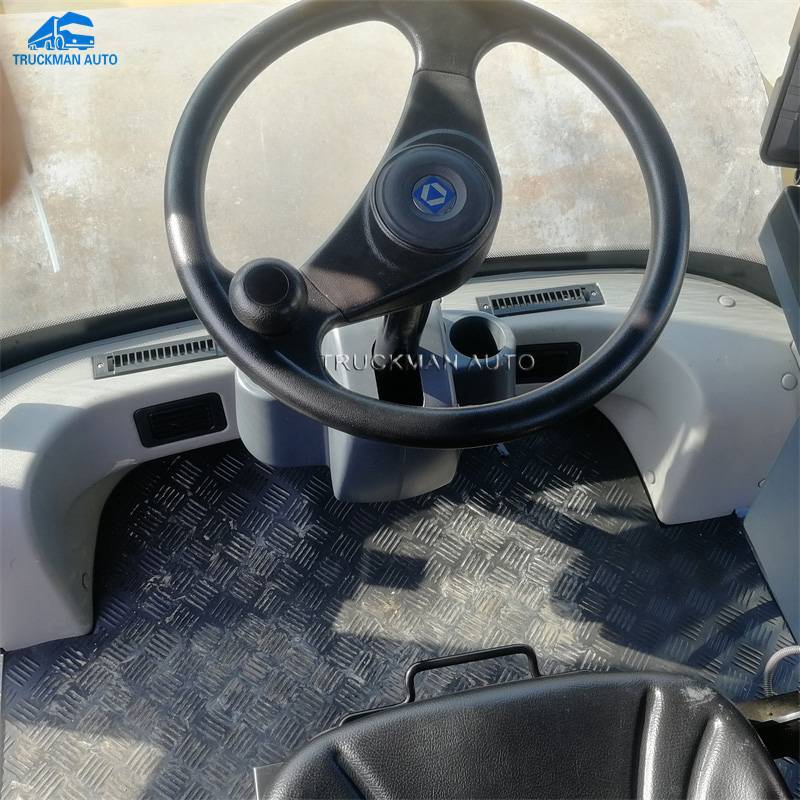

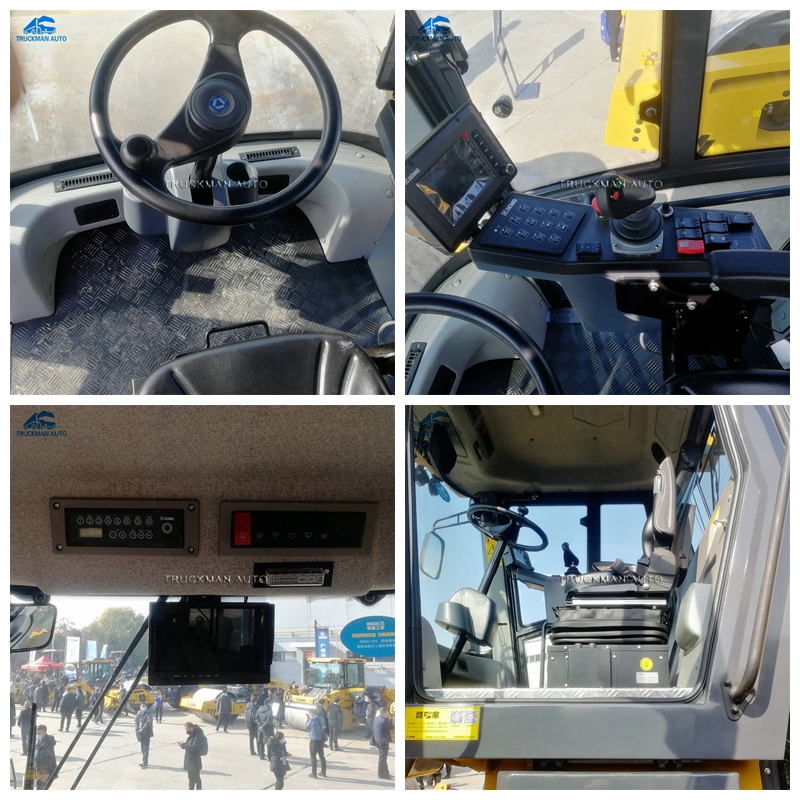

Electrohydraulic controlled power shift transmission and electrically controlled engine hood make operation easy. The main clutch and braking system are air actuated, offering the ease of operation. Ergonomically designed instrument panel and simple ergonomic layout of controls minimize fatigue, making the operator highly efficient and productive.
Wide-opening tilt-forward engine hood can be stopped safely at any height using an electric lift device, allowing easy access to the engine for maintenance and service. Grease fill and drain ports are easily accessible for easier daily maintenance.
