Description |
Unit |
Parameter value |
||
Overall length |
mm |
14770 |
||
Overall width |
mm |
2800 |
||
Overall Height |
mm |
3890 |
||
Axle base |
1st ,2nd axle |
mm |
1470 |
|
2nd ,3rd axle |
4000 |
|||
3rd ,4th axle |
1350 |
|||
Wheel Base |
mm |
2380+2075 |
||
Total vehicle mass in travel configuration |
kg |
50000 |
||
Axle load |
1st and 2nd Axle |
kg |
24000 |
|
3rd and 4th Axle |
26000 |
|||
Engine Model |
|
WP12.375N |
MC11.39-30 |
|
Engine rated power |
kw/(r/min) |
276/1900 |
290/1900 |
|
Engine rated torque |
N.m/(r/min) |
1800/1000-1400 |
1900/1000-1400 |
|
Max. travel speed |
km/h |
80 |
||
Min. steady travel speed |
km/h |
3 |
||
Min. turning diameter |
m |
24 |
||
Min. turning diameter at boom tip |
m |
29 |
||
Min. ground clearance |
mm |
371 |
||
Max. grade ability |
% |
40 |
||
Approach angle |
° |
17 |
||
Departure angle |
° |
15.5 |

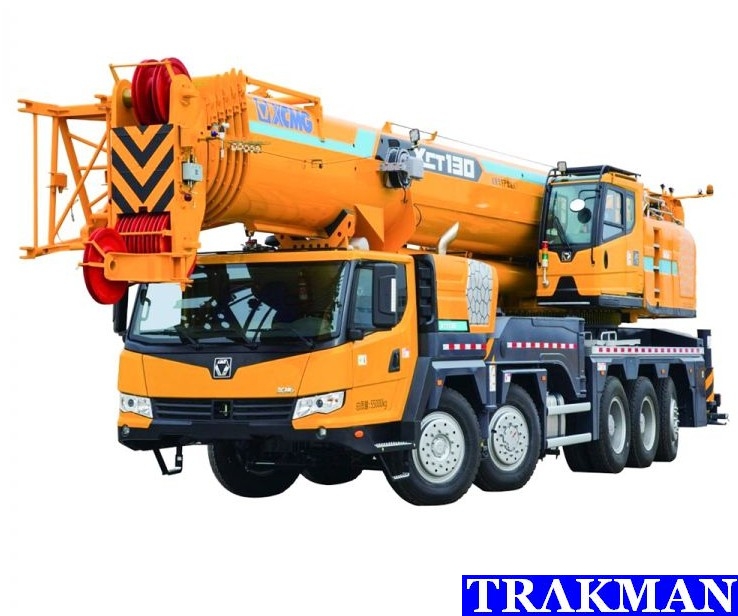

-2. Picture For Reference.

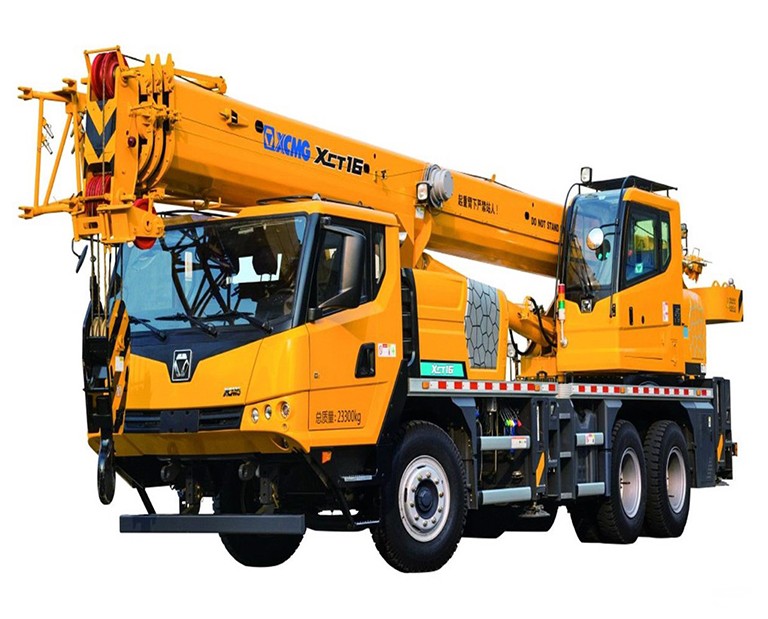

-3. Detail Picture.

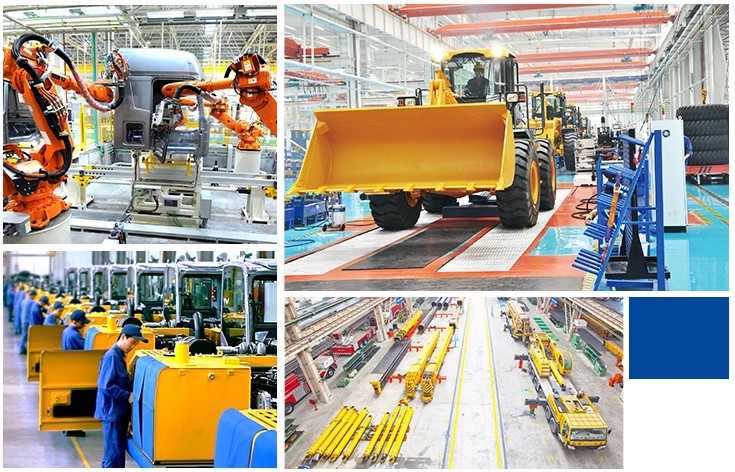

-4. Our Factory Picture.
Our factory can meet the TARGET, WCA, SA8000,CVS request. All machinery will make test and send customer the quality certificate before delivery
