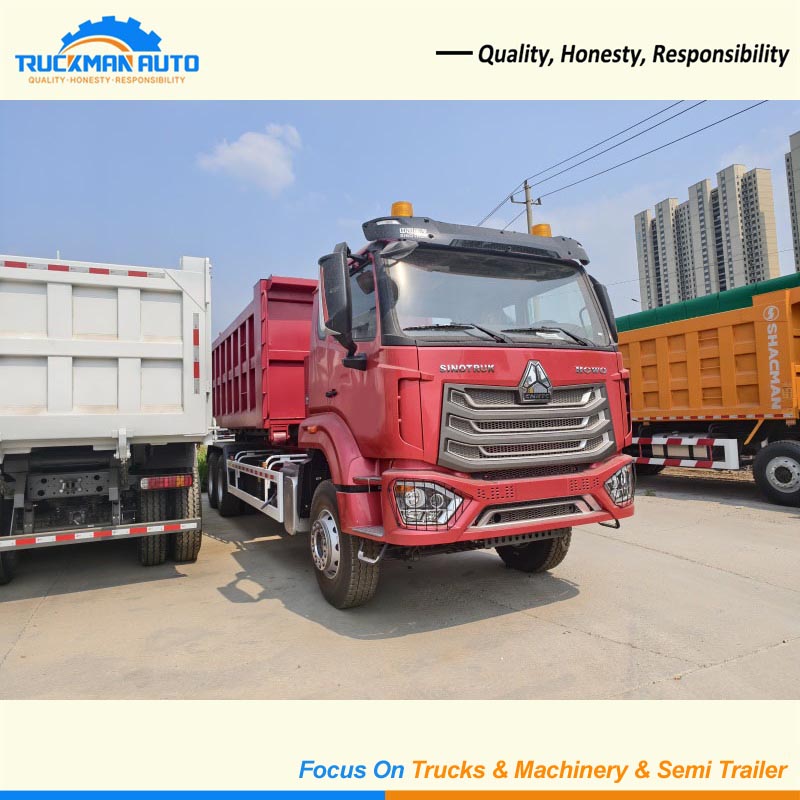

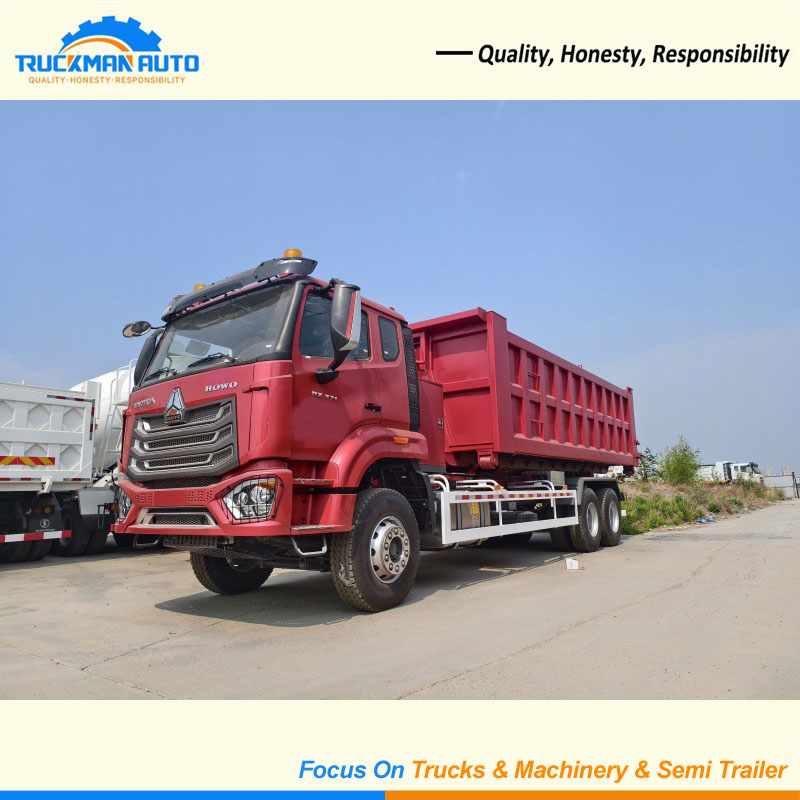

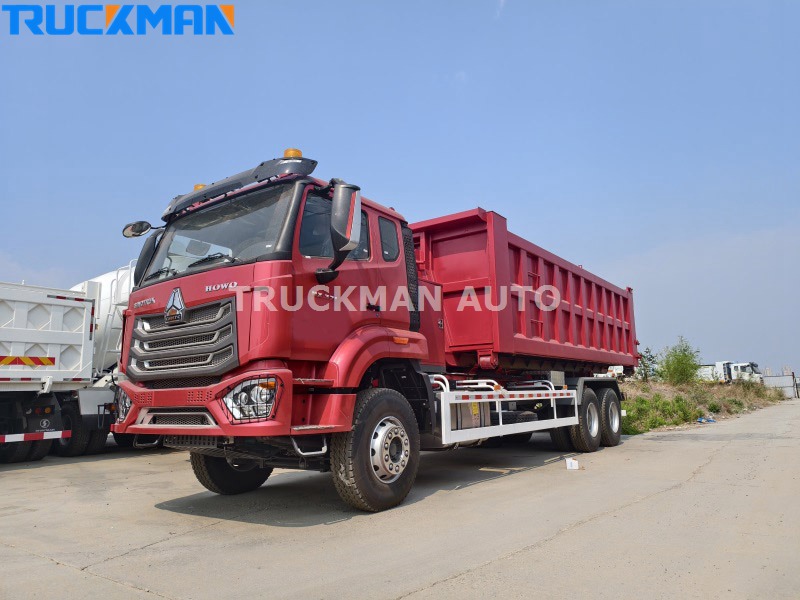

SINOTRUK HOWO NX 371HP 10 Wheels Hook Arm Garbage Truck
SINOTRUK HOWO NX 371HP Hook Arm Garbage Truck Features
The SINOTRUK garbage truck is equipped with WEICHAI 371 horsepower engine with surging power. It is equipped with SINOTRUK special 10-speed transmission, which has high torque, flexible handling, easy gear change, fast start for heavy load, strong climbing ability, and is durable and reliable. Whether it is a flat avenue, or a slightly sloping street, can quickly complete the garbage transfer. 300L aluminum alloy fuel tank, good corrosion resistance, to protect the quality of oil, but also to achieve the lightweight, reduce the weight of the vehicle. The cab is equipped with a sleeper, which greatly enhances the driving comfort.
SINOTRUK HOWO NX 371HP Hook Arm Garbage Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SINOTRUK HOWO NX 371HP 10 Wheels Hook Arm Garbage Truck |
|
Application |
Garbage hauling |
|
Engine |
WD615.47,371HP,EURO II |
|
Cabin |
With one bed, A/C |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
12.00R20, 10+1 pcs |
|
Cargo Box |
12 CBM |
|
Fuel Tank |
300L |
SINOTRUK HOWO NX 371HP 10 Wheels Hook Arm Garbage Truck specification only for your reference, we will recommend other Garbage Truck basic your request.

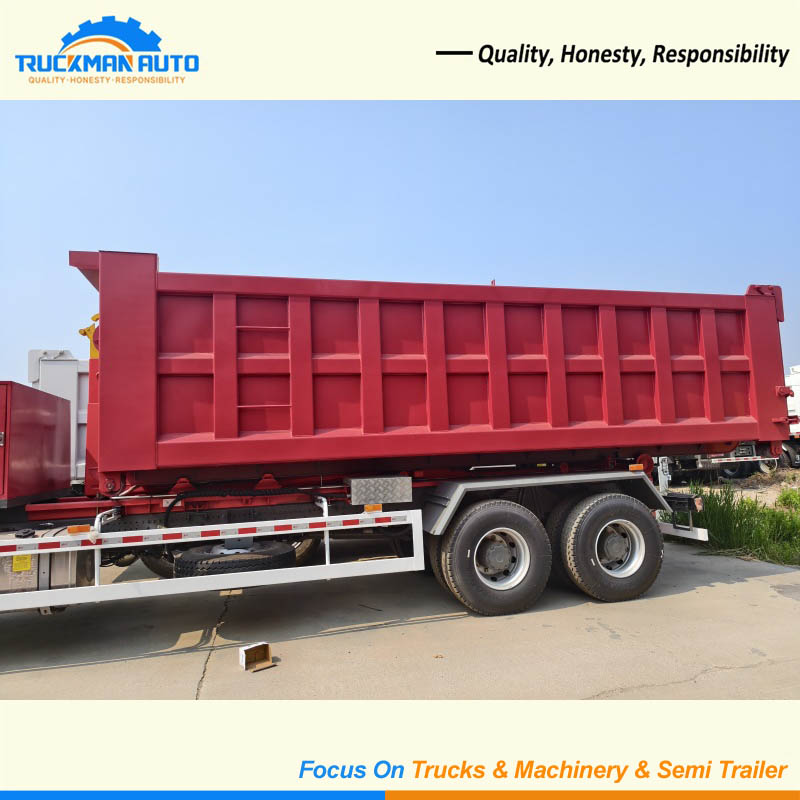

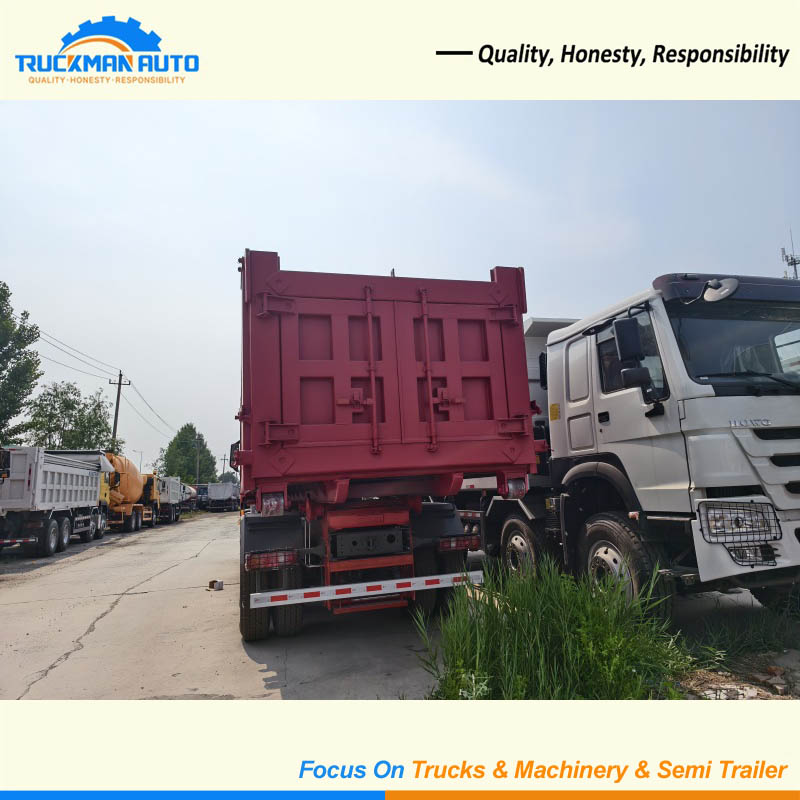

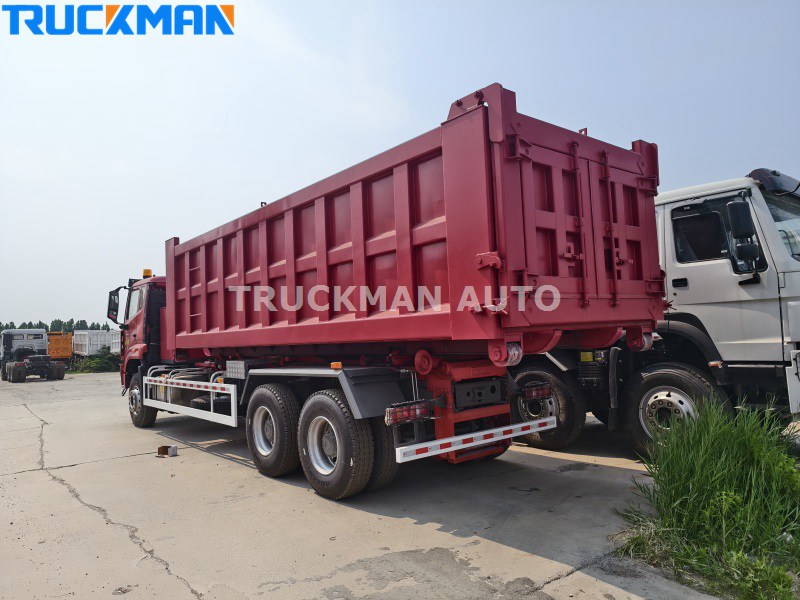

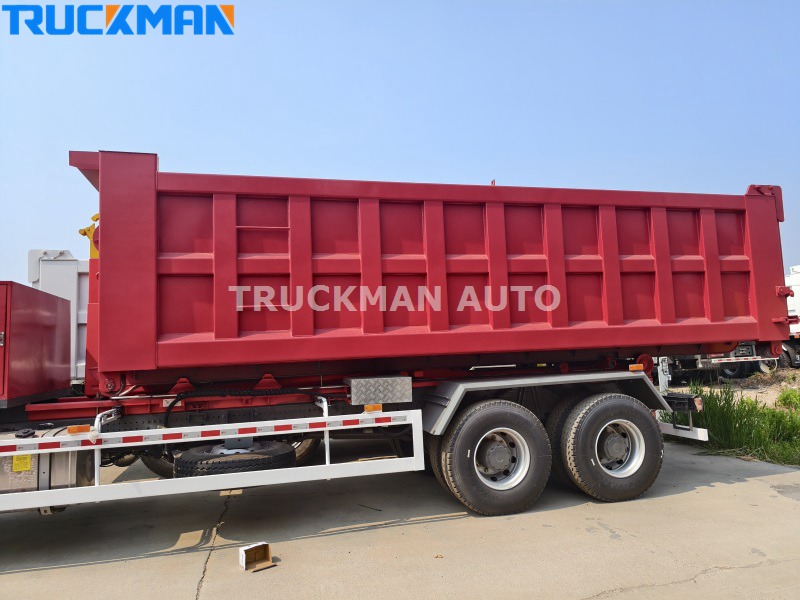

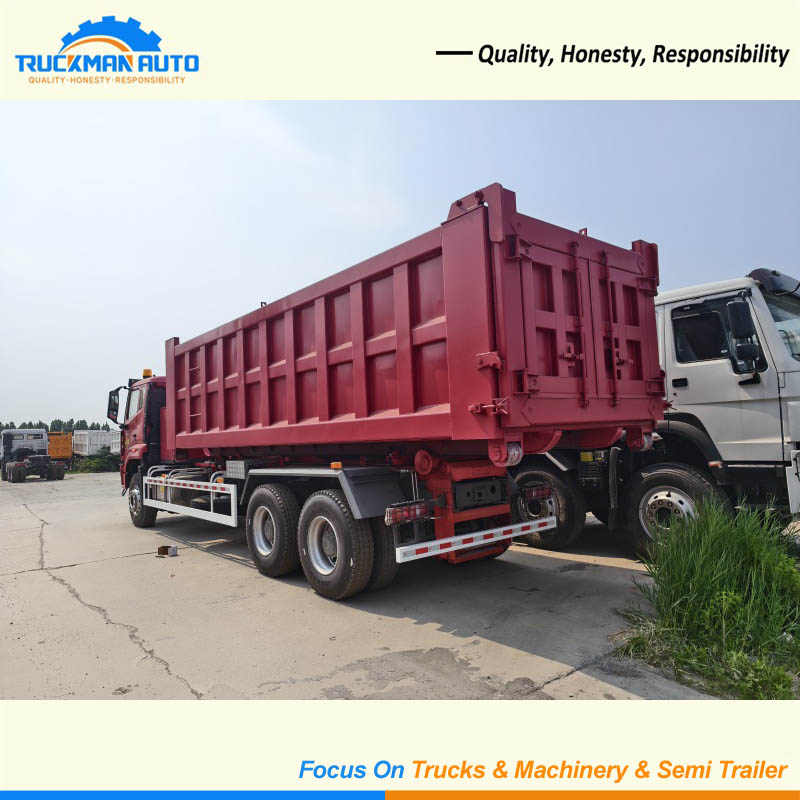

SINOTRUK HOWO 10 Wheels Hook Arm Garbage Truck Cargo Box
The main structure of the cargo box of the hook arm garbage truck adopts high-strength square cylinder to make the telescopic arm, equipped with dual-use valve of hand and electric power and wireless remote control, flexible operation. Double hydraulic cylinder lifting design, the main arm cylinder, movable sleeve arm, sleeve arm cylinder and other synergistic operation, pulling arm with telescopic function, integrated linkage locking and safety limit device, coupled with high-strength precision casting parts, the subbeam of the left and right of the bracket to prevent the box from sliding, safe and stable.
SINOTRUK HOWO 10 Wheels Hook Arm Garbage Truck Advantage
For the urban sanitation scenarios commonly found in narrow alleys, old neighborhoods and other space-restricted areas, the wheelbase design of the garbage truck gives the vehicle a smaller turning radius, with the rear dual-axle drive mode, which significantly enhances the passability of complex road conditions. In heavy-duty scenarios such as construction waste removal and industrial solid waste treatment, the vehicle's high-strength frame and split cargo box structure can withstand high-strength continuous operation, and the hydraulic system is equipped with an overload protection function as standard, avoiding damage to the equipment due to overload operation.
