SINOTRUK HOWO 6x6 All Driven Military Dump Truck

SINOTRUK HOWO 40 Tons 6x6 Dump Truck
SINOTRUK HOWO 40 Tons 6x6 Dump Truck
SINOTRUK HOWO 40 Tons 6x6 Dump Truck
Product Name : SINOTRUK HOWO 6x6 All Driven Military Dump Truck
Product ID : ZZ3257N3847
Type : 6x6 dump truck
Cabin : With one sleep, A/C
Engine : WD615.47, 371HP
Gearbox : HW19710, 10F & 2R
Loading Capacity : 40 Tons
Directions

-1. SINOTRUK HOWO All Drive Dump Truck Main Specification



-. Oil saving, safety, driving comfort, reliability, low application cost

-. Engine, Sinotruk WD615.47, 371HP or 290/336HP, German men technology

-. T- or F-type, middle or front lifting type

-. Tipper body: square or U-shaped

-. Tipper body: 15 to 20cbm

-. Heavy-duty load capacity: 30 to 40 tons

-. Floor thickness: 4 to 16mm, Side wall thickness: 3 to 14mm for customer's different use

-. Hydraulic system: HY-VA brand or Chinese famous brand



Model

ZZ3257N3857 HOWO 6*6 DUMP TRUCK driving type : 6*6

Loading capacity (kg)

30-40T,depend on the density of the material that to be load

Kerb weight ( kg)

17110

Engine

WD615.47, 371HP ,Euro II emission standard

Engine displacement (L)

9.726

Cab

HW76 long cab with one sleeper, with air conditioner , with metal bumper, With engine protector

Transmission

HW19710, SINOTRUK ten speed gear-box

Steering

ZF8118, German hydraulic steering with power assistance

Driving axle

ST16 double drive axle

Rated loading capacity:16T

Standard ratio:5.73 for bad road conditions

Front axle

steel front steering drive axle with planetary wheel reduction

Fuel tank capacity (L)

400

Wheel base (mm)

4300+1350

Tire 15.5R20 radial  tire, 10 pcs,with one spare tire

Maximum speed(km/h)

76

Van dimension (mm)

5600*2300*1200, front hydraulic lift

Thickness: floor 8mm /side 6mm

Overall sizes (mm)

8500×2496×3700

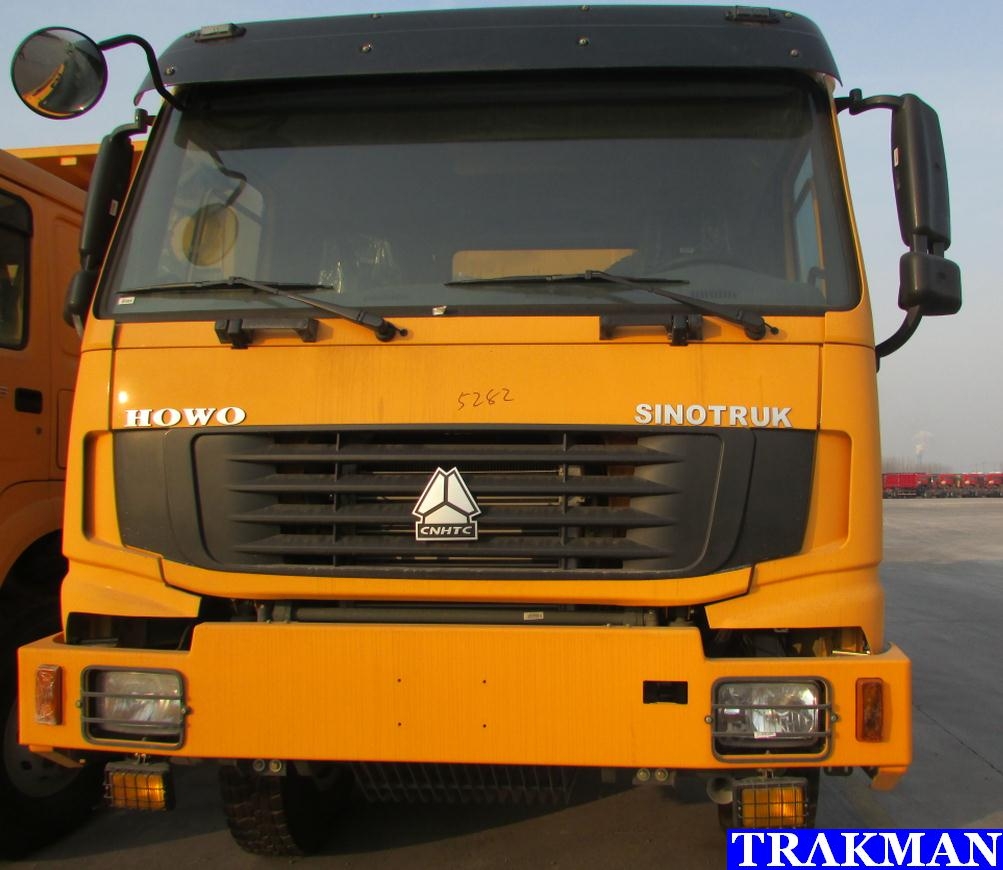

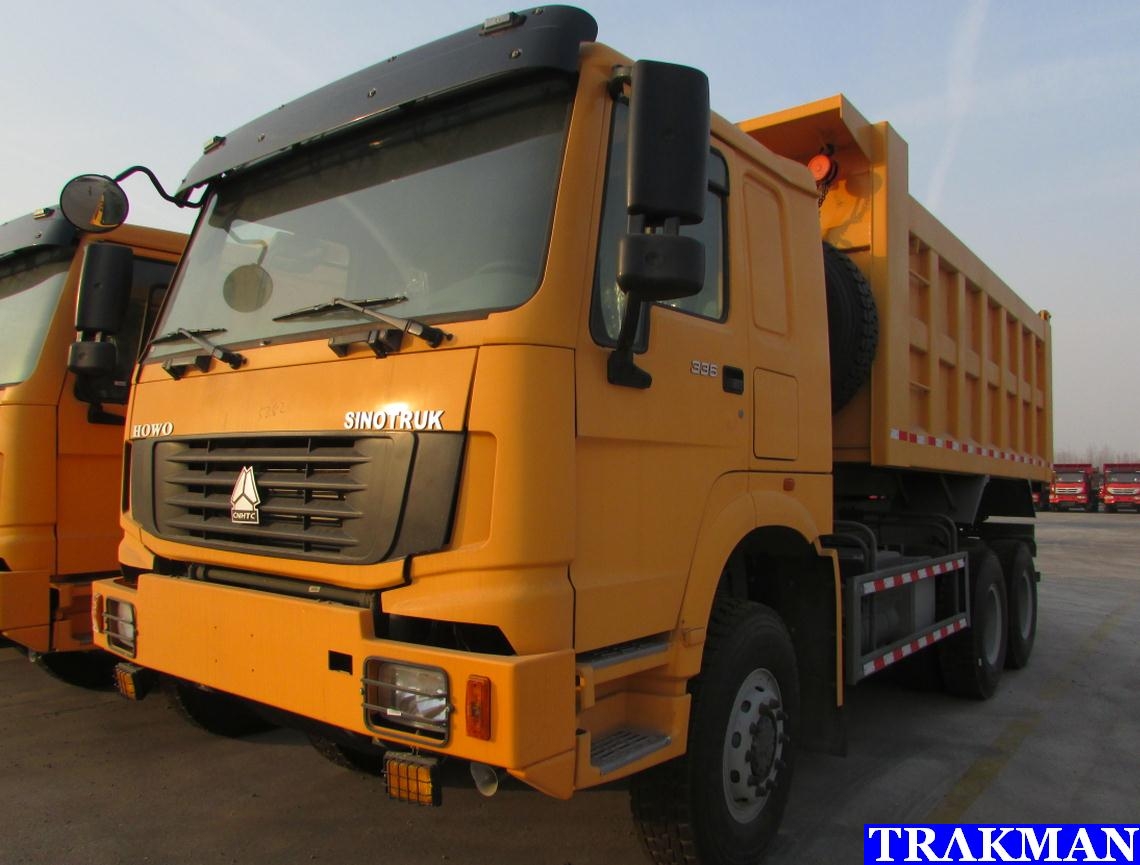

-2. Truck Picture For Reference.







-3. Truck Detail Picture.

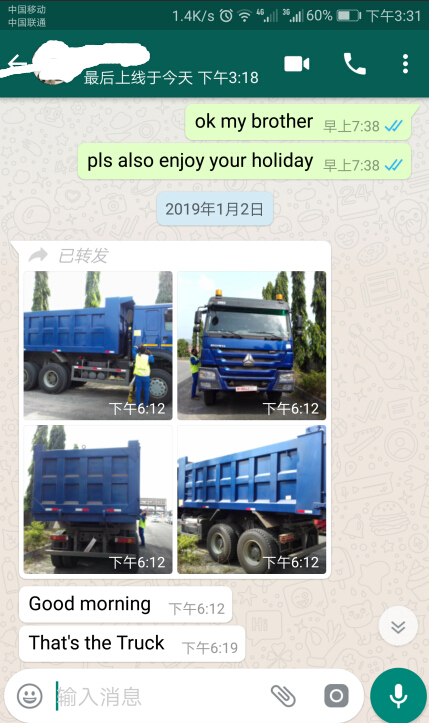

-4.  Customers Feedback.
