SINOTRUK HOWO 4x4 All Driven Fuel Tank Truck
-1. SINOTRUK HOWO All Drive Fuel Tank Truck Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine, Sinotruk WD615.47, 371HP or 290/336HP, German men technology
-. With the safety valve, manhole, sea valve, fire extinguisher etc
-. 5000L-25000L tank body, with 3-8 compartment
|
Model |
ZZ1257N4347 |
|
Loading capacity (kg) |
30-40T,depend on the density of the material that to be load |
|
Kerb weight ( kg) |
17110 |
|
Engine |
WD615.47, 371HP ,Euro II emission standard |
|
Engine displacement (L) |
9.726 |
|
Cab |
HW76 long cab with one sleeper, with air conditioner , with metal bumper, With engine protector |
|
Transmission |
HW19710, SINOTRUK ten speed gear-box |
|
Steering |
ZF8118, German hydraulic steering with power assistance |
|
Driving axle |
ST16 double drive axle Rated loading capacity:16T Standard ratio:5.73 for bad road conditions |
|
Front axle |
steel front steering drive axle with planetary wheel reduction |
|
Fuel tank capacity (L) |
400 |
|
Wheel base (mm) |
4300+1350 |
|
Tires |
15.5R20 radial tire, 10 pcs,with one spare tire |
|
Maximum speed(km/h) |
76 |
|
Tank Body(L) |
20000L |
|
Overall sizes (mm) |
8500×2496×3700 |

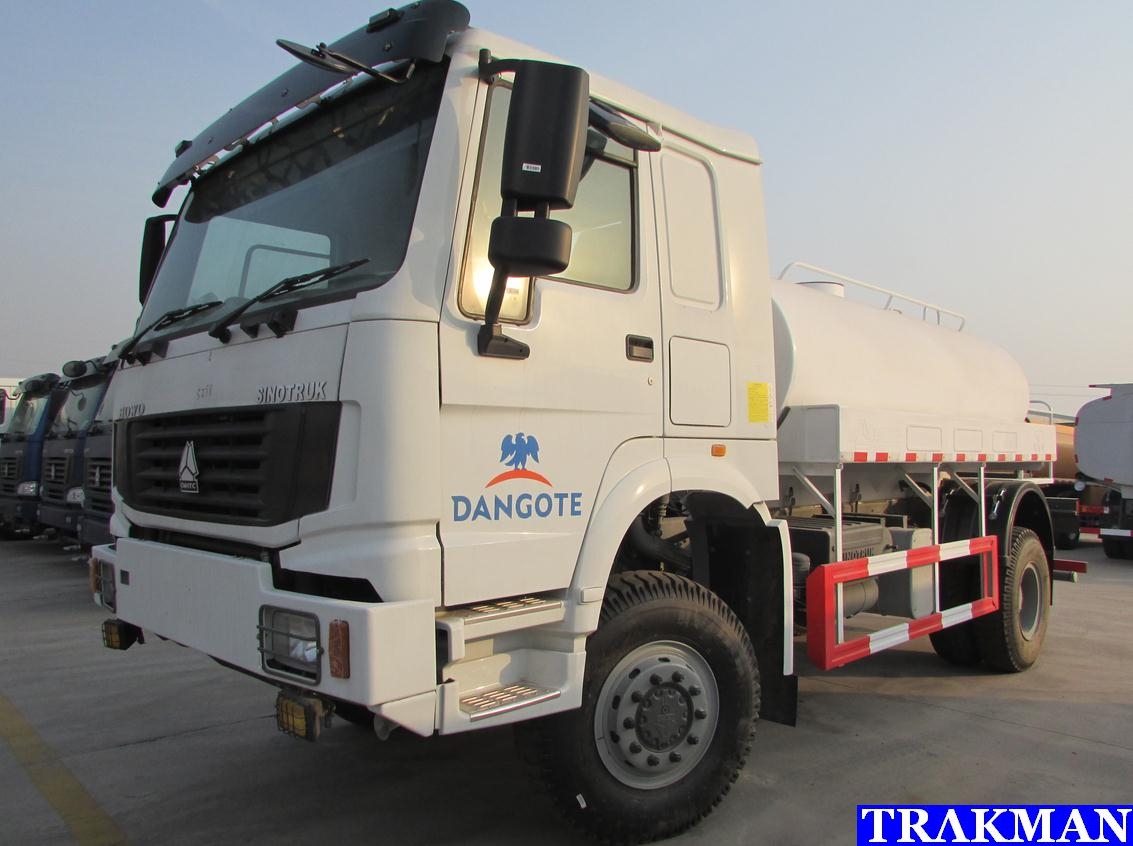

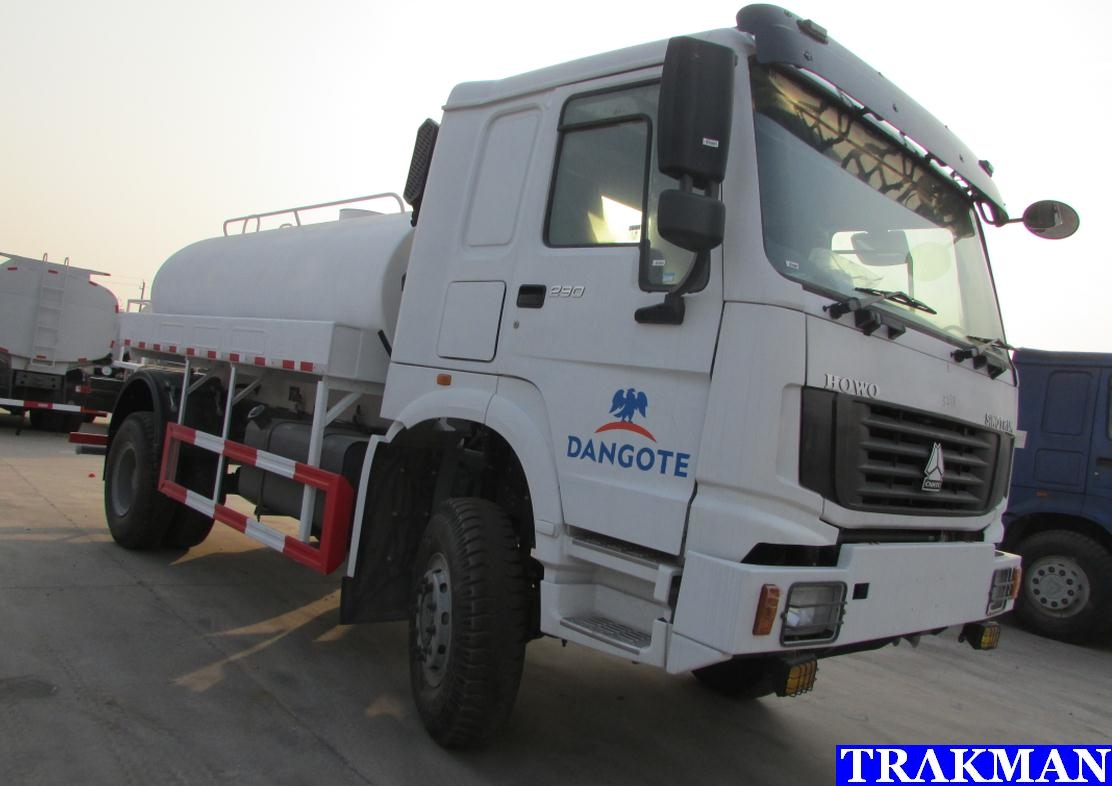

-2. Truck Picture For Reference.

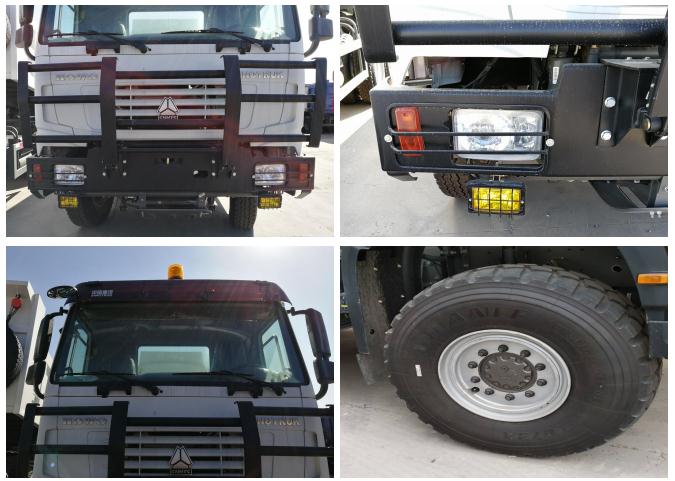

-3. Truck Detail Picture.
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's trucks, all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
