SINOTRUK HOVA Container Terminal And Port Tractors Truck
-1. SINOTRUK HOVA Port Terminal Tractor Truck Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine, SINOTRUK, German MAN technology
-. Allison brand transmission
-. Loading: 30-45 tons
-. 300-400L oil tank
-. Maintenance cost is lower
|
Complete Vehicle Kerb Mass(kg) |
6800 |
|
|
Maximum authorized total mass (kg) |
70000 |
|
|
Maximum authorized towed total mass(kg) |
35000 |
|
|
External Dimensions(mm) |
Length |
4720 |
|
Width |
2496 |
|
|
Height |
3000 |
|
|
wheelbase(mm) |
2800 |
|
|
Minimum Ground Clearance(mm) |
290 |
|
|
Maximum Speed(km/h) |
39 |
|
|
Maximum Gradeability(%) |
22 |
|
|
Turning diameter(m) |
14 |
|
|
Engine |
Engine Type |
WD615.62 |
|
Rated power(kW) |
196 |
|
|
Maximum Torque(N*m) |
1100 |
|
|
Transmission |
Allison 3500 |
|
|
Clutch(mm) |
430 |
|
|
Rear Axle |
Type |
HW12 |
|
Speed Ratio |
3.91 |
|
|
Fuel Tank(L) |
400,600 |
|
|
Chassis Cross-section(mm) |
270,300,270,270 |
|
|
Suspension(Front,Back) |
4/5,4/9+6 |
|
|
Tyre |
11.00-20 |
|

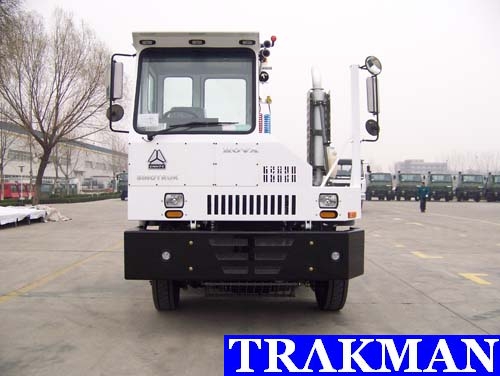

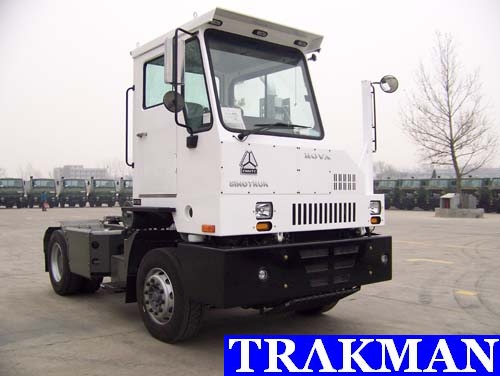

-2. Truck Picture For Reference.

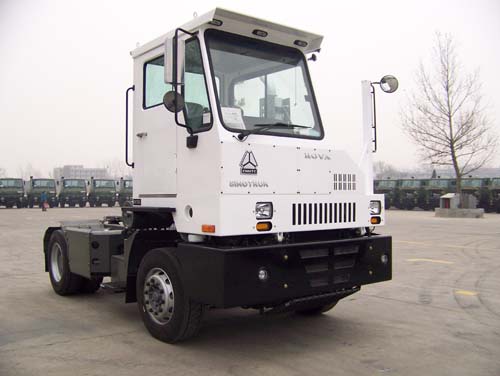

-3. Truck Detail Picture.
-4. Payment Term.
Now our company could accept the T/T (BANK TRANSFER), L/C.
Also can accept the L/C against cover at SINOSURE.
