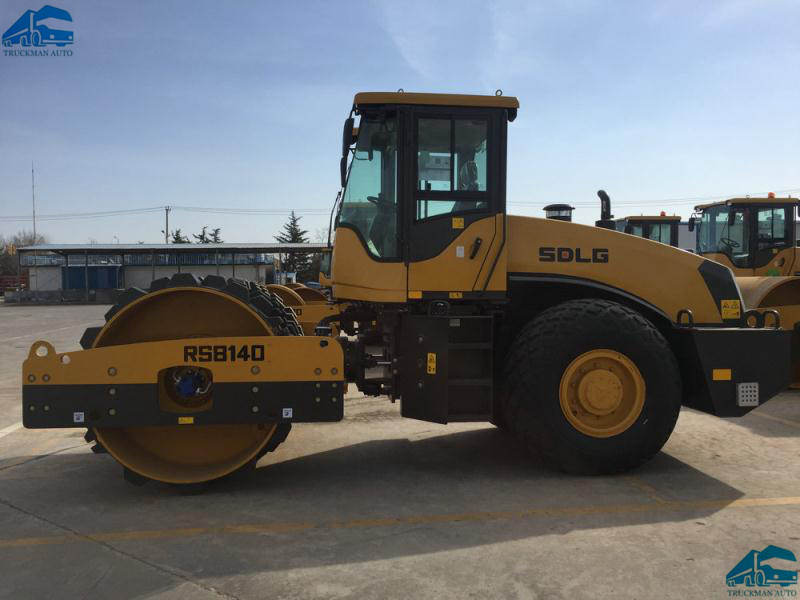

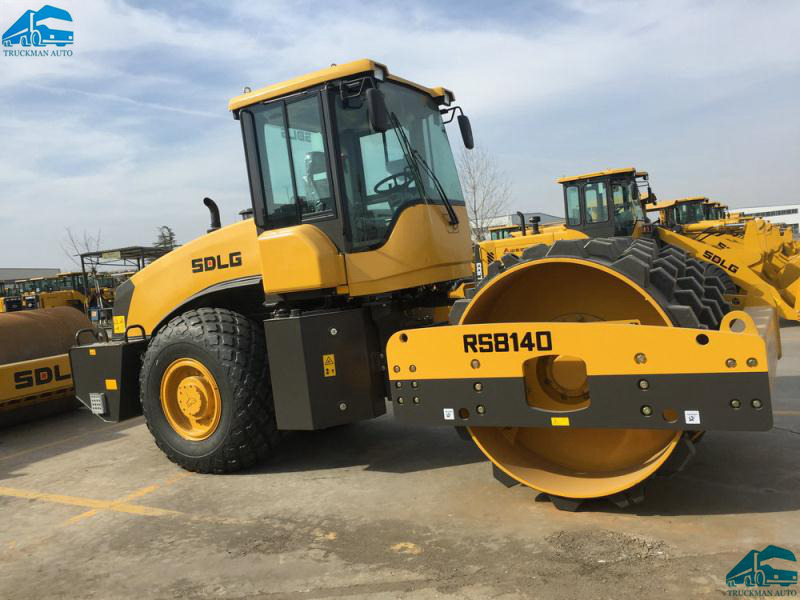

SDLG Brand RS8140 14 Tons Mechanical Single Drum Vibratory Road Roller
SDLG brand RS8140 14 tons mechanical single drum vibratory road roller is a heavy duty auto-propelled vibratory road roller and can effectively compact various soil layer and rock fill. This machine is of industrial leading level in compacting, driving and operating performance and so on. It is ideal compacting equipment for road, airport, harbor, railway, dam and industrial site.
The specification for the SDLG 14 tons road roller as follow:
|
Item |
Specification |
|
L×W×H |
6113×2300×3140mm |
|
Width of vibrating wheel |
2130mm |
|
Diameter of vibrating wheel |
1500mm |
|
Wheel tread |
1535mm |
|
Wheelbase |
3303mm |
|
Min.ground clearance |
350mm |
|
Min.turning radius |
6400mm |
|
Compacting width |
2130mm |
|
Theoretical gradeability |
30% |
|
Steering angle |
35° |
|
Swing angle |
12° |
|
Overall Parameter |
|
|
Overall working weight |
14000kg |
|
Weight distribution of front wheel |
7000kg |
|
Weight distribution of rear wheel |
7000kg |
|
Nominal amplitude (high/low) |
1.8/1.0mm |
|
Vibration frequency (low/high) |
30Hz |
|
Exciting force (high/low) |
261/145kN |
|
Static linear load |
322N/cm |
|
Engine |
|
|
Model |
WP6G125E22 |
|
Type |
Inline, water-cooled, direct injection |
|
Rated power/speed |
92kw/2000r/min |
|
Engine displacement |
6.75L |
|
Cylinder bore/stroke |
105/130mm |
|
Emission standard |
GB2089-2007 |
|
Max.torque |
540Nm |
|
Min.fuel-consume ratio |
≤220g/kW.h |
|
Transmission System |
|
|
Clutch type |
Dry single disc clutch |
|
Transmission type |
Fixed shaft mechanical shifting |
|
Gears |
Three forward two reverse |
|
Speed at forward/reverse gear I |
0~2.4km/h |
|
Speed at forward/reverse gear II |
0~4.1km/h |
|
Speed at forward gear III |
0~9.2km/h |
|
Brake System |
|
|
Service brake type |
Air over hydraulic disc brake |
|
Parking brake type |
Manual caliper disc type |
|
Steering System |
|
|
Type |
Full hydraulic steering |
|
System pressure |
16MPa |
|
Vibration System |
|
|
Type |
Open system |
|
System pressure |
20MPa |
|
Fuel Capacity |
|
|
Fuel |
270L |
|
Hydraulic oil |
100L |
|
Engine |
16L |
|
Transmission |
13L |
|
Drive axle |
16L+2x5L |
|
Brake system |
2L |
