371HP SINOTRUCK 6x6 Dump Truck

371HP SINOTRUCK 6x6 Dump Truck
371HP SINOTRUCK 6x6 Dump Truck
371HP SINOTRUCK 6x6 Dump Truck
371HP SINOTRUCK 6x6 Dump Truck
371HP SINOTRUCK 6x6 Dump Truck
371HP SINOTRUCK 6x6 Dump Truck
Product Name : 371HP SINOTRUCK 6x6 Dump Truck
Product ID : ZZ3257N4357A
Loading Tons : 32,000kg
Engine : WD615.47, 371HP
Gearbox : 10 forward and 2 reverse
Driving Axle : ST16, 2x16000kg
Cargo Box : 5400x2300x1500mm
Directions

371HP SINOTRUCK 6x6 Dump Truck Features



The SINOTRUCK 6x6 dump truck all tire can drive, suitable for desert, mountain and other special roads. Superb climbing and off-road capabilities.



-. Big diameter tire, with large pattern, suitable for climbing.

-. 16 ton driving axle, with super loading capacity.





371HP SINOTRUCK 6x6 Dump Truck Specification



Description

Parameter Value

Product Name

371HP SINOTRUCK 6x6 Dump Truck

Application

Transport sand, block, gravel etc

Loading Capacity

32,000kg

Engine

WD615.47, 371HP, EURO II

Cabin

HW76, with one bed, A/C, right hand drive

Gearbox

10 forward and 2 reverse gear

Tire

315/80R22.5, 10+1 pcs, tubeless model

Cargo Box

5400x2300x1500mm

Front Axle

STR, 1x7000kg

Driving Axle

ST16, 2x16000kg

Fuel Tank

400L

Dimension

8500x2560x3450mm



The 371HP SINOTRUCK 6x6 dump truck specification only for your reference, we will recommend other model SINOTRUCK dump truck basic your request.

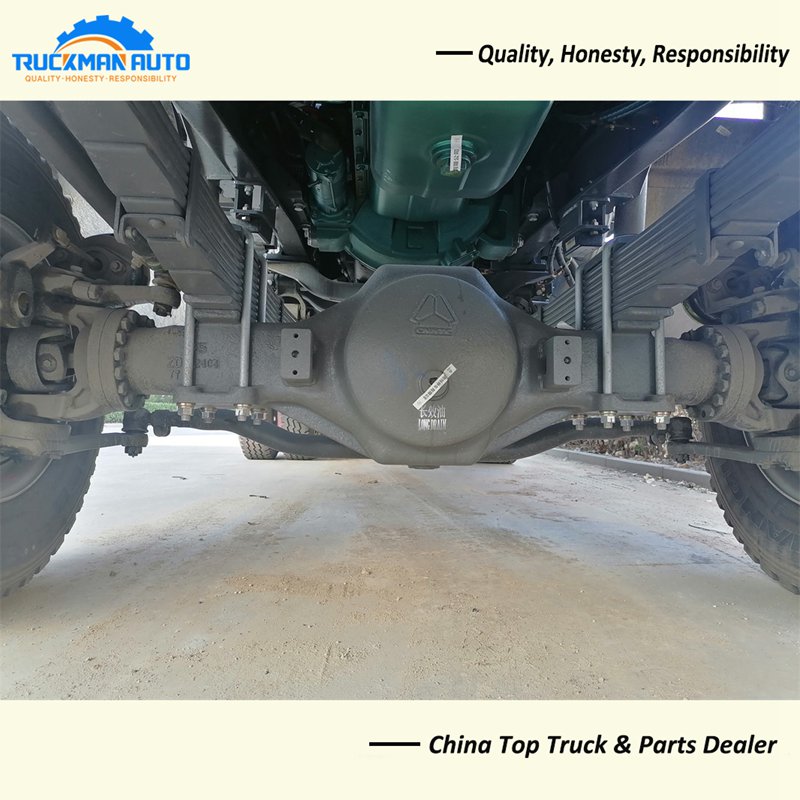

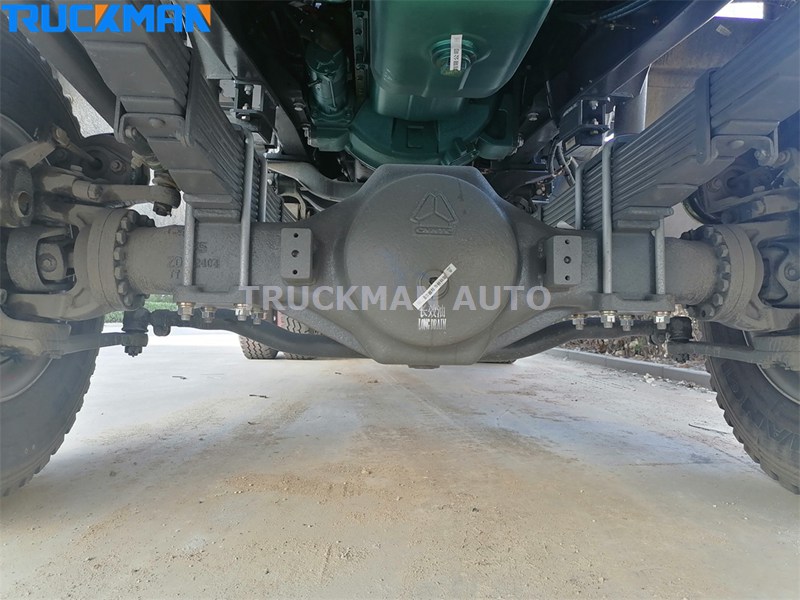

371HP SINOTRUCK 6x6 Dump Truck Driving Axle



SINOTRUCK 6x6 dump truck driving axle is STR and ST16 model, 16-ton axle, 5.33 rear axle speed ratio has strong deceleration and torsion capacity, with transverse stabilizer bar to enhance vehicle driving stability.
