-1. XCMG XP263 Pneumatic Tire Roller Detail.
XCMG XP263 pneumatic tire roller is a large-tonnage tire roller produced according to market requirements, which will take pneumatic tires as working device for compacting paved materials. It is an ideal set of compacting equipment for building high grade highway, airport, port, dam and industrial construction site.
-. The XCMG XP263 pneumatic tire roller uses the box type integral frame, each part of the body is designed with access hole and overturned cover board to facilitate maintenance and curing of each component.
-. Dual-circuit brake technology has higher brake effect, fast response speed, short brake distance and higher reliability. Guarantee safety of the whole machine, and it is particularly applicable for working in mountainous area.
-2. XCMG XP263 Pneumatic Tire Roller Specification.
Description |
Parameter Value |
Product Name |
XCMG XP263 Pneumatic Tire Roller |
Application |
Road construction etc |
Engine |
SC7H180.2G3 |
Rated Weight |
26000kg |
Speed |
8、17km/h |
Tyre Quantity |
Front 4 pcs rear 5 pcs |
Tyre Pressure |
600-650kPa |
Tyre |
13/80-20 |
Working Width |
2360mm |
Dimension |
4925×2530×3450mm |
The XCMG XP263 pneumatic tire roller specification only for your reference, we will recommend other model XCMG pneumatic tire roller according to your request.

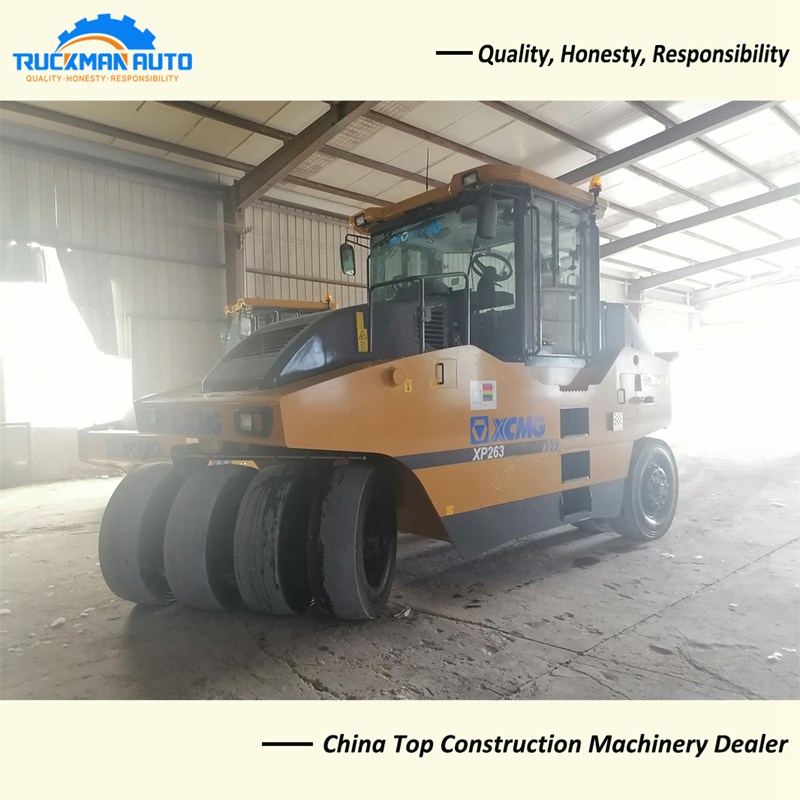

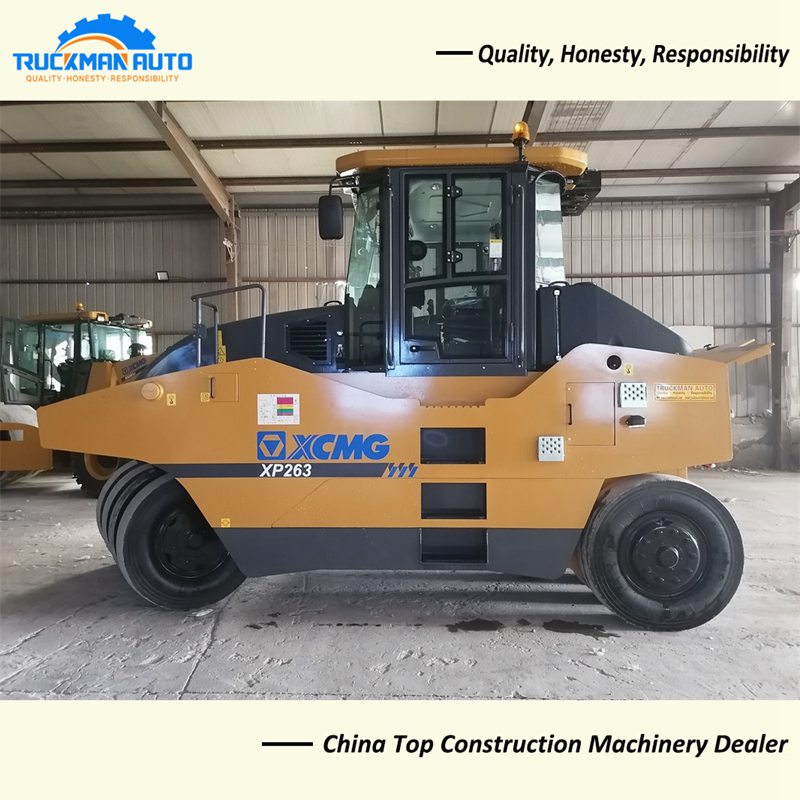

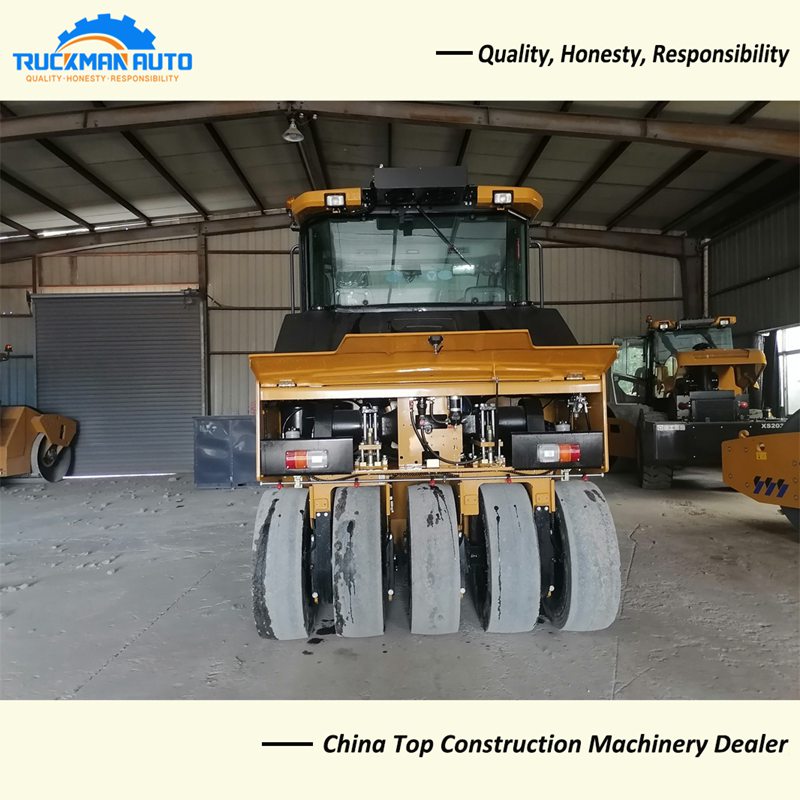

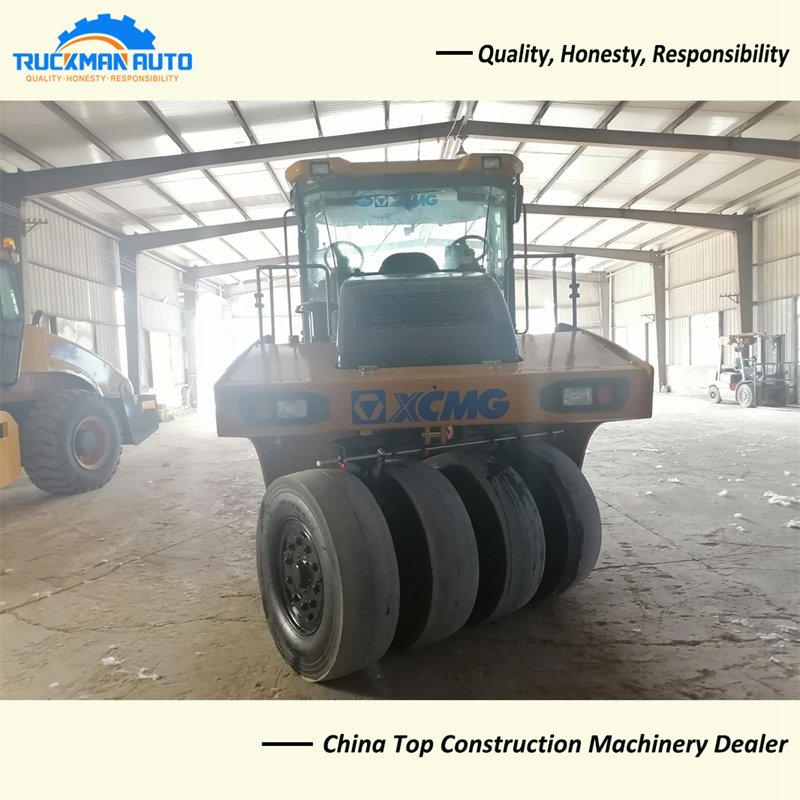

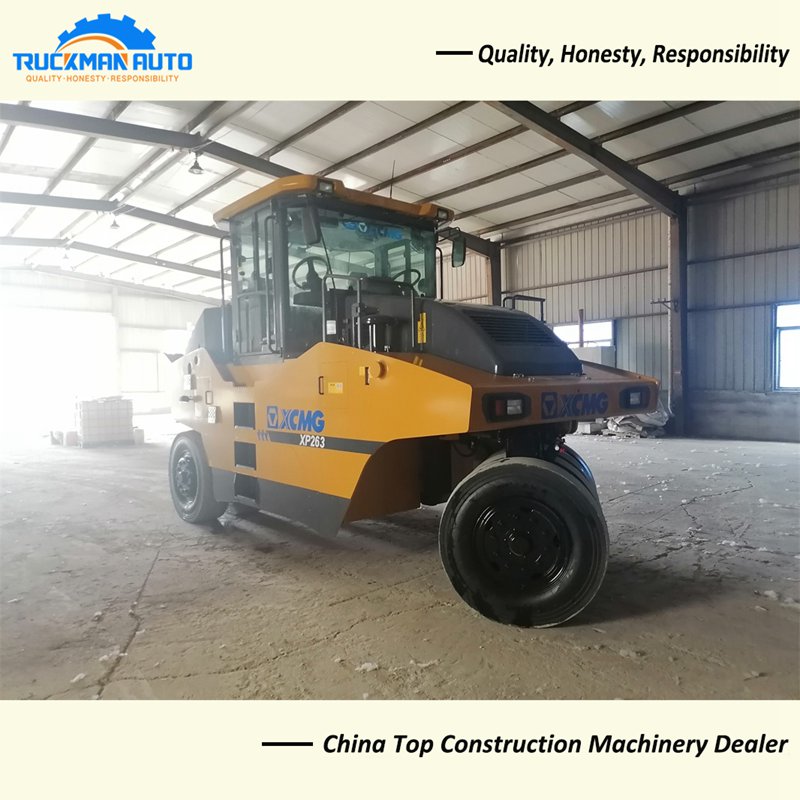

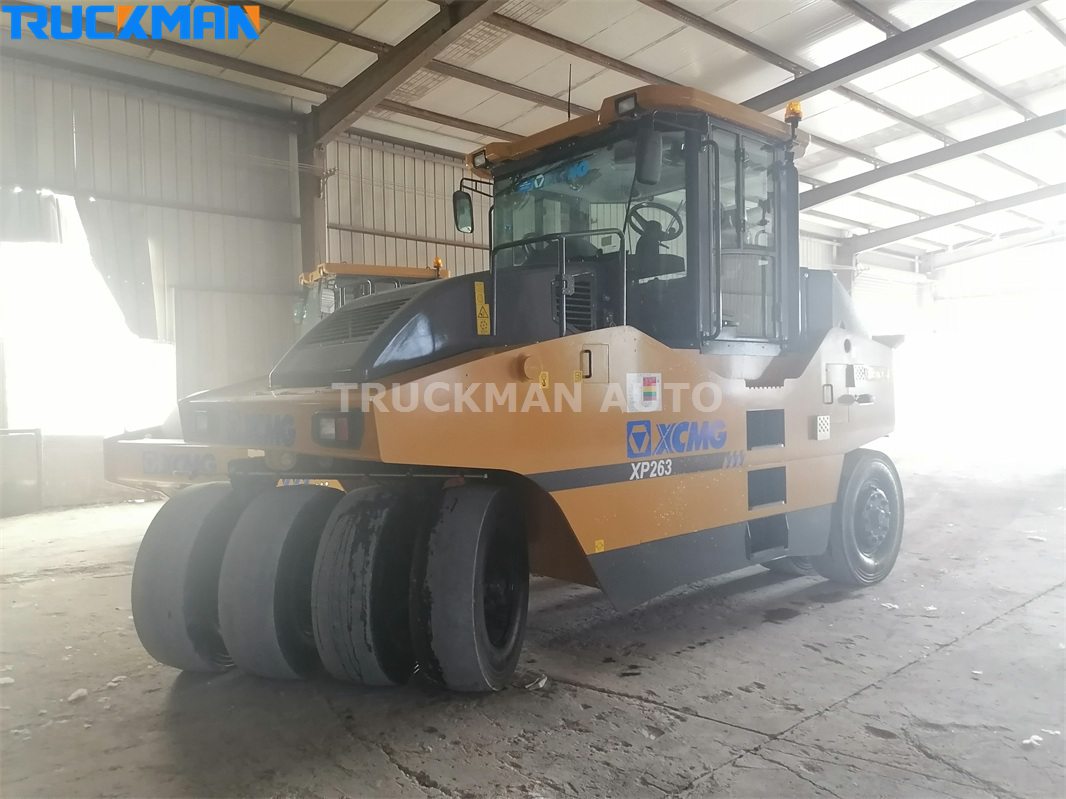

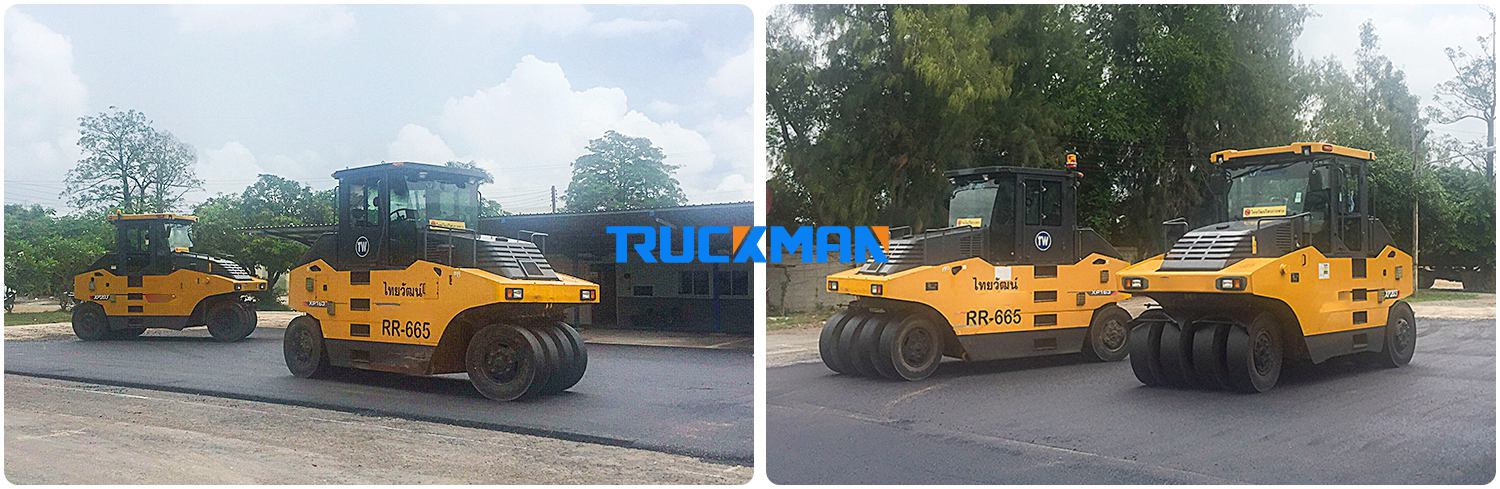

-3. XCMG XP263 Pneumatic Tire Roller Working Picture.
The XP263 pneumatic tire roller front four and rear five tires layout is adopted. All tires are installed with scrapers for cleaning adhesive materials on the tire reads. The grounding specific pressure can be adjusted in the range of 200kPa ~ 470kPa, good compaction uniformity.
